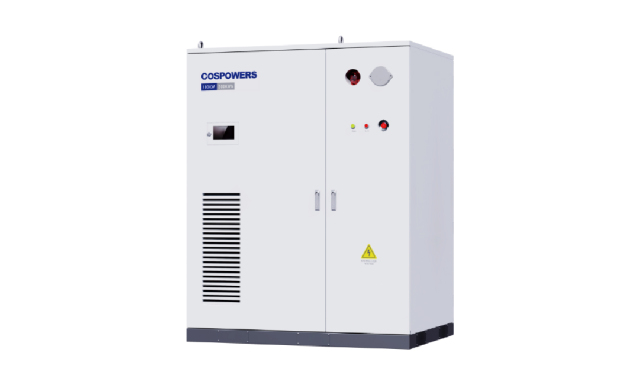

| Parameters/Model | PowerEco-100kW/215kWh | |
| DC side parameter | Max Voltage | 950V |
| Max Current | 170A | |
| Voltage Range | 650~950V | |
Max.Apparent Output | 116kVA | |
| AC grid connection parameter | Max.Input Active Power | 105kW |
| Nominal Voltage | 400Vac,3P3W+PE/3P4W+PE | |
| Max.Input Current | 167A | |
| Nominal Input Frequency | 50Hz/60Hz | |
| Nominal Voltage | 400Vac,3P3W+PE/3P4W+PE | |
ACoff-grid parameter | Max Output Current | 167A |
| Nominal Frequency | 50Hz/60Hz | |
| Cell capacity | 280Ah(LFP) | |
| Battery parameters | Capacity | 215kWh |
Nominal Voltage | 768V | |
| Voltage Range | 672~840V | |
| C Rate | ≤0.5C | |
| HMI | 7 Inch touch screen | |
| System level parameters | Fire Safety | Perfluorohexane fire protection/Aerosol |
| Cooling Method | Air cooling | |
| Operating Temp. | -20~55℃ | |
| IP Degree | IP54 | |
| Dimension(W*D*H) | <1700*1200*2150mm | |
| Weight | <3000Kg | |
| Others | MPPT | 100kW(Optional) |
| STS | 240kW(Optional) | |
| Certification | Undergoing Certification | |
