No | Item | Data | Remark | |||
1 | Nominal Capacity | 100Ah | (25±2)℃，standard charge and discharge. | |||
2 | Nominal Voltage | 3.2V | ||||
3 | Internal resistance(1KHz) | ≤0.5mΩ | ||||
4 | Standard charge and discharge | charge/discharge current | 0.5C/0.5C | (25±2) ℃ | ||
charge/discharge cut-off voltage | 3.65V/2.5V | |||||
5 | Maximum charge/discharge current | Constant charge/discharge | 1C/1C | Refer to constant/pulse charge and discharge ammeter | ||
Pulse charge/discharge (30s) | 2C/2C | |||||
6 | Recommended SOC usage window | 10%～90% | N.A. | |||
7 | Charging working temperature | 0℃～55℃ | Refer to constant/pulse charge and discharge ammeter | |||
8 | Discharging working temperature | -20℃～55℃ | ||||
9 | Storage temperature | Short term (within 1 month) | -20℃～45℃ | N.A. | ||
Long term (within 1 year) | 0℃～35℃ | |||||
10 | Storage humidity | ＜95% | ||||
11 | Monthly self-discharge rate | ≤3%/月 | (25±2)℃，30%～50%SOC storage | |||
12 | Unfolded area width | 160.0±0.5mm | ||||
13 | Folded area width | 160.0±0.8mm | ||||
14 | Size | Thickness (30%- 40%SOC 200kgf) | 50. 1±0.5mm | Refer to Appendix 1 |
15 | Height (total height) | 118.5±0.5mm | ||
16 | Height (body height) | 115.7±0.5mm | ||

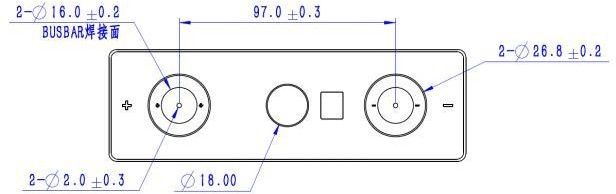

17 | Pole center distance | 97.0±0.3mm | ||
18 | Battery weight | 1.98±0.05kg | ||
19 | Envelope method | U-envelope | ||
