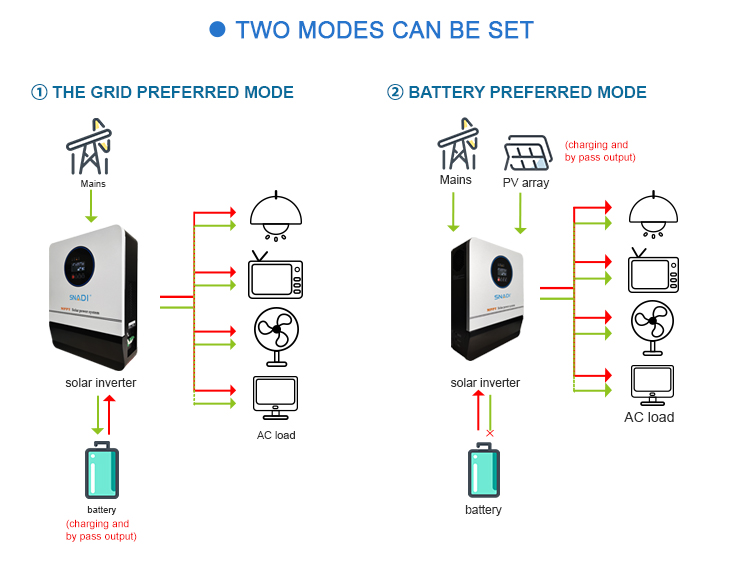

◒ The power mode /energy saving mode /battery mode can be set up.Flexible application

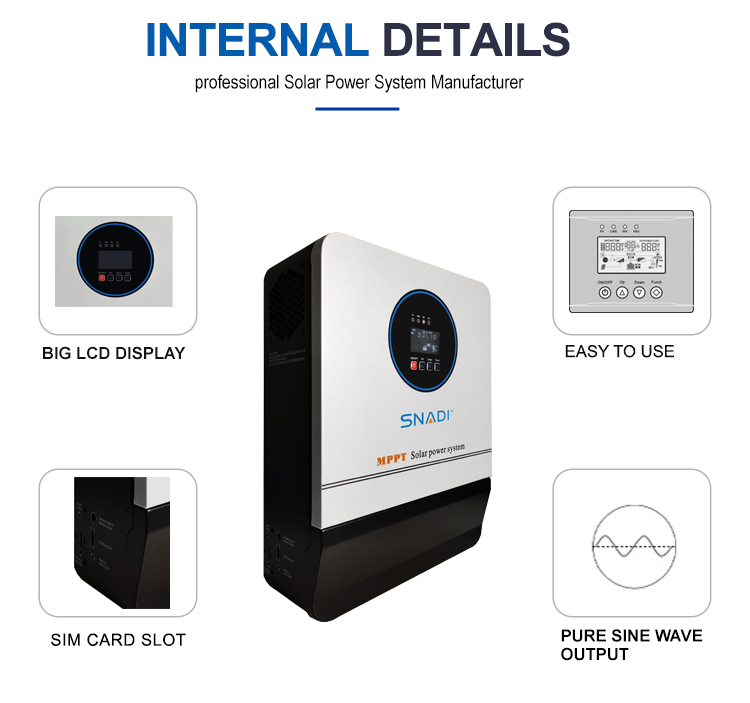

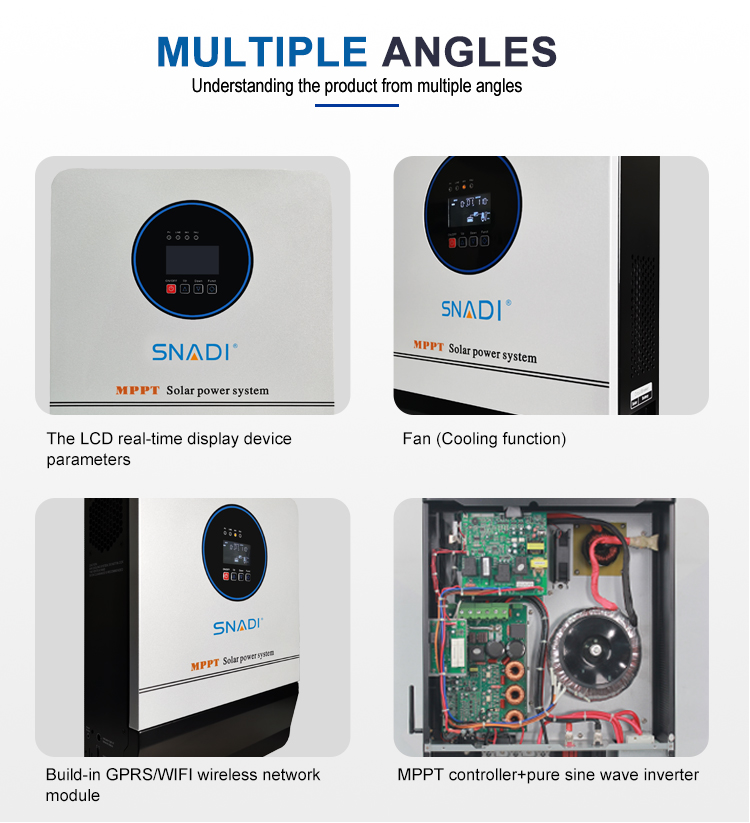

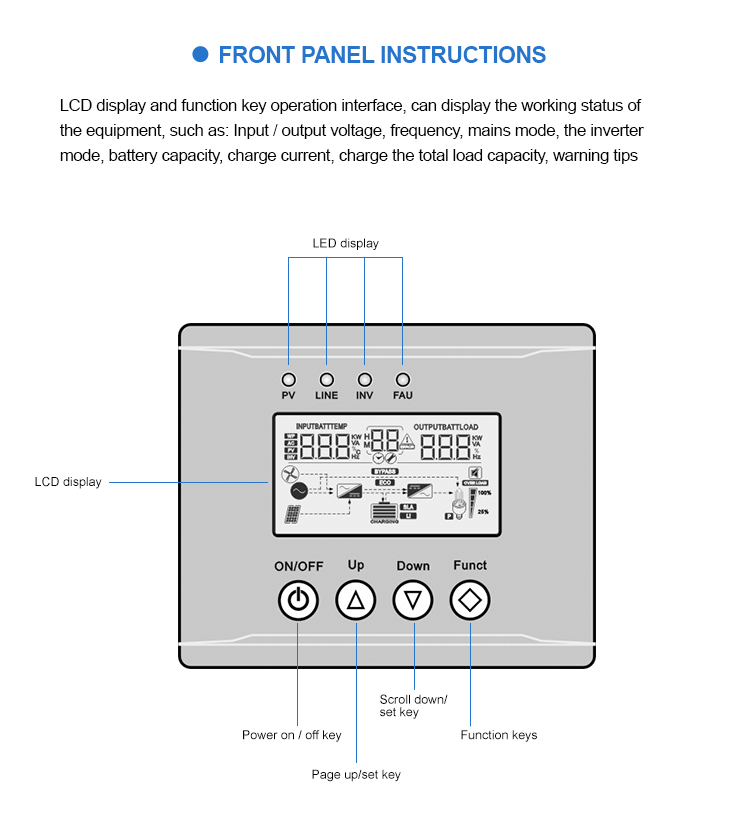

◒ The LCD real-time display device parameters
Guangdong China
Model: MPPT | 0.3-1KW | 1.5-6KW | |||||||||
power rating(w) | 300 | 700 | 1500 | 3000 | 5000 | ||||||
500 | 1000 | 2000 | 4000 | 6000 | |||||||
Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48/96 | ||||||
Charge Current | 10A MAX | 30A MAX | |||||||||
Battery Type | Can be set | ||||||||||
Input | Voltage Range | 85-138VAC/170-275VAC | |||||||||
frequency | 45-65Hz | ||||||||||
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | |||||||||
frequency | 50/60Hz±1%( Inverter mode) | ||||||||||
Output wave | Pure Sine Wave | ||||||||||
Change time | ＜10ms(Typical load) | ||||||||||
Efficiency | ＞85%（80% Resistive load） | ||||||||||
overload | 110-120%/30S；＞160%/300ms； | ||||||||||
Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | ||||||||||
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC；120V~150VDC | |||||||||
PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) 96VDC-60A（6400W） | |||||||||
Rated charge current | 30A(Max) | 60A(Max) | |||||||||
MPPT efficiency | ≥99% | ||||||||||
Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | ||||||||||
Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | ||||||||||
Operating ambient temperature | -15-+50℃ | ||||||||||
Storage ambient temperature | -20 - +50℃ | ||||||||||
Operating / storage environment | 0-90% No Condensation | ||||||||||
Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | |||||||||
Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | |||||||||
