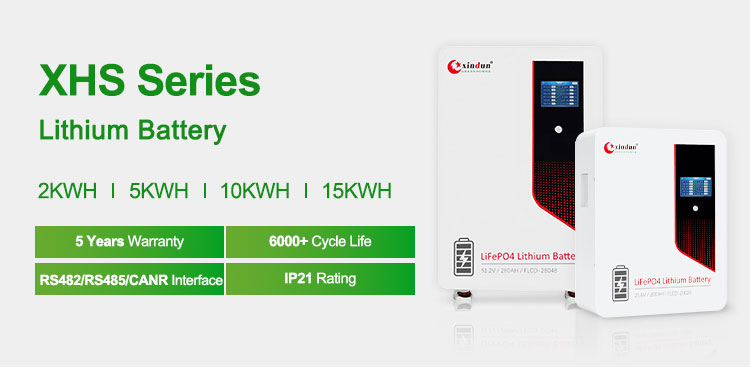

Model
|
XHS-100256
|
XHS-200256
|
XHS- 100512
|
XHS- 200512
|
XHL- -280512
|
|
Standard valtage
|
25.6V
|
25.6V
|
51.2V
|
51.2V
|
51.2V
|
|
Standard capacity
|
100Ah
|
200Ah
|
100Ah
|
200Ah
|
280AH
|
|
Rated capacity
|
2.56KWh
|
5.12KWh
|
5.12KWh
|
10.24KWh
|
14.336KWh
|
|
Working valtage
|
21.6V-28.8V
|
21.6V-28.8V
|
43.2V-57.6V
|
43.2V-57.6V
|
/
|
|
Standard charging current
|
50A
|
100A
|
50A
|
100A
|
100A
|
|
Standard discharging current
|
100A
|
200A
|
100A
|
200A
|
200A
|
|
Suggested DOD
|
80%
|
80%
|
80%
|
80%
|
80%
|
|
Cycle life
|
>6000 cycles
|
>6000 cycles
|
>6000 cycles
|
>6000 cycles
|
>6000 cycles
|
|
IP Rating
|
IP21(IP21 optional)
|
IP21(IP21 optional)
|
IP21(IP21 optional)
|
IP21(IP21 optional)
|
IP30
|
|
Discharge operating temperature
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
|
Charge operating temperature
|
0℃~45℃
|
0℃~45℃
|
0℃~45℃
|
0℃~45℃
|
0℃~60℃
|
|

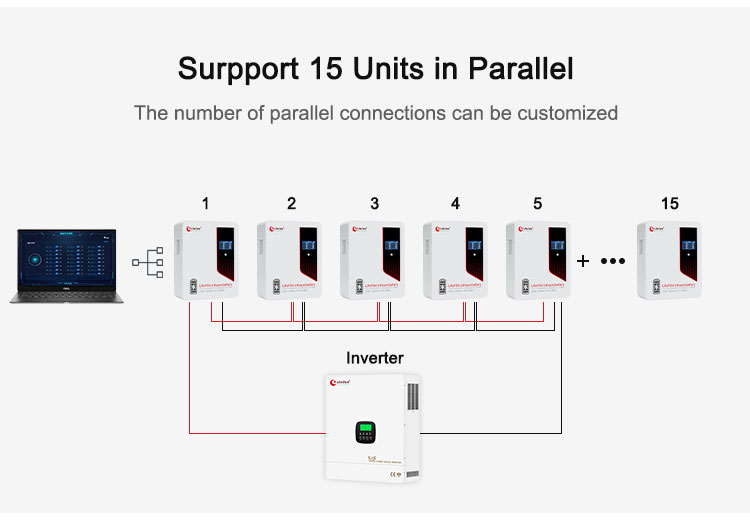

Maximum parallel
|
15PCS
|
15PCS
|
15PCS
|
15PCS
|
15PCS
|
|

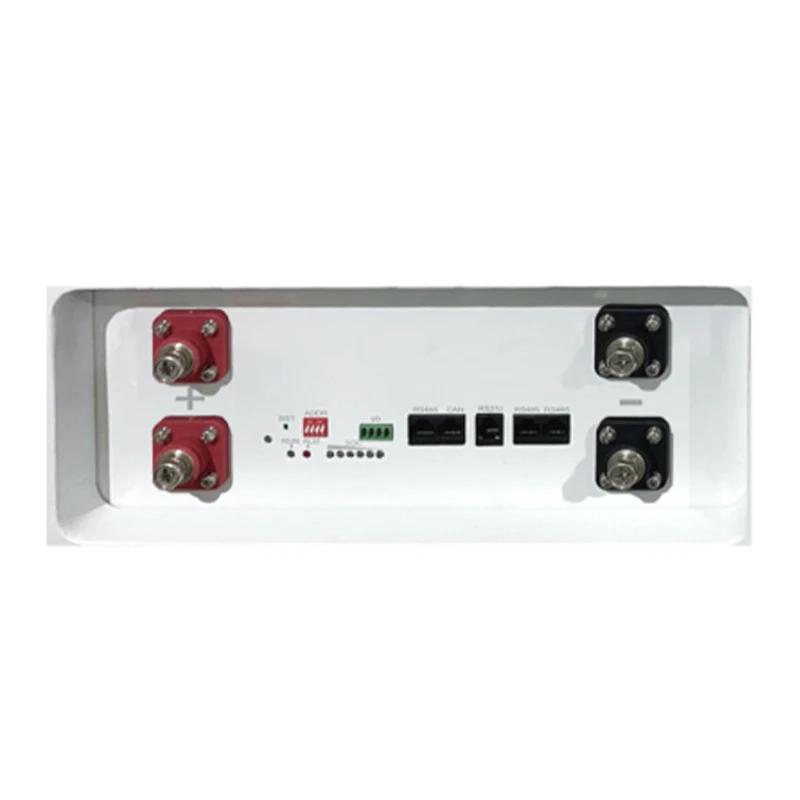

Interface
|
RS232/ CAN/ RS485( WIFI/ BT optional)
|
RS232/ CAN/ RS485( WIFI/ BT optional)
|
RS232/ CAN/ RS485( WIFI/ BT optional)
|
RS232/ CAN/ RS485( WIFI/ BT optional)
|
RS232/ CAN/ RS485(WIFI/ BT optional)
|
|
Display
|
LED touch screen
|
LED touch screen
|
LED touch screen
|
LED touch screen
|
LED touch screen
|
|
Waranty
|
5 Years
|
5 Years
|
5 Years
|
5 Years
|
10 Years
|
|
Certificate
|
UN38.3/ MSDS/CE/ROHS/ FCC
|
UN38.3/ MSDS/CE/ROHS/ FCC
|
UN38.3/ MSDS/CE/ROHS/ FCC
|
UN38.3/ MSDS/CE/ROHS/ FCC
|
CE ， FCC ， ROHS
|
|
NW.(kg)
|
24kg
|
48kg
|
48kg
|
91kg
|
/
|
|
GW. (kg)
|
31kg
|
55kg
|
55kg
|
109kg
|
137kg
|
|
Product size( mm)
|
410*420*180mm
|
540*460*200mm
|
540*460*200mm
|
790*560*200mm
|
850*550*270mm
|
|
Padeage size( mm)
|
530*510*280mm
|
620*540*300mm
|
620*540*300mm
|
850*590*270mm
|
/
|
