SCU 50kWh to 2MWh Advanced Energy Storage Solution with Lithium Battery and Power Conversion System PCS

Sicon Chat Union Electric Co., Ltd.

HeiBei,China

Summary

No.1600838545995

$100000.00

Specifications

Color:

Light Grey

System Energy Range:

50-100 kWh

Capacity:

50 AH

75 Ah

100 Ah

200 AH

System Voltage Range:

200-500 V

INQUIRY

Description Download

Key attributes

Battery Type

LiFePO4

Model Number

GRES-300-200

Brand Name

SCU

Place of Origin

Hebei, China

Battery Capacity

300kWh

PCS Power

200kW

MPPT Power

50~100kW

Grid Connection Type

On/off grid/Hybrid

AC Voltage

AC380V/400V 3P4W

Frequency

50/60Hz

BMS

Active equalization BMS, 2 level

Certification

CE, EN50549, VDE, G99

IP Rating

IP54

Warranty

3 years

Packaging and delivery

Selling Units

Single item

Single package size

168X226X170 cm

Single gross weight

2470.000 KG

Product Description

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System

GRES is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application
scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management
system can be arbitrarily combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power
supply power supply, static reactive power compensation, harmonic suppression and other functions. The system can have access to
new energy, power grid, diesel generator and to rreasonable configuration, scientific utilization, to provide users with green,
environmental protection, noise free, high reliability and high security power services.

LiFePO4 Battery Energy Storage System

Using Lithium-ion phosphate battery cell, long life cycle and high safety;

Each battery module is with 5.12kWh, the pack has a built-in BMU system, which can collect the voltage and temperature of each cell, and manage the cell balance, so as to ensure the normal operation of the whole pack safely and efficiently.

15 modules are connected in series to form one cluster, with control box and second level BMS(BCU);

Several clusters connected in parallel to be different capacity.

Multifunctional PCS

Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.

PV Control Module (MPPT)The function of DC / DC module is to filter the power from photovoltaic panel, increase its voltage for bidirectional DC / AC converter or store energy for lithium battery.Static Transfer SwitchSeamless on/off grid automatically switch.

HVAC

The battery compartment integrates 1200W industrial air conditioner to meet the stable operation of the system in different environments and prolong the service life of the system.

PMS(Power Management System)

System operation data monitoring, operation strategy management, historical data record, system status record, etc.

Specification

Parameter	GRES-75-50	GRES-150-100	GRES-225-150	GRES-300-150
PV parameters (Optional)
MPPT voltage range	DC200V～DC700V
Full power MPPT voltage range	DC370V～DC700V
MPPT channel Qty	1/2/3
Single-circuit MPPT maximum current(A)	135A
AC parameters (grid connected)
Rated output power (kW)	50	100	150	150
Max output power (kW)	55	110	165	165
Rated grid voltage (V)	3W+N+PE, 380
Grid voltage range	±15%
Rated grid frequency (Hz)	50
Grid frequency range (Hz)	±2
Current waveform distortion rate	<3%(Rated voltage)
DC component	<0.5%In
Power factor	>0.99(Rated voltage)
Power factor adjustable range	1(lead)～1(lag)
Overload capacity	110% Long term
AC parameters (off grid)
Rated output power (kW)	50	100	150	150
Max output power (kW)	55	110	165	165
Rated grid voltage (V)	3W+N+PE, 380
Current waveform distortion rate	<3%(Linear Load)
Rated frequency（Hz)	50
Overload capacity	110% Long term
Battery
Battery type	Lithium iron phosphate
Energy of each module(kWh)	5.12
Module qty	15	30	45	60
Total power (kWh)	76.8	153.6	230.4	307.2
Running Time (h)	1.5(Optional by Changing module qty)
Cyclelife	25℃0.5C/0.5C100%DODEOL80%≥4000s
System efficiency
Max efficiency	95%
	Protection
DC Switch	YES
AC switch	YES
Grid monitoring	YES
Surge protection	DC /AC 2nd level
Basic Parameters
Dimension（WDH）(mm)	168015001700	168022701700	168030501700	168038301700
Weight (kg)	1395	2470	3545	4620
Isolated transformer	NO
On/off grid switching	STS
Protection	Outdoor IP54
Working temperature	-20～55℃(>45℃derating)
Relative humidity	0～95% ( (no condensing)
Cooling	Intelligent air cooling (intelligent heating optional )
Max working altitude(m)	4000(>2000 derating)
Display	Touch screen
Communication	RS485、CAN、LAN
Communication Protocol	Modbus-RTU、Modbus-TCP、CAN2.0B

Application

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System

Peak and frequency regulation, smoothing new energy generation;

Industrial and commercial demand management, peak shaving;

Power quality improving, and backpower supply at user side;Mobile energy storage, electric rescue;

Building microgrid system.

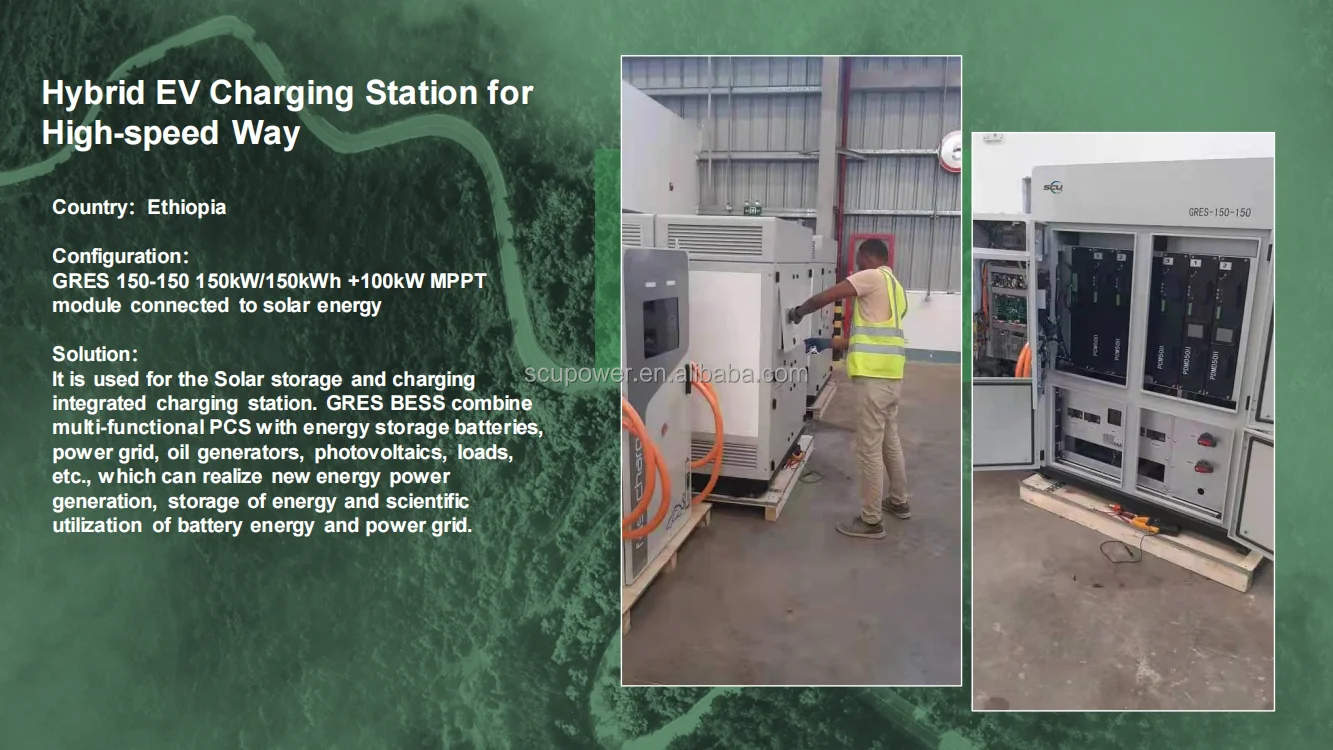

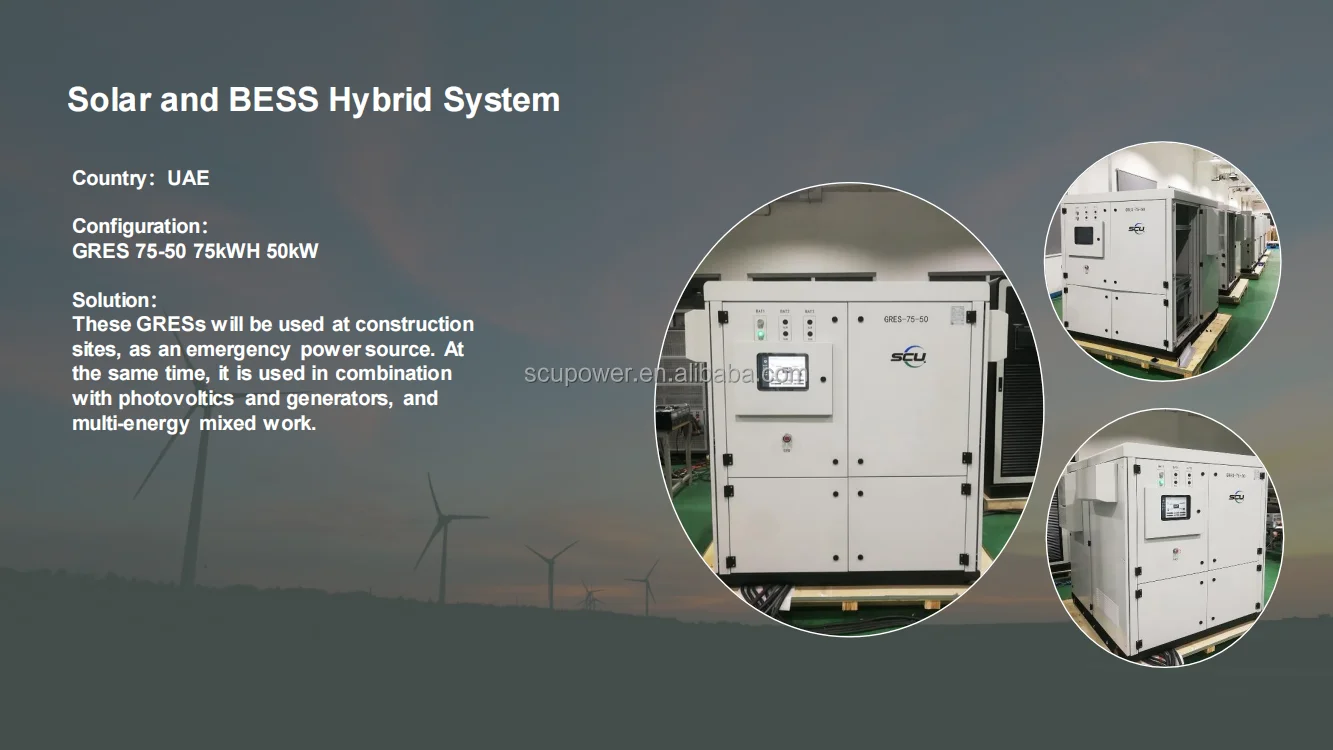

Successful Cases

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System

Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)

Certification

Packing & Delivery

UN38.3 cartons

Company Profile

00:07

00:42

Sicon Chat Union (SCU) was founded in 2003 with a vision of building a sustainable future. We are focused on the development and application of power electronic technology, the core vision is to implementing the concept of sustainable product development on a global scale. We help our clients alter industries and markets, utilizing clean energy on the daily lives of billions of people. Uninterruptible power supply, Electric vehicle fast charger and Energy storage system are the three key products of us. SCU's success is driven by excellent groups of people, spreading business more than 50 countries and regions around the world. Tel: 86 311 85903762

FAQ

1. who are we?
We are based in Hebei, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Eastern Europe(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Western Europe(3.00%),North America(1.00%),South America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
energy storage system,PCS,Lithium battery,UPS

4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China;Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS;OEM for IPO companies;One-stop solution of power energy supply.20years experience.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
