SCU EN50549 G99 VDE4105 Approved 40kwh Industrial Commercial Energy Storage System 25kw Power Conversion Integrated PCS Storage

Sicon Chat Union Electric Co., Ltd.

HeiBei,China

Summary

No.1601414296349

$25000.00

Specifications

Color:

Light Grey

System Energy Range:

40kwh

Capacity:

25kW

System Voltage Range:

500~1000 V

INQUIRY

Description Download

Key attributes

Battery Type

LiFePO4

Grid connection

Off grid, Hybrid grid, On grid

Model Number

GRES-40-25

Brand Name

SCU

Place of Origin

Hebei, China

Dimension (L*W*H)

1000*1069.2*1800(W*D*H)mm

Weight

500

Communication Port

rs485

Protection Class

IP54

Cooling

Air Cooling

Battery Capacity

40kWh

PCS Power

25kW

MPPT Power

25kW

Input/Output AC Voltage, Frequency

400V 3P5W, 50/60Hz

BMS

Active equalization BMS, 3 level

Certification

CE, EN50549, VDE, G99, Synergrid

Warranty

60 months

Power Source

Diesel Generator, Utility, PV

Special Features

within 20ms from On-grid to off-grid

Whether possible to limit AC input

Yes

Packaging and delivery

Selling Units

Single item

Single package size

120X120X200 cm

Single gross weight

600.000 KG

25kW PCS + 40kWh LFP BATT + 40kW MPPT (Optional)

All-in-One BESS

Commercial and Industrial (C&I) storage systems are used for the energy management of industrial and commercial enterprises and are sized according to individual need (capacities in the range from 40 kWh up to 300kWh)

They are economically attractive as they help to avoid expensive peak loads (peak shaving) and can accommodate variable electricity tariffs. In combination with photovoltaic electricity generated for self-use, commercial storage can help increase the solar self-sufficiency of the business.

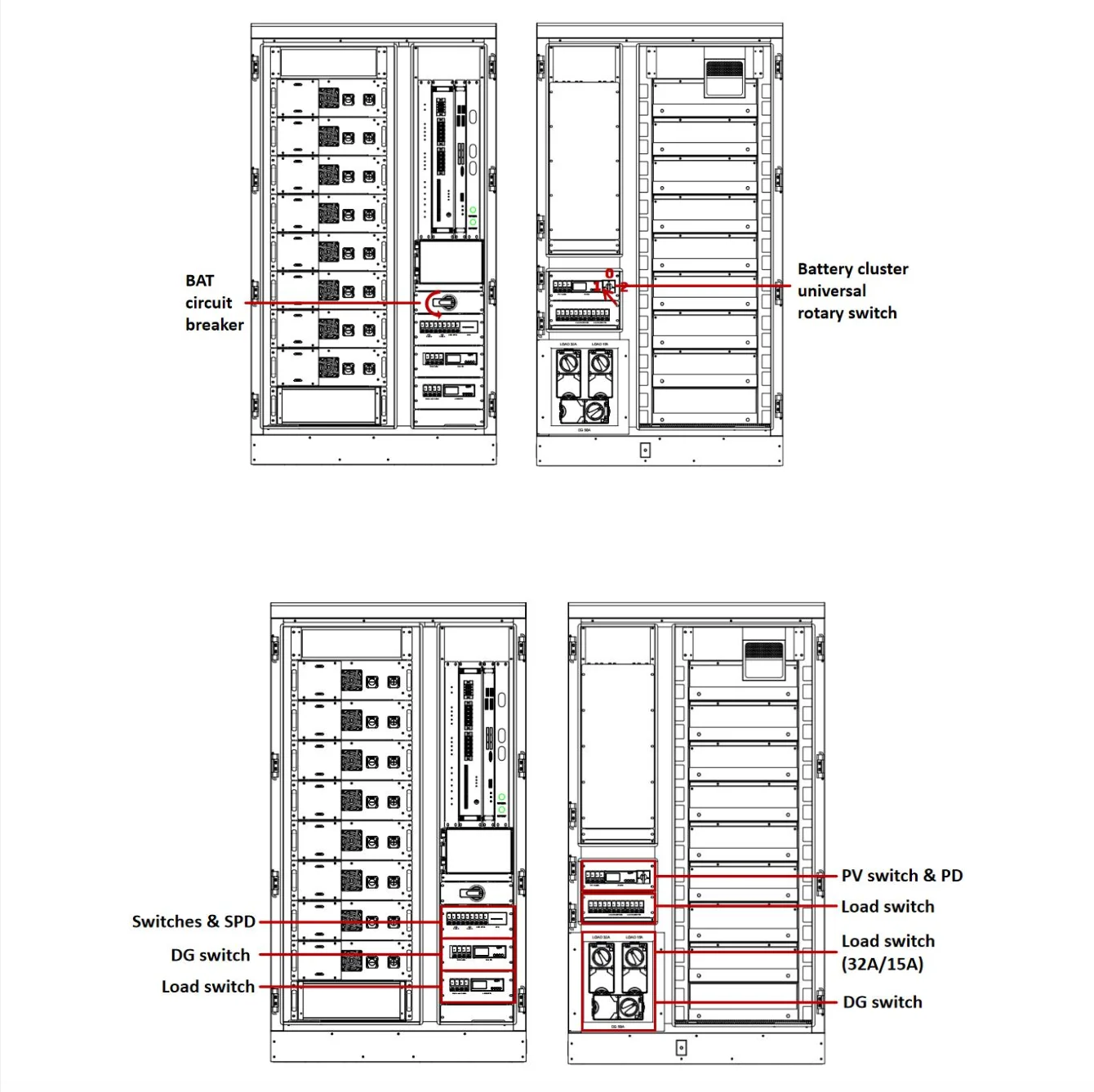

Fully enclosed design, Own SCU Technology, for example, MPPT, PCS, BMS, PACK, etc.

This ensures highest level of safety for public and building users.

Are you looking for support on solution drawing & cost or purchase information?

Please contact us at [email protected].

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System

GRES is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be arbitrarily combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power supply power supply, static reactive power compensation, harmonic suppression and other functions. The system can have access to new energy, power grid, diesel generator and to rreasonable configuration, scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.

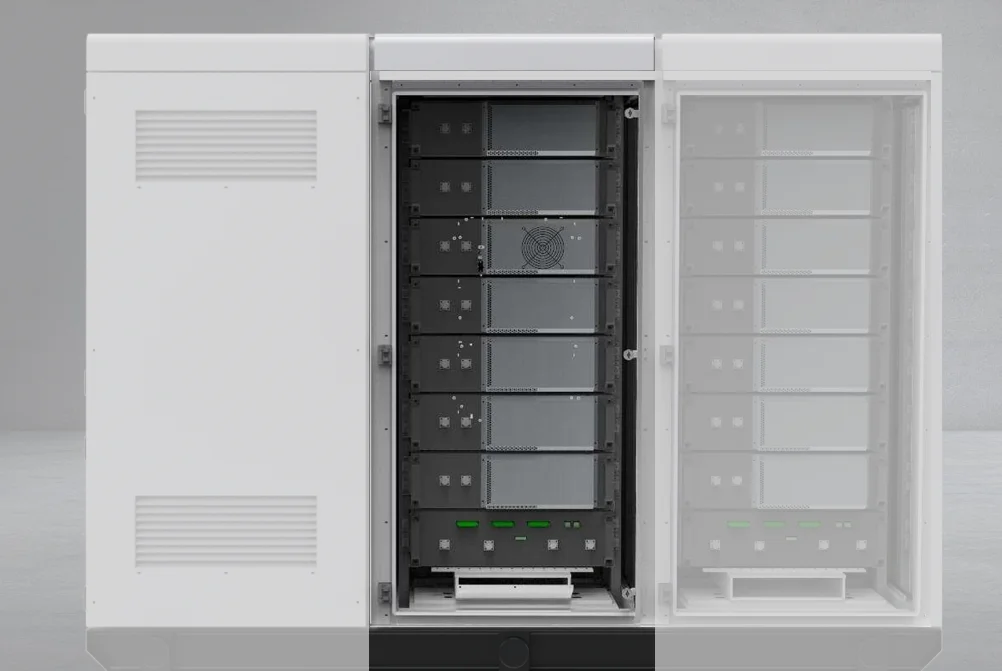

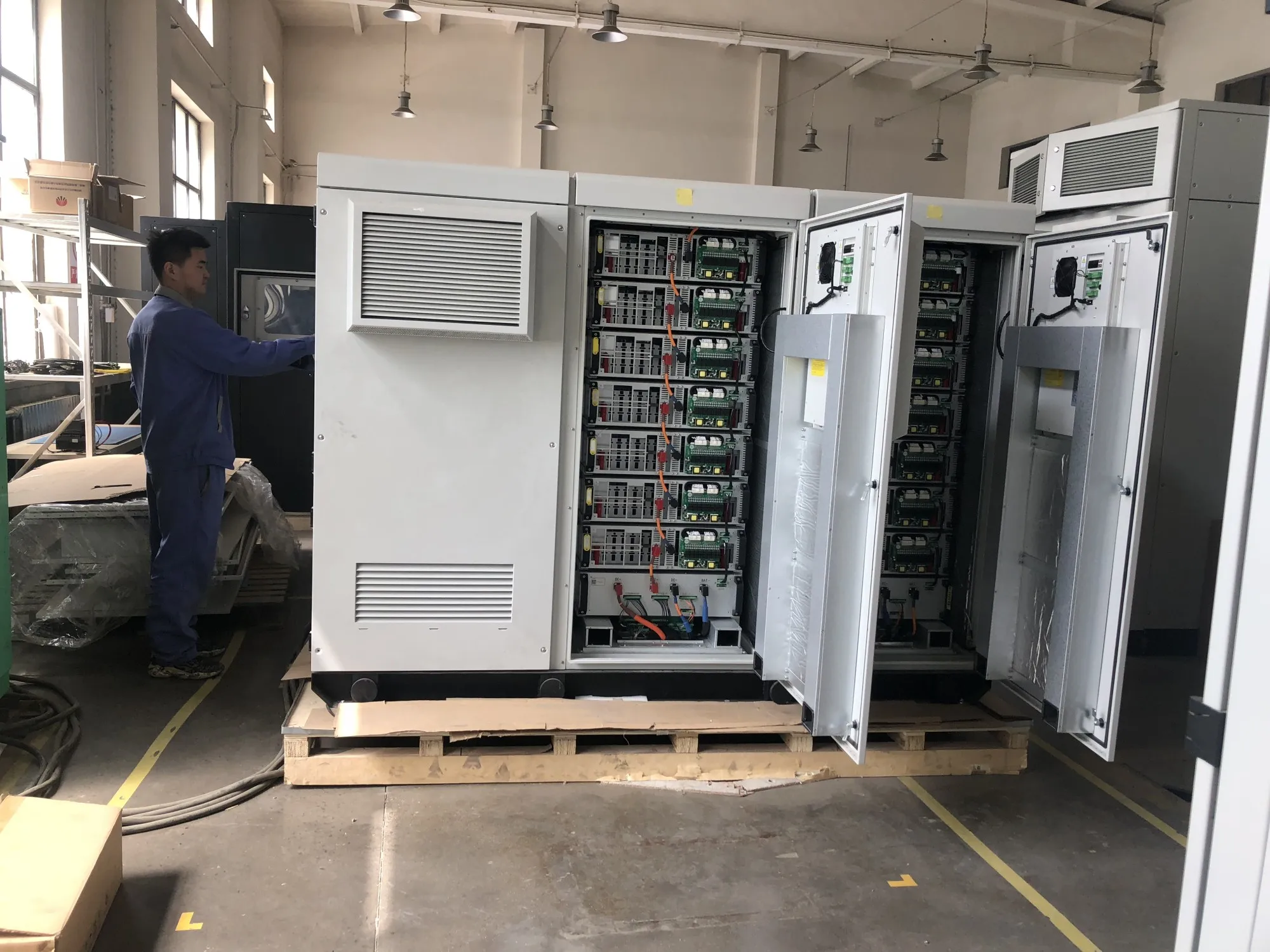

LiFePO4 Battery Energy Storage System

Using Lithium-ion phosphate battery cell, long life cycle and high safety;

Each battery module is with 5.12kWh, the pack has a built-in BMU system, which can collect the voltage and temperature of each cell, and manage the cell balance, so as to ensure the normal operation of the whole pack safely and efficiently.

15 modules are connected in series to form one cluster, with control box and second level BMS(BCU);

Several clusters connected in parallel to be different capacity.

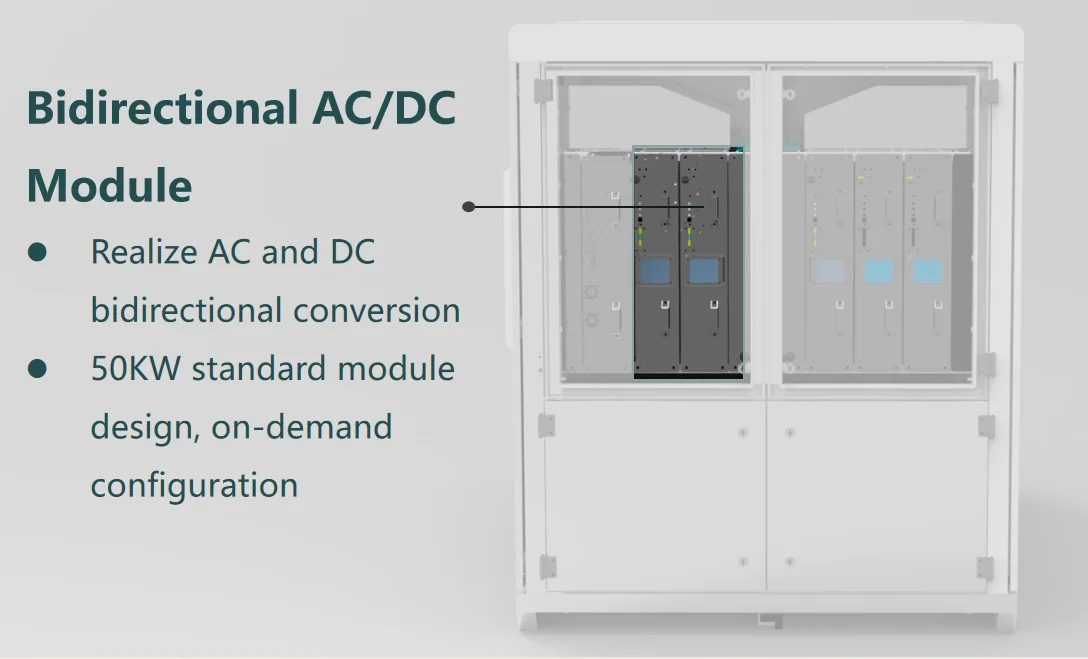

Multifunctional PCS

Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.

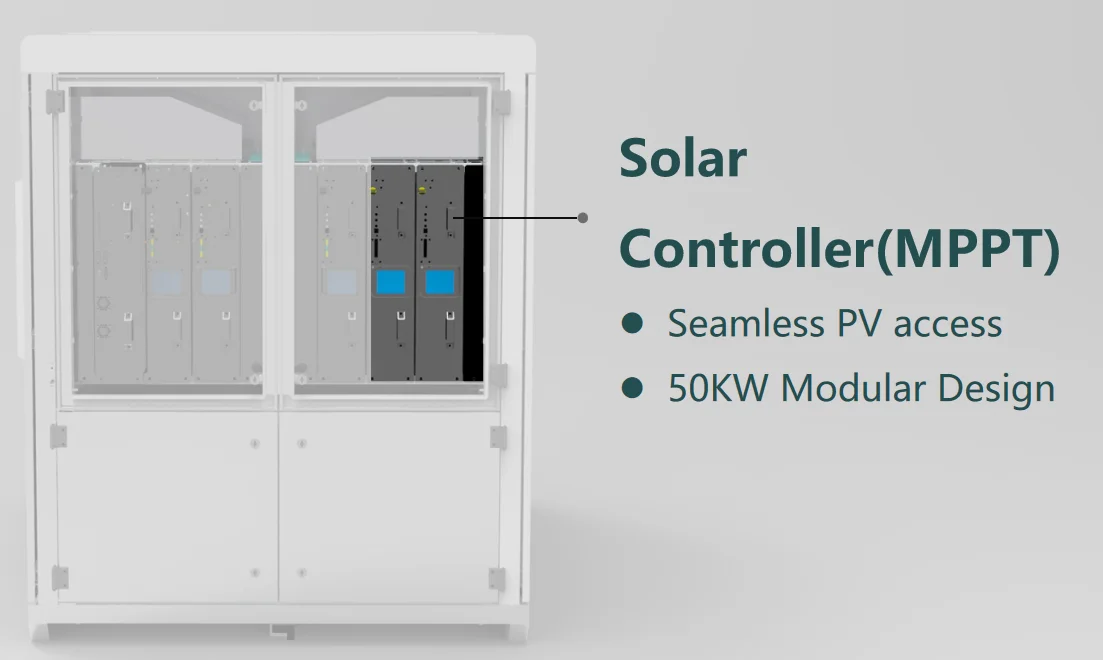

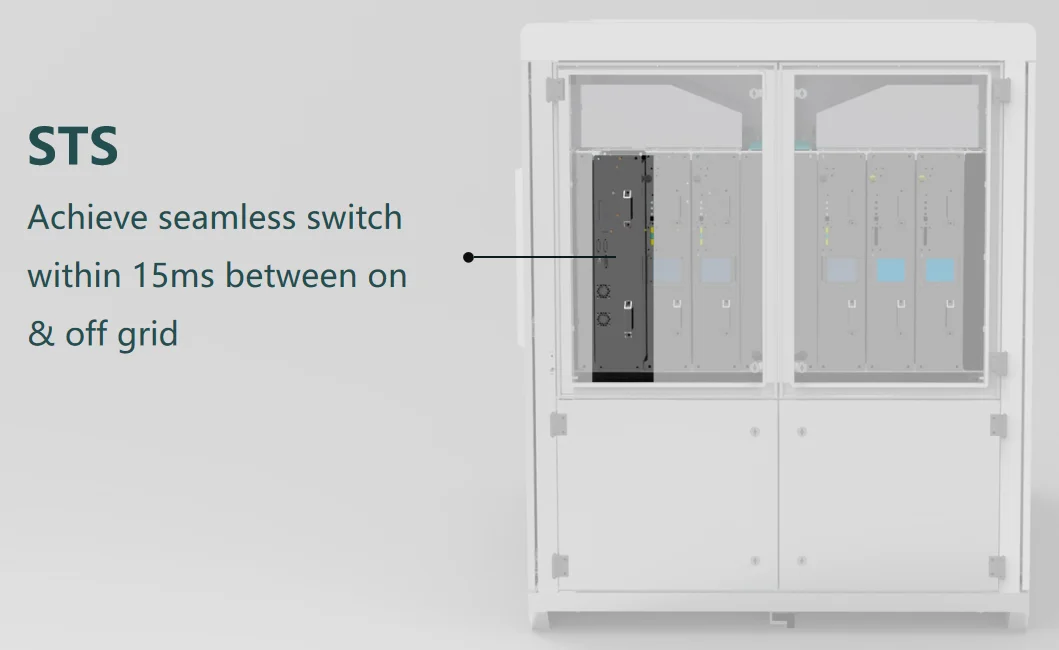

PV Control Module (MPPT)The function of DC / DC module is to filter the power from photovoltaic panel, increase its voltage for bidirectional DC / AC converter or store energy for lithium battery.Static Transfer SwitchSeamless on/off grid automatically switch.

HVAC

The battery compartment integrates 1200W industrial air conditioner to meet the stable operation of the system in different environments and prolong the service life of the system.

PMS(Power Management System)

System operation data monitoring, operation strategy management, historical data record, system status record, etc.

Specification

Parameter	GRES-75-50	GRES-150-100	GRES-225-150	GRES-300-200
PV parameters (Optional)
MPPT voltage range	DC200V～DC700V
Full power MPPT voltage range	DC370V～DC700V
MPPT channel Qty	1/2/3
Single-circuit MPPT maximum current(A)	135A
AC parameters (grid connected)
Rated output power (kW)	50	100	150	200
Max output power (kW)	55	110	165	220
Rated grid voltage (V)	3W+N+PE, 380
Grid voltage range	±15%
Rated grid frequency (Hz)	50
Grid frequency range (Hz)	±2
Current waveform distortion rate	<3%(Rated voltage)
DC component	<0.5%In
Power factor	>0.99(Rated voltage)
Power factor adjustable range	1(lead)～1(lag)
Overload capacity	110% Long term
AC parameters (off grid)
Rated output power (kW)	50	100	150	200
Max output power (kW)	55	110	165	220
Rated grid voltage (V)	3W+N+PE, 380
Current waveform distortion rate	<3%(Linear Load)
Rated frequency（Hz)	50
Overload capacity	110% Long term
Battery
Battery type	Lithium iron phosphate
Energy of each module(kWh)	5.12
Module qty	15	30	45	60
Total power (kWh)	76.8	153.6	230.4	307.2
Running Time (h)	1.5(Optional by Changing module qty)
Cyclelife	25℃0.5C/0.5C100%DODEOL80%≥4000s
System efficiency
Max efficiency	95%
	Protection
DC Switch	YES
AC switch	YES
Grid monitoring	YES
Surge protection	DC /AC 2nd level
Basic Parameters
Dimension（WDH）(mm)	168015001700	168022701700	168030501700	168038301700
Weight (kg)	1395	2470	3545	4620
Isolated transformer	NO
On/off grid switching	STS
Protection	Outdoor IP54
Working temperature	-20～55℃(>45℃derating)
Relative humidity	0～95% ( (no condensing)
Cooling	Intelligent air cooling (intelligent heating optional )
Max working altitude(m)	4000(>2000 derating)
Display	Touch screen
Communication	RS485、CAN、LAN
Communication Protocol	Modbus-RTU、Modbus-TCP、CAN2.0B

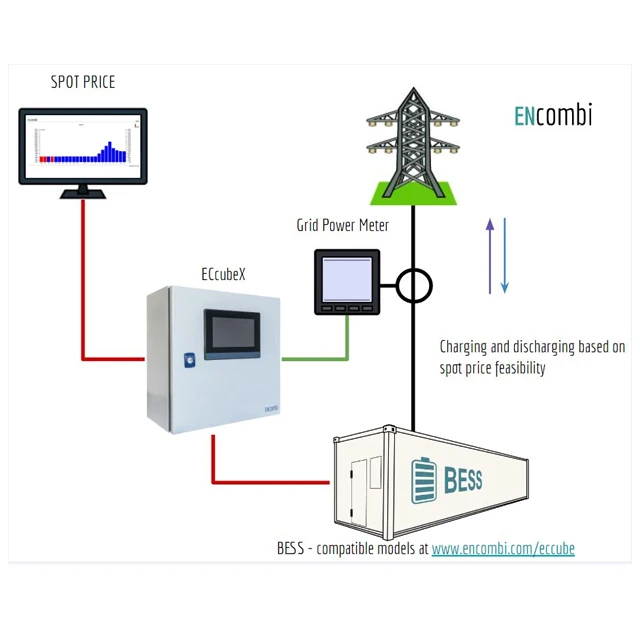

Remote EMS ( Optional)

If you need remote EMS and no your own EMS platform and wishing to have a remote EMS. Here we have EMS solution from Denmark, Europe.

Any question, please feel free to communicate with us.

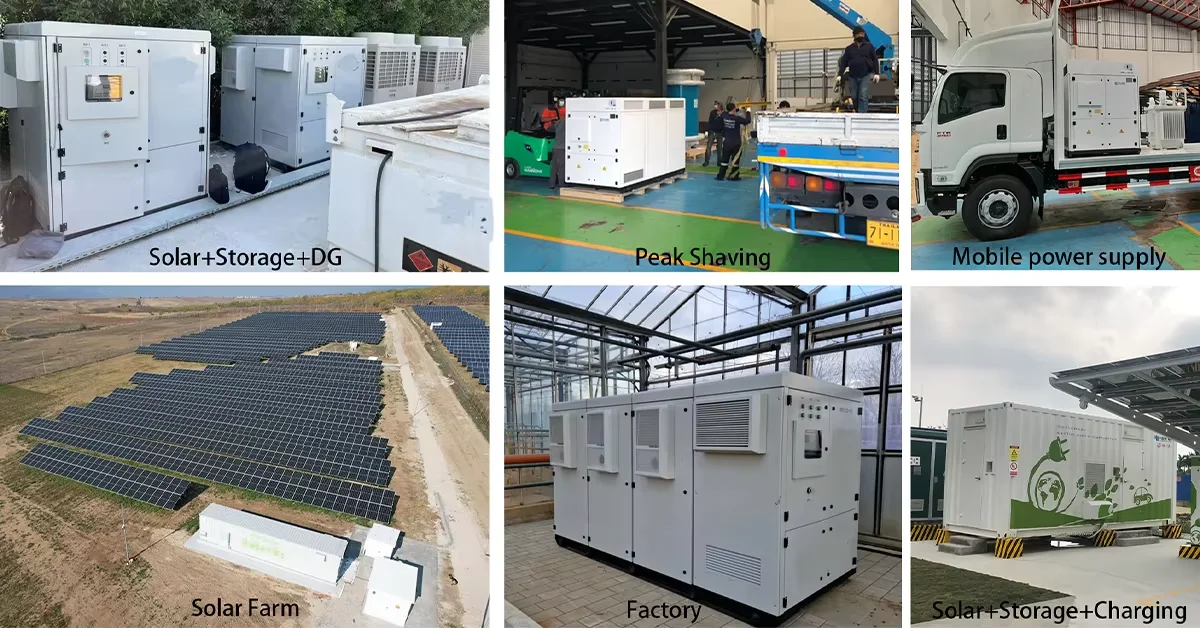

Application

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System

Peak and frequency regulation, smoothing new energy generation;

Industrial and commercial demand management, peak shaving;

Power quality improving, and backpower supply at user side;Mobile energy storage, electric rescue;

Building microgrid system.

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System

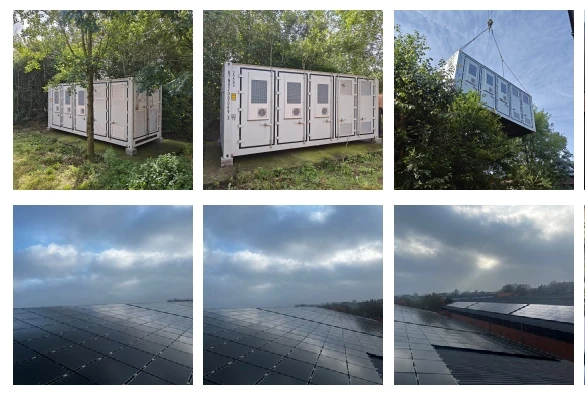

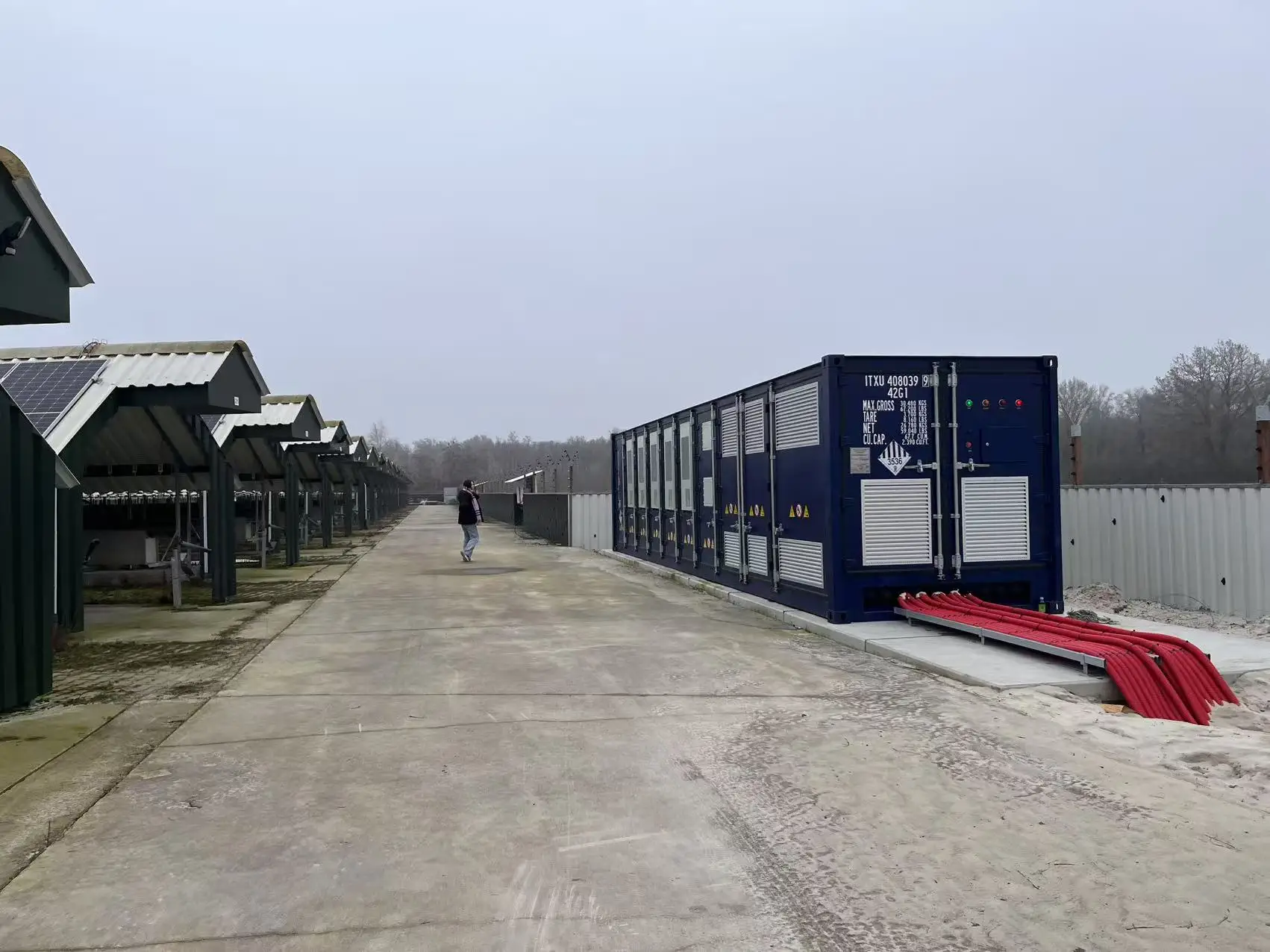

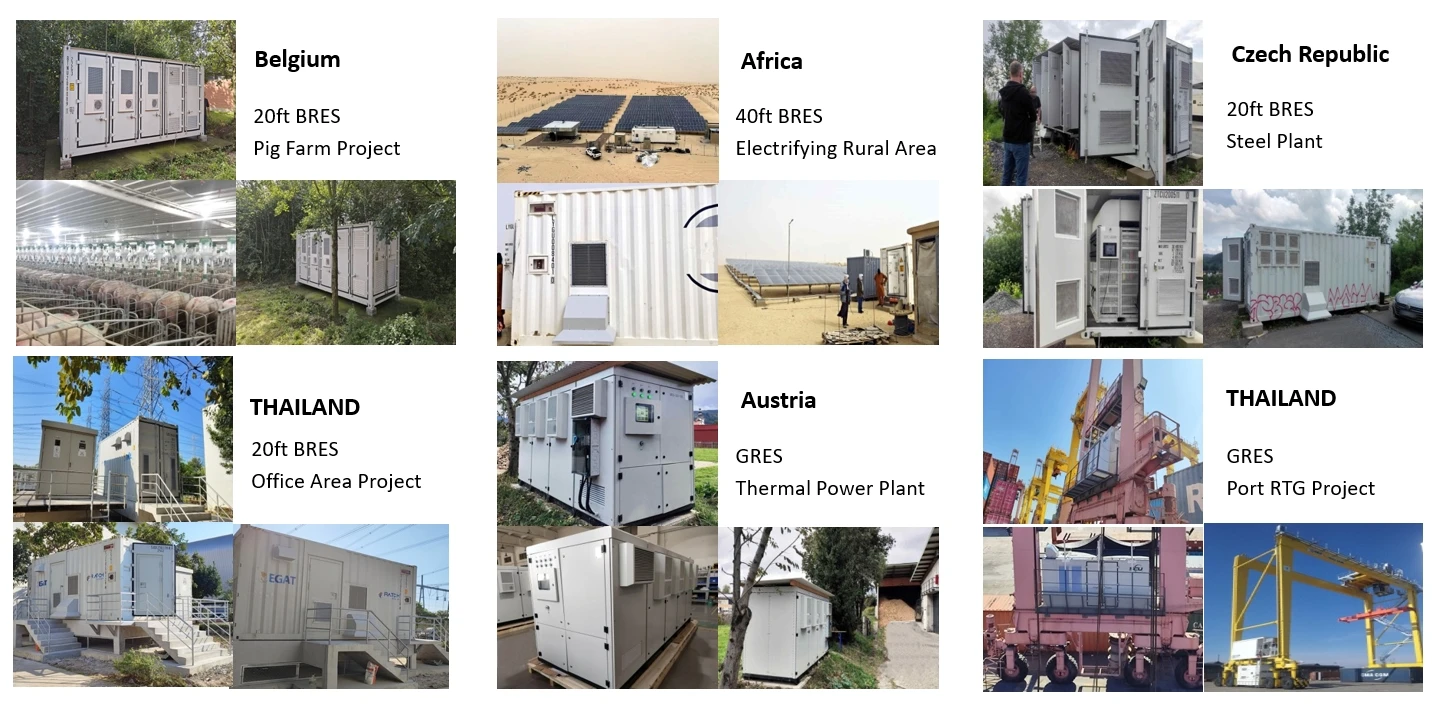

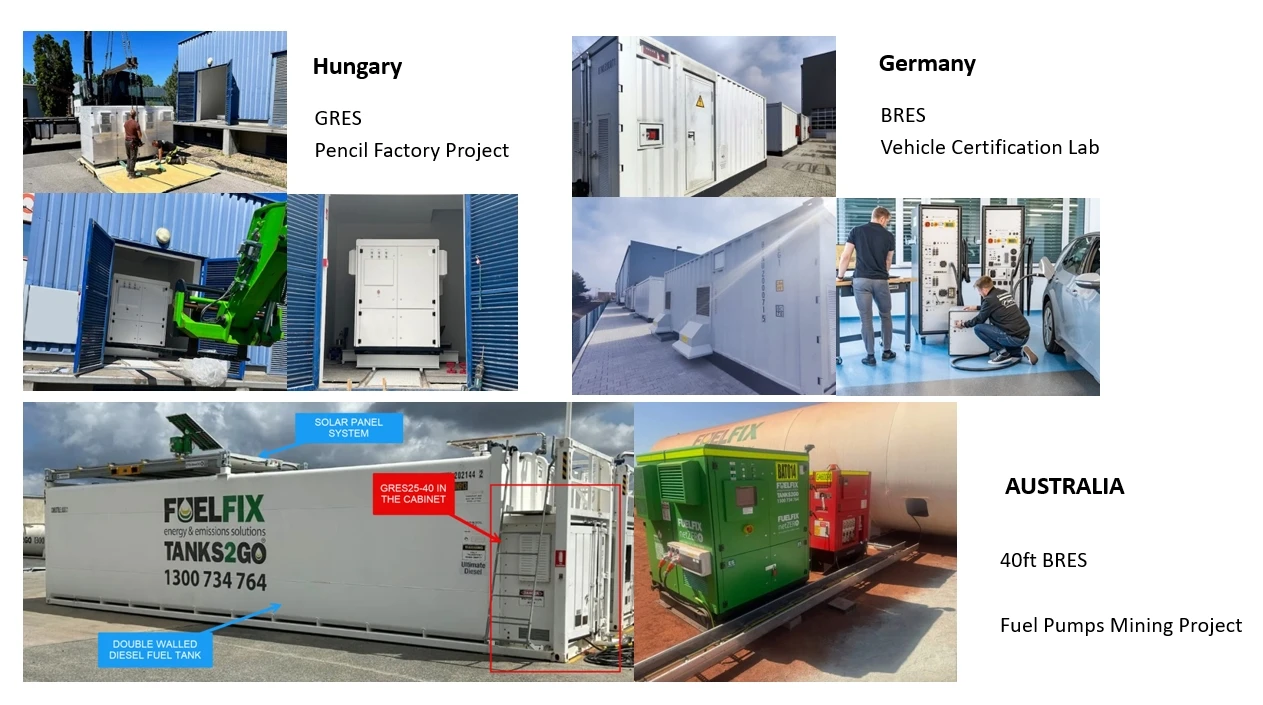

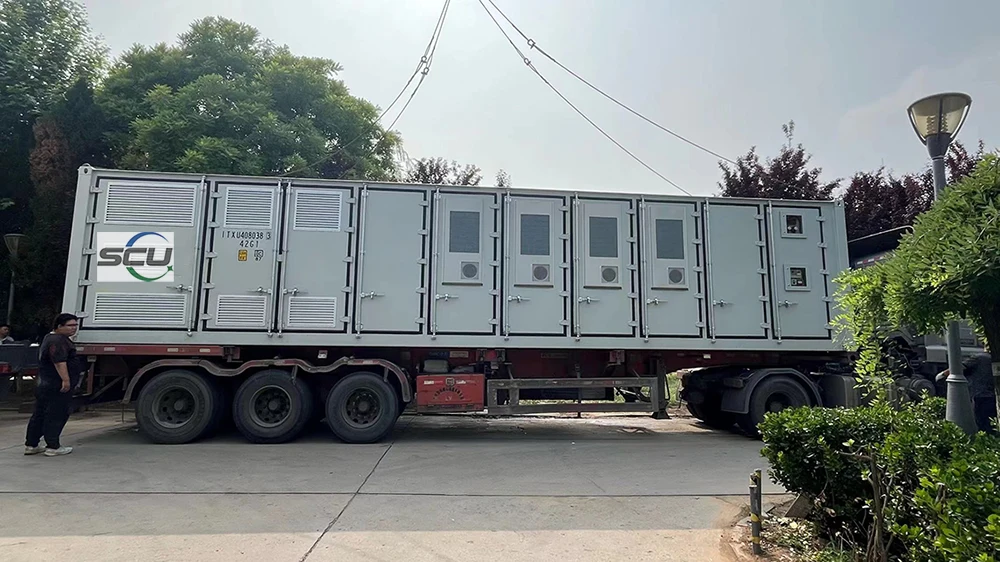

Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)
