SCU Hybrid Inverter 50kw 100kW 250kW Bidirectional AC/DC Converter Integrated DC/DC Module MPPT for Solar Energy

Sicon Chat Union Electric Co., Ltd.

HeiBei,China

Summary

No.1601124586146

$6500.00

Specifications

Output Power:

50KW

Input Voltage:

380V

Output Voltage:

580-900V

INQUIRY

Description Download

Key attributes

Output Type

Single Phase

Type

DC/AC Inverters

Output Current

85A

Output Frequency

50/60Hz

Size

600*1000*2000

Weight

300kg

Place of Origin

Hebei, China

Brand Name

SCU

Model Number

EPCS50

Communication Interface

CAN/RS485

Protection Class

IP20

Battery voltage range

580-900V

Output wire

3W+N+PE/3W+PE

Work mode

On-grid / off-grid

On-off-grid switching time

10ms

Maximum efficiency

97.50%

Key

PV direct access

Packaging and delivery

Selling Units

Single item

Product Description

PCS Power Conversion Systems Energy Storage

PCS power conversion system energy storage is a multi-functional AC-DC converter by offering both basic bidirectional power converters factions of PCS power and several optional modules which could offer on/off grid switch and renewable energy access.
Ranging from 50kW to 600kW, the PCS converter well fits the requirement of Battery Energy Storage in commercial and industrial applications.
Both Energy Storage PCS power conversion system and Lithium-ion Battery System are made by SCU in house. As a hybrid inverter supplier, we could support your PCS battery storage business from power generation, through transmission and distribution, and all the way to users.

Specification

item	value
Output Type	Single
Type	DC/AC Inverters
Output Current	85A
Output Frequency	50/60Hz
Size	60010002000
Weight	300kg
Place of Origin	China
	Hebei
Brand Name	SCU
Model Number	EPCS50
Communication Interface	CAN/RS485
Protection Class	IP20
Battery voltage range	580-900V
Output wire	3W+N+PE/3W+PE
Work mode	On-grid / off-grid
On-off-grid switching time	10ms
Maximum efficiency	97.50%
Key	PV direct access

Why Choose Us

Certification

Packing & Delivery

UN38.3 box

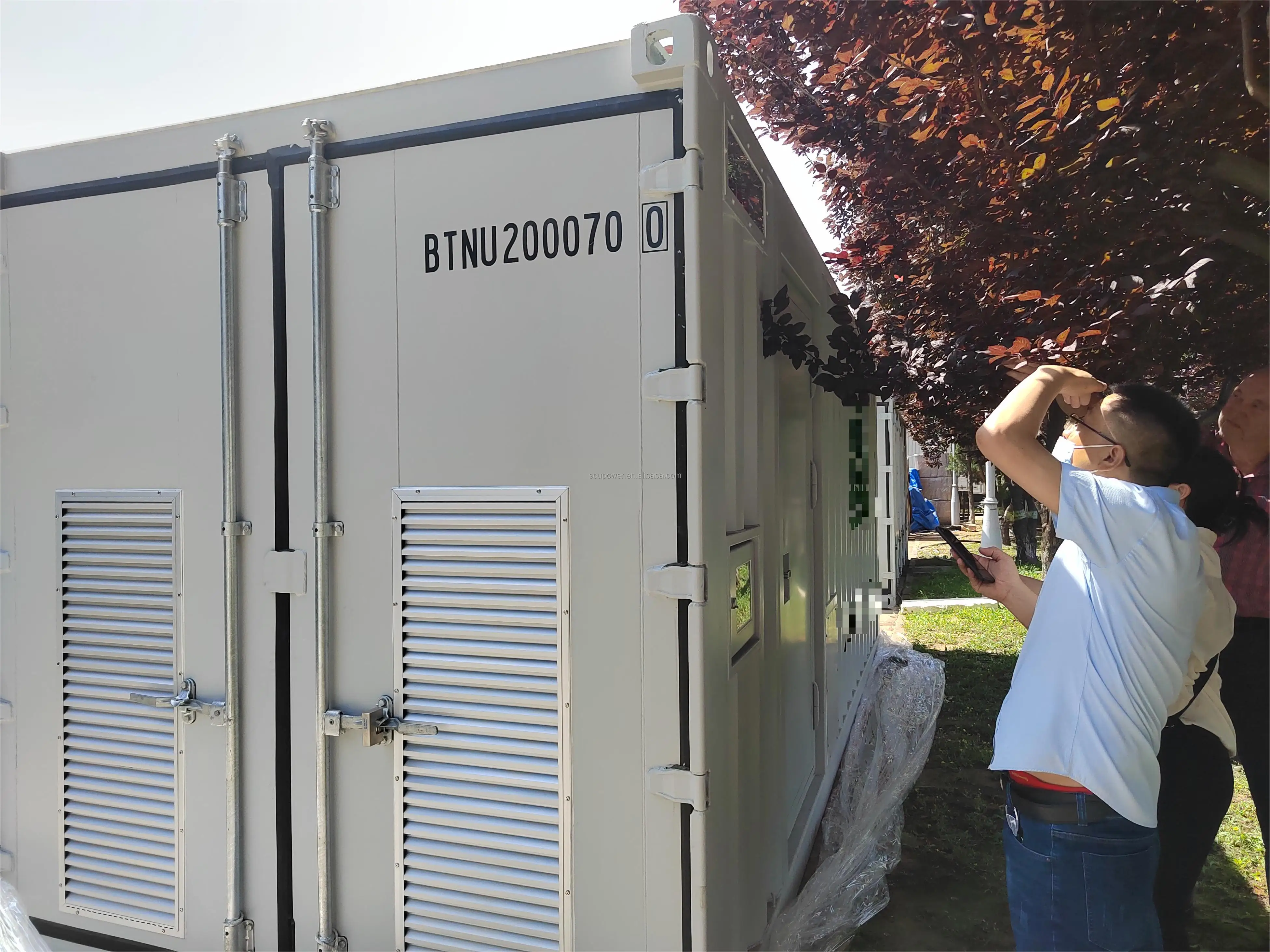

Successful Cases

Company Profile

00:07

02:41

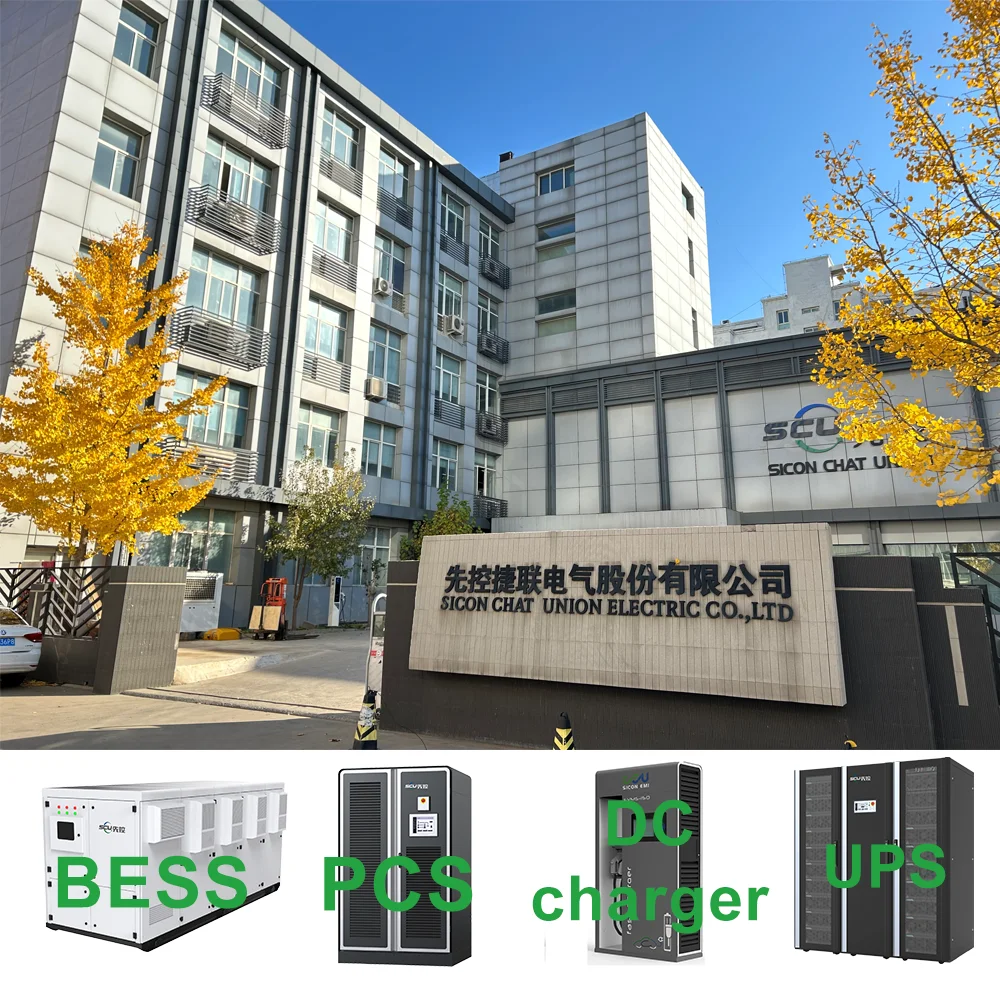

Sicon Chat Union (SCU) was founded in 2003 with a vision of building a sustainable future. We are focused on the development and application of power electronic technology, the core vision is to implementing the concept of sustainable product development on a global scale. We help our clients alter industries and markets, utilizing clean energy on the daily lives of billions of people. Uninterruptible power supply, Electric vehicle fast charger and Energy storage system are the three key products of us. SCU's success is driven by excellent groups of people, spreading business more than 50 countries and regions around the world.

Contact Sherry Tsui for details:　[email protected], Mobile: 8615731171585.

FAQ

1. who are we?
We are based in Hebei, China, start from 2003,sell to Domestic Market(48.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Eastern Asia(8.00%),South Asia(6.00%),Northern Europe(5.00%),Mid East(5.00%),Western Europe(3.00%),Southern Europe(3.00%),South America(1.00%),Africa(1.00%),North America(0.00%),Oceania(0.00%),Central America(0.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Energy Storage System, PCS, Lithium Ion Battery, UPS, EV Charger

4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China;Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS;OEM for IPO companies;One-stop solution of power energy supply.20years experience.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
