SCU Integrated 50kw 75kwh Lithium Battery Power Conversion System MPPT Solar Inverter Controller Solar Power

Sicon Chat Union Electric Co., Ltd.

HeiBei,China

Summary

No.1600802679712

$400.00

Specifications

Solar Power (W):

50KW

System Type:

On-Grid Solar System

Off-Grid Solar System

Hybrid Solar System

INQUIRY

Description Download

Key attributes

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT

Free installation service

Place of Origin

Hebei, China

Load Power (W)

50KW

Pre-sales project design

Brand Name

SCU

Model Number

GRES-75-50

Application

Industrial

Battery Type

Lithium Ion

Mounting Type

Ground Mounting

Output Voltage (V)

200-900V

Output Frequency

50/60Hz

Work Time (h)

1hour

Product name

Energy Storage System

Inverter

bidirectional PCS

Battery

Lifepo4 Lithium Battery

System Type

Hybird Solar Energy System

Specification

50kw 75kwh

Usage

industrial commercial

Apllication

Factory

Protection

Smart BMS

Keyword

battery active balance

Certificate

CE, G99, EN50549, VDE4105

Packaging and delivery

Selling Units

Single item

Single package size

XX cm

Products Description

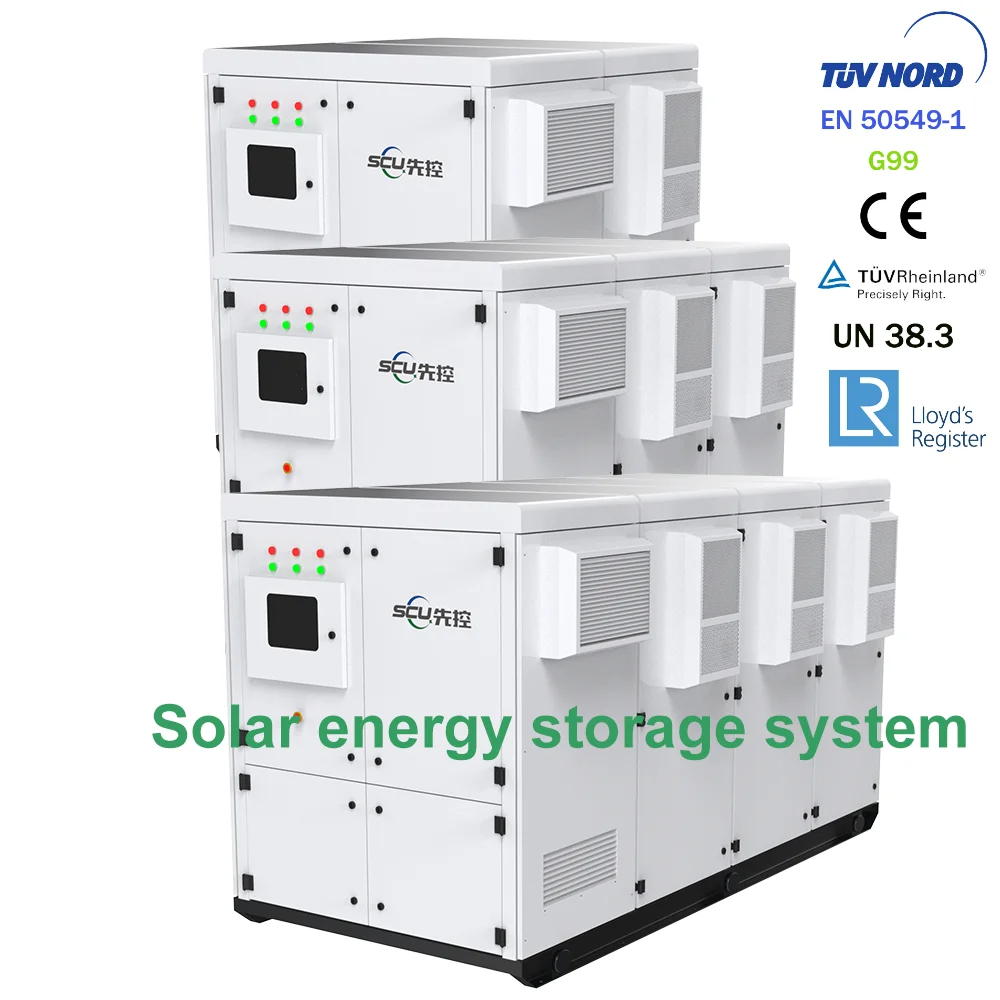

Lithium Ion Battery

Capacity: 75kwh-300kwh

Configuration:

Battery system, Battery management system, management system.

Key features&benifits:

-Three level BMS design of module, cabinet and system.

-Energy transferring active equalization.

-High rate performance, maximum 2C charging and 6C discharging.

-Small size, light weight, less space and installation cost.

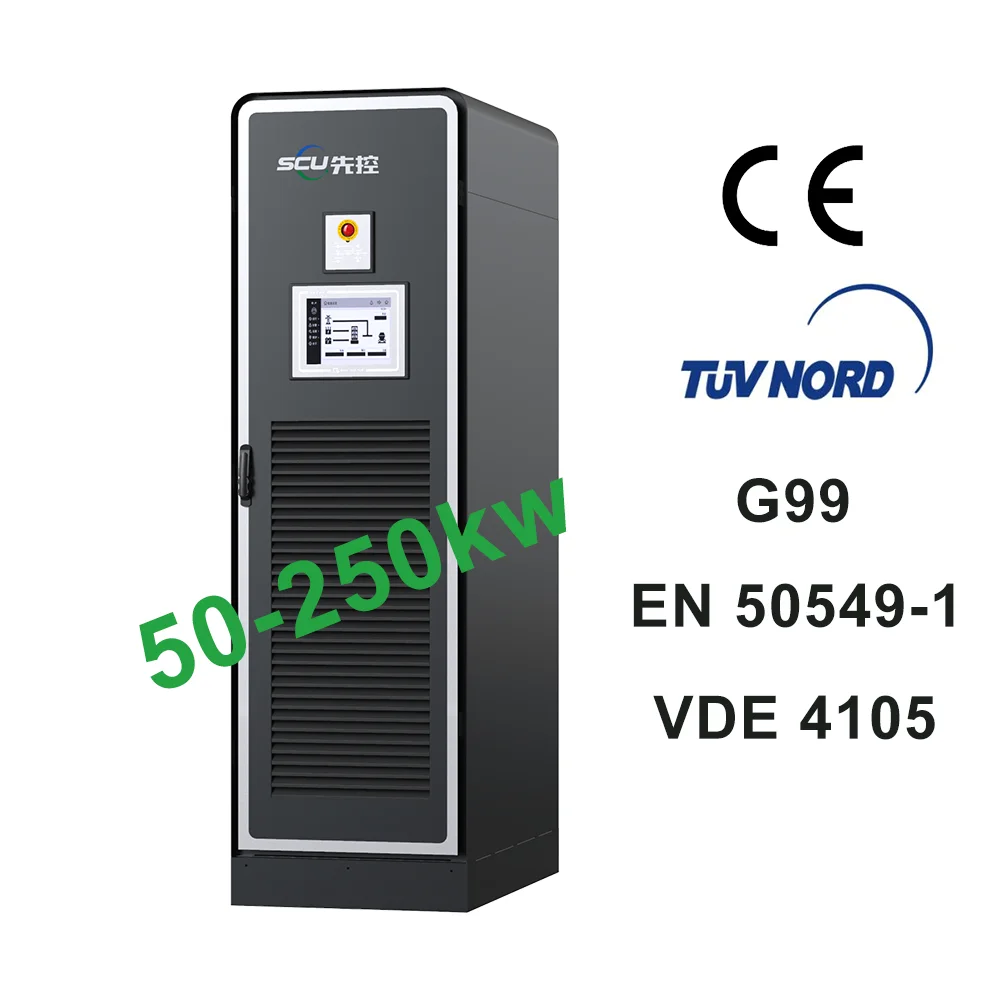

Bidirectional PCS

Capacity: 50kw-600kw

Configuration:

AC/DC Module, Static Transfer Switch(STS), Power Management System.

Key features&benifits:

-Multiple working modes.

-Seamless switching between on-grid and o ff grid modes,<10ms.

-3P3W and 3P4W optional.

-RS485 , CAN , Ethernet communication modes.

-AC and DC dual input redundant power supply

-Modular design and flexible product.

-PV direct access.

GRES DC Bus System

GRES AC Bus System

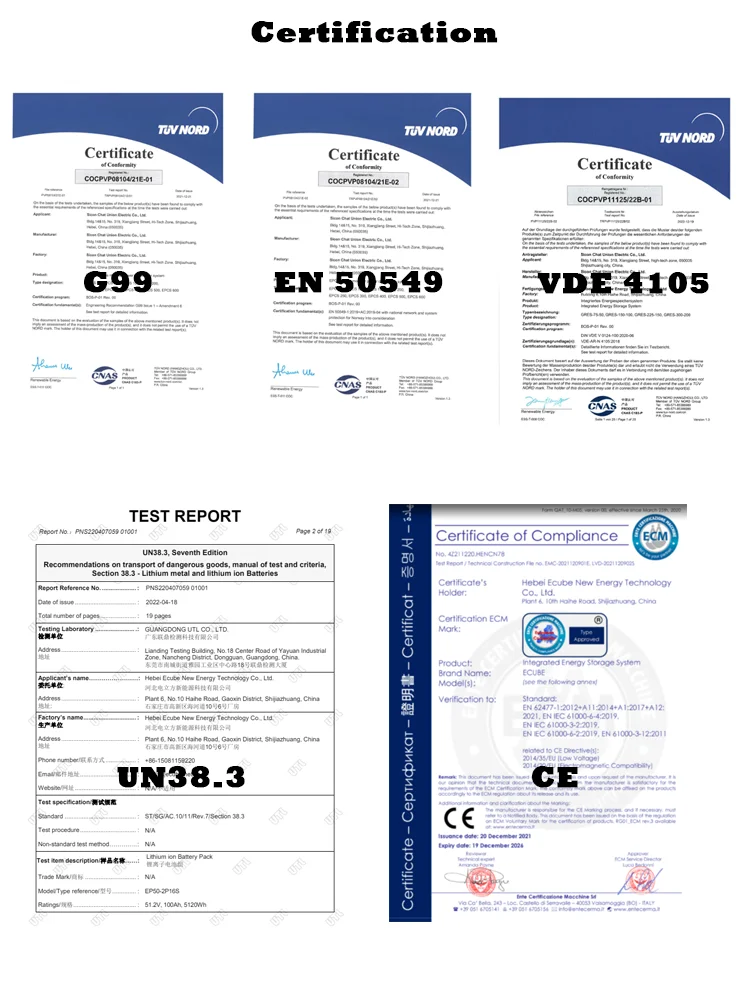

Certifications

Successful Cases

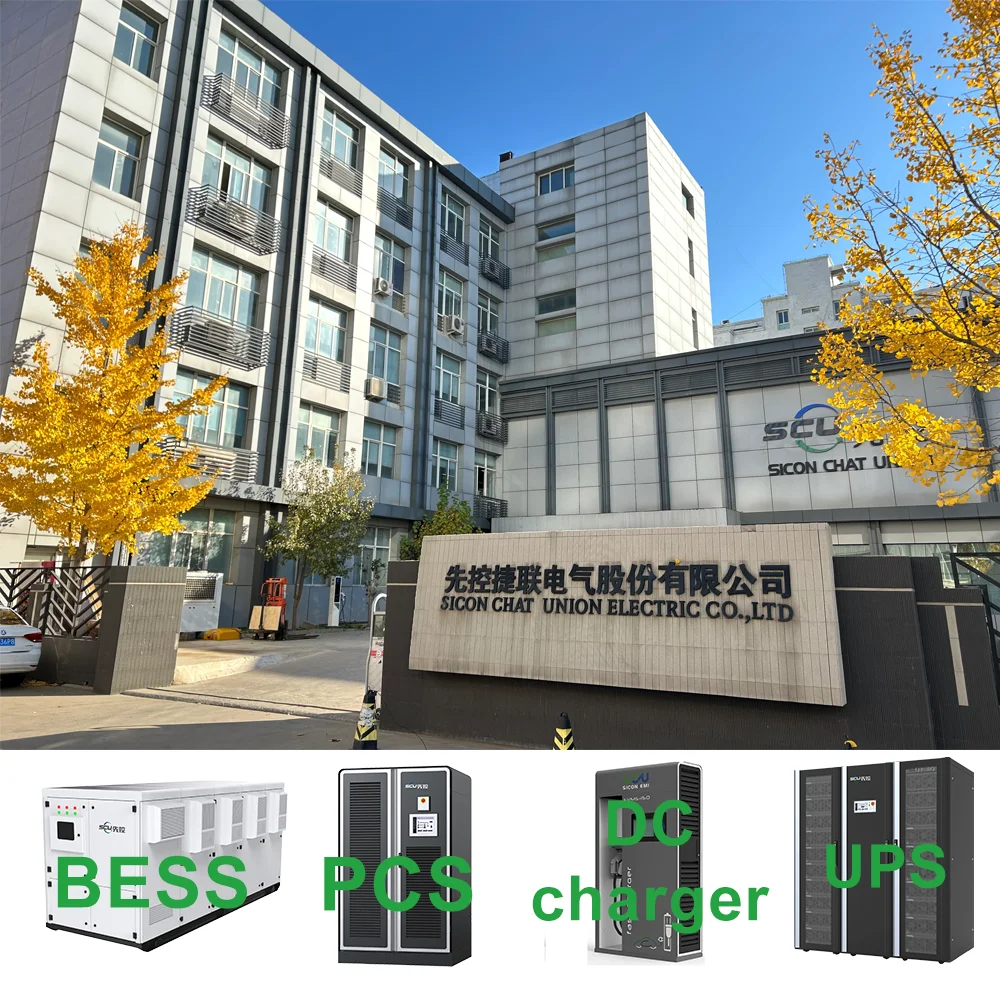

Company Profile

Sicon Chat Union Electric Co., Ltd.

Leader manufacturer with almost 20 years experience.Main business: Energy storage system, Bidirectional PCS, Lithium battery, EV charger, UPS.
Certification: ISO9001, ISO14001, ISO45001, CE, TUV, IEC, UN38.3, MSDS, G99, EN50549, VDE4105-2008...
Many key project experience.
