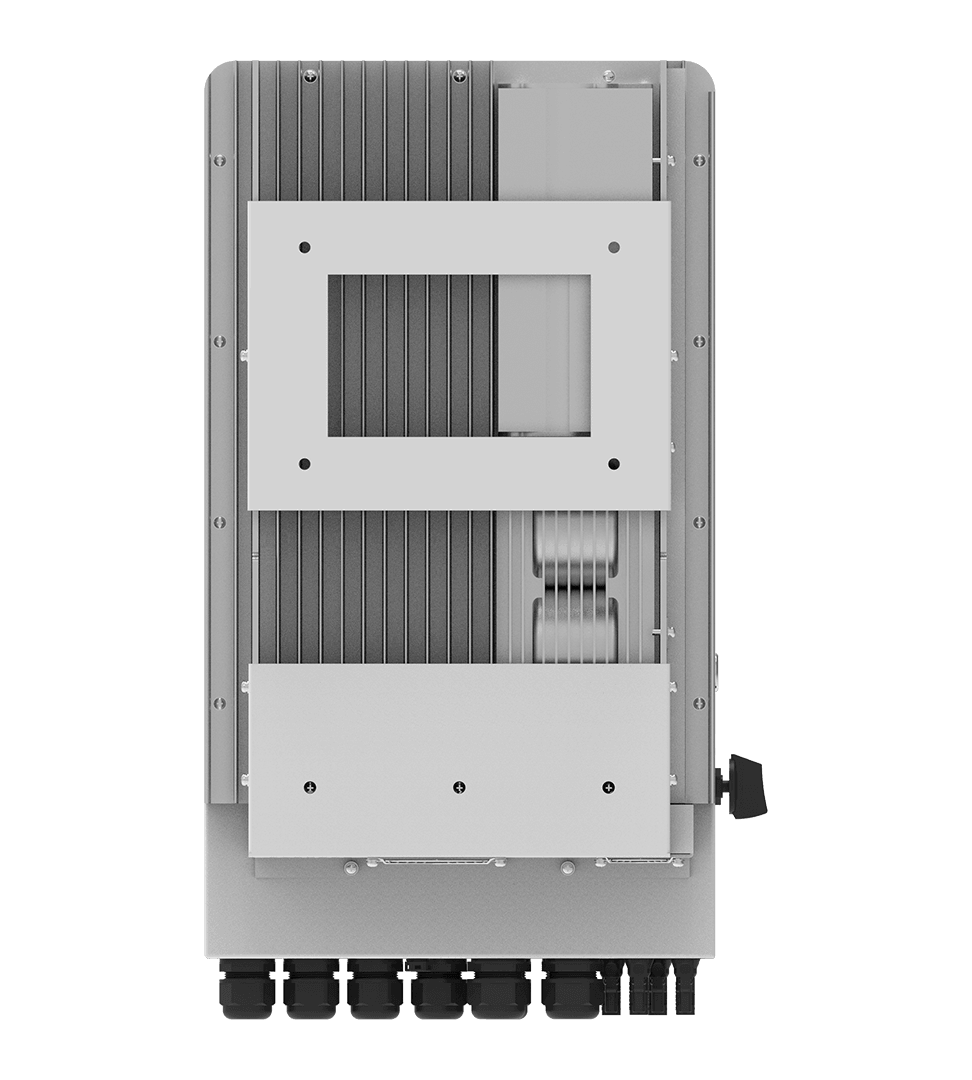

| Model | SUN-3.6K-SG05LP1-EU | SUN-5K-SG05LP1-EU | SUN-6K-SG05LP1-EU | SUN-7K-SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU | SUN-10K-SG05LP1-EU |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range(V) | 40-60 |
| Max.Charging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 | 210 |
| Max.Discharging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 | 210 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of battery input | 1 |
| PV String Input Data | |
| Max. PV Access Power (W) | 7200 | 10000 | 12000 | 14000 | 15200 | 16000 | 20000 |
| Max PV Input Power（W） | 5760 | 8000 | 9600 | 11200 | 12160 | 12800 | 16000 |
| Max PV Input Voltage（V） | 500 |
| Start-up Voltage（V） | 125 |
| MPPT Voltage Range（V） | 150-425 |
| Rated PV Input Voltage(V) | 370 |
| Max Input Short-Circuit Current（A） | 17+17 | 34+34 |
| Max Operating PV Input Current（A） | 13+13 | 26+26 |
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+2 |
| AC Input/Output Data | |
| Rated AC Input/Output Active Power（W） | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 | 10000 |
| Max AC Input/Output Apparent Power （VA） | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 | 11000 |
| Peak Power (off-grid)（W） | 2 times of rated power,10s |
| Rated AC Input/Output Current（A） | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | 31.9/30.5 | 34.5/33 | 36.4/34.8 | 45.5/43.5 |
| Max AC Input/Output Current（A） | 18/17.2 | 25/23.9 | 30/28.7 | 35.0/33.5 | 38/36.3 | 40/38.3 | 50/47.9 |
| Max Continuous AC Passthrough (grid to load)（A） | 35 | 40 | 50 |
| Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un |
| Grid Connection Form | L+N+PE |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| Power Factor Adjustment Range | 0.8 leading-0.8lagging |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5%ln |
| Efficiency | |
| Max Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | ＞99% |
| Equipment Protection | |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
| Surge Protection Level | TYPE II(DC),TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude | 2000m |
| Noise | <30 dB(A) |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] | 330×580×232 (Excluding Connectors and Brackets) |
| Weight[kg] | 24.9 |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Type Of Cooling | Intelligent air cooling |
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
