| Model Number | HJ-MG0003-W (500W) |
| Input (DC) | |
| Suitable Array Power (W) | 360~600+ |
| Max Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16*60 |
| Start-up Voltage (V) | 22 |
| Max Input Current (A) | 15 |
| Max Input Short-Circuit Current (A) | 25 |
| Number of MPPTs | 1 |
| Max Input Route per MPPT | 1 |
| Output (AC) | |
| Rated Output Power (VA) | 450 |
| Rated Output Current (A) | 2.05 |
| Output Voltage Range (V) | 220/180*275 |
| Rated Frequency Range (Hz) | 50/45*55 |
| Adjustable Power Factor (Rated Power) | >0.99 Default 0.8 ahead…0.8 behind |
| Total Harmonic Distortion (Rated Power) | <3% |
| Max Number of Strings per Phase (2.5mm2 Total) | 11 |
| Max Number of Strings per Phase (4mm2 Total) | 15 |
| Max Number of Strings per Phase (6mm2 Total) | 19 |
| Efficiency | |
| Peak Efficiency | 96.6% |
| MPPT Efficiency | 99.8% |
| Night Loss (mW) | <50 |
| Mechanical Parameters | |
| Operating Temperature (℃) | -40*+65 |
| Dimensions (W×H×D mm) | 182×164×30 |
| Weight (kg) | 1.75 |
| Protection Level | Outdoor-IP67 |
| Cooling Method | Natural convection |
| Safety and Protection Features | |
| Anti-island Protection, Input Anti-reverse Protection, Output Short-Circuit Protection, Output Overcurrent Protection, Output Overvoltage Protection, 6000V Surge Protection | |
| Features | |
| Active Power Regulation, Reactive Power Regulation, High Voltage Ride Through (optional), Low Voltage Ride Through (optional), High Frequency Transformer Isolation | |
| Others | |
| Communication Method | Sub-1G |
| Model Number | HJ-MG0003-W (1000W) |
| Input (DC) | |
| Suitable Array Power (W) | 400*670+ |
| Max Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16*60 |
| Start-up Voltage (V) | 22 |
| Max Input Current (A) | 2×15 |
| Max Input Short-Circuit Current (A) | 2×25 |
| Number of MPPTs | 2 |
| Max Input Route per MPPT | 1 |
| Output (AC) | |
| Rated Output Power (VA) | 900 |
| Rated Output Current (A) | 4.09 |
| Output Voltage Range (V) | 220/180*275 |
| Rated Frequency Range (Hz) | 50/45*55 |
| Adjustable Power Factor (Rated Power) | >0.99 Default 0.8 ahead…0.8 behind |
| Total Harmonic Distortion (Rated Power) | <3% |
| Max Number of Strings per Phase (2.5mm2 Total) | 5 |
| Max Number of Strings per Phase (4mm2 Total) | 7 |
| Max Number of Strings per Phase (6mm2 Total) | 9 |
| Efficiency | |
| Peak Efficiency | 96.50% |
| MPPT Efficiency | 99.80% |
| Night Loss (mW) | <50 |
| Mechanical Parameters | |
| Operating Temperature (℃) | -40*+65 |
| Dimensions (W×H×D mm) | 261×180×35.1 |
| Weight (kg) | 3.2 |
| Protection Level | Outdoor-IP67 |
| Cooling Method | Natural convection |
| Safety and Protection Features | |
| Anti-island Protection, Input Anti-reverse Protection, Output Short-Circuit Protection, Output Overcurrent Protection, Output Overvoltage Protection, 6000V Surge Protection | |
| Features | |
| Active Power Regulation, Reactive Power Regulation, High Voltage Ride Through (optional), Low Voltage Ride Through (optional), High Frequency Transformer Isolation | |
| Others | |
| Communication Method | Sub-1G |
| Isolation Method | High Frequency Transformer Isolation |
| Grid Connection Standard | NB/T 32004-2018 |
| Model Number | HJ-MG0003-W (2000W) |
| Input (DC) | |
| Suitable Array Power (W) | 400~670+ |
| Max Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16~60 |
| Start-up Voltage (V) | 22 |
| Max Input Current (A) | 4×16 |
| Max Input Short-Circuit Current (A) | 4×25 |
| Number of MPPTs | 4 |
| Max Input Route per MPPT | 1 |
| Output (AC) | |
| Rated Output Power (VA) | 2000 |
| Rated Output Current (A) | 9.09 |
| Output Voltage Range (V) | 220/180*275 |
| Rated Frequency Range (Hz) | 50/45*55 |
| Adjustable Power Factor (Rated Power) | >0.99 Default |
| Total Harmonic Distortion (Rated Power) | <3% |
| Max Number of Strings per Phase (2.5mm2 Total) | 2 |
| Max Number of Strings per Phase (4mm2 Total) | 3 |
| Max Number of Strings per Phase (6mm2 Total) | 4 |
| Efficiency | |
| Peak Efficiency | 96.50% |
| MPPT Efficiency | 99.80% |
| Night Loss (mW) | <50 |
| Mechanical Parameters | |
| Operating Temperature (℃) | -40*+65 |
| Dimensions (W×H×D mm) | 331×218×40.6 |
| Weight (kg) | 5.56 |
| Protection Level | Outdoor-IP67 |
| Cooling Method | Natural convection |
| Safety and Protection Features | |
| Anti-island Protection, Input Anti-reverse Protection, Output Short-Circuit Protection, Output Overcurrent Protection, Output Overvoltage Protection, 6000V Surge Protection | |
| Features | |
| Active Power Regulation, Reactive Power Regulation, High Voltage Ride Through (optional), Low Voltage Ride Through (optional), High Frequency Transformer Isolation | |
| Others | |
| Communication Method | Sub-1G |
| Isolation Method | High Frequency Transformer Isolation |
| Grid Connection Standard | NB/T 32004-2018 |

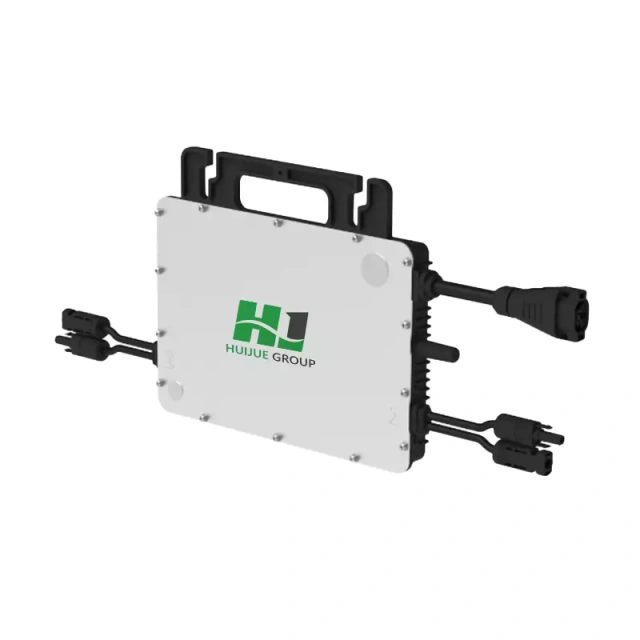

High power micro inverter, output power up to 2000VA.
Component-level MPPT and data monitoring, higher power generation and simpler operation and maintenance.
With reactive power compensation function, in line with NB/T 32004-2018 standard.
Meets the most stringent North American fast shutdown requirements, safer to be applied to rooftop power stations.
Rooftop power station, balcony photovoltaic
