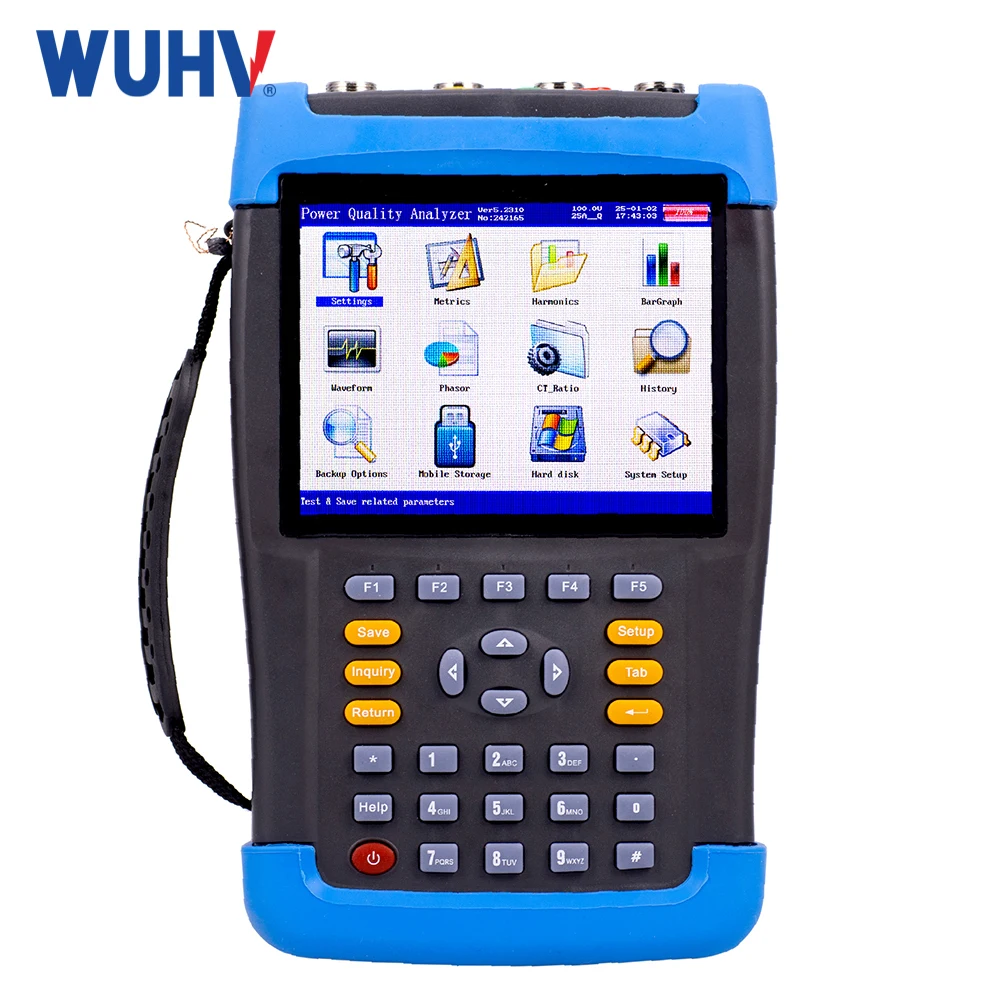

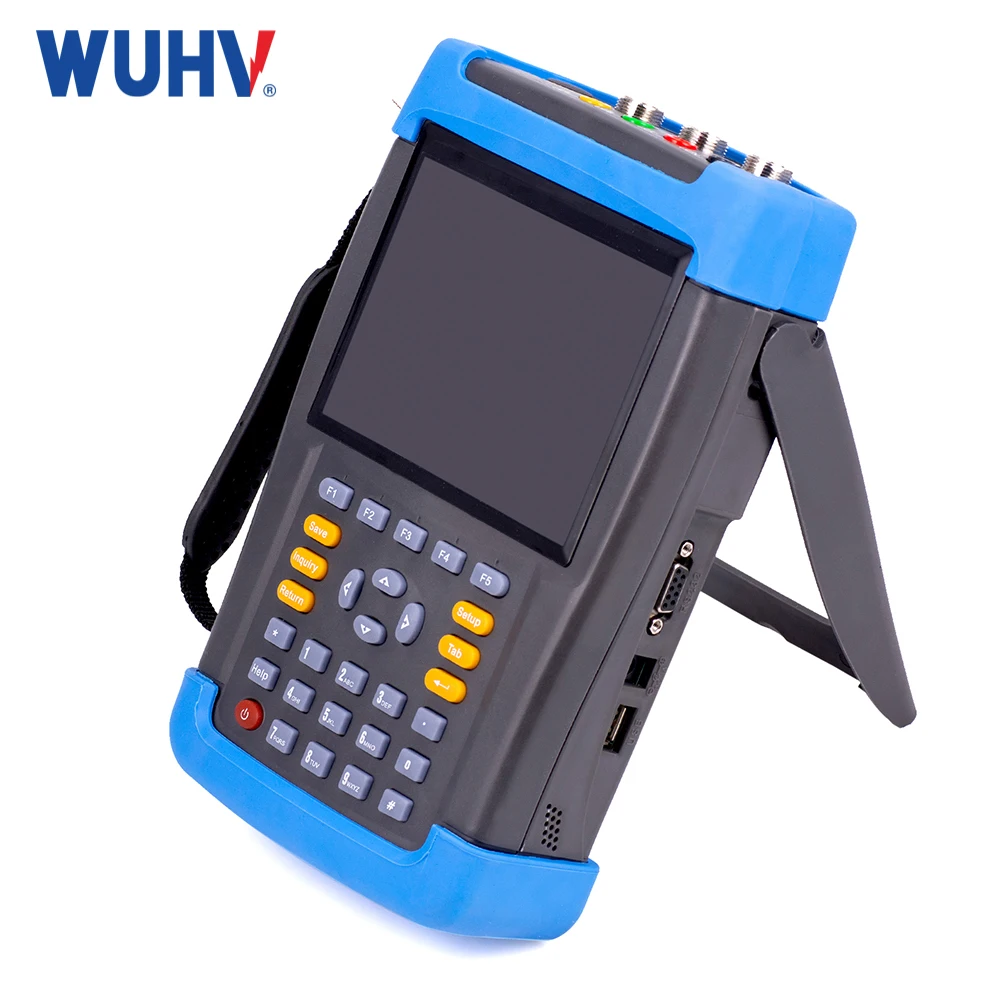

SMG7000 Electric Industry Three Phase Power Quality Analyzer

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Summary

No.1600976990057

$2750.00

INQUIRY

Description Download

Key attributes

Type

Impact Testing Machine

customized support

OEM, ODM, OBM, Software reengineering

place of origin

Hubei, China

power

Electronic

Voltage

Other

warranty

1 Year

brand name

UHV

model number

SMG7000

Product name

Power Quality Analyzer

Voltage measurement range

0~200V~800V, automatically switch gears

Current measuring range

5A/25A (standard); 100A/500A (optional); 400A/2000A (optional)

Phase angle measurement range

0~359.99°

Frequency measurement range

45~65Hz

Number of voltage channels

Three channels (UA, UB, UC)

Number of current channels

Three channels (IA, IB, IC)

Maximum harmonic analysis times

63 times

Warranty

1 years

Diemension

320mm*240mm*130mm

Packaging and delivery

Selling Units

Single item

Single package size

258X158X58 cm

Single gross weight

1.500 KG

Product Paramenters

Type	Measuring range	unit	error	Resolution
Voltage	1～500	V	0.5%×range	0.01V
Current	0.001～10	A	0.5%×range	0.0001A
Active power	0.001～5000	W	0.5%×Reading (PF = 1)	0.1W
Reactive power	0.001～5000	VAR	0.5%×Reading (PF = 0)	0.1VAR
Apparent power	0.001～5000	VA	0.5%×reading	0.1VA
Frequency	45～65	Hz	0.1%×reading	0.01Hz
Phase	0～360	°	±2°	0.1°
Dimensions	320280140mm3
Weight	3.2kg

Functions&Characteristics：

1. Simultaneous measurement of three-phase voltage or four-channel current (including zero current)2. At the same time, the phase Angle, current phase Angle and work Angle of three-phase ac voltage are measured3. Measure the frequency and phase sequence of the grid4. Automatic discrimination of transformer winding, capacitive and inductive load5. Hexagon diagram display, color phase sequence analysis6. Measurement of active power, reactive power, apparent power, three-phase power and power factor7. Data view and save function8. Data static storage function9. The 3.5-inch TFT color screen display has touch function10. The three-phase phase voltammeter is powered by lithium battery and can be standby for more than 20 hours with a single charge

Product Attachment

Company Profile

Wuhan UHV Electric Power Technology CO.,Ltd.

Wuhan UHV Electric Power Technology CO.,Ltd. Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.

We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.

More Products

Packing & Delivery

Recommend Products

FAQ

1. Is your company a sales company or a manufacturer?Wuhan UHV Electric Power Technology CO.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.3. Is the quality guaranteed?In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.4. What are the after-sales terms?We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.5. What are the cooperative countries or regions?Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Series resonancetest device,High voltageinsulationequipment,Transformertesting instrument,Circuit breakel(switch) testinstrument,Relay protection,secondary circuittest instrument,Oil testinginstrument,Dc system, batterytest instrument etc
