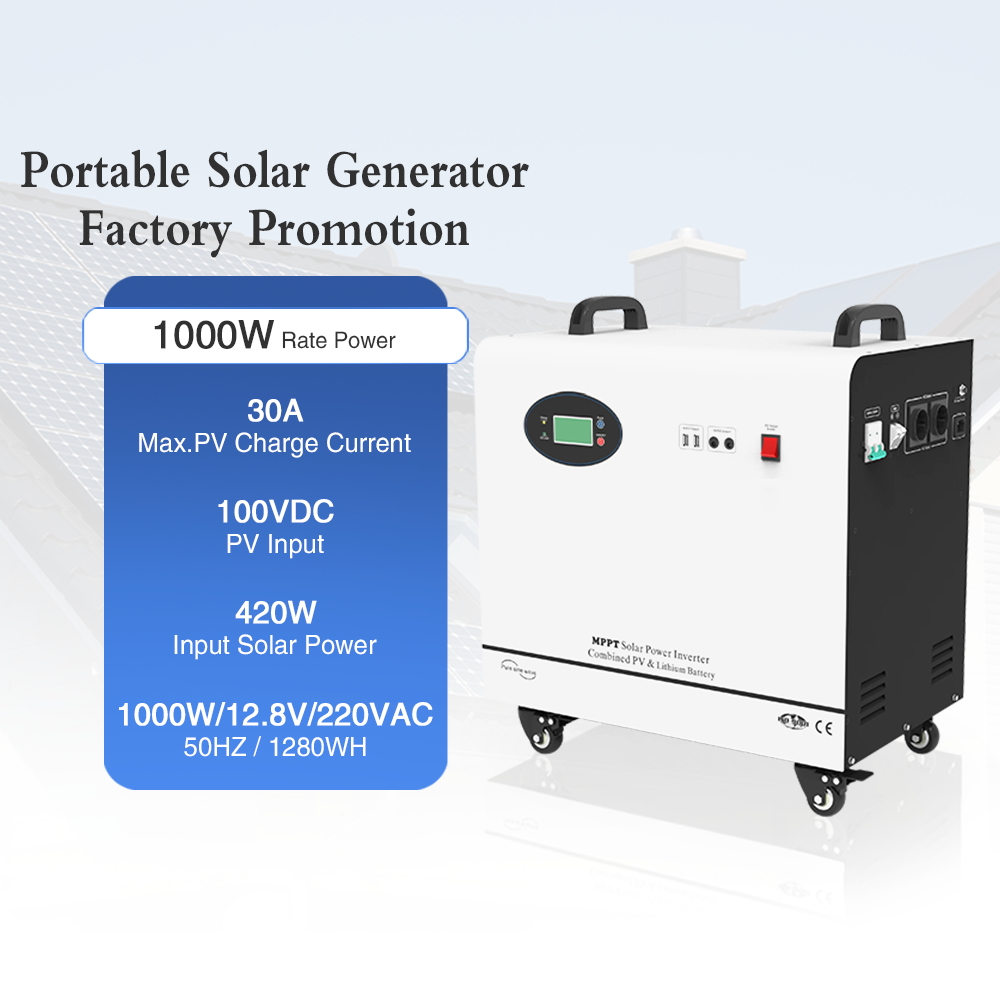

Model:AL | 1KW12.8V | 2KW25.6V | ||
Inverter | ||||
Battery voltage | 12.8V | 25.6V | ||
In-built battery specification | 100AH/12.8V*1 | 100AH/25.6V*1 | ||
Rated power | 1000W | 2000W | ||
Input voltage range | 145-275VAC | 170-275VAC | ||
Output voltage | 220VAC | |||
Output frequency | 50/60Hz | |||
Output waveform | Pure Sine Wave | |||
Charge By A Mains Supply | ||||
Rated voltage | B220VAC---*('*'means an optional function) | |||
Charge current | 15A(MAX) | |||
Solar Input | ||||
Maximum photovoltaic voltage | ≤25V | ≤100V | ||
Charge voltage | 10-25V | 35-100V | ||
Rated charge current | PWM 30A | MPPT 30A | ||
Maximum power | 360Wp | 800Wp | ||
Voltage of overcharge protection | 14.5V | 29V | ||
Voltage of floating charge | 14.2V | 28.4V | ||
DC output | ||||
Voltage of high-voltage protection | 17V | 34V | ||
Voltage of high voltage recovery | 15.5V | 31V | ||
Voltage of low voltage recovery | 13V | 26V | ||
Voltage of low voltage protection | 11.2V | 22.4V | ||
5VDC USB output port | 2 units/MAX2A | |||
12VDC output port | 2DC ports/MAX2A | |||
Starting temperature of the exhaust fan | >45℃ | |||
Ambient temperature for operation | 0-40℃ | |||
Ambient temperature for storage | -25-+55℃ | |||
Operation/storage conditions | 0-90%(no condensation) | |||
