Summary
No.1600164580583
More
$20000.00
Specifications
System Type:
Off-Grid Solar System
Solar Power (W):
<7600W
  • SNADI Household Off Grid 20KW 25KVA Home Solar Panel Power System
  • SNADI Household Off Grid 20KW 25KVA Home Solar Panel Power System
  • SNADI Household Off Grid 20KW 25KVA Home Solar Panel Power System
  • SNADI Household Off Grid 20KW 25KVA Home Solar Panel Power System
  • SNADI Household Off Grid 20KW 25KVA Home Solar Panel Power System
  • SNADI Household Off Grid 20KW 25KVA Home Solar Panel Power System

Key attributes

Solar Panel Type
Monocrystalline Silicon
Controller Type
MPPT
Free installation service
NO
Place of Origin
Guangdong, China
Load Power (W)
20KW
Pre-sales project design
Y
Brand Name
SNADI
Model Number
SN-20KW
Application
Home
Battery Type
Lead-Acid, Lithium Ion
Mounting Type
Ground Mounting
Output Voltage (V)
110VAC / 220VAC
Output Frequency
50HZ / 60HZ
Work Time (h)
24 Hours
Product name
Home Power Solar System
Inverter
20KW
Solar panel
64 Units *300W MONO
Controller
192V 100A MPPT
Battery
Gel Battery
Output wave
Pure Shine Wave
Transfer Time
<10ms
Communication
Wifi ,RS232,RS485,SNMP
AC Input
By pass
Technical Support
Product Training &Install Drawing

Packaging and delivery

Selling Units
Single item
Single package size
172X113X115 cm
Single gross weight
5500.000 KG

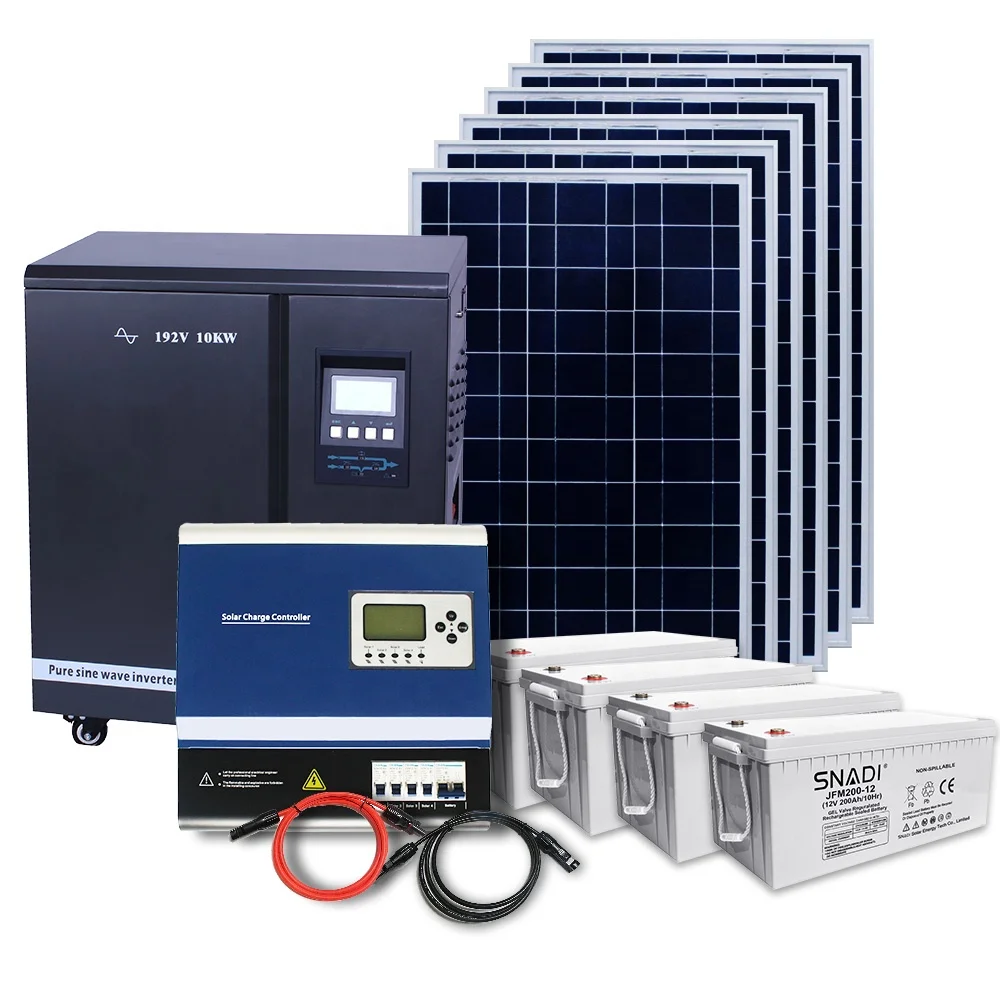

SNADI Household Off Grid 20KW 25KVA home solar Panel Power system
Product Information

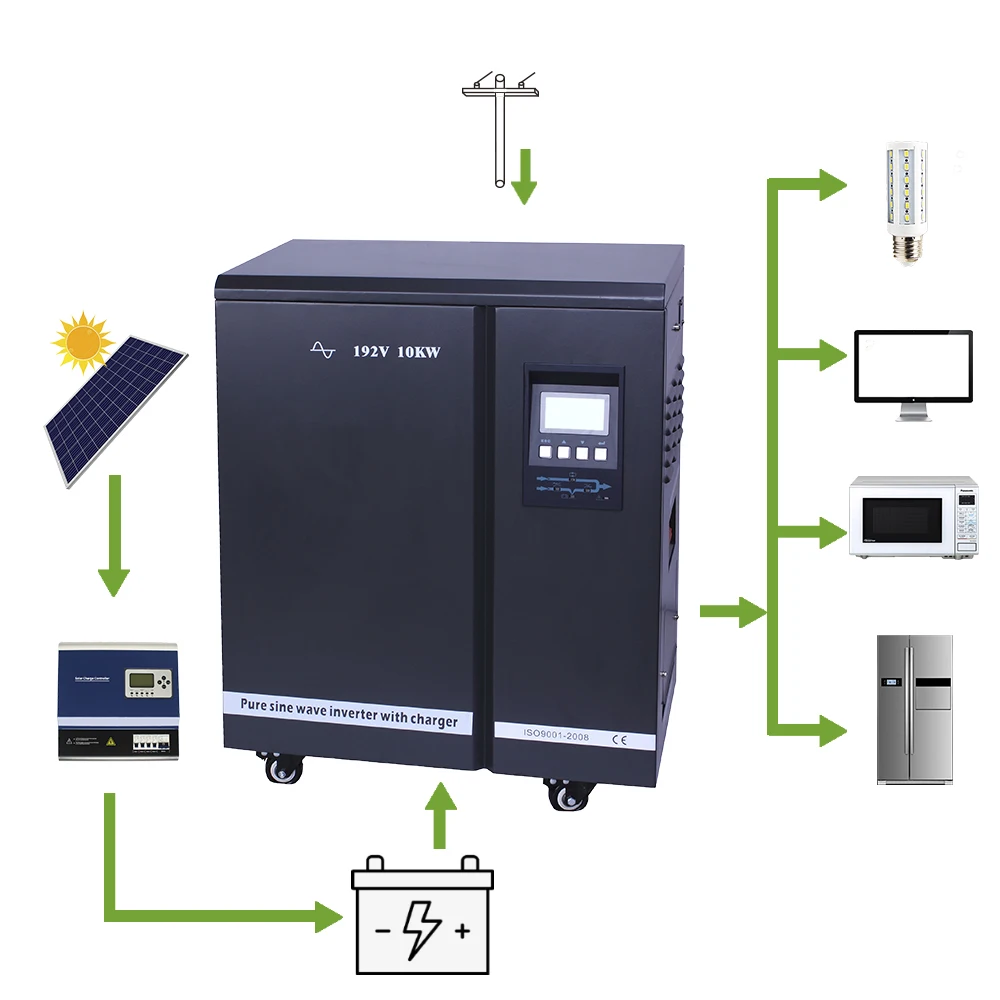

The off grid Home Power solar system can produced electricity and load appliances directly.
Features:1. solar first, grid power(utility) as backup power
2. Grid power first, solar power as backup power

Its mains supply preferred mode, energy-saving mode and battery preferred mode are all settable, thus making it easy to meet the
different application needs of users. It's widely applied for families, schools, streets, frontier defense, pasturing areas,
industrial equipment, satellite communication equipment, military vehicle-borne equipment, ambulances, police cars, ships, etc..
Manufacturing Technique
10KW Off Grid Home Power Solar System Equipment list
Item
Module
Description
Quantity
1
Poly/Mono Solar Panel
Poly/Mono 300w solar panel
64pcs
2
Solar Charge Controller
MPPT 192V 100A
1set
3
Gel Solar Battery
with Battery cable
12V 200Ah
32/64pcs
4
Off Grid Solar Power Inverter
Output Power: 20kW
Battery voltage:192V
Output voltage: Single Phase 110V/220V 50/60Hz
1pc
5
PV Combiner Box (Switches,Breaker,SPD)
6 inputs 1 output
1pc
6
PV Cables
PV 4mm²
200m
7
Mounting System
(including all parts)
Roof/Ground

whole set for 20pcs solar module
1set
8
MC4 connector
Rate Current:30A Rate Voltage: 1000DVC
4pairs
System Details

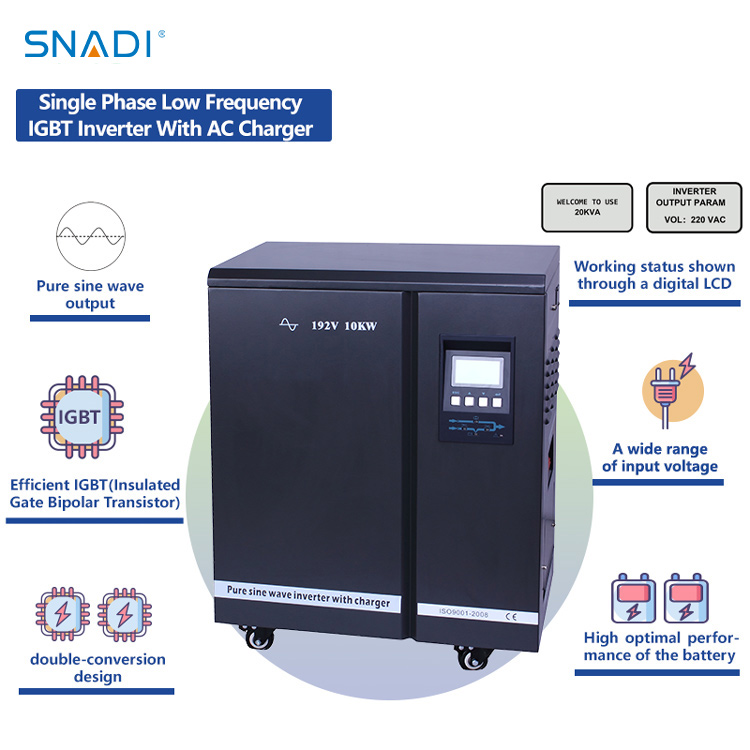

20KW OFF GRID INVERTER

20KW IGBT solar inverter, DC input:192VDC AC Output :220VAC 50HZ, 110VAC 60Hz ,Single Phase
Size:750*580*1000MM Net weight:165KGS

Protections: against short-circuit, overload, battery reverseoutput short-circuit , low-voltage, and over-voltage protection, etc.

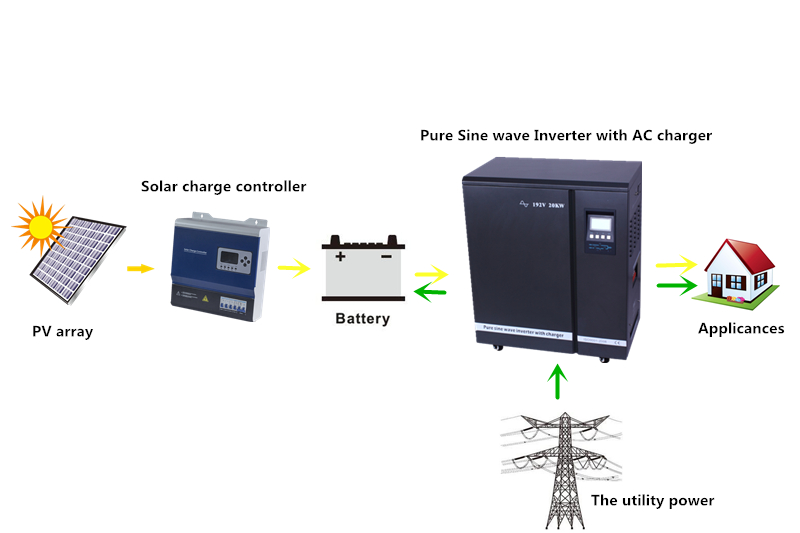

Bypass function:system will use solar power priority, and then battery ,when battery run out , inverter will automatic switch to
grid power for home use

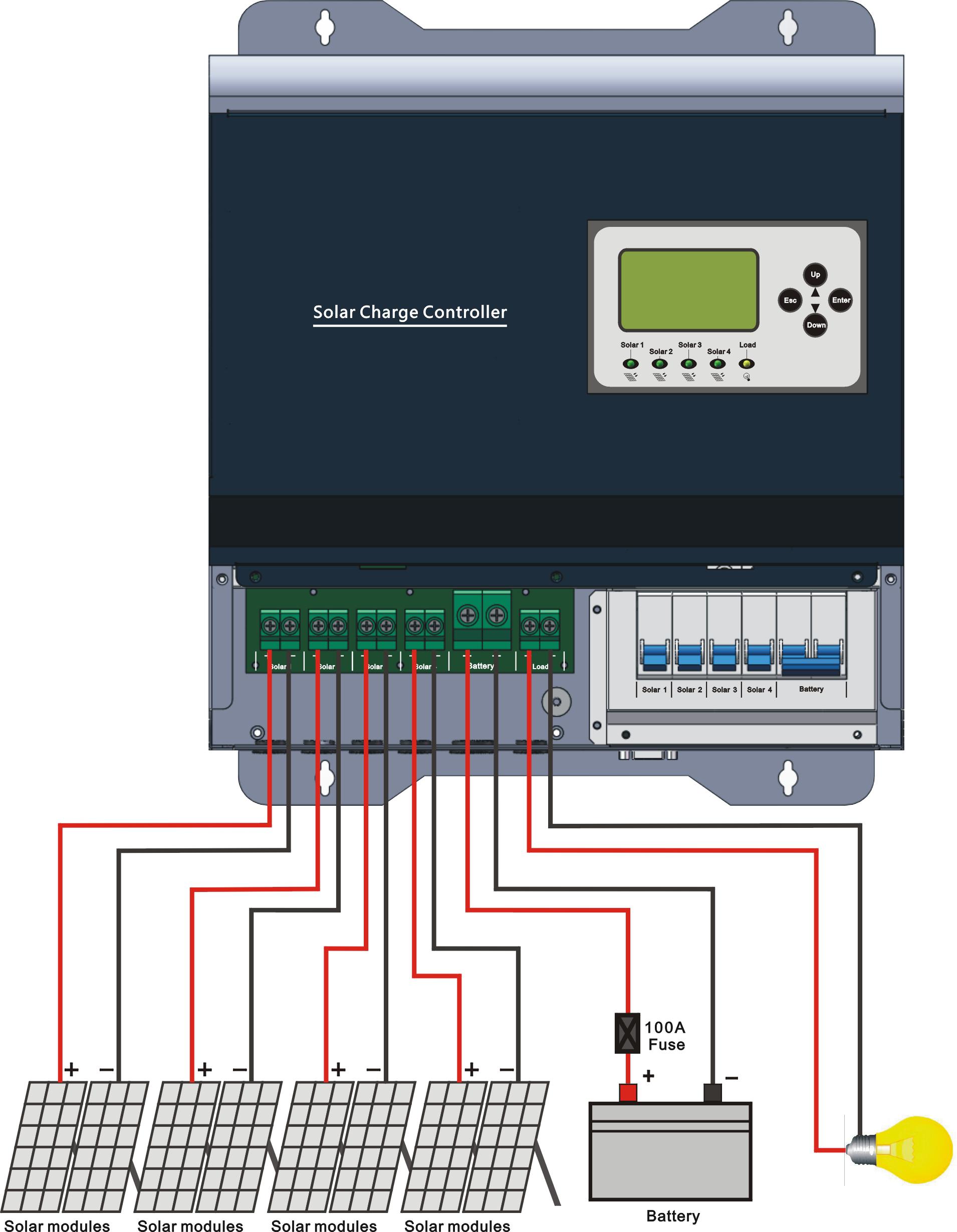

CHARGE CONTROLLER


Model : CM-96-80ARated Voltage :192 VDCRated Charge Current : 100AMAX PV Power 20000wpPWM DC Voltage Rang : 660VDCSystem Type : Automatiic Identification
Static Power : <2WPV Module Efficiency : >99.5%

Function : Charge From PV to battery and Protect This Home Power Solar System

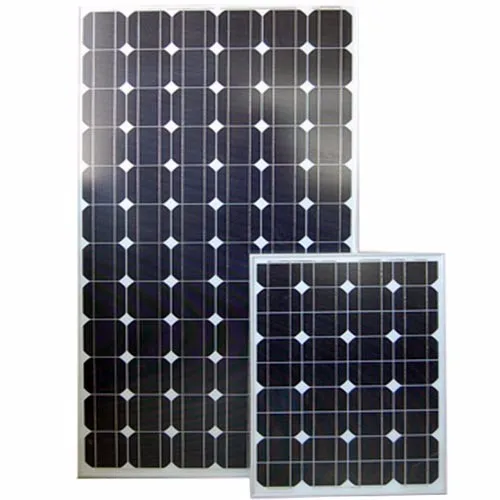

MONO SOLAR PANEL
*STC Irradiance 1000W/m2,AM1.5 spectrum,modeul temperature 25℃ Model tpye:GP-370M-72 Peak power (Pmax):370W
Cell Effficiency:21.97% Maximum power voltage(Vmp):40.5V Maximum power current (Imp):9.00A Open circuit voltage(Voc):45.9V Short circuit current(Isc):9.52A Power Tolerance:±3% Maximum system voltage:1000V Series fuse rating (A):12A Dimensions:1956*992*45MM Weight:20.46kg Solar cells:72 cells in series (6*12)

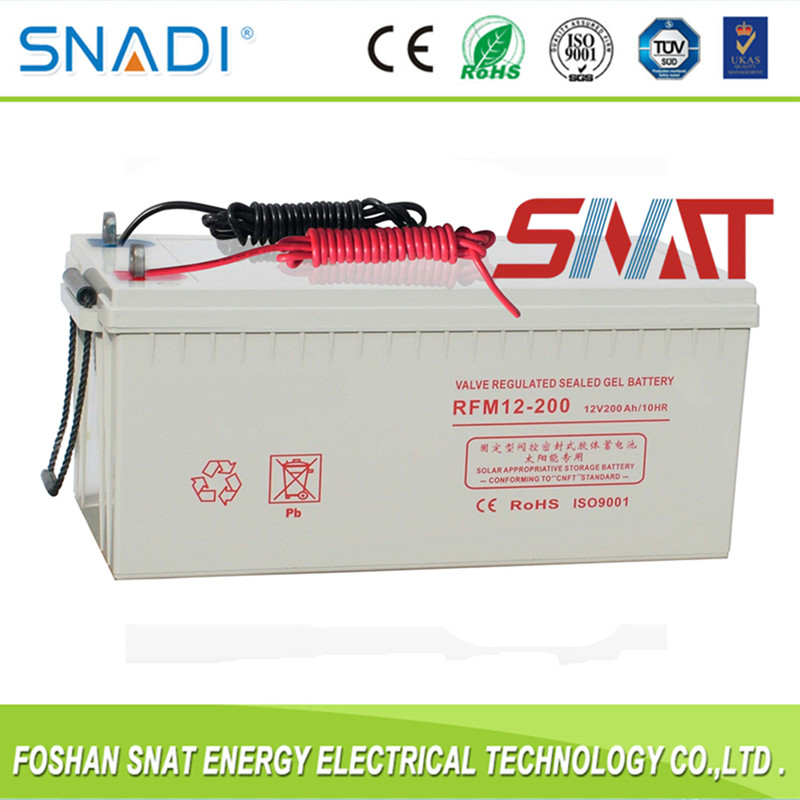

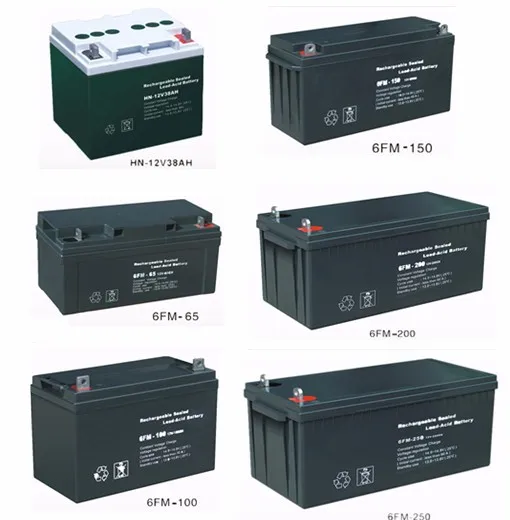

GEL BATTERY


Nominal Voltage (V) 12
Designed Floating Life (20oC) 10+ YearsNominal Capacity :200AHDemensions:522*239*218mmApprox. Weight :58KGMaintenance Type:Free

Function: Storage Energy For this Home Power Solar System

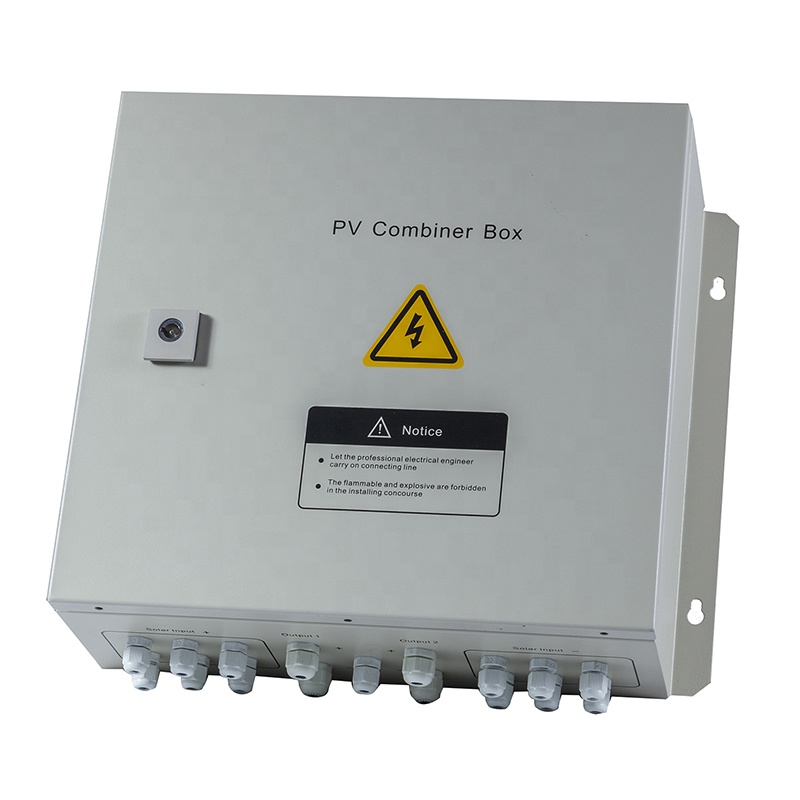

PV Combiner Box


Combiner Box
Input : 5 arrays Output :1 ArraysSize :365*409*150mm
IP65
Reduce wiring connected and Lightning Protect for this Home Power Solar System

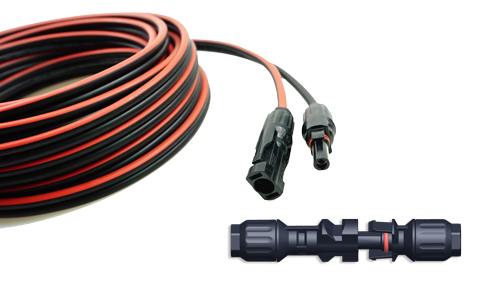

PV CABLES

4 mm2: PVC insulated, single core, Red Meters 504 mm2: PVC insulated, single core, Black Meters 5010 mm2: PVC insulated, single core, Red Meters 1010 mm2: PVC insulated, single core, Red Meters 10

Function :Connect the PV Panels for solar system

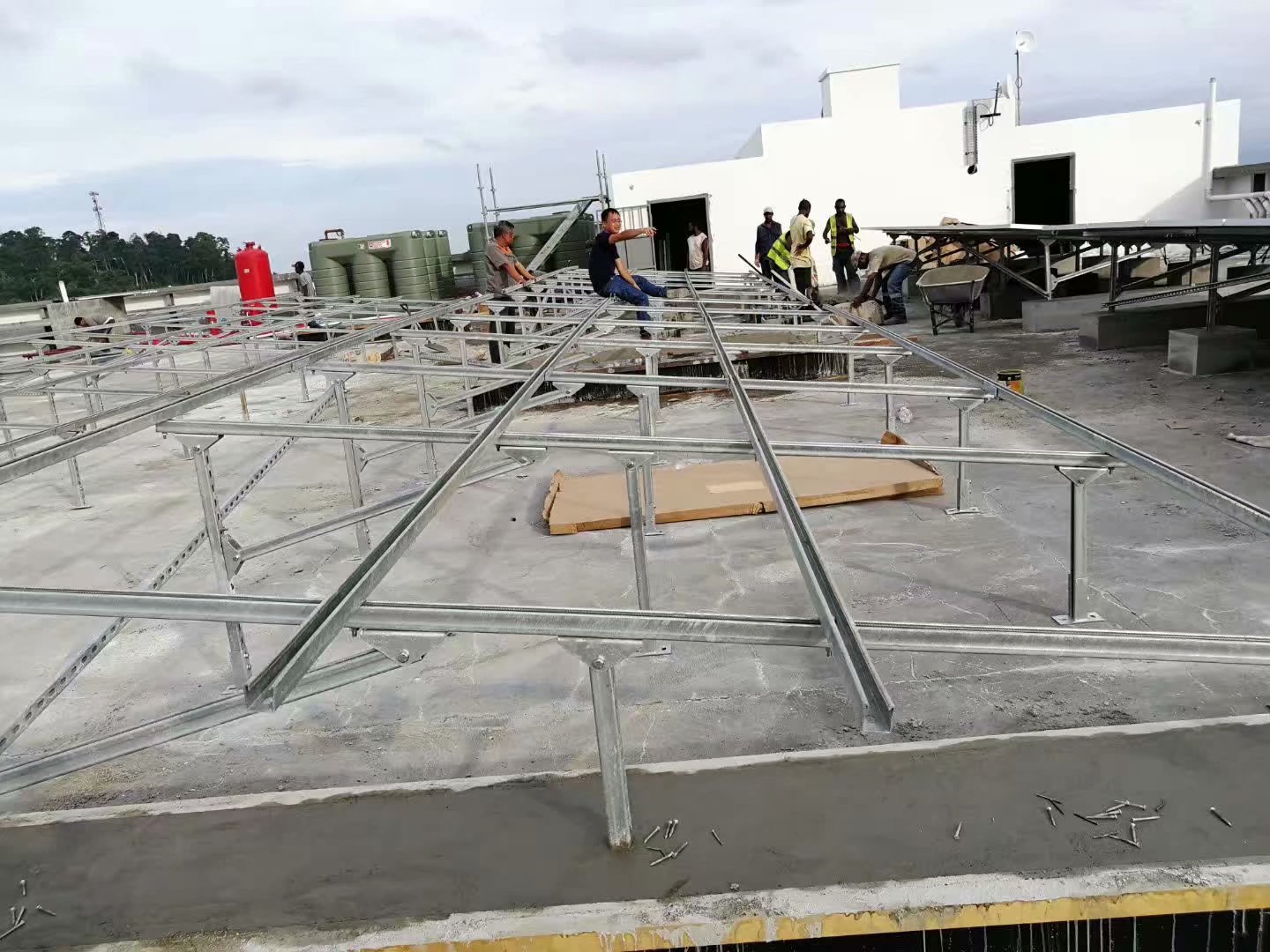

PV SUPPORT BRACKET

Installation site : tile roor ( optional)Material:Al6005-T5Extruded Aluminum SectionHigh Class Anodized Aluminumone set brackets can mount 4pcs solar panels Wind Load :up to 130mph (60m/s)Snow Load : up to 30psf (1.4kN/m2)

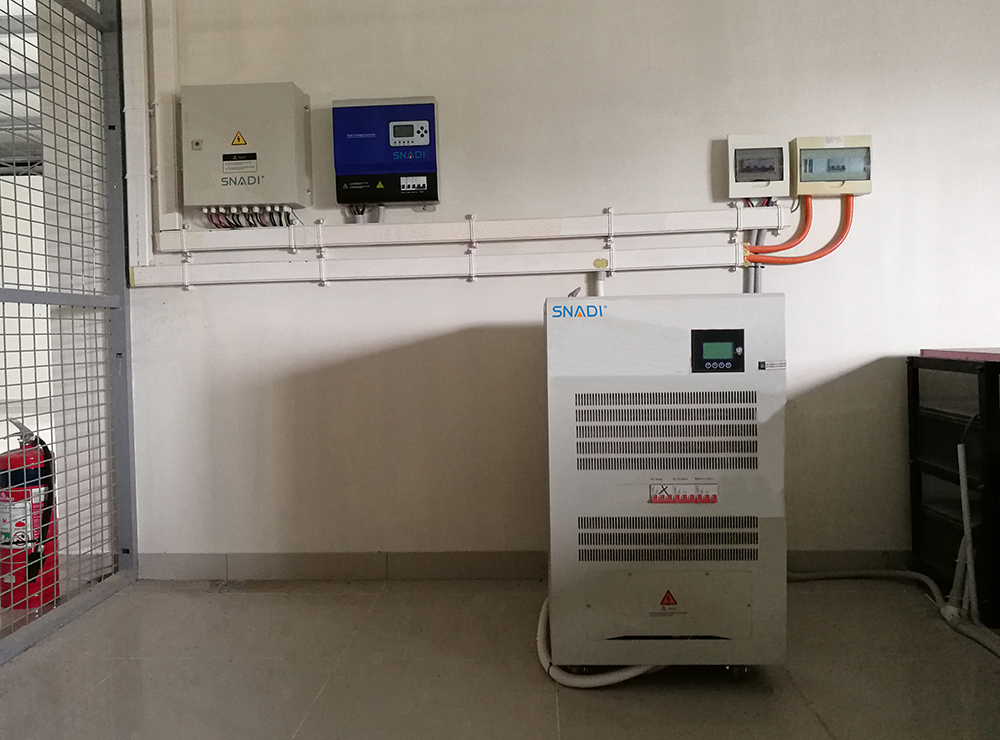

Solar System Case Showing
Certifications
Hot Products
Exhibition
FAQ
Q1: MOQ
A: MOQ from our company is required 1 unit

Q2: Are you manufacturer or trading company?
A: We are professional manufacturer since 2004

Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with
customers' special requirements.

Q4: How long is your delivery time
A: Within 15 days

Q5:How about your after-sales service?
A:Our quality warranty for 1-2 years; any parts will be shipped for free during warranty period.
