Who we are?

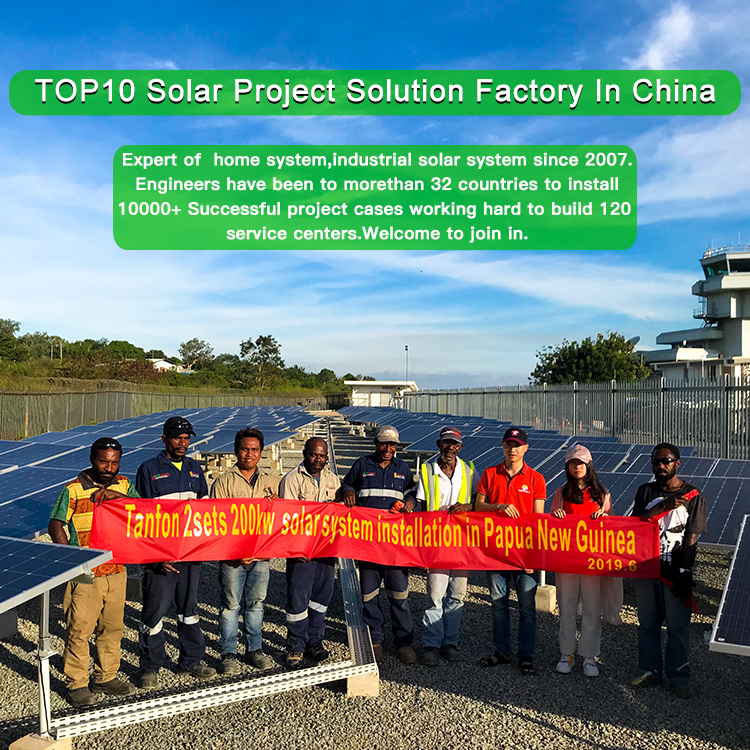

Tanfon is TOP10 solar generator project factory in china
What we do?
Expert of home system,industrial solar power system generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases?
How we do ?
Tanfon solar--German technology, Chinese price, Global service
1).Our?IGBT inverter SCR is used?German SEMIKRON technology, with Germany standard and quality.
2).Our Chinese factory is mainly responsible for the supply chain management and production
3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers?all over the world. Give strong after-sales service in Local?
After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.
Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation
| Solar generator Product Details |
|
|

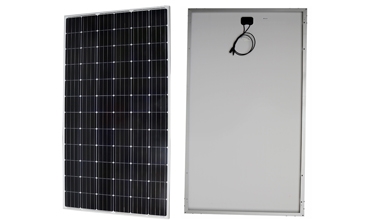

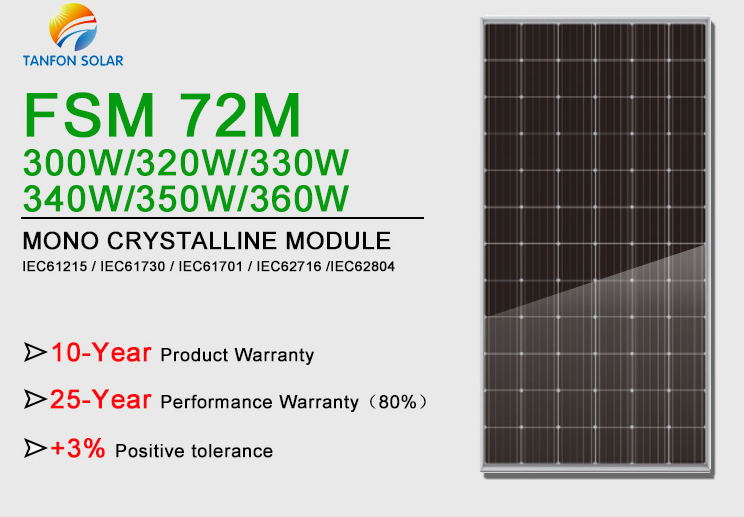

Solar Panel (Quantity: 20pieces) if you want 500W solar panel design ,contact us? FS350W mono solar generator panel(poly?optional) Vmp: 38.39V Voc: 47.13V?Imp:?9.25A Size: 1956*992*40mm Coated steel?Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10?years 90%. 25 years life time (CE RoHS) |
|

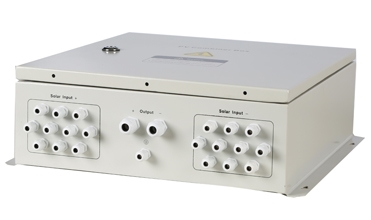

Solar generator?PV combiner (Quantity: 1?piece) Model: H6T-96v Multiple PV strings inputs Simplify wiring between PV array and controller, protections to controller,?Prevent hot spot effect Wide range of DC input voltage Reliable thunderstorm & surge protection Product Size: 360*345*145mm |
|
|
|

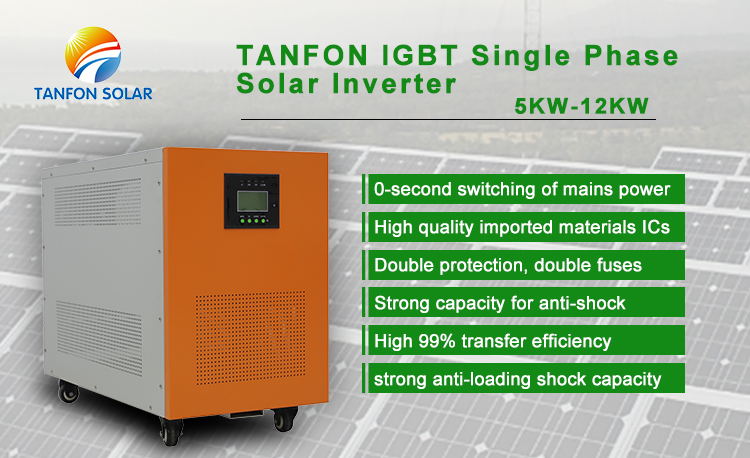

IGBT Solar generator?Inverter (Quantity: 1?piece) Inverter?power: TF10kw/96v MPPT Controller?model: 96v/100A,?AC charger:?15-20A Bypass function with AC charger Double protection, easy after sales service O/P: 110V, 220VAC? |
|

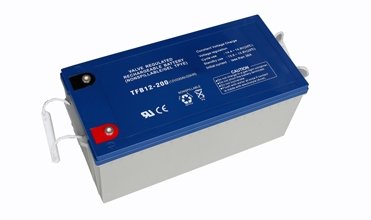

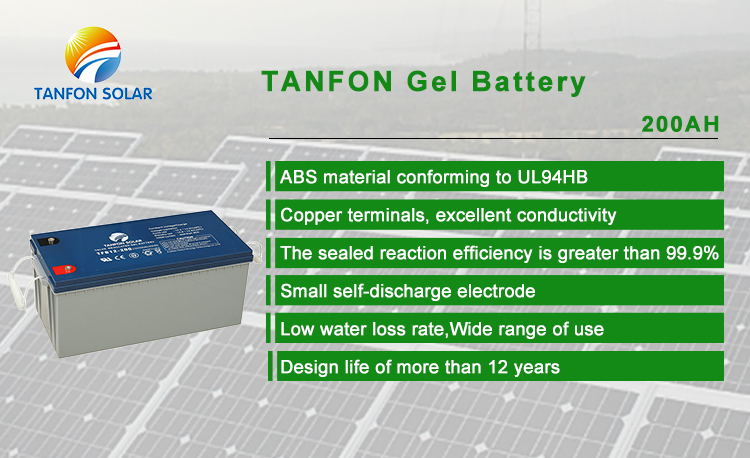

Solar generator Battery (Quantity: 16pieces) Capacity: 12V/200AH? Full sealed Solar power system gel battery, Service life: 6-8 years , Size:522*240*219mm? |
|
|
|
Solar generator Rack (Quantity: 1 set) Slope Roof or Flat roof?or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure:?Anodized Aluminum?+?stainless steel |
|

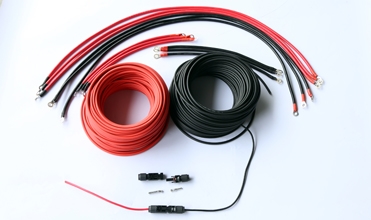

solar generator Cables (Quantity: 1 set) 14pcs 16mm2*35CM battery cable 4pcs 16mm2*1M battery cable 4mm2?PV cable 100M Terminals and MC4 |
|

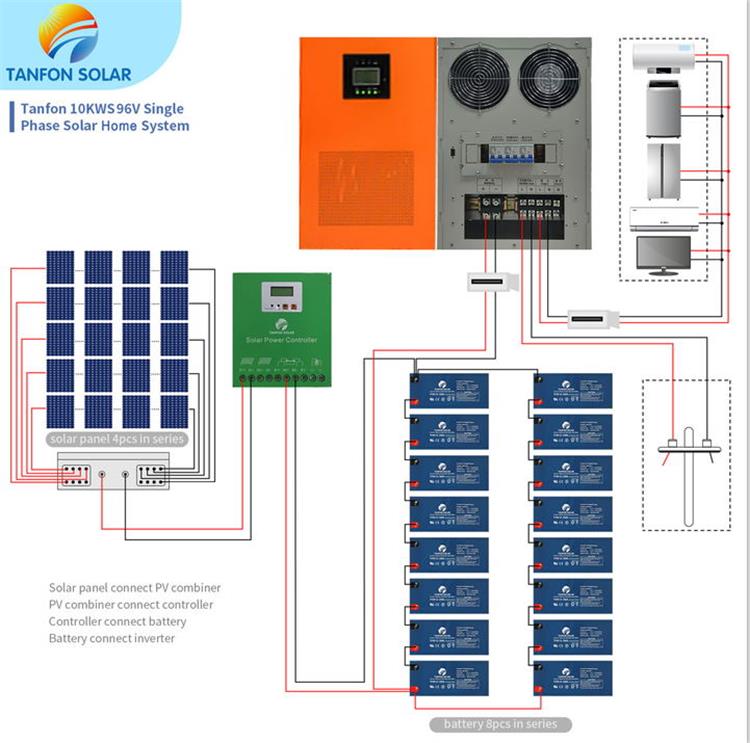

Easy installation:
If this off grid 10000 watt solar generator configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

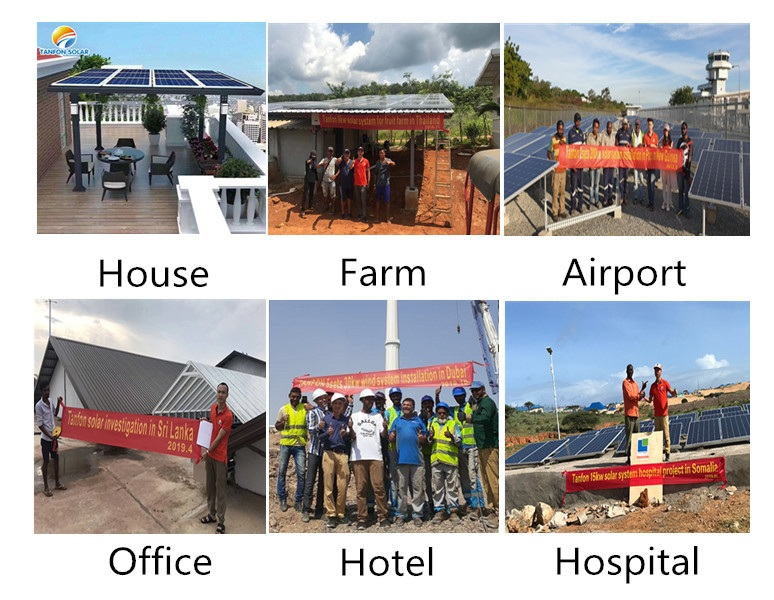

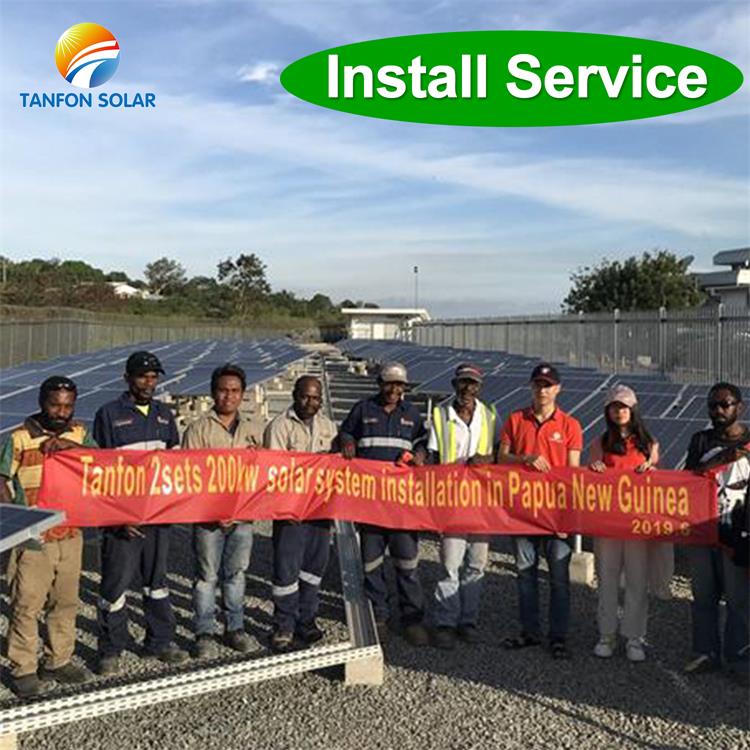

| Solar generator projects: |
| Why TANFON is your right Choice? |
Quality:
Each set solar power system has tested by power-off test of?100 times per hour.
Service:
Pre-sale:?Have been?served for 120 countries?professional teams will free to hlep you to design and big project site survey.
Selling:?Three days per time of follow-up services,?video inspection.
After sales:?Engineer can be on-site?installation service.
Efficiency:
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
Solar generator Customer Real Feedback:
Send Inquiry now!
