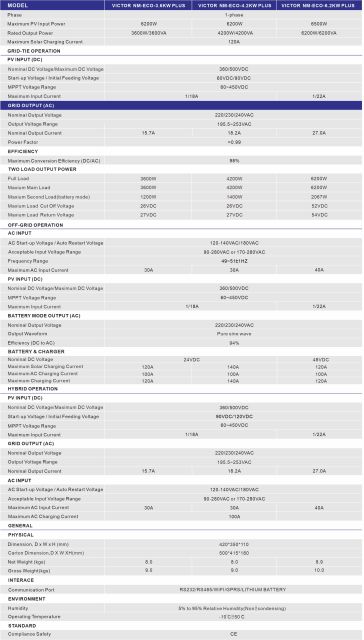

| Model | NM-ECO-3.6KW PLUS | NM-ECO-6.2KW PLUS |
| Phase | 1-Phase | |
| Maximum PV Input Power | 6200W | 6500W |
| Rated Output Power | 3600W/3600VA | 6200W/6200VA |
| Maximum Solar Charging Current | 120A | |
| GRID-TIE OPERATION | ||
| PV Input(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Maximum Input Current | 1/18A 1/22A | |
| GRID OUTPUT(AC) | ||
| Norminal Output Voltage | 220/230/240VAC | |
| Output Valtage Range | 195.5~253VAC | |
| Norminal Output Current | 15.7A | 27.0A |
| Power Factor | >0.99 | |
| EFFICIENCY | ||
| Max Conversion Efficiency(Solar to AC) | 98% | |
| TWO LOAD OUTPUT POWER(V2.0) | ||
| Full Load | 3600W | 6200W |
| Maximum Main Load | 3600W | 6200W |
| Max Second Load(battery mode) | 1200W | 2067W |
| Main Load Cut Off Voltage | 26VDC | 52VDC |
| Main Load Return Voltage | 27VDC | 54VDC |
| OFF-GRID OPERATION | ||
| AC Input | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
| Maximum AC Input Current | 30A | 40A |
| Nominal operating frequency | 50/60Hz | |
| Surge power | 7200W | 12400W |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Waveform | Pure sine wave | |
| Efficiency(DC to AC) | 94% | |
| BATTERY&CHARGER | ||
| Nominal DC Voltage | 24VDC | 48VDC |
| Maximum Solar Charging Current | 120A | |
| Maximum AC Charging Current | 100A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension,D*W*H(mm) | 110*334*423 | |
| Net Weight(Kgs) | 9 | 10 |
| INTERFACE | ||
| Communication Port | RS232/WIFI/GPRS | |
| ENVIRONMENT | ||
| Operating Temperature | -10~50℃ | |
