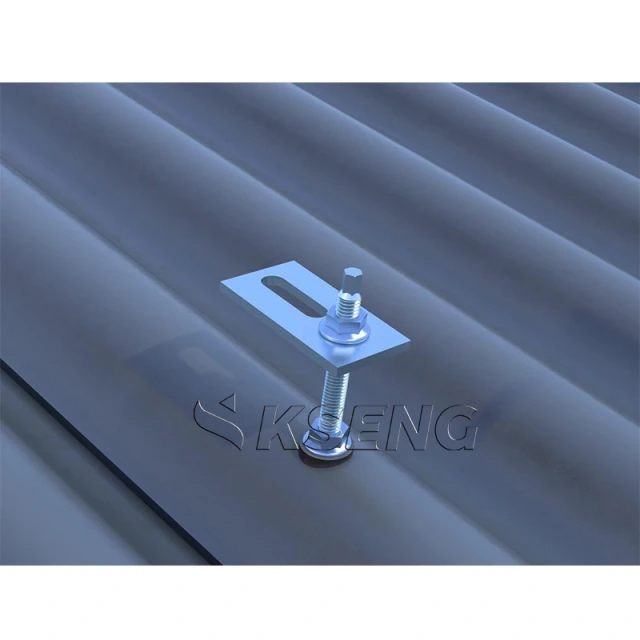

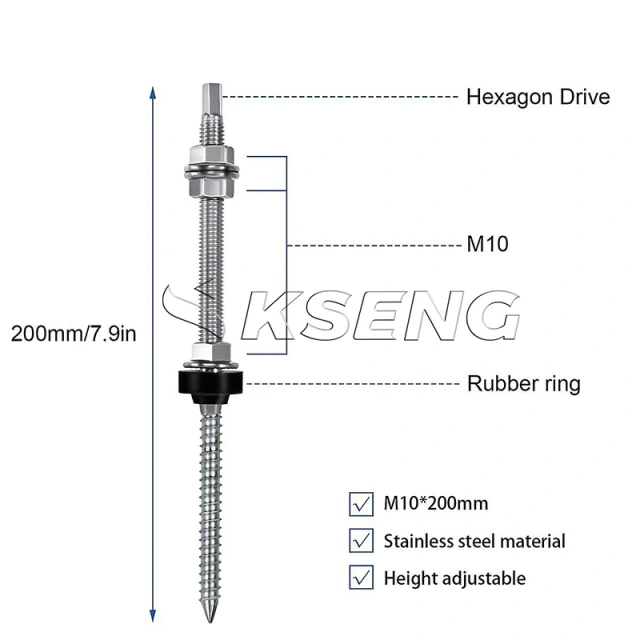

Solar Related Products High Strength Solar Hanger Bolt Solar Stainless Steel Hanger Bolt Roof Mounting System

Xiamen Kseng New Energy Co., Ltd.

Xiamen China

Summary

No.1601111879309

$1.20

Specifications

Type:

Roof solar mounitng

INQUIRY

Description Download

Key attributes

Other attributes

Place of Origin

China

Brand Name

4-Kseng

Model Number

Null

Product name

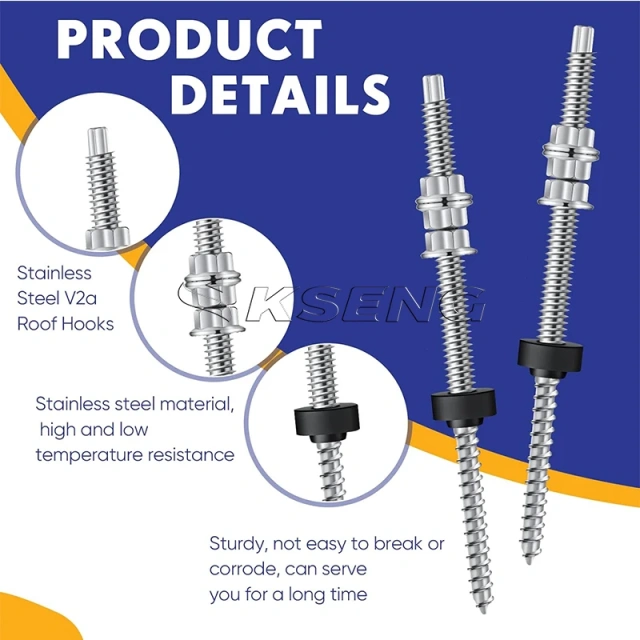

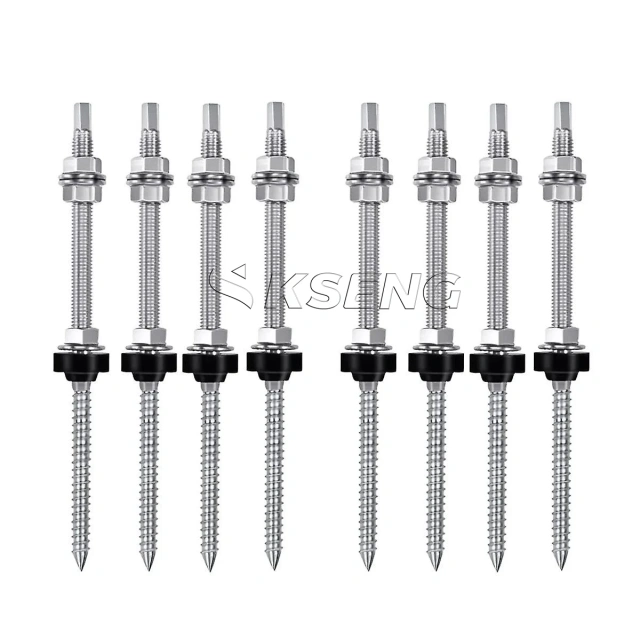

hanger bolts for solar mounting

Application

corrugated metal sheet roof

Material

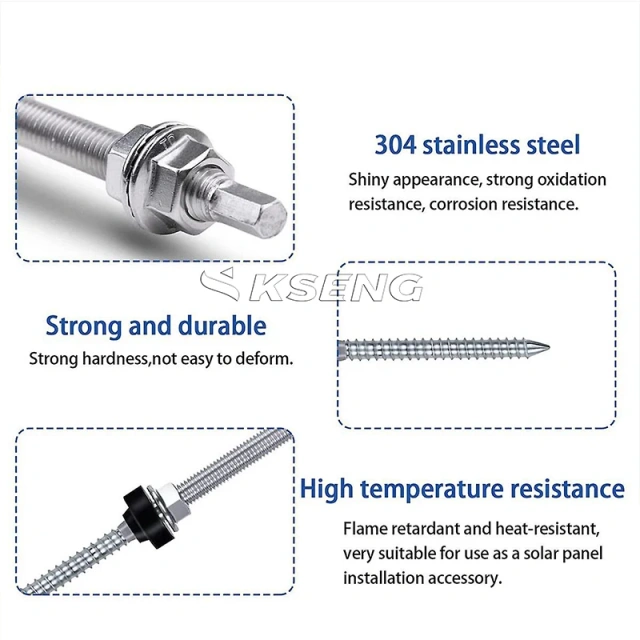

Stainless Steel

Color

Natural

Certificate

ISO 9001/CE

Service life

25 Years

Standard

AS/NZ1170

Snow load

1.4 KN/m2

00:07

01:44

Specification

Product Name	Wholesale Price Solar Hanger Bolt Solar Panel Accessories Hanger Bolts For Solar Mounting
Model Number	Null

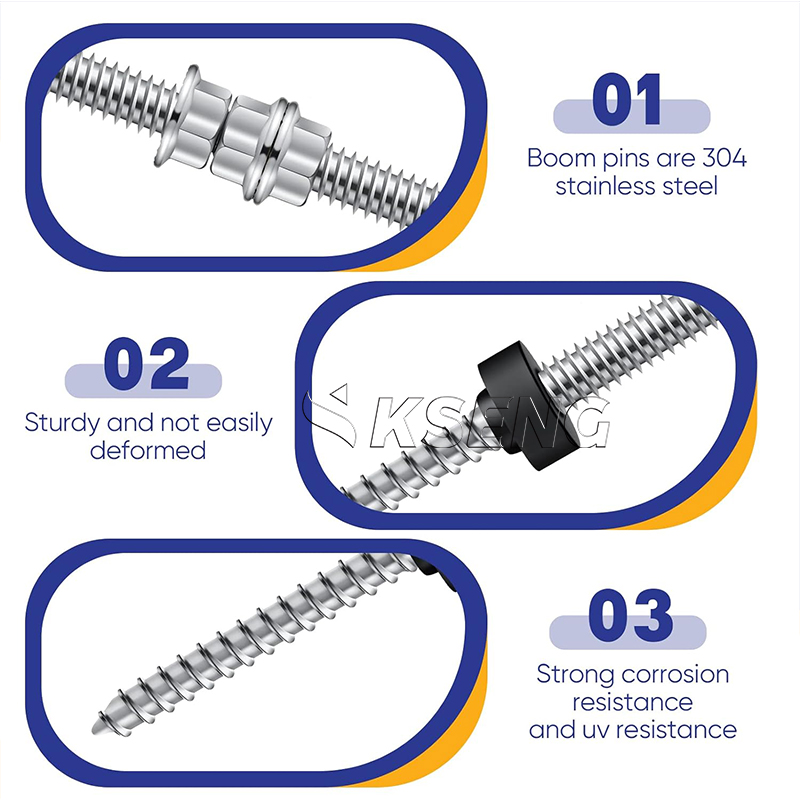

Material	Aluminum 6005-T5 & SUS 304 Stainless Steel
Max Wind Speed	Up to 60 m/s (214KM/H)
Snow Load	Up to 1.4KN/M2
Application	Corrugated Metal Sheet Roof
Warranty	10 Years
Service Life	25 Years
Certification	ISO9001/ CE/ SGS etc.
Standard	AS/NZS 1170

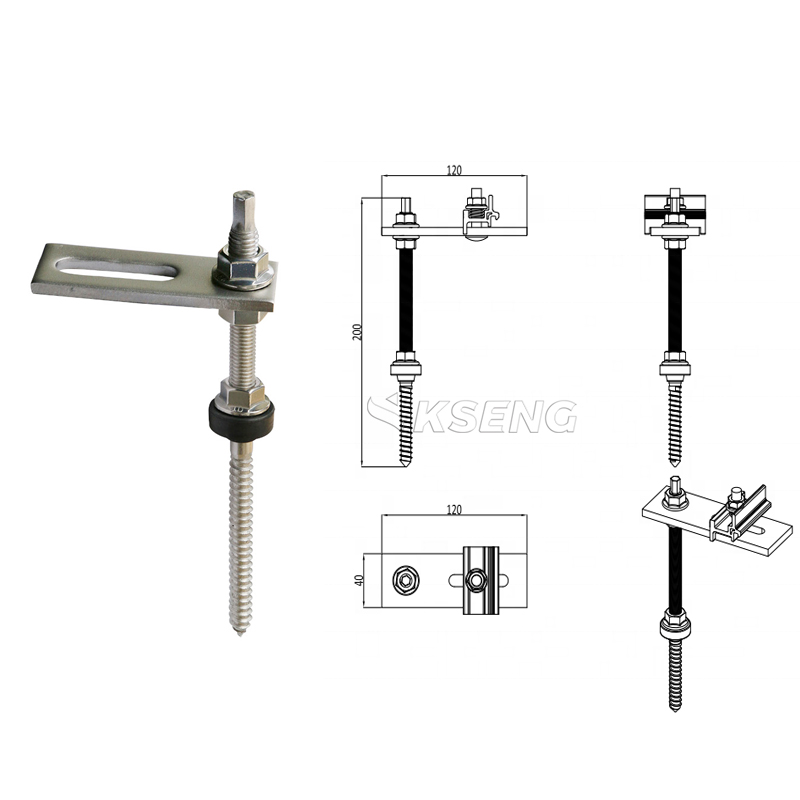

Drill a hole in the right position as planned, install the EPDM rubber and L-bracket, then screw the bolt into the wooden beam below.

Section of L-bracket after installation. Please be careful during installation, not destroy the steel below.

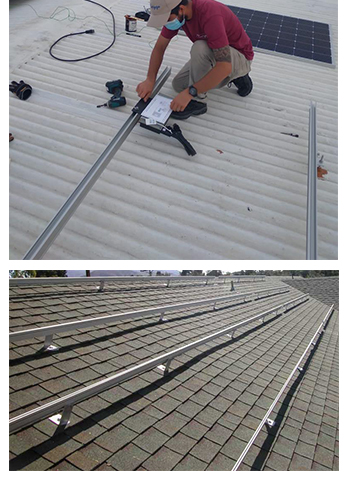

Mount the clamp and L-shaped bracket to the roof rail. confirm and tighten the bolts. Both rails must be on the same level.

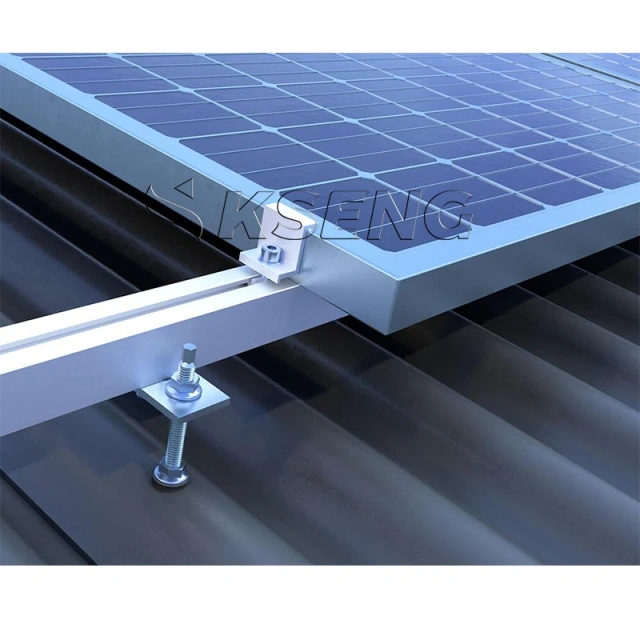

The module is secured to the roof rail by end clamps. As shown on the right. First, the panel is placed flat on the rail, then the rail clip is snapped into the rail slot and finally the end clamp kit is installed.

Portrait solar panel, Solar panel Length(should check the solar panel install instruction). Landscape solar panel, solar panel width.

L-bracket horizontal spacing can be up to 2m. L- bracket upward spacing is about 1/2 or 3/4 the length of solar panel. Spacing between solar panel:18mm.

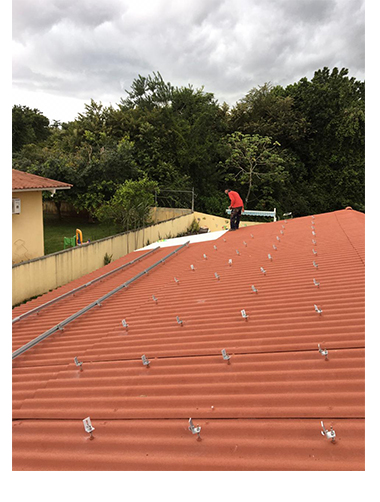

Project Case
