SolarUnit Mircoinverter Solar Energy System 920w 1.5kw DAH Global Patented with Full Screen Solar Panels EU Market

DAH Solar Co., Ltd.

An Hui China

Summary

No.1600729700181

$0.45

Specifications

System Type:

On-Grid Solar System

Solar Power (W):

1kW

3KW

1.5kw

2kw

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT

Other attributes

Free installation service

Yes

Place of Origin

Anhui, China

Load Power (W)

1kw, 1.5kw, 2kw, 3kw

Pre-sales project design

Brand Name

DAH

Model Number

DHN-(SU920D-1K5)-G0

Application

Home

Battery Type

NONE

Mounting Type

Roof Mounting

Output Voltage (V)

230V/220V(180V-270V)

Output Frequency

50/60HZ

Work Time (h)

24 hours

Product name

High security 1kw 1.5kw 2kw 3kw home solar power system module

Power Factor(Default/Adjustable)

0.9leading...0.9lagging

Output Current Total Harmonic Distortion

<2%

Peak Efficiency

97.20%

CEC Weighted Efficiency

97.05%

MPPT Efficiency

97.05%

Protection

IP65

Cooling

Natural Cooling

Noise

<10db

Communication

Wifi/PLC

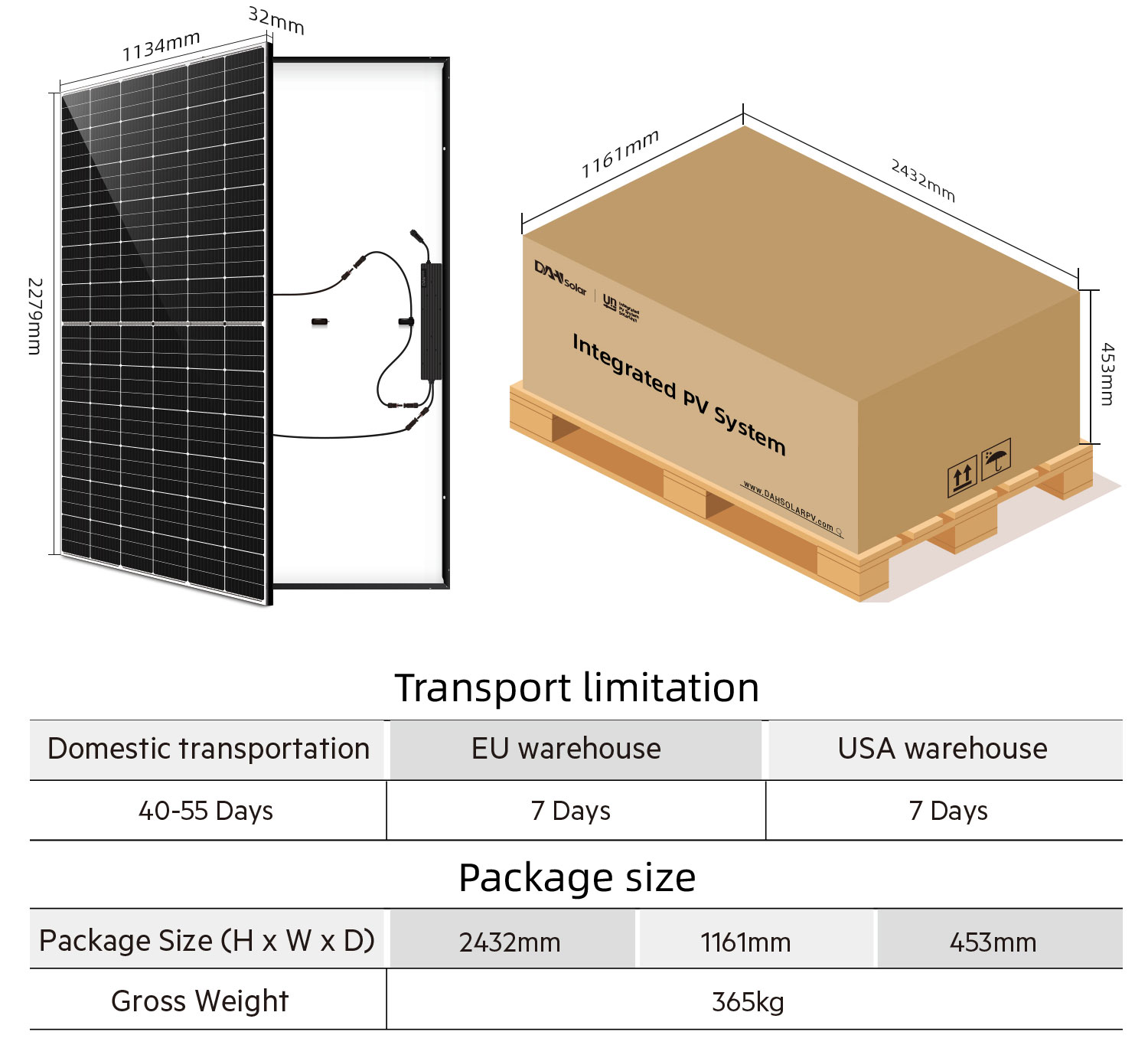

Packaging and delivery

Packaging Details

DAH SolarUnit High security 1kw 1.5kw 2kw 3kw home solar power system module
In carton and on pallet,standard international package

Port

shanghai

Selling units

Single item

Single package size

0.04X0.02X0.01 cm

Single gross weight

0.150 kg

Supply Ability

500 Milliwatt/Milliwatts per Day

Product Description

Maximum Power(Pmax)	545W	550W	555W	560W
Open-circuit Voltage (Voc)	50V	50.0V	50.4	50.6V
Maximum Power Voltage(Vmp)	42.2V	42.4V	42.6	42.8V
Short-circuit Current (Isc)	13.72A	13.78A	13.84A	13.90A
Maximum Power Current (Imp)	12.91A	12.97A	13.03A	13.08A
Solar Panel Efficiency	21.09%	21.28%	21.48%	21.67%
Power Tolerance	0~+5W
Standard Test Environment	Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
