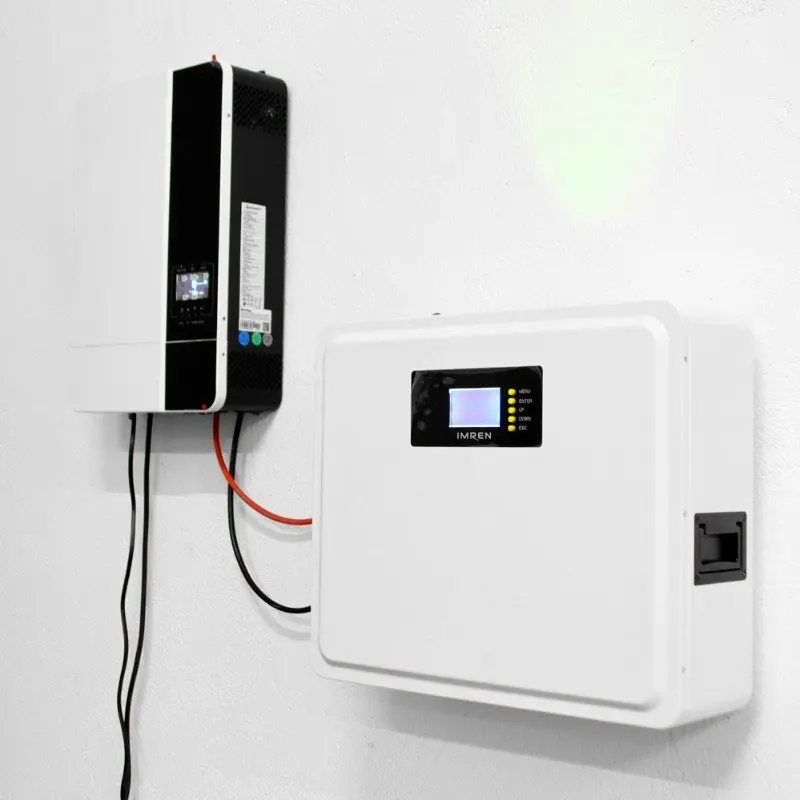

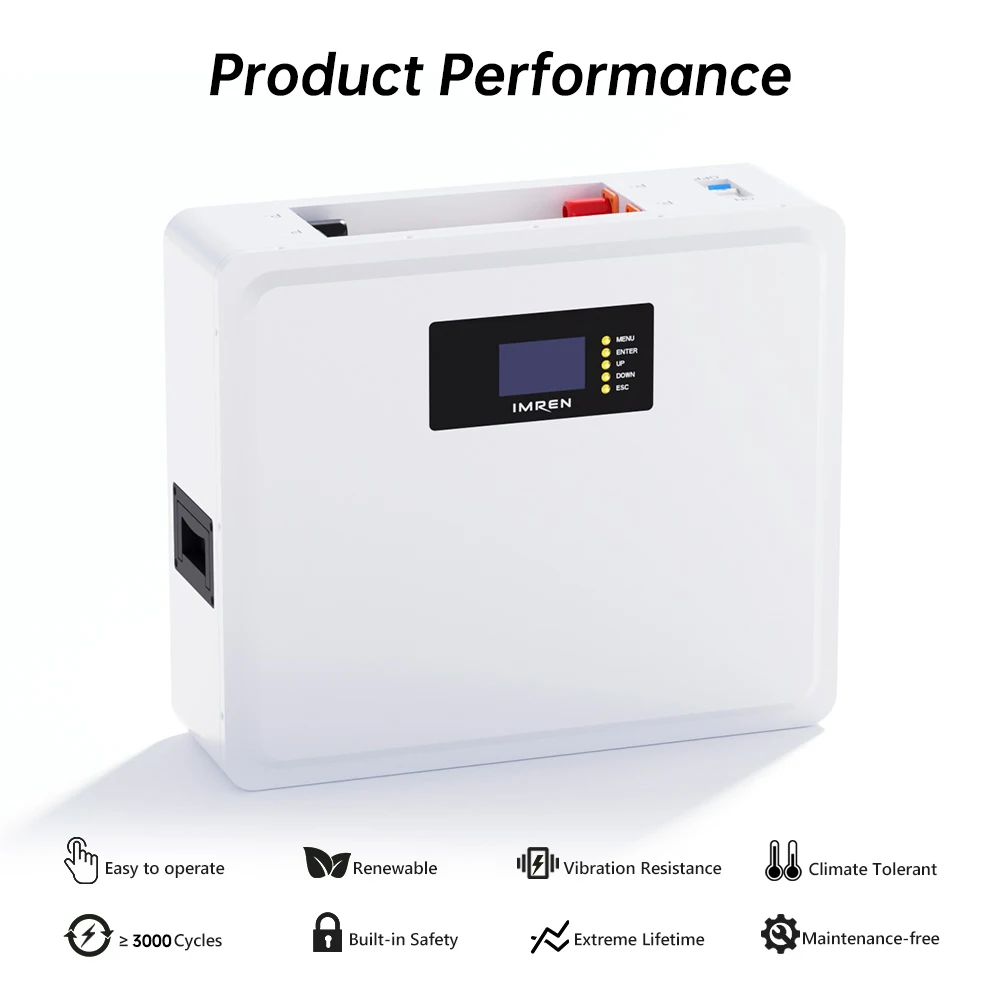

5kWh Wall-mounted Battery Pack Lithium iron phosphate Battery | ||
Product Name | LFP 5kWh Wall-mounted battery, with Square Aluminum Shell | |
Battery Model | LF100LA, 100Ah, 3.2V | |
Nominal Voltage | 51.2V | |
Working Voltage Range | 43.2V～58.4V, Single voltage 2.7V～3.65V | |

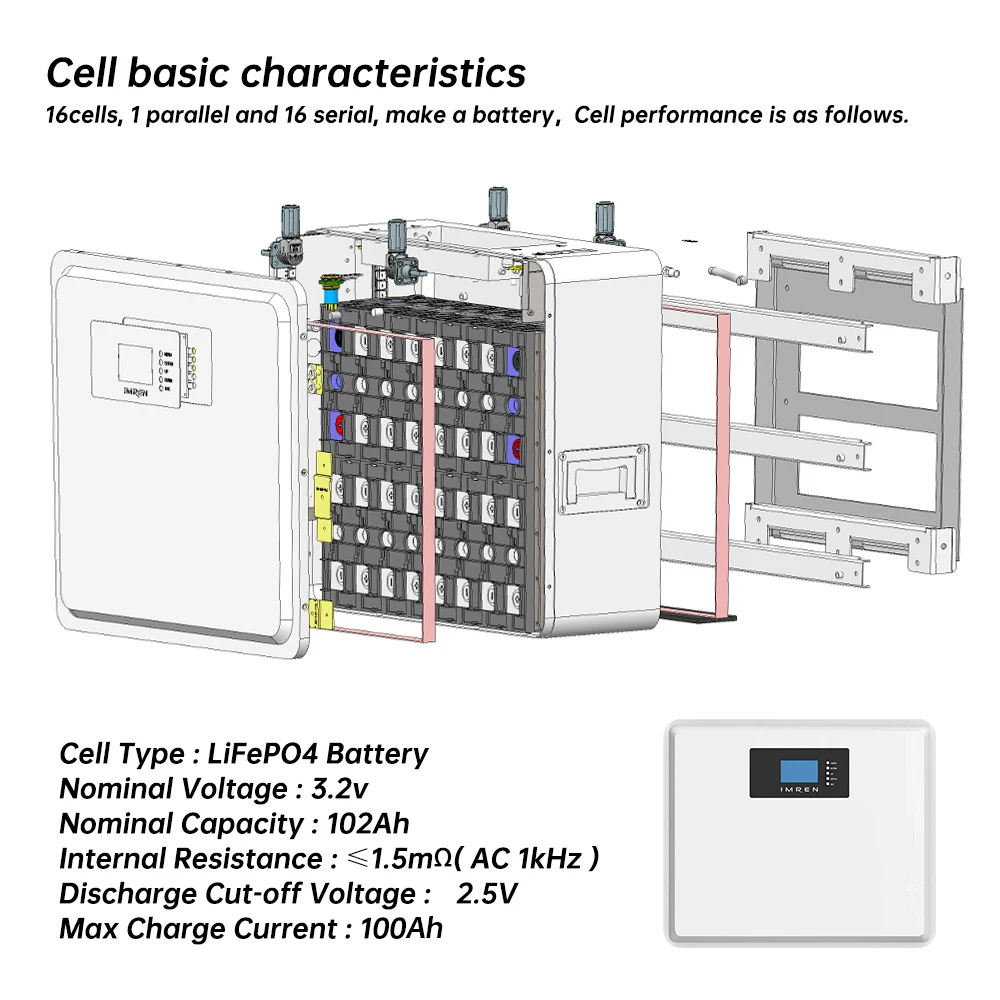

Battery Series and Parallel | 1P16S | |
Battery Box Dimensions (W*D*H) | 500*420*170（mm） | |

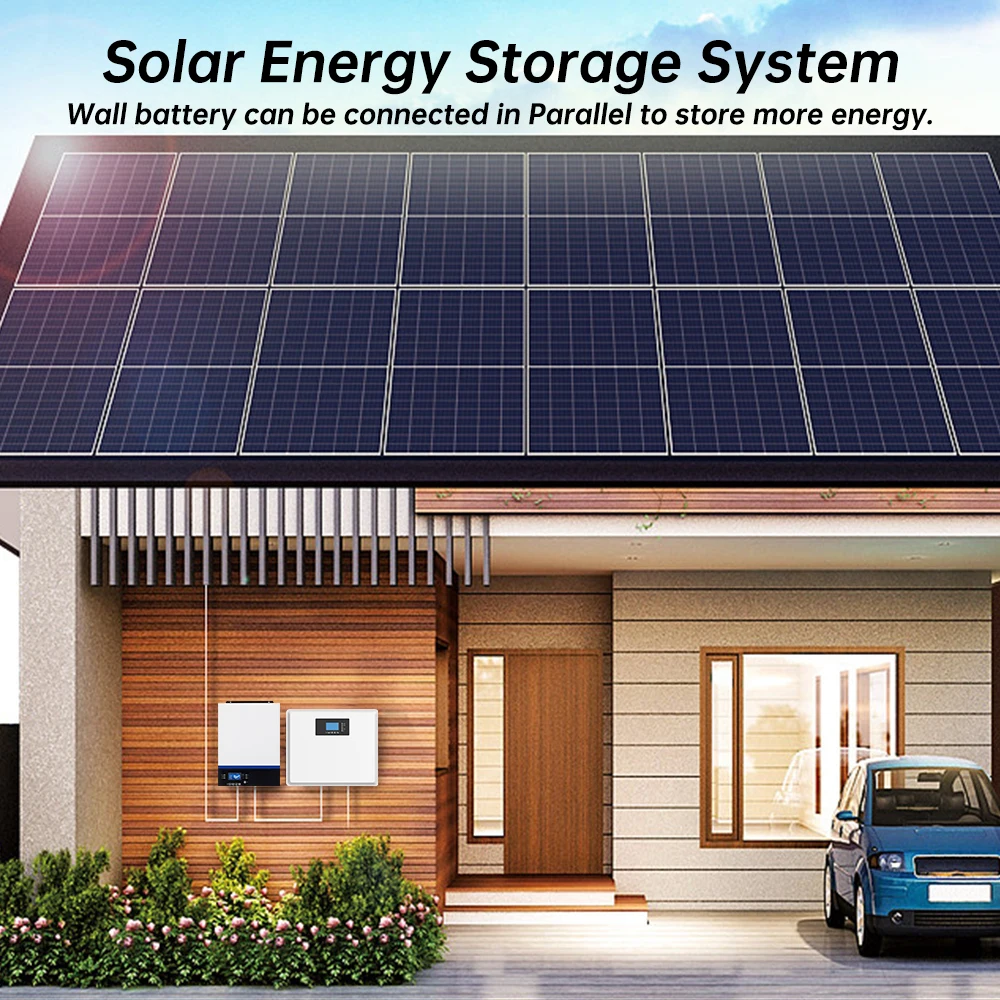

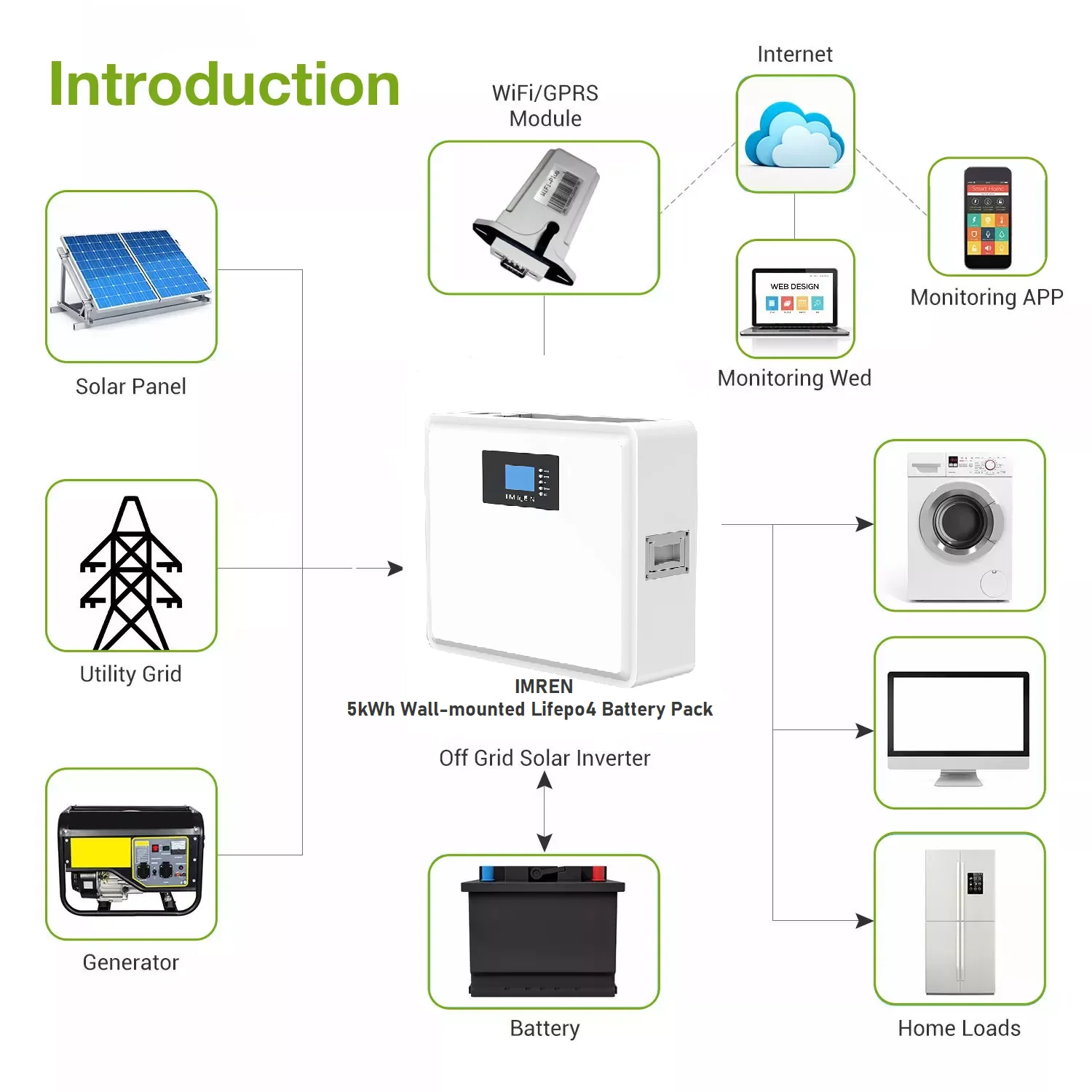

Application | Home Energy Storage | |
Charging Parameters | Standard charging current | 5-10A | |||
Float voltage | 56.8V | ||||
Average charging voltage | 54.4V | ||||
Fast charge current | 10-50A | ||||
Standard discharge current | 10-50A | ||||
Discharge cut-off voltage | 43.2V | ||||
Rapid discharge current | 50-100A | ||||
Peak discharge current | 110A@1S | ||||
Operating Temperature | Charging temperatur | -5℃～55℃ | |||
Discharge temperature | -20℃～65℃ | ||||
Storage Temperature | 0 ℃～40℃ | 40%～60%SOC Storage | |||
Static Differential Pressure | ≤50mV | SOC40%～60% | |||
Safety Protection Function | Over charge, over discharge, over current, over temperature, short circuit, etc. | ||||

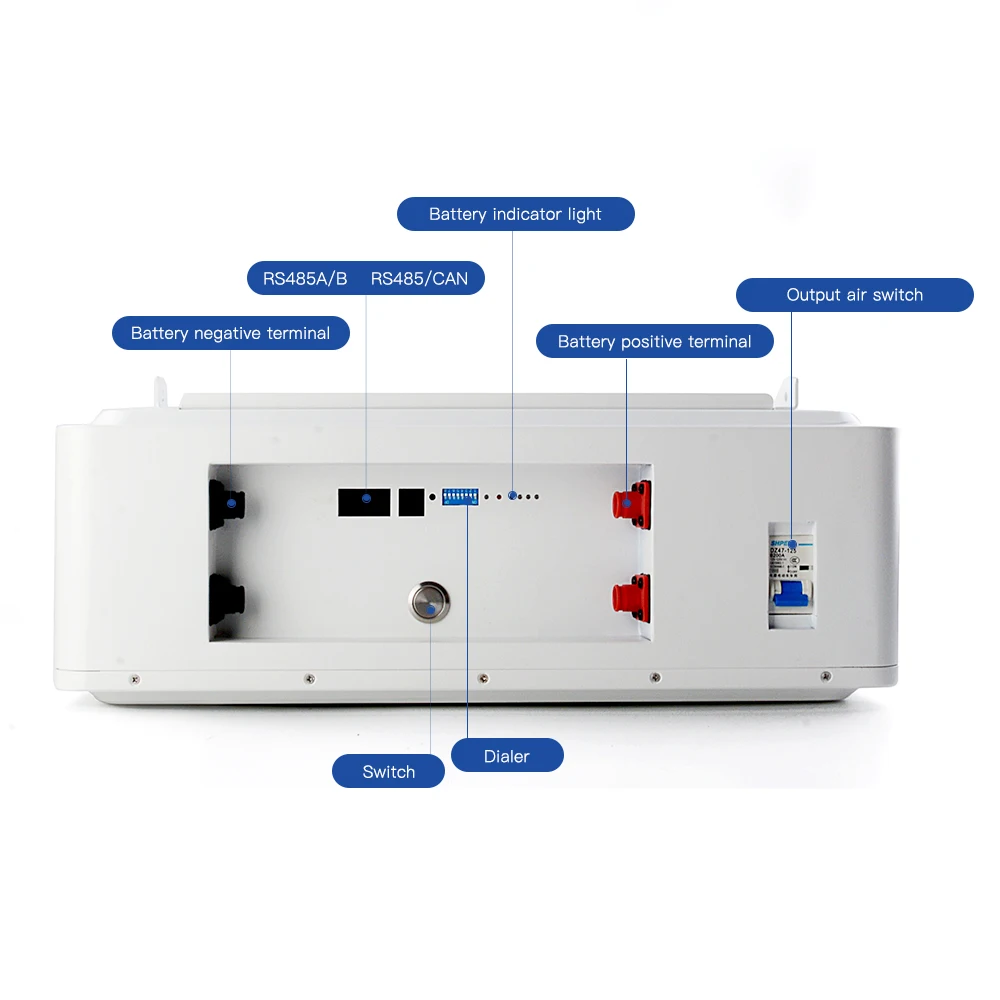

Communication Method | RS485; CAN | ||||
IP Rating | IP54 | ||||

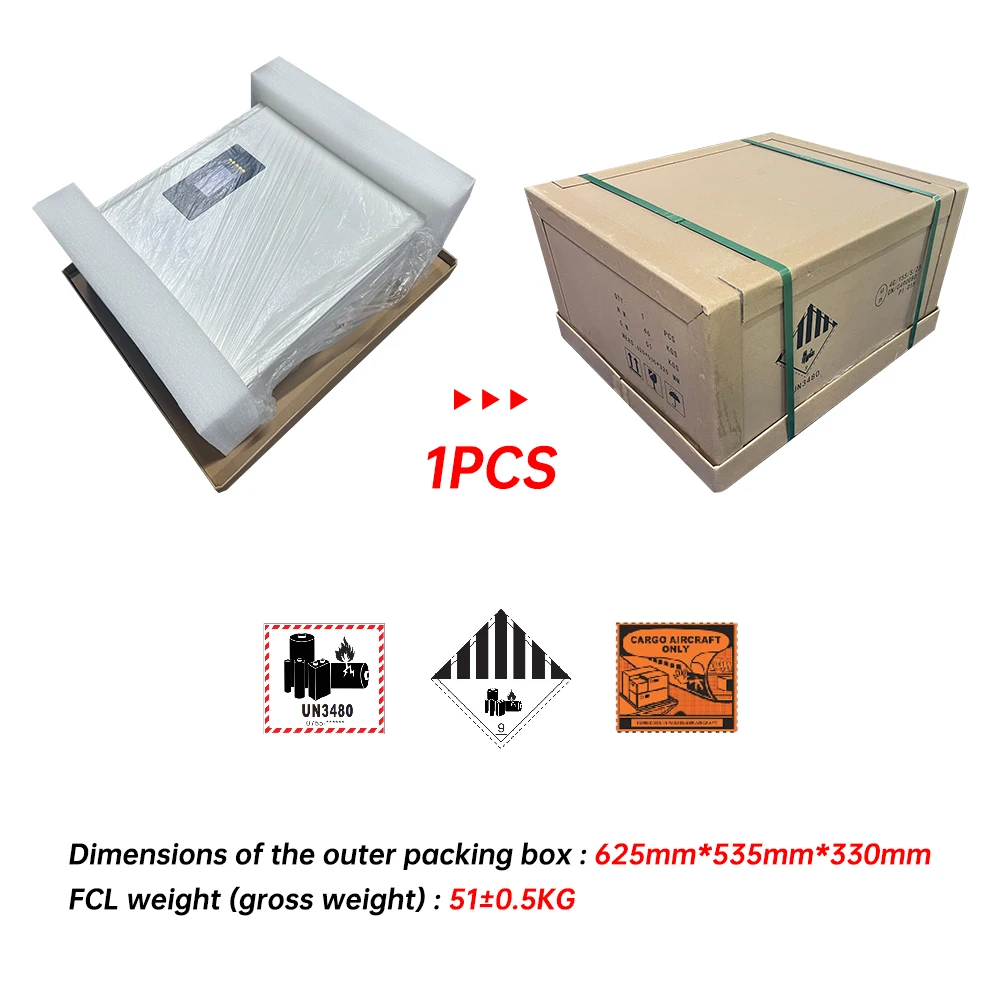

Battery single box weight (Kg) | ～ 48KG | ||||
