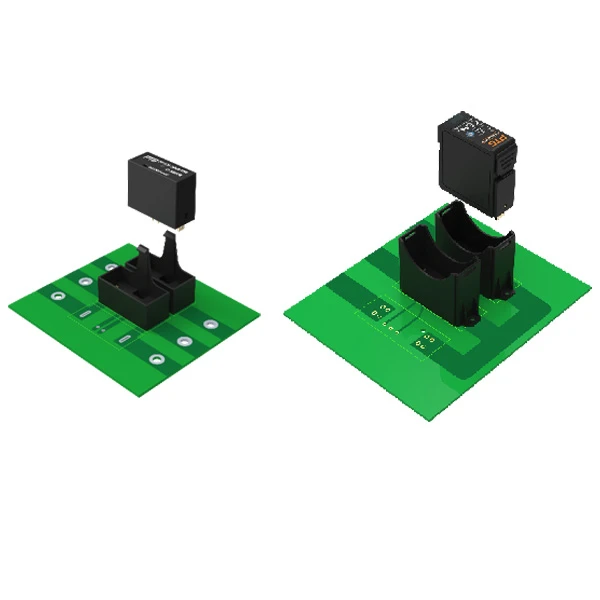

SPD with Base on-PCB Pluggable Window Indication Remote Alarm PV System Protection

PTG CORPORATION

China

Summary

SPD with Base on-PCB is a high-performance surge protective device designed for photovoltaic (PV) systems, offering reliable protection against voltage surges and electrical faults. Featuring pluggable design for easy installation, safety tripping mechanism, and window indication for visual status monitoring, this SPD supports remote alarm integration to ensure timely maintenance alerts. With multiple certifications including TUV, CE, and UL, it is suitable for various applications in renewable energy systems, ensuring long-term safety and operational efficiency in harsh environments.More

INQUIRY

Description Download

Technical Parameters

SPD with Base on-PCB

PV ...-...M2-10(R)(With base)
Part Name	500	670	900
U_CPV	500 V	670 V	900 V
U_C	385 V	510 V	760 V
I_n(8/20 μs)	10 kA
I_max(8/20 μs)	25 kA		20 kA
U_P	1.5 kV	1.8 kV	2.7 kA
I_SCPV	1000 A
Approvals	TUV,CE,UL

SPD with Base on-PCB

PV ...-40M2-10(With base)
Part Name	500	600	750
U_CPV	500 V	600 V	750 V
I_n(8/20 μs)	20 kA
I_max(8/20 μs)	40 kA
U_P	1.75 kV	2.0 kV	2.5 kA
I_SCPV	1000 A
Approvals	TUV,CE,UL

SPD with Base on-PCB

PTV ...-40M2-10(With base)
Part Name	100	600	750
U_CPV	100 V	600 V	750 V
I_n(8/20 μs)	20 kA
I_imp(10/350 μs)	5 kA		3 kA
I_max(8/20 μs)	40 kA
U_P	0.6 kV	2.0 kV	2.5 kA
I_SCPV	1000 A
Approvals	TUV,CE,UL
