Specification | ||||||||||||||||||

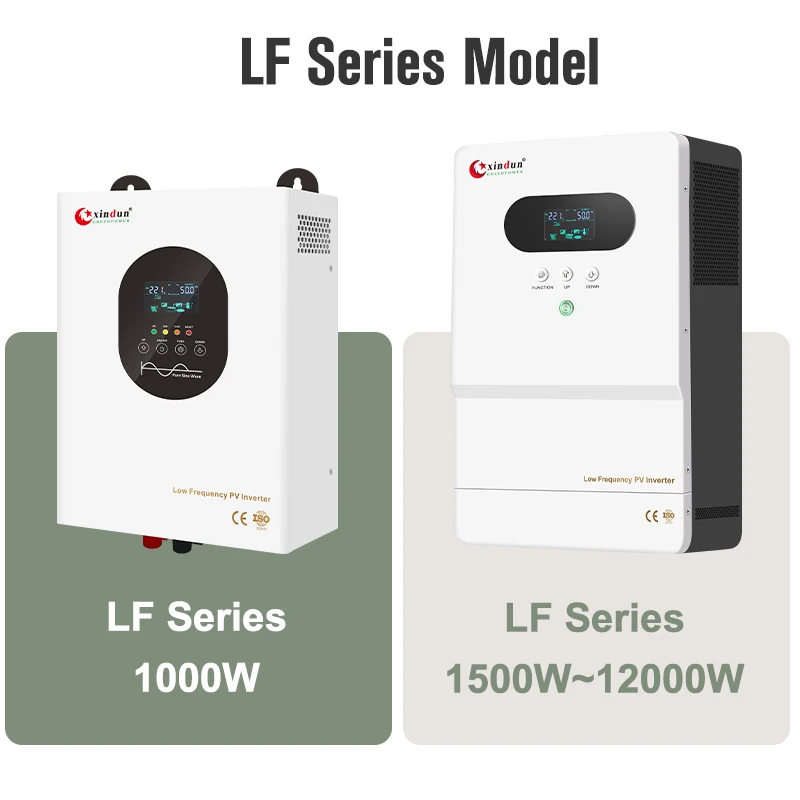

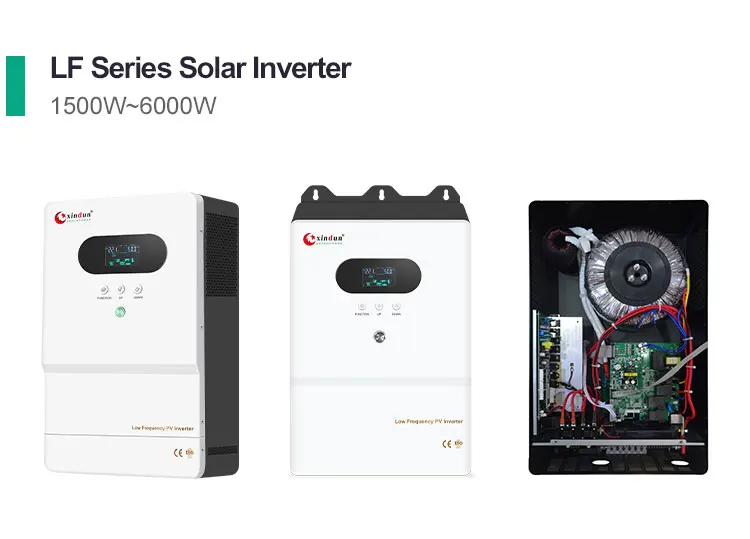

Model: LF/LF-T | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 70248 | 80248 | ||||||||||
Rated Power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | ||||||||||
Battery Voltage | 12/24/48VDC | 24/48VDC | 48VDC | |||||||||||||||
Size(L*W*Hmm) | 470x300x148 | 530x335x158 | 684x430x250 | |||||||||||||||
Packing Size(L*W*Hmm) | 545x385x223 | 605x420x233 | 705x485x315 | |||||||||||||||
N.W.(kg) | 13.5 | 18 | 20 | 22 | 24 | 26 | 28 | 47 | ||||||||||
G.W.(kg) | 15 | 19.5 | 21.5 | 24 | 26 | 28 | 30 | 54 | ||||||||||

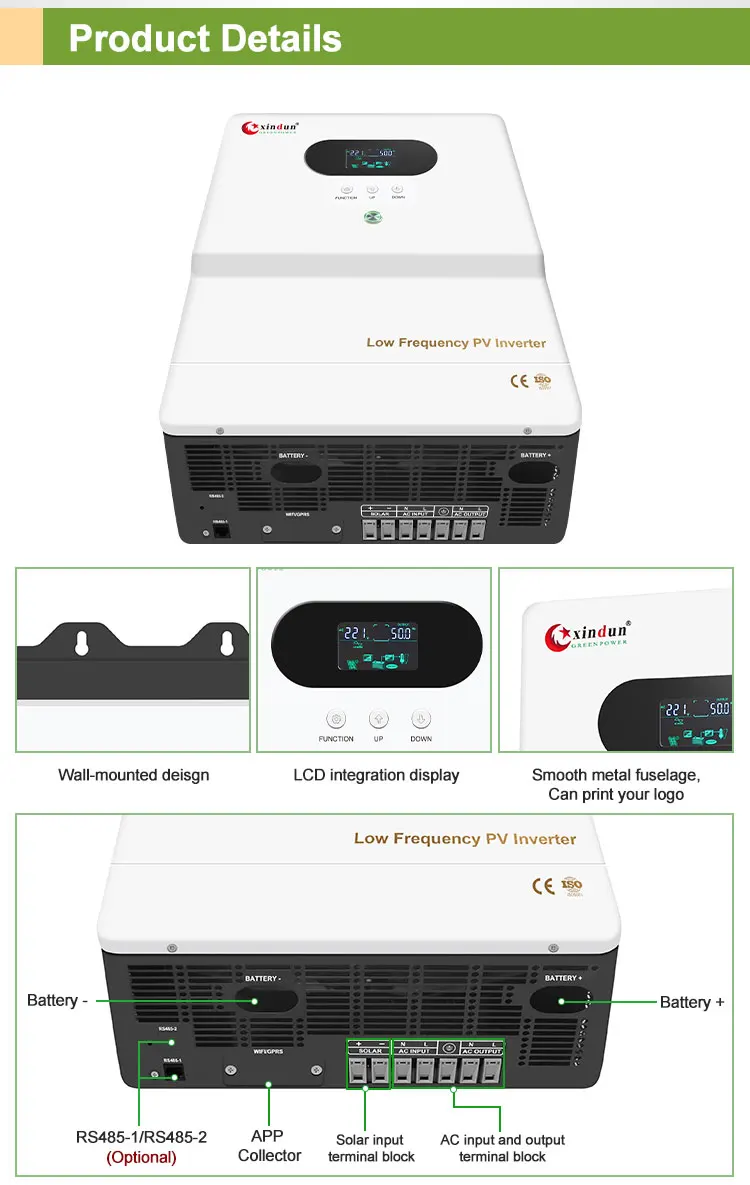

Installation Method | Wall-Mounted | |||||||||||||||||
Parameter | ||||||||||||||||||
Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||||||||||||||||
AC Input Voltage Range | 80VAC~133VAC(105VAC)/85VAC~138VAC(110VAC)/90VAC~143VAC(115VAC)/95VAC~148VAC(120VAC) 170VAC~275VAC(220VAC)/180VAC~285VAC(230VAC)/190VAC~295VAC(240VAC)(1000W~7000W ) 87VAC~123VAC(105VAC)/92VAC~128VAC(110VAC)/97VAC~133VAC(115VAC)/102VAC~138VAC(120VAC) 185VAC~255VAC(220VAC)/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~12KW) | |||||||||||||||||
AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||||||||||||||||
Max AC charging current | 0~30A(Depends on model) | |||||||||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||||||||
Output | Efficiency(Battery Mode) | ≥85% | ||||||||||||||||
Output Voltage(Battery Mode) | AC105V~120V model: 105VAC±2%/110VAC±2%/115VAC±2%/120VAC±2%(can be set) AC220V~240V model: 220VAC±2%/230VAC±2%/240VAC±2%(can be set) | |||||||||||||||||
Output Frequency(Battery Mode) | 50/60Hz±1%(can be set) | |||||||||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||||||||
Efficiency(AC Mode) | ≥99% | |||||||||||||||||
Output Voltage(AC Mode) | AC 105V~120V model: 105VAC±10%/110VAC±10%/115VAC±10%/120VAC±10%(can be set) AC 220V~240V model: 220VAC±10%/230VAC±10%/240VAC10%(can be set) | |||||||||||||||||
Output Frequency(AC Mode) | Follow input | |||||||||||||||||
Output waveform distortion (Battery Mode) | ≤3%（Linear load） | |||||||||||||||||
No load loss(Battery Mode) | ≤1% rated power | |||||||||||||||||
No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||||||||||||||||
No load loss (Energy saving Mode) | ≤10W | |||||||||||||||||
Insidc Solar controller (Optional) | Charging Mode | MPPT | ||||||||||||||||
Charging current | 30A~60A | 60A~100A | 80A~100A | |||||||||||||||
PV Array Maximum Power | 12V system: 420W(30A)/560W(40A)/ 700W(50A)/840W(60A); 24V system: 840W(30A)/1120W(40A)/ 1400W(50A)/1680W(60A); 48V system : 1680W(30A)/2240W(40A)/ 2800W(50A)/3360W(60A) | 24V system : 1680W(60A)/2240W(80A)/2800W(100A); 48V system : 3360W(60A)/4480W(80A)/5600W(100A) | 4480W(80A)/5600W(100A) | |||||||||||||||
Max PV Input Voltage (Voc) (At the lowest temperature) | 12V/24V system: 120VDC; 48V system: 180VDC | |||||||||||||||||
MPPT tracking range | 12V system: 15V-80V; 24V system: 30V-100V; 48V system : 60V-140V | |||||||||||||||||
Standby loss | ≤3W | |||||||||||||||||
Maximum conversion efficiency | ＞95% | |||||||||||||||||

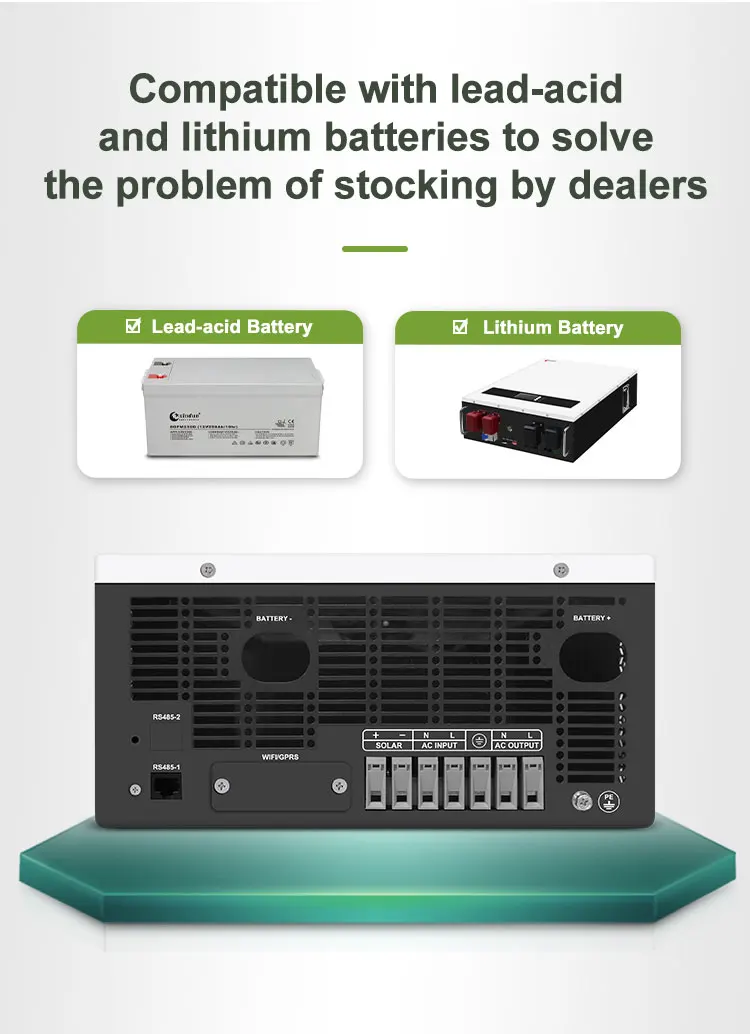

Battery Type | Custom battcry | Charging and discharging parameters of different types of batteries can be set through the operationpanel by oneself | ||||||||||||||||
Protection | Battery lowvoltage alarm / Battery lowvoltage protection / Battery overvoltage alarm / Battery overvoltage protection / Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection | |||||||||||||||||
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Industry Experience | 15-year manufacturer, 17-year trading, 11-year alibaba gold supplier | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

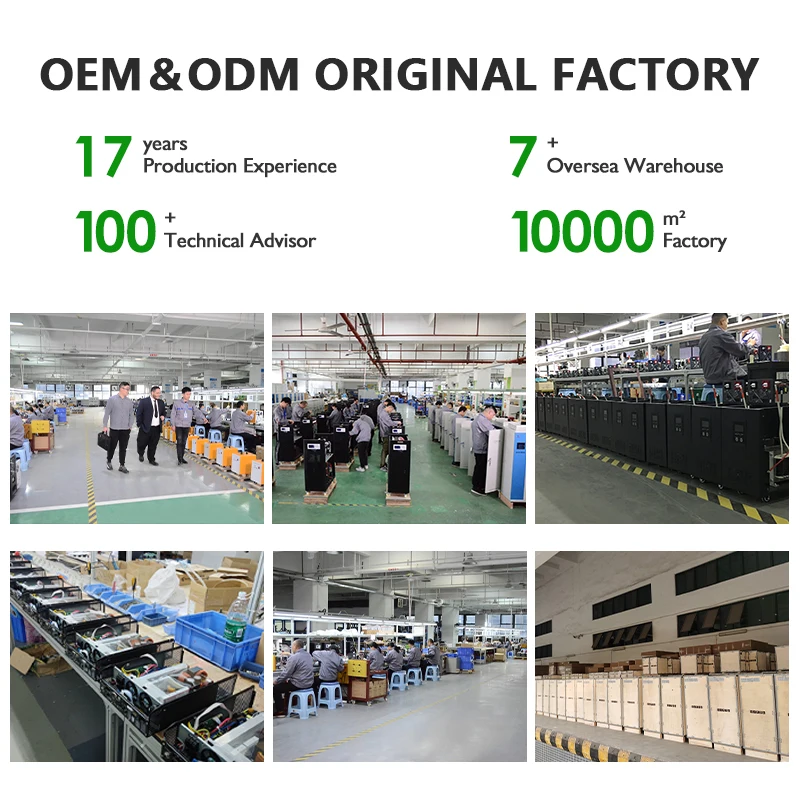

Factory | 7000 Square Meters, 100+ workers | |
