| No | Description | SPower 240o Technical Data |
|---|---|---|
| I | General Requirement | |
| 1 | Life time of BESS | 25+ years with no degradation |
| 2 | Batteries function and performance | 25+ years with no degradation |
| 3 | Vanadium Redox Flow Battery | Yes |
| 4 | Cycles limited at 100% DOD per year | No limit |
| 5 | Cycling duty basis of the energy discharge guarantee | +20,000 |
| 6 | Self-discharge for extended time | <2% |
| 7 | No degradation of battery EoL | Yes |
| 8 | Heat management | Yes |
| 9 | Long duration with 100% SOC access | Yes |
| 10 | Built-in seamless bypass | Yes |
| 11 | Battery modules installation | Outdoor |
| 12 | No augmentation | Yes |
| 13 | Hybrid Thermal Management (Passive + AC Cooling) | Air/AC |
| 14 | Transportable with pre-charge | Yes |
| 15 | Battery modules recyclable | Yes |
| 16 | Net recycling value of the battery module | Positive |
| II | Battery Parameters | |
| 1 | Technology | Vanadium redox flow |
| 2 | Voltage of each module | 104V~ 166.4V |
| 3 | Max current of each module | 577A |
| 4 | Unit energy discharge capacity | 240kWh |
| 5 | Max number of modules in series | 18 |
| 6 | Max dimension of each battery | 6.058m(L)×2.438m(W)×2..591m(H) |
| 7 | Weight | 21T |
| 8 | Ambient operating temperature | -20℃~50℃ (other temperatures optional) |
| 9 | Storage temperature | 0℃~45℃(long term storage) |
| 10 | Protection of battery module (Indoor/outdoor) | IP54 (optional up to IP65) |
| 11 | Short circuit current | 2500A |
| 12 | Communications | Modbus/TCP/CANbus/Ethernet |
| 13 | Auxiliary supply | 380V/AC ,50Hz,Three phase Stop：0.2kW Operation：3.2kW-8.6kW |
| 14 | Energy efficiency | 80%DC(without considering self-consumption) |
| III | Certificates | |
| 1 | IEC 62932-2-1 | Yes |
| 2 | IEC 62932-2-2 | Yes |

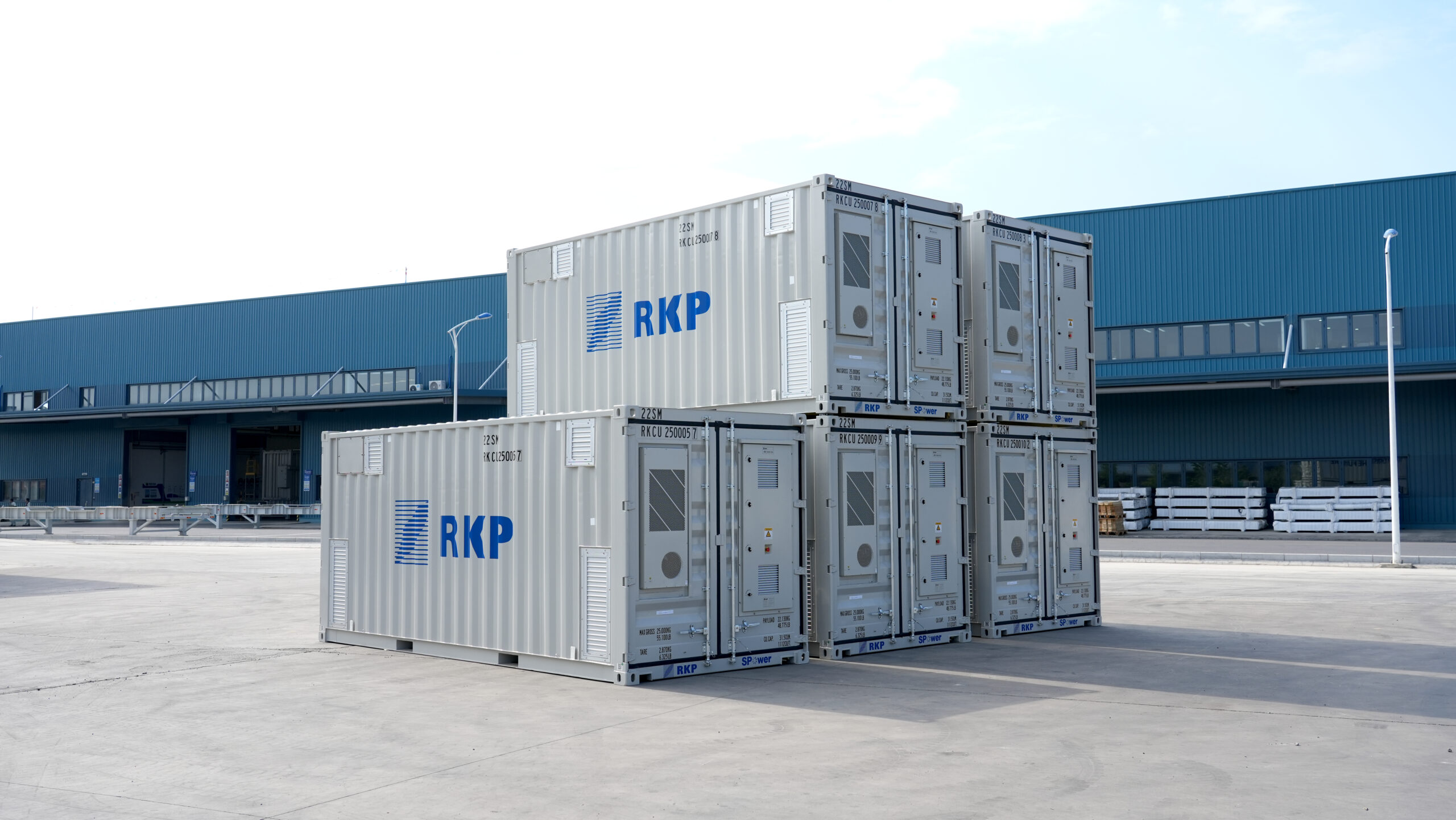

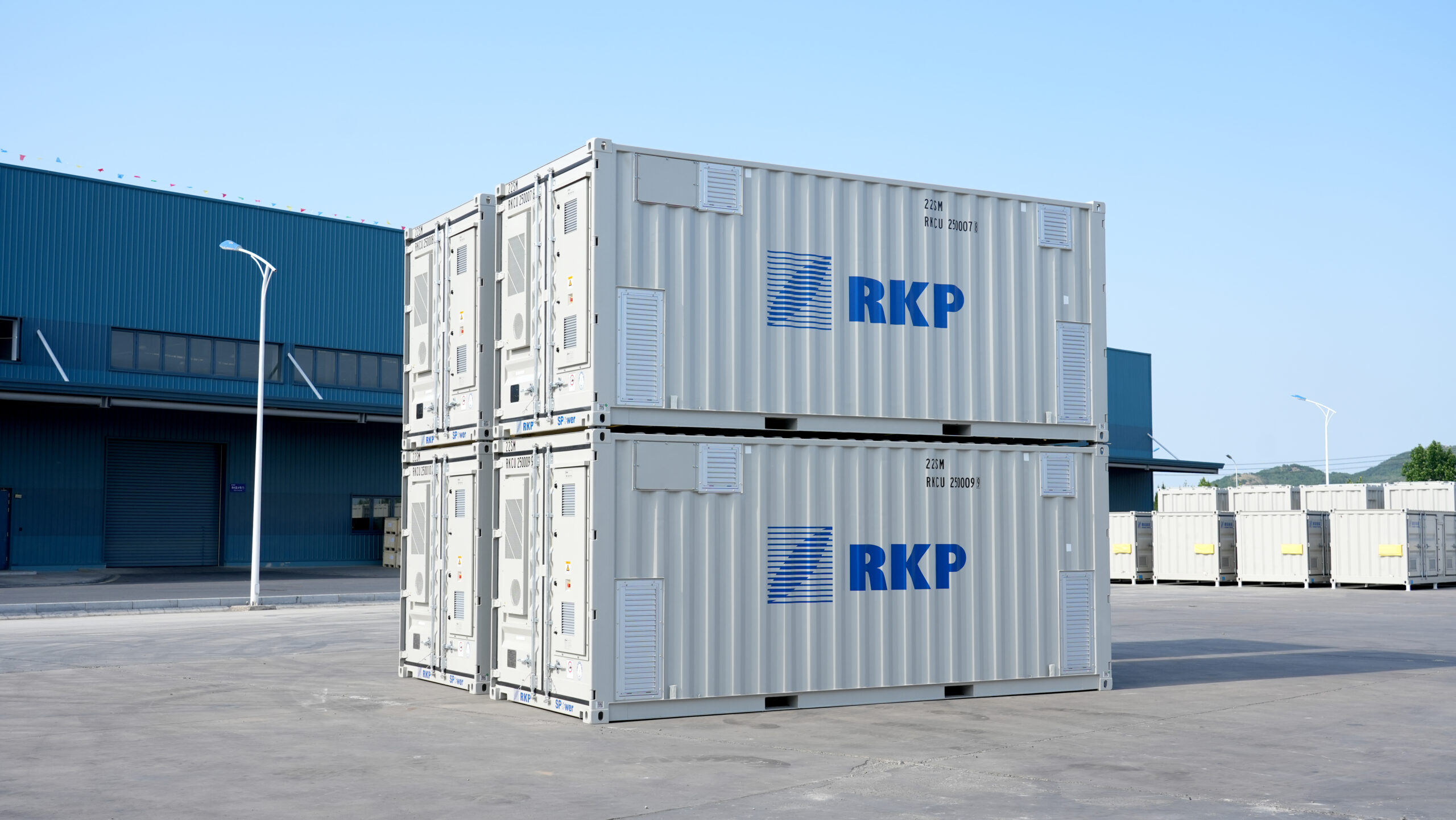

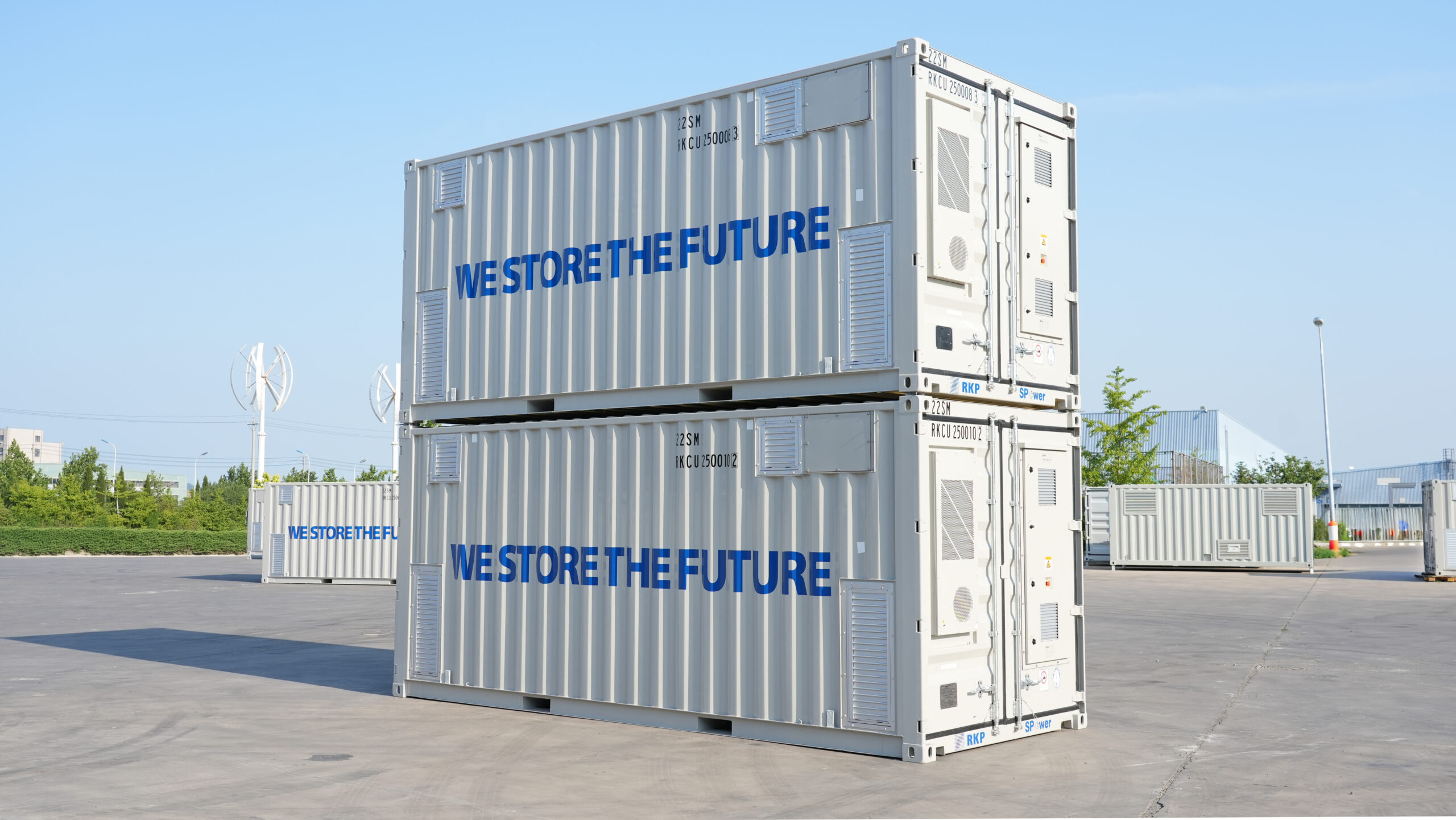

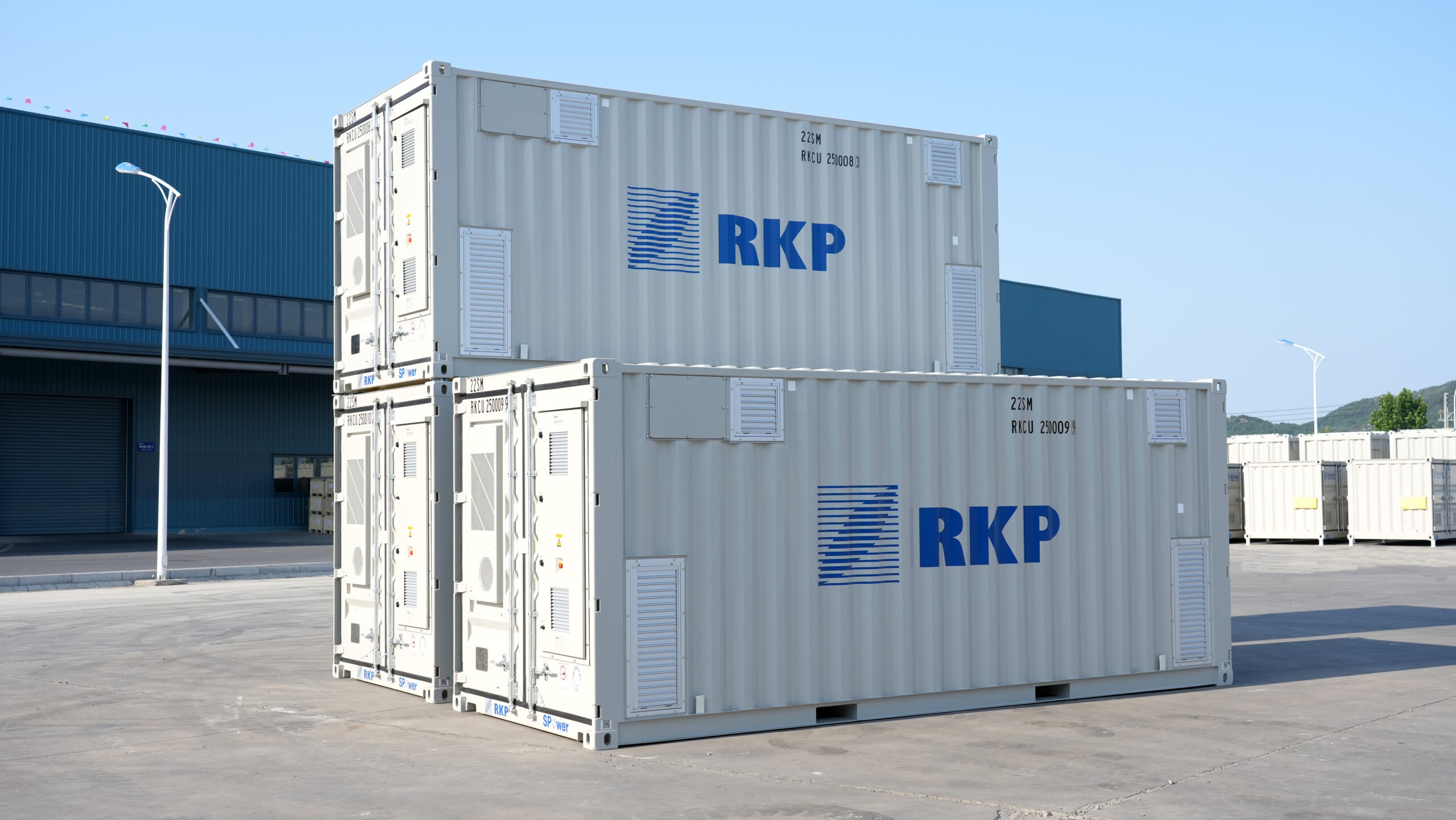

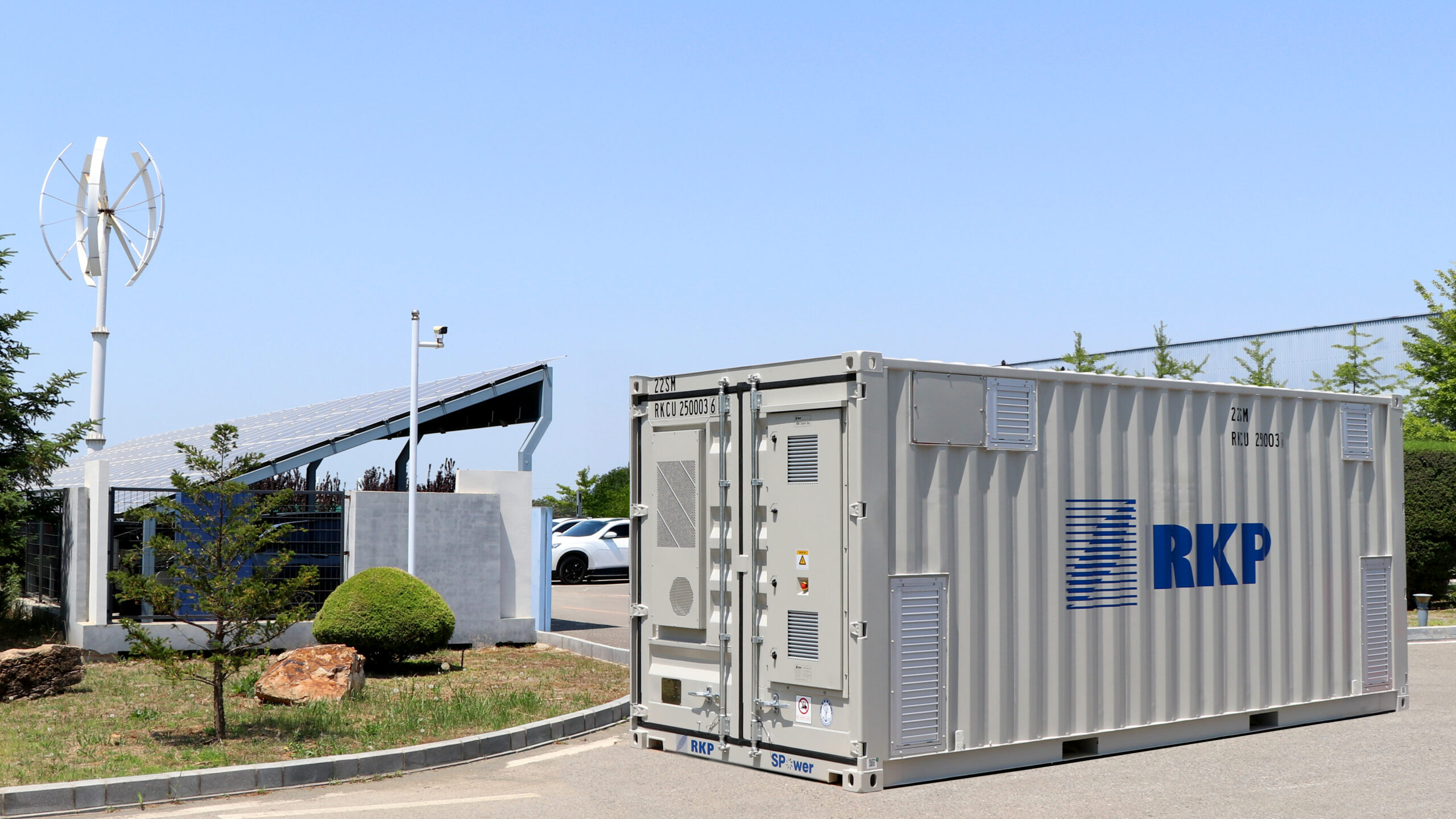

The SPower Series is engineered for high-efficiency, long-duration storage across distributed and scalable applications. Its modular, transportable design makes it ideal for projects that demand operational flexibility, long service life, and minimal maintenance.
