Model | WH-FS-5K | WH-FS-10K | WH-FS-15K | |||

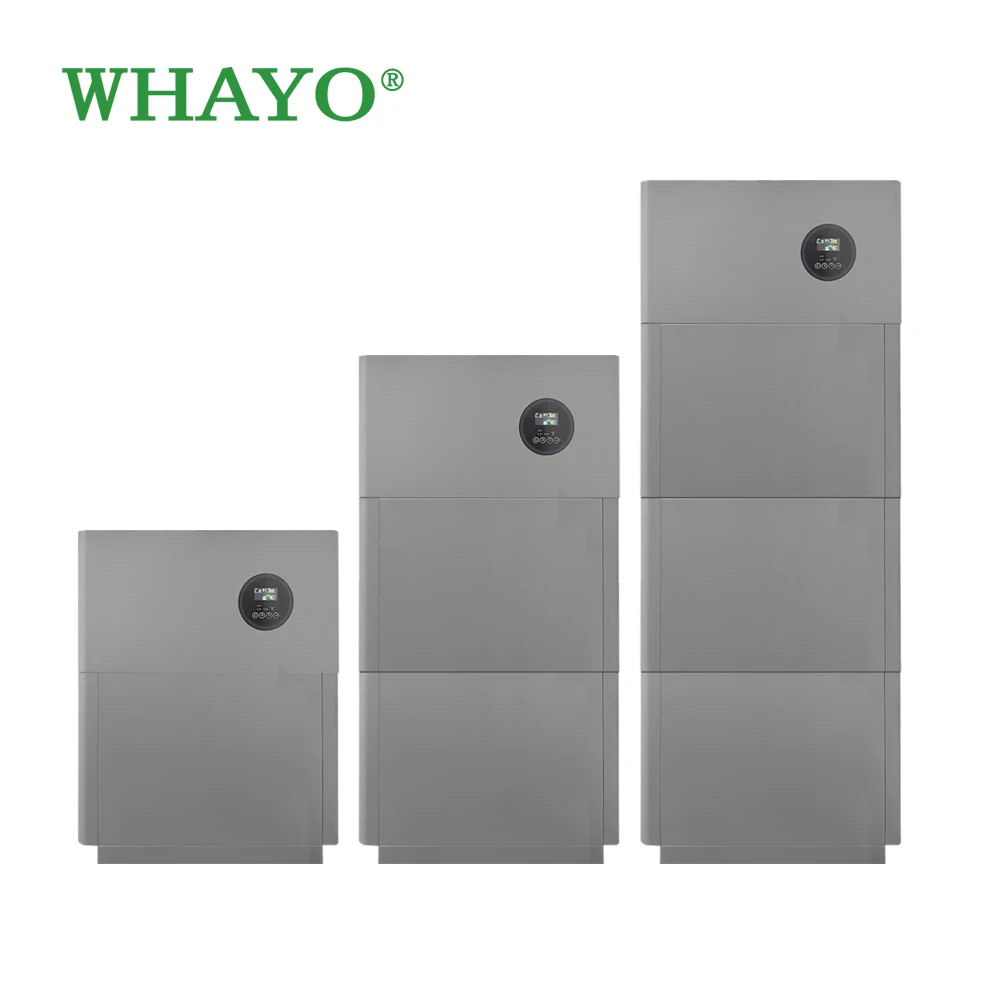

1 Battery Module | 2 Battery Module | 3 Battery Module | ||||
PV Input | ||||||
Rated Voltage (V) | 350-360 | |||||
MPPT Voltage Operation Range(V) | 120-500 | |||||
Max Input Power (W) | 6000 | |||||
Max Input Voltage(V) | 500 | |||||
Max Input Current(A) | 18 | |||||
AC Input & Output (Grid) | ||||||
Max AC input Current (A) | 40 | |||||
Rated Output Power(W) | 5000 | |||||
Max Output Power (VA) | 5000 | |||||
Rated Output Current(A) | 21.7 | |||||
Max Output Current(A) | 23.9 | |||||
Rated Output Voltage (V) | 220/230/240 | |||||
THDI | ＜3%（Nominal Power） | |||||
Emergency Output | ||||||
Max Output Power (VA) | 5000 | |||||
Peak Output Power (VA) | 10000 | |||||
Max Output Current(A) | 16-26.1 | |||||
Rated Output Voltage (V) | 220/230/240(+/-0.2%) | |||||
Output Frequency(Hz) | 50/60(+/-0.2%) | |||||
THDU | ＜2% | |||||
Transfer Time (ms) | ＜10 | |||||
Efficiency | ||||||
Max Battery Discharge Efficiency | 91% | |||||
Max Charge Efficiency (PV to battery)@ Full load | 98.50% | |||||
System Parameter | ||||||
Dimensions(W*D*H) | 674*170*775mm | 674*170*1135mm | 674*170*1535mm | |||
Work Temperature Rang (°C) | -20~+60 (Derating @45 °C) | |||||
Storage Temperature(C) | -20~+45 | |||||
Storage RH (%) | 5%~90%(non-condensing) | |||||
Altitude(m) | ＜2000 | |||||
Ingress Protection | IP21 | |||||

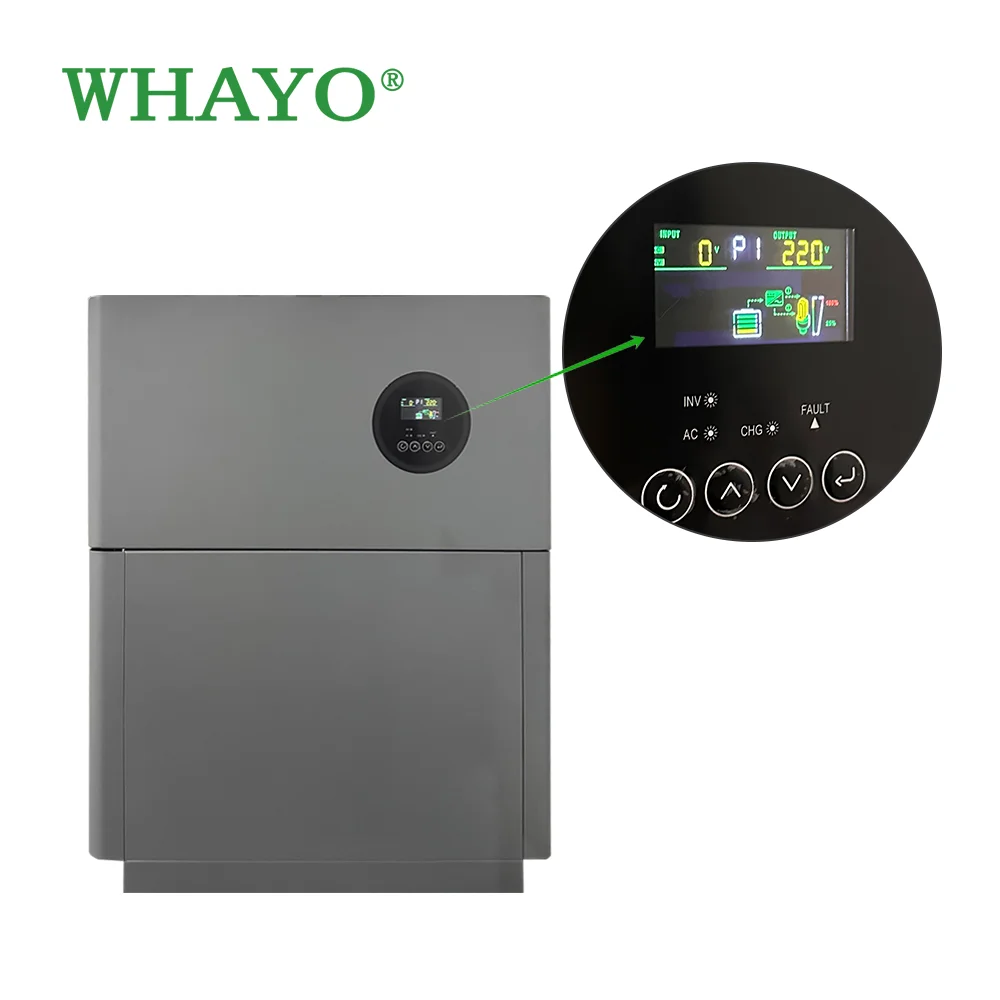

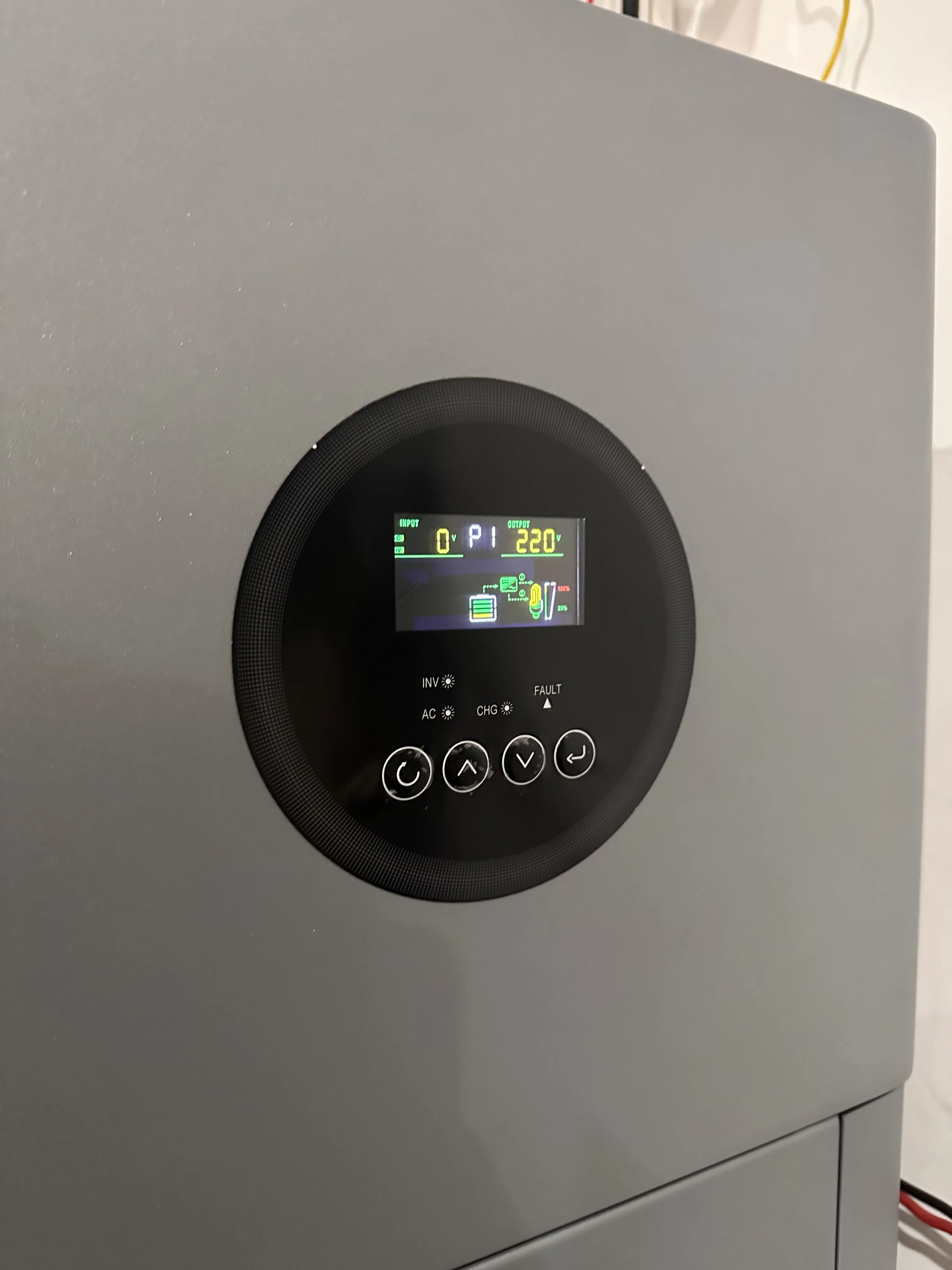

Dispaly | LCD/APP | |||||
Cooling Method | Natural cooling | |||||
Inverter Topology | Non-isolated | |||||
Installation | Floor-mount | |||||
Battery Pack Specification | ||||||
Cell Type | LFP | |||||
Cell Configuration | 16S1P | |||||
Nominal Voltage(V) | 51.2 | |||||
Nominal Capa ity (Ah) | 100 | |||||
Nominal Energy/Module (Wh) | 5120 | |||||
System Energy (Wh) | 5120(1 Module) | 10240 (2 Modules) | 15360 (3 Modules) | |||
Charge Voltage(V) | 58 | |||||
Max Charging Current (A) | 100 | |||||
Max Discharging Current (A) | 100 | |||||
Charge Temperature Range (°C) | 0~45 | |||||
Discharge Temperature Range (°C) | -20~60 | |||||
Storage Temperature Range (°C) | -20~45 | |||||
Humidity(%) | 5~95%RH | |||||
Cooling Method | Natural cooling | |||||
Cycle Life (Time) | >6000(80% DOD,Remaining 80%) | |||||
Communication | CAN & RS485 | |||||
Weight (kg) | 55 | |||||
