Model | XPC 5kw+5.12kwh | XPC 5kw+10.24kwh | XPC 5kw+10.24kwh | XPC 5kw+20.48kwh | XPC 5kw+25.6kwh | ||||
Single module capacity | 5.12kwh | ||||||||

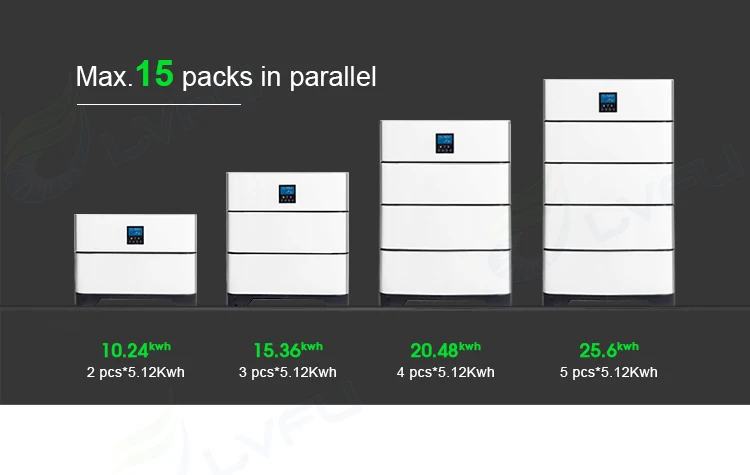

Module number | 1pcs | 2pcs | 3pcs | 4pcs | 5pcs | ||||
Total capacity | 5.12kwh | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | ||||
Standard voltage | 51.2V | ||||||||
Working voltage | 43.2v-57.6V | ||||||||
Standard discharge current | 100A | 200A | 300A | 400A | 500A | ||||
Standard charging current | 50A | 100A | 150A | 200A | 250A | ||||
Suggested DOD | 80% | ||||||||
Humidity | 20%-60% | ||||||||

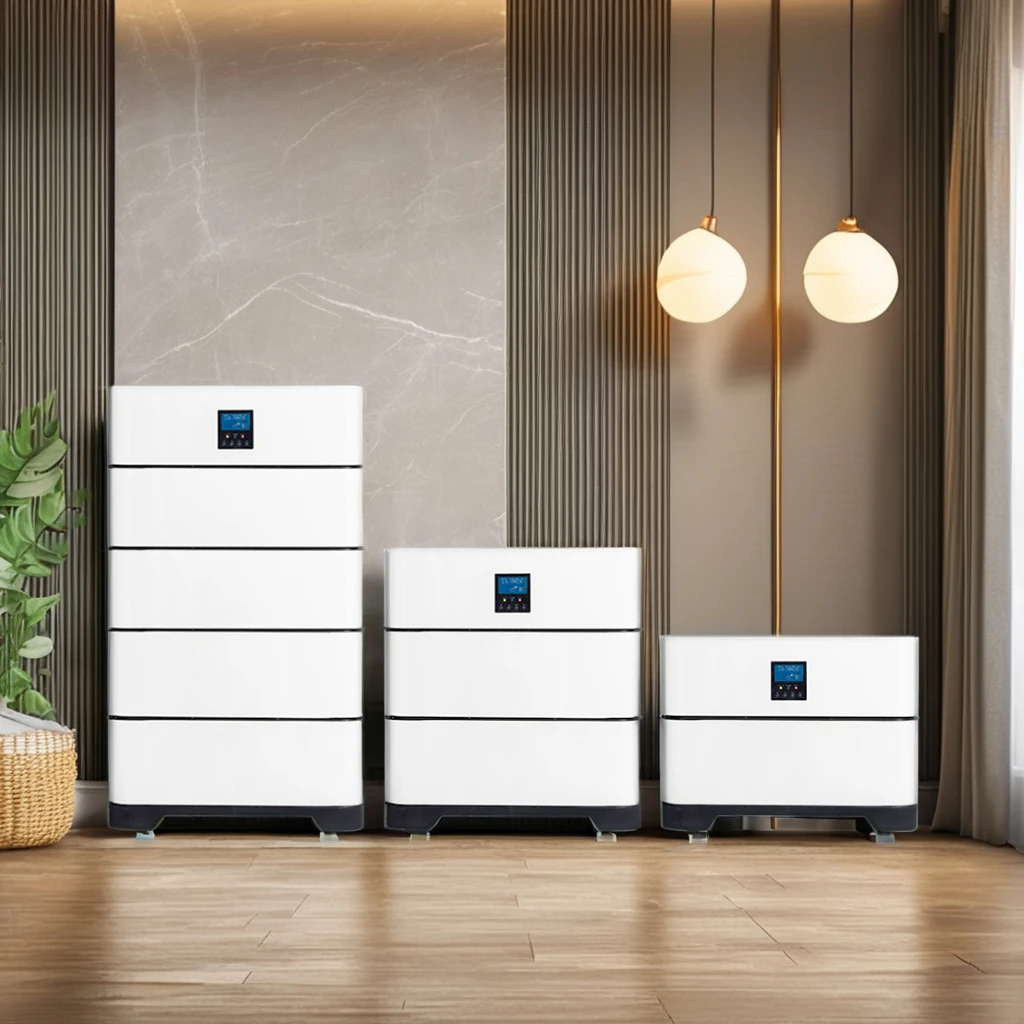

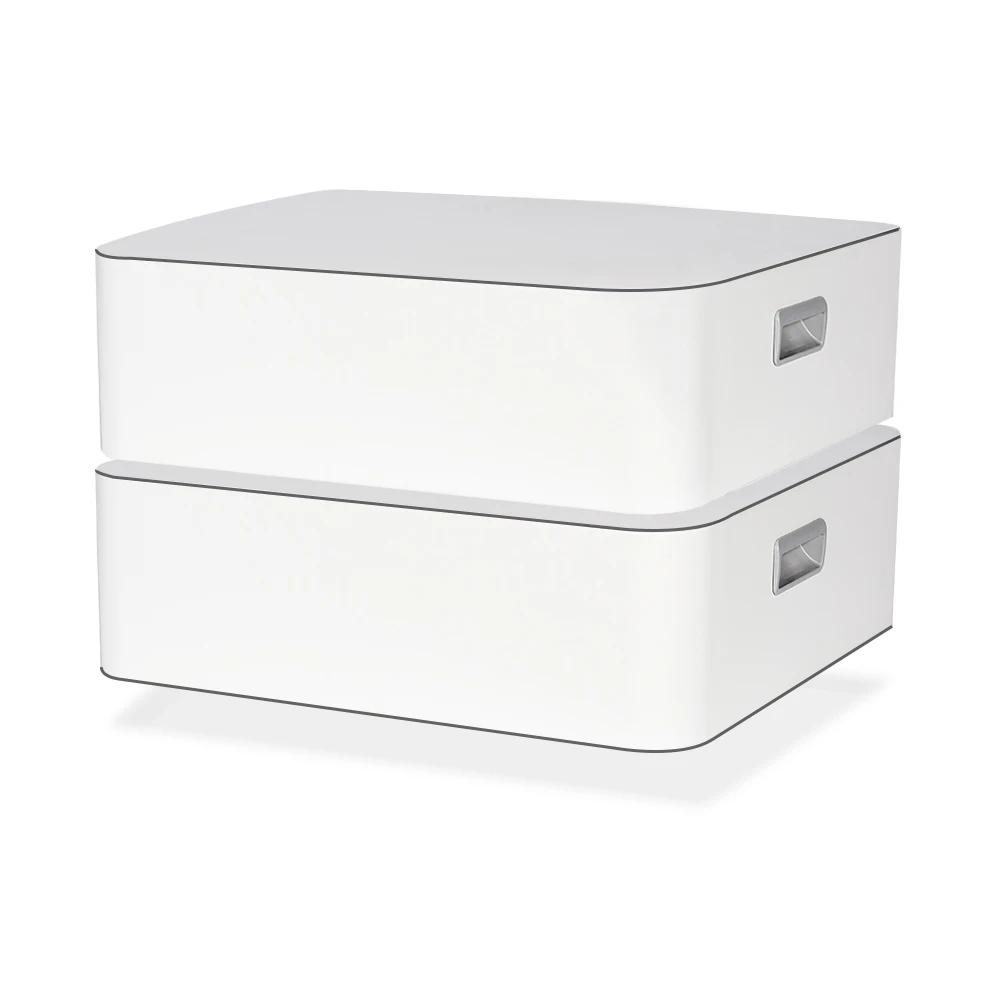

Installation | Stacked | ||||||||
IP rating | IP20 | ||||||||
Communication | CAN/RS485/RS232(WIFI,bluetooth is optional and need extra cost) | ||||||||
Product size/unit | 550*500*185mm | ||||||||
N.W./unit | 40kg | ||||||||
Battery Input | |||||||||
Battery type | LFP | ||||||||
Rated Battery Input Voltage | 48V ( Minimum Star tup Voltage 44V) | ||||||||
Hybrid Charging Maxi mum Charging Current | 80A | ||||||||
Battery Voltage Range | 40Vdc~60Vdc ± 0.6Vdc(Under voltage Warning/Shutdown Voltage/Over voltage Warning/Over voltage Recover y...) | ||||||||
Solar Input | |||||||||
Maximum PV Open-circuit Voltage | 500vdc | ||||||||
PV Working Voltage Range | 120-500Vdc | ||||||||
MPPT Voltage Range | 120-450Vdc | ||||||||
Maximum PV Input Current | 18A | ||||||||
Maximum PV Input Power | 5200W | ||||||||
Maximum PV Charging Current | 80A | ||||||||
AC Input（generator/grid） | |||||||||
Mains Maximum ChargingCurrent | 60A | ||||||||
Rated Input Voltage | 220/230Vac | ||||||||
Input Voltage Range | UPS Mains Mode：(170Vac~280Vac)±2% APL Generator Mode：(90Vac-280Vac)±2% | ||||||||
Frequency | 50Hz/ 60Hz (Automatic Detection) | ||||||||
Mains Charging Efficiency | >95% | ||||||||
Switch Time (bypass and inverter) | 10ms(Typical Value) | ||||||||
Maximum Bypass Overload Current | 40A | ||||||||
AC Output | |||||||||
Output Voltage Waveform | Pure Sine Wave | ||||||||
Rated Output Voltage (Vac) | 230Vac (200/208/220/240Vac） | ||||||||
Rated Output Power (VA) | 5000（4350/4500/4800/5000） | ||||||||
Rated Output Power(W) | 5000（4350/4500/4800/5000） | ||||||||
Peak Power | 10000VA | ||||||||
On-load Motor Capacity | 4HP | ||||||||
Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | ||||||||
Maximum Efficiency | 90 | ||||||||
No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup） | ||||||||
