Summary

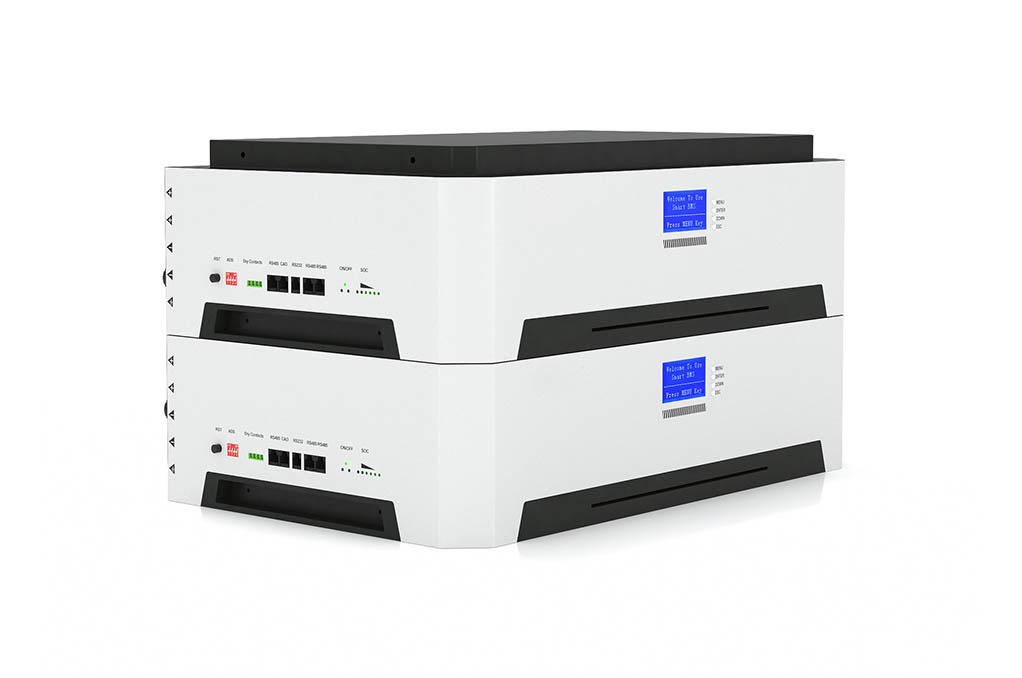

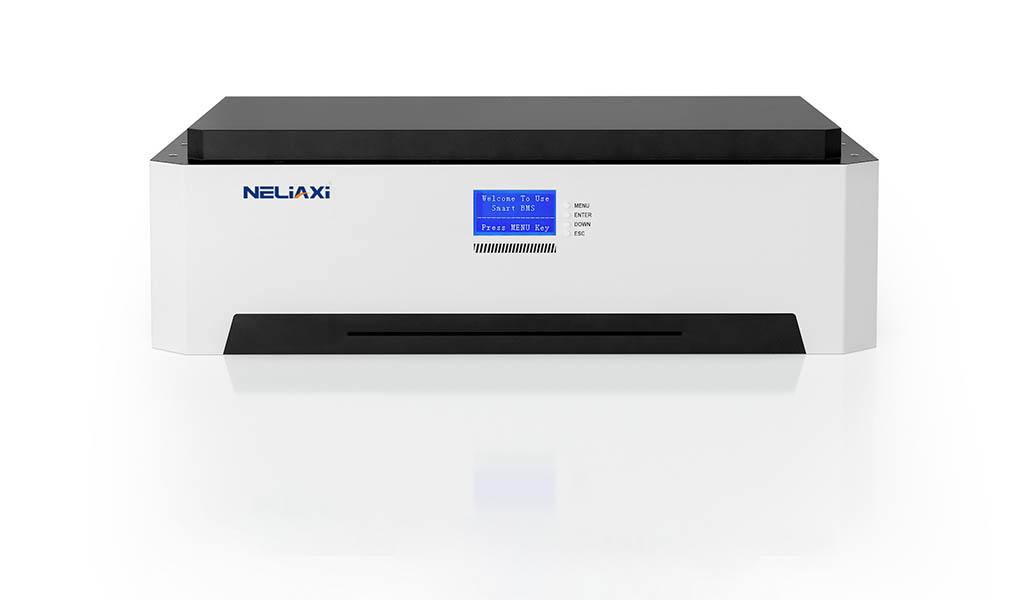

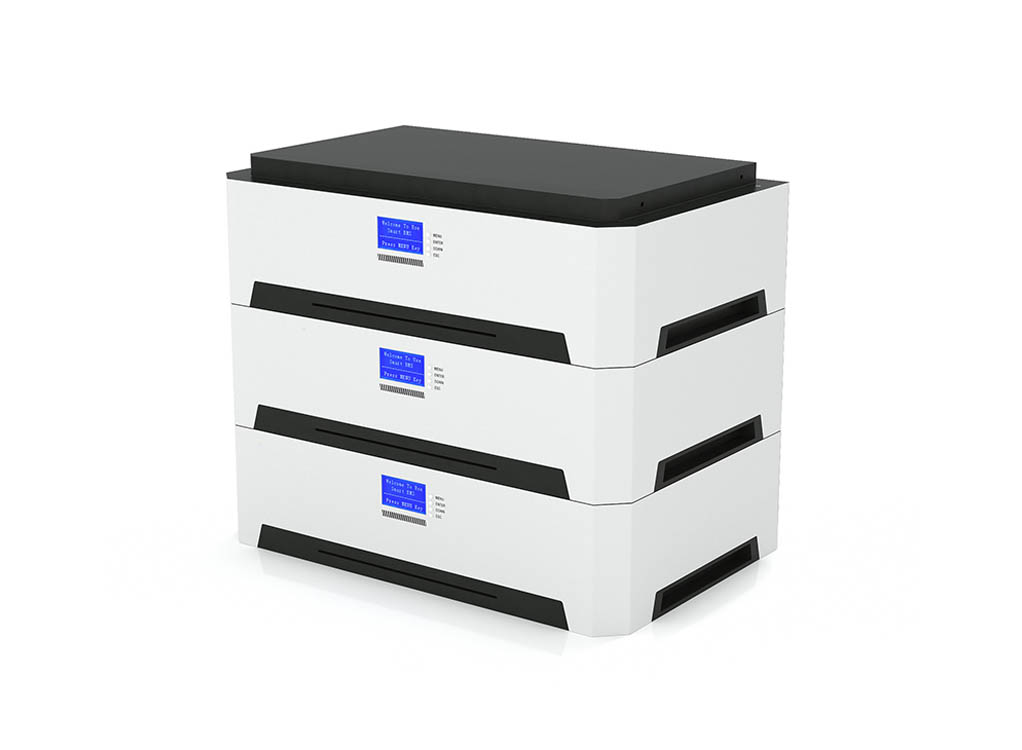

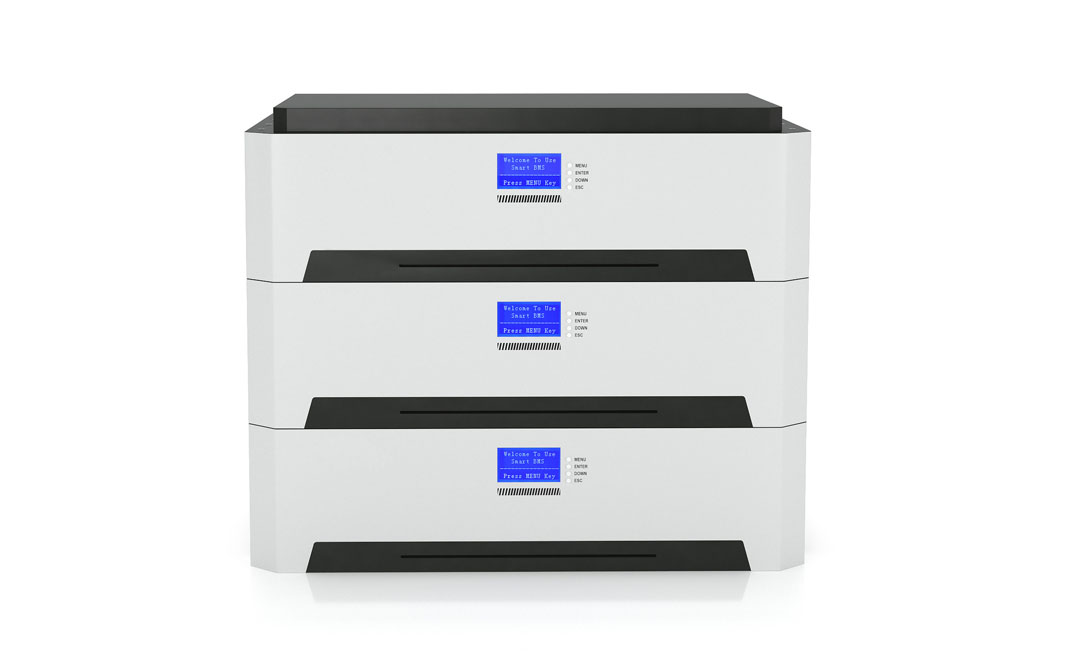

Introducing the Stacked Battery High-Performance Integrated Energy Storage System, designed for home and commercial energy solutions. Featuring ALL-IN-ONE integration of high-performance PCS, BMS, EMS, and battery PACK, this system offers exceptional safety, durability (6000 cycles @ 25℃ 80%), and versatile capacity options of 5.12kWh, 25.6kWh, 38.4kWh, and 51.2kWh. With scalable stacking design, IP21 protection, and advanced lithium iron phosphate (LFP) chemistry, it ensures reliable power supply in diverse environments. Ideal for residential, commercial, and industrial applications seeking efficient, sustainable, and intelligent energy storage.More
Specifications
Nominal voltage(V):
51.2V
256V
384V
512V
Battery capacity (kWh):
5.12kWh
25.6kWh
38.4kWh
51.2kWh
  • Stacked Battery High-Performance Integrated Energy Storage System for Home and Commercial Use
  • Stacked Battery High-Performance Integrated Energy Storage System for Home and Commercial Use
  • Stacked Battery High-Performance Integrated Energy Storage System for Home and Commercial Use
  • Stacked Battery High-Performance Integrated Energy Storage System for Home and Commercial Use
Battery capacity (kWh)

5.12/25.6/38.4/51.2

Nominal voltage(V)

51.2/256/384/512

Design life

6000@ 25℃ 80%

Discharge/Charging voltage

44-440V/57.6-57.6V

Max.charging/discharge current(A)

100A

Installation mode

Stacking

Ingress protection

IP21

Weight(kg)

49/245/392/490 kg

Dimension W*D*H(mm)

570*450*(190/245/392/490)
