The isolated, single-channel DAQP-STG amplifier offers a bandwidth up to 300kHz and high isolation up to 1.8kVRMS. DAQP modules can be installed in a DEWE-30 chassis. The RS-485 interface supports the easy configuration and it offers a conditioned signal output of ±5V.
DAQP modules can be installed in a DEWE-30 chassis. They offer a conditioned signal output of optional ±5V or ±10V on BNC sockets or a multi-pin connector when DAQP dynamic isolation amplifiers are installed. The multi-pin connector can be configured to match any A/D boards connector so that a 1:1 connection of the analog signals by a high quality cable is possible. They can be used as channel expansion or as front-end for existing recorders and loggers.
 |  | |

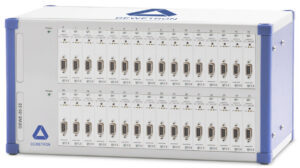

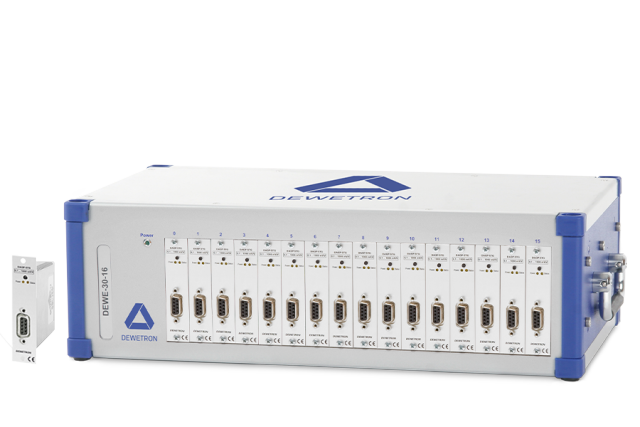

| DEWE-30-16 | DEWE-30-32 | |
| DOWNLOADS | Datasheet 3D-Model (PDF) | Datasheet |
| MODULE SLOTS | 16 | 32 |
| CONDITIONED OUTPUT | ±5V (±10V as option), buffered | ±5V (±10V as option), buffered |
| 19” MOUNTING | Yes | Yes |
| WEIGHT | Typ. 4kg (9lb.) | Typ. 7kg (15lb.) |
| SIZE (W x D x H) | 435x245x133mm (17.1x9.6x5.2in.) | 435x245x223mm (17.1x9.6x8.8in.) |
