product specification | physical dimension | |
installation mode | fall to the ground | |
Cooling solution | Intelligent temperature control (heat exchange/air conditioning, energy-saving automatic switching refrigeration) | |
AC input | AC input voltage | Single-phase/three-phase 380VAC input (two-way input interlocking) |
rectifier module | 50A, fully equipped with 400A in the same slot as the photovoltaic module | |
Photovoltaic input | Photovoltaic module capacity | 550Wp*8 blocks;=4.4kw |
Photovoltaic module | 50A(3000W)*2 | |

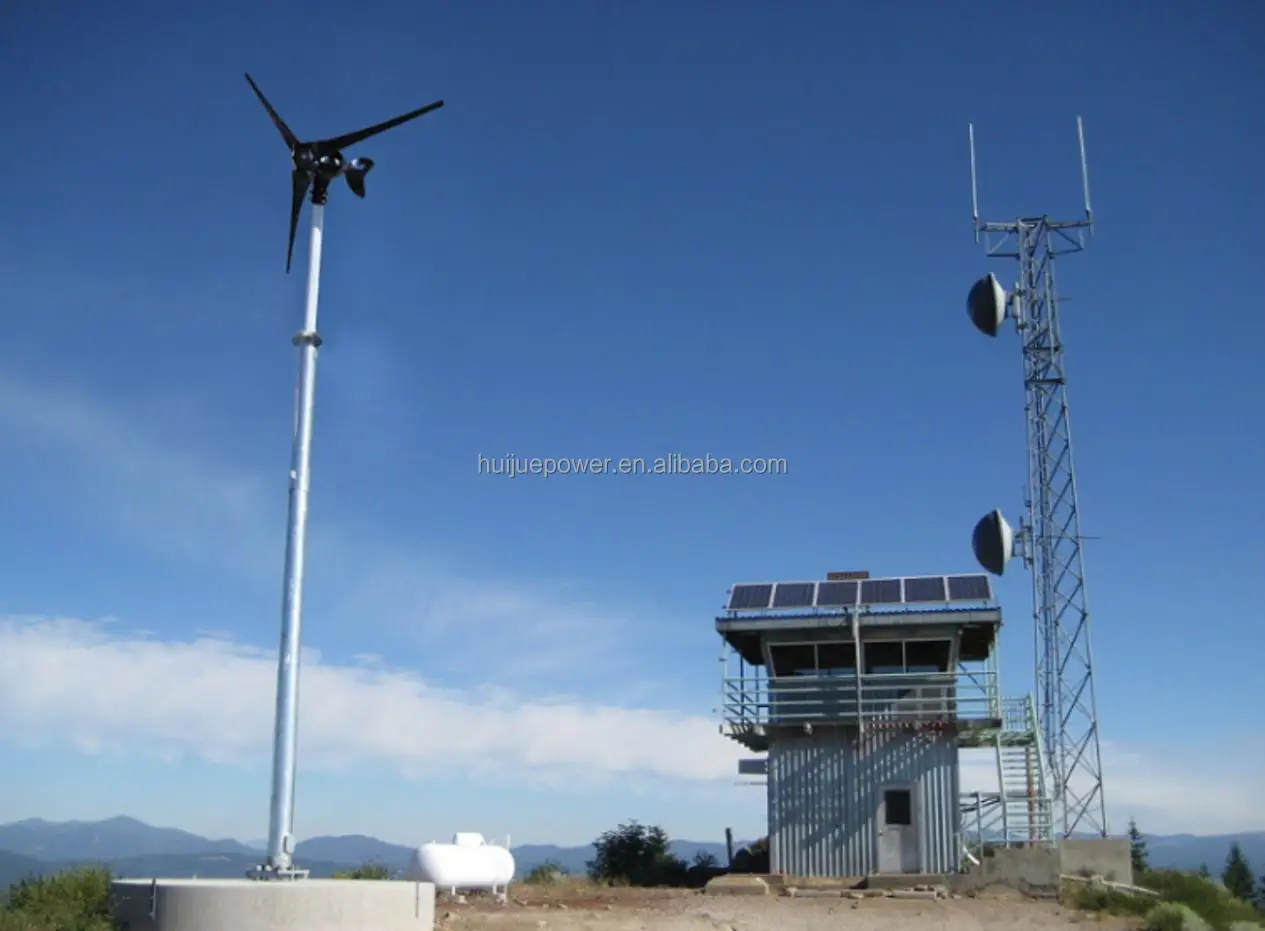

wind power | wind power | 600W~2000W |
Fan Control Module | 2KW | |
Energy storage backup | Lithium iron phosphate battery | 100AH, 51.2V; fully equipped with 4 groups, energy storage 20KWH |
output characteristics | DC output voltage | 432VDC~58VDC (default 535VDC) |
output configuration | Battery: 4*125A; DC: 63A*4, 32A*4, 16A*6 AC: input 32A*3, lightning protection class C; socket: 2 channels; | |
Monitoring unit system | signal input | 1-way analog input (battery temperature); 4-way digital dry contact input |
Alarm output | 4 dry contacts | |
Communication Interface | RS485 | |
storage | Up to 1000 historical alarm records | |
sensor | Temperature and humidity, smog, access control, water immersion | |
environment | Operating temperature | -20~+75°C (-40°C can be started) |
storage temperature | -40℃~+75℃ | |
Working humidity | 5%~95%(no condensation) | |
Altitude | ≤4000m (1800m~4000m, every time the altitude rises by 200m, the temperature will decrease by 1ºC.) |
