Design and production are based on UL and NFPA 855 standards and comply with North American mandatory certification requirements. High standards, high safety and high reliability ensure the stable operation of the energy storage system throughout its life cycle.
Designed for charging electric vehicles, it can support up to 240kW fast charging piles without upgrade the transformer. Multiple units connected in parallel can support even large charging power, significantly reducing investment costs.
All batteries are connected in series to avoid circulating current and ensure PCS operates at the highest efficiency range, thermal management system automatically adjusts the cooling strategy to maintain the best operating conditions of batteries.
Plug and play on site, the system is highly integrated and suitable for small spaces on site, significantly reducing construction and operation and maintenance costs.

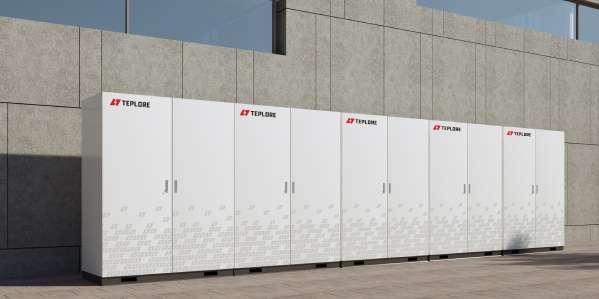

Targeted for the North American market, Tensorpack A comes with standard output ports that allow direct connection to customer loads. Through slow charging and fast discharging, it facilitates flexible expansion of transformers and effectively reduces demand charges.
Efficiency
Cycles
Lifespan
Footprint
UL1973、UL9540A、UL9540
Canada
USA
| AC Parameters | |
|---|---|
| Rated Power | 250 kW |
| Wiring Configuration | 3P3W |
| Rated Grid Voltage | 480 V |
| Grid Voltage Range | 422.4 - 528 V |
| Max. Continuous AC Current | 302 A |
| Rated Grid Frequency | 60 Hz |
| Power Factor | -1~1 |
| DC Parameters | |
|---|---|
| Cell Type | LFP 280Ah CATL |
| Rated Energy | 279 kWh |
| Voltage Range | 873 ~ 1123 V |
| Cycles expected @ 100% DoD | 70% EoL | 25°C +/-5°C | 8000 Times |
| System Parameters | |
|---|---|
| Maximum Efficiency | 90 % |
| Operating Temperature | -30~50 ℃ |
| Relative Humidity | 0 to 95% RH, non - condensing |
| Altitude | ≤2000 m |
| Communication Interface | LAN / RS485 / CAN |
| Communication Protocol | Ethernet / Modbus TCP / RS-485 / Modbus RTU |
| IP Level | Type 3R |
| Cooling Method | Liquid Cool |
| Noise Rating | ≤72dB |
| Battery Rack Dimension (W*D*H) | 1300x1300x2280 mm |

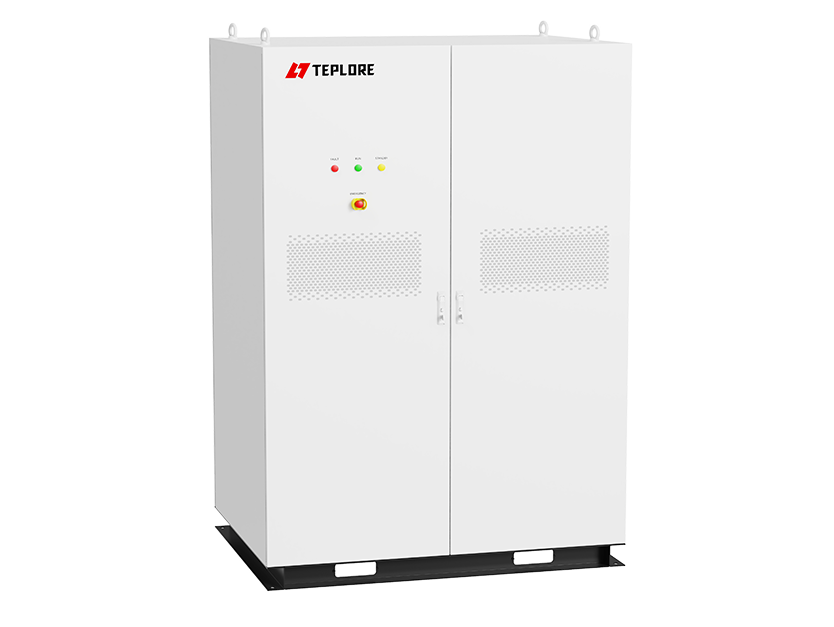

| Control Cabinet Dimension (W*D*H) | 1600x1200x2280 mm |
| Battery Rack Weight | 3040 kg |
