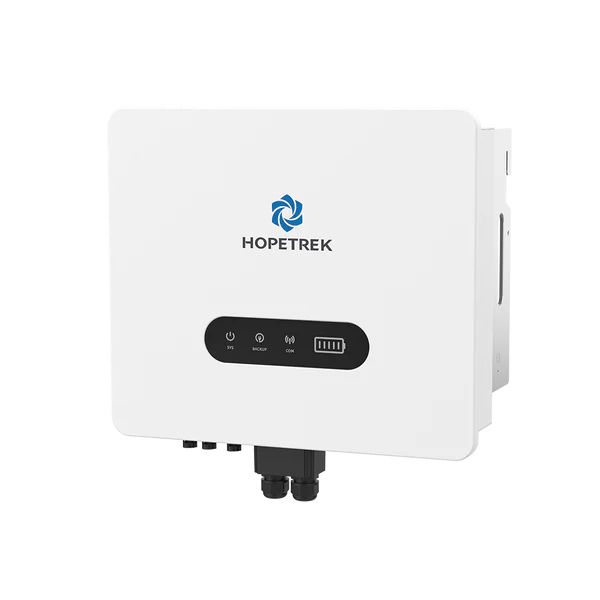

The SUN-TH-HP5K/6K/8K/10K/12K-A1 is a three-phase high-voltage inverter designed for home energy storage. It supports connection to 130V-800V high-voltage batteries and enables up to 1.5 times PV oversizing, meeting the energy needs of PV generation, battery storage, and backup applications. This inverter offers a variety of operating modes to suit different household power demands, helping reduce electricity costs while optimizing energy usage.
| Specification | Description |
| No. of MPP trackers/Strings per MPP tracker | 2(1/1) |
| Max. input current (input 1/input 2) | 16A/16A |
| Battery voltage range | 130V~800V |
| Max. charge/discharge current | 30A/30A |
| Dimensions (W*H*D) | 492*412*212mm |
| Net weight | 27kg |
