The DTI-5K model includes advanced features such as MPPT (Maximum Power Point Tracking) technology, which maximizes energy harvest from solar panels, and smart cooling for efficient heat management. It supports various battery types including lead-acid, lithium, and gel batteries, offering flexibility for different setups. The compact wall-mounted design measures 537324153mm and weighs 24.7kg, ensuring easy installation. Equipped with an LCD display and communication options like RS485 and APP monitoring via WIFI or GPRS, this inverter provides comprehensive control and real-time data access. Backed by TORCHN’s commitment to quality, it is an excellent choice for those seeking a reliable, high-performance hybrid solar inverter that enhances energy independence and sustainability.
Key attributes
Output Type
Single Phase
Inverter Efficiency
>99%
Place of Origin
Jiangsu, China
Model Number
DTI-5K
Brand Name
TORCHN
Input Voltage
10.5-15VDC(Single battery voltage)
Output Voltage
220VAC±2%
Output Current
100A
Output Frequency
50/60Hz±1%
Size
537*324*153mm
Type
DC/AC Inverters
Weight
24.7kg
Product name
solar inverter 5kw
Output waveform
Pure Shine Wave
Installation Method
wall-mounted
Battery type
Lead Acid \ Lithium \ Gel
Rated power
5000W
Communication
RS485/APP(WIFI monitoring or GPRS monitoring)
MPPT voltage range
10A-60A(PWM)/10A-100A(Mppt)
Controller type
PWM/MPPT
Display
LCD Display
Cooling
Smart Cooling
Packaging and delivery

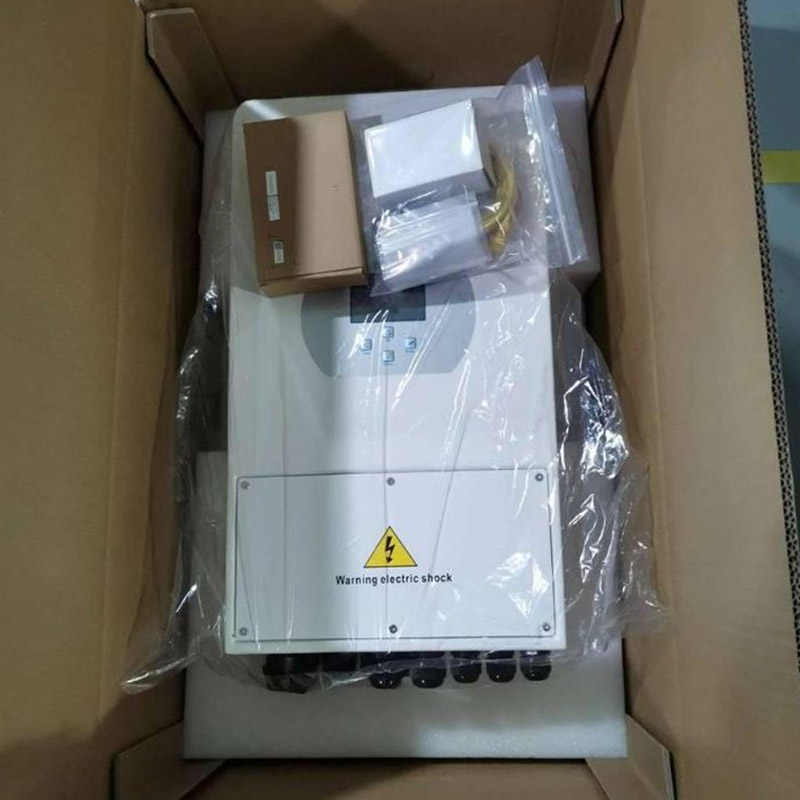

Packaging Details
One color carton, one pallet for TORCHN smart Low Frequency Hybrid Solar Inverter 48V 3Kw 5Kw 6Kw Pure Sine Wave 48 Volt Off Grid DC/AC Solar Pv Inverters.
Yangzhou,China
