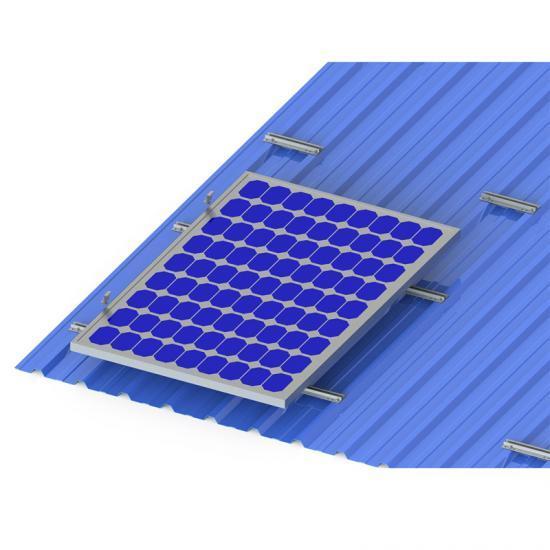

Product Name:?Trapezoidal Metal Roof Mounting Railless Solution
Product?Brief Introduce:
Installation site: trapezoid metal roof or sandwich roof
Application: Framed solar panel for any size
Structural materials: Aluminum
Survival wind speed: up to 60m / s
Design snow pressure: up to 1.4KN / m2
Inclination: 0 degree (the same angle as roof)
Panel direction: vertical or landscape
Quality assurance for 10 years

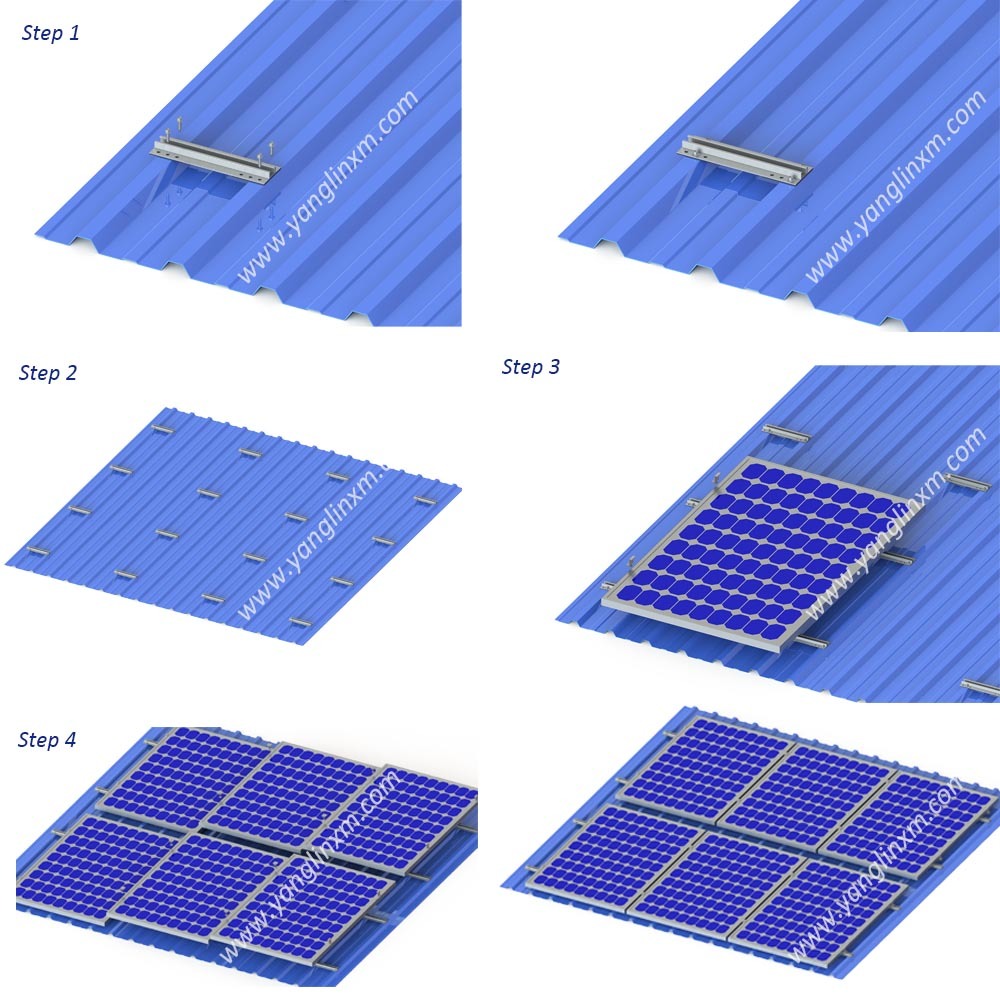

Installation Guide:
Step 1: Install railless clamp hook on roofing as per technical drawing.
Step 2: Install railless clamp hook one by one.
Step 3:?Fix solar panel on railless clamp hook by mid clamp or end clamp.
Step 4: Fix solar panel one by one until finished.

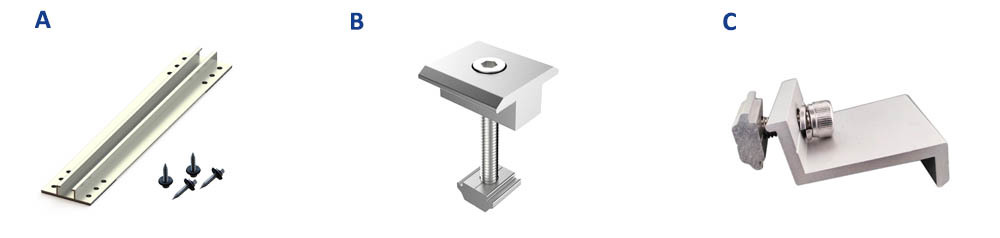

Components List:
A: Railless clamp hook
B: Mid clamp
C: End clamp
