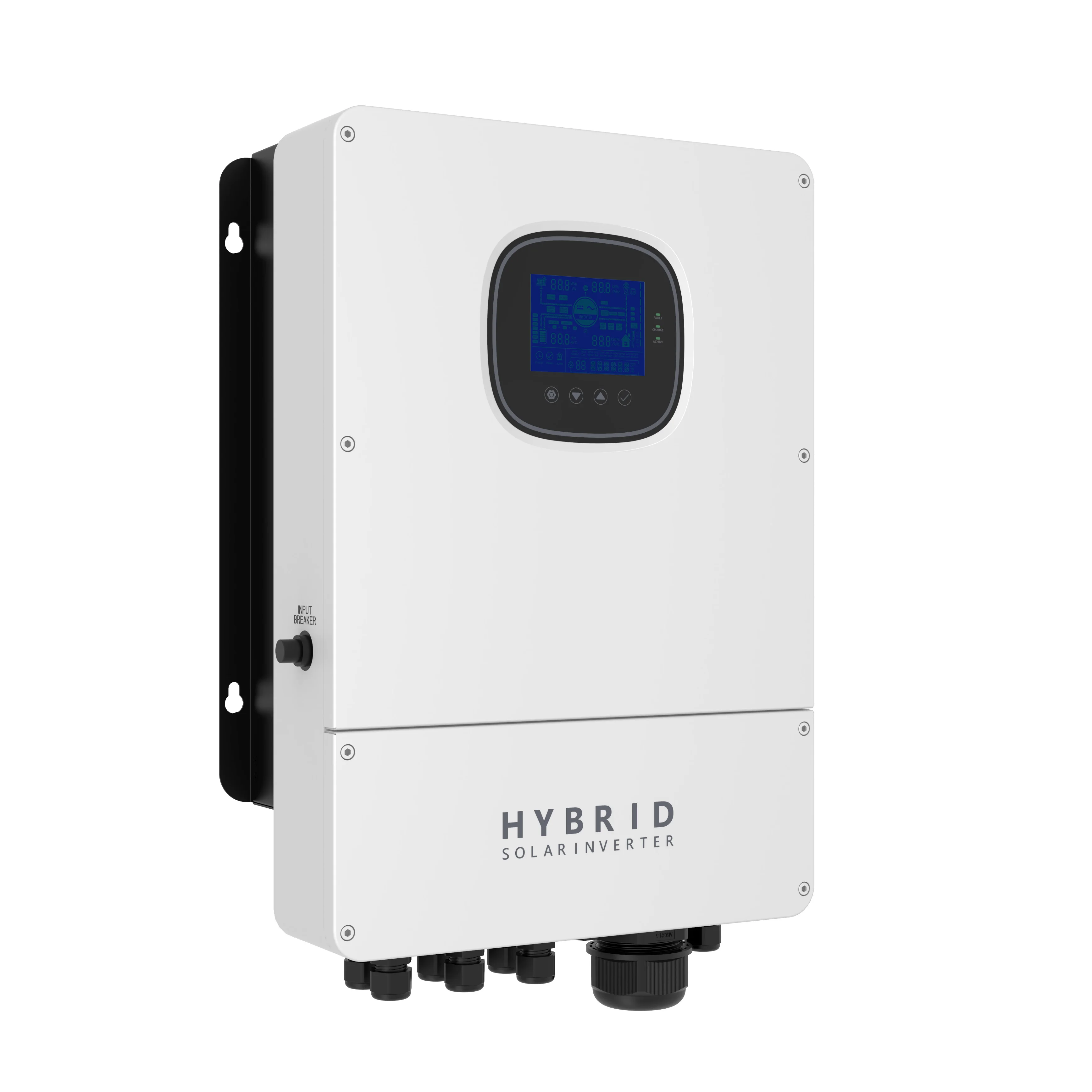

TTN Hybrid Solar Power Inverter MPPT Solar Charge Controller 5.5KW 48V 100A IP65 Waterproof Off Grid Wechselrichter With WIFI

TTN New Energy Technology (Wenzhou) Co., Ltd.

Wenzhou China

Summary

No.1600658031455

$888.00

Specifications

Output Power:

5500kw

Application:

Off-Grid Solar System

Hybrid Solar System

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Output Type

Single Phase

Inverter Efficiency

95%

Other attributes

Place of Origin

China

Model Number

TTN-HES-4855S100-H

Brand Name

TTN

Input Voltage

200/210/220/230/240Vac

Output Voltage

200/210/220/230/240Vac

Output Current

100A

Output Frequency

50Hz/ 60Hz

Size

556*345*182

Type

DC/AC Inverters

Weight

20kg

Packaging and delivery

Packaging Details

carton box
5KW 10KW 20KW 48V Hybrid Solar Inverter for Solar Energy Off grid System

Port

Shenzhen

Selling units

Single item

Single package size

63X41X25 cm

Single gross weight

22.000 kg

Supply Ability

5000 Piece/Pieces per Month

Products Description

TTN Hybrid Inverter

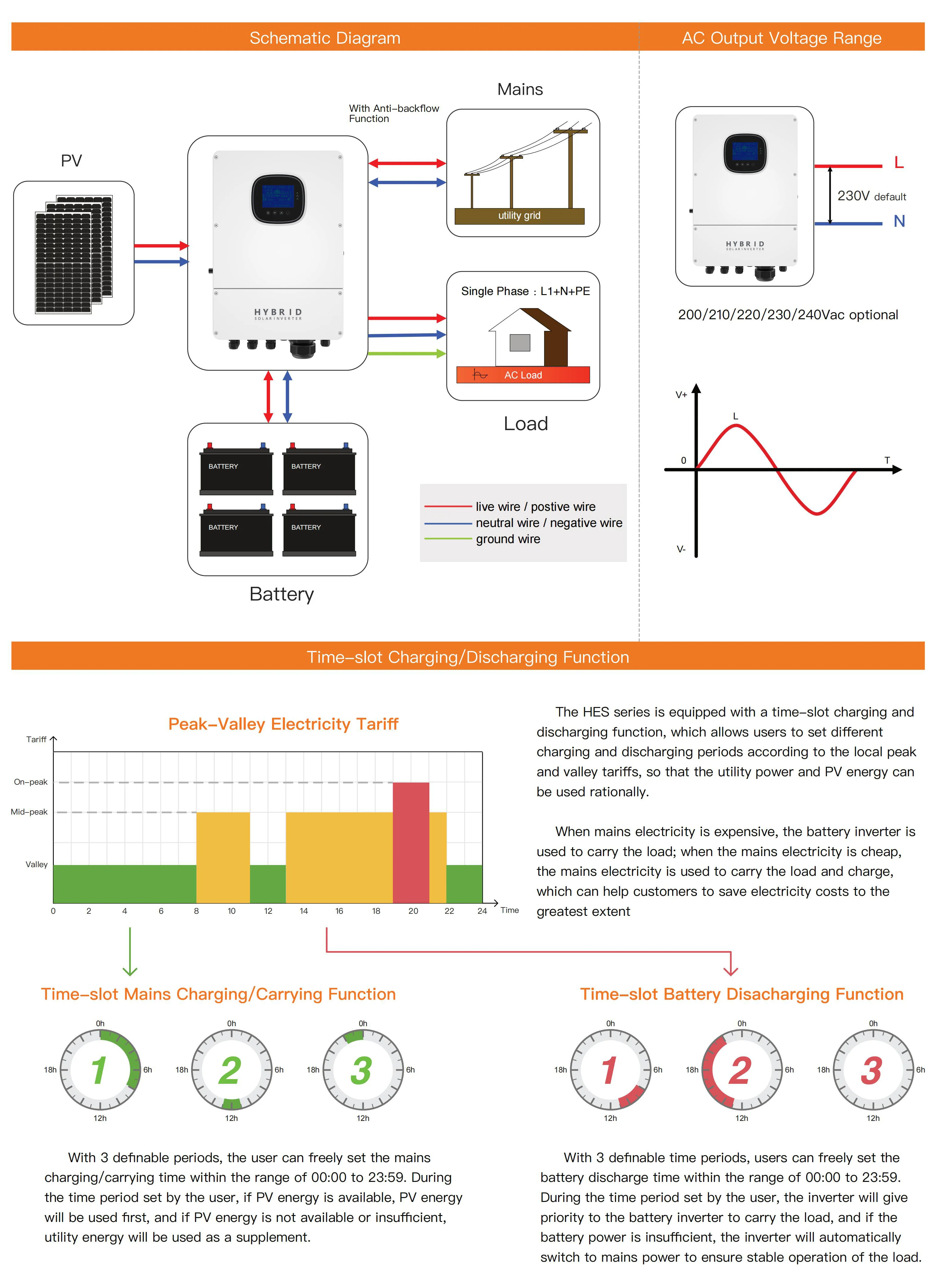

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

TTN-HES 5500W

Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

MODEL	HES4855S100-H
INVERTER OUTPUT
Rated Output Power	5,500W
Max.Peak Power	11,000W
Rated Output Voltage	230Vac (single-phase L+N+PE)
Load Capacity of Motors	4HP
Rated AC Frequency	50/60Hz
Waveform	pure sine wave
Switch Time	10ms（typical）
BATTERY
Battery Type	Lead-acid / Li-ion / User Defined
Rated Battery Voltage	48V
Voltage Range	40～60Vdc
Max.MPPT Charging Current	100A
Max.Mains/Generator Charging Current	60A
Max.Hybrid Charging Current	100A
PV INPUT
Num. of MPPT Trackers	1
Max.PV Array Power	6,000W
Max.Input Current	22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	120~450Vdc
EFFICIENCY
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	>90%
GENERAL
Dimensions	556345182mm
Weight	20KG
Protection Degree	IP65
Operating Temperature Range	-25~55℃,>45℃ derated
Humidity	0～100%
Cooling Method	Internal Fan
Warranty	5 years
Safety	IEC62109
EMC	EN61000,FCC part 15
