| Model No. | HPS 1.5K-24 | |
| Rated Power | 1500VA/1200W | |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |
| Frequency range | 50Hz/60Hz (auto sensing) | |
| OUTPUT | ||
| AC voltage regulation (Batt. mode) | 230VAC±5% | |
| Surge power | 3000VA | |
| Efficiency (peak) | 93% | |
| Transfer time | 10ms (for personal computers) 20ms (for home appliances) | |
| Waveform | pure sine wave | |
| BATTERY & AC CHARGER | ||
| Battery voltage | 24VDC | |
| Floating charge voltage | 27VDC | |
| Overcharge protection | 30VDC | |
| Maximum charge current | 20A / 30A | |
| SOLAR CHAGER | ||
| Charging current | 50A PWM | |
| Maximum PV array open circuit voltage | 80VDC | |
| PV Range @ Operating Voltage | 30-40VDC | |
| Standby power consumption | 2W | |
| PHYSICAL | ||

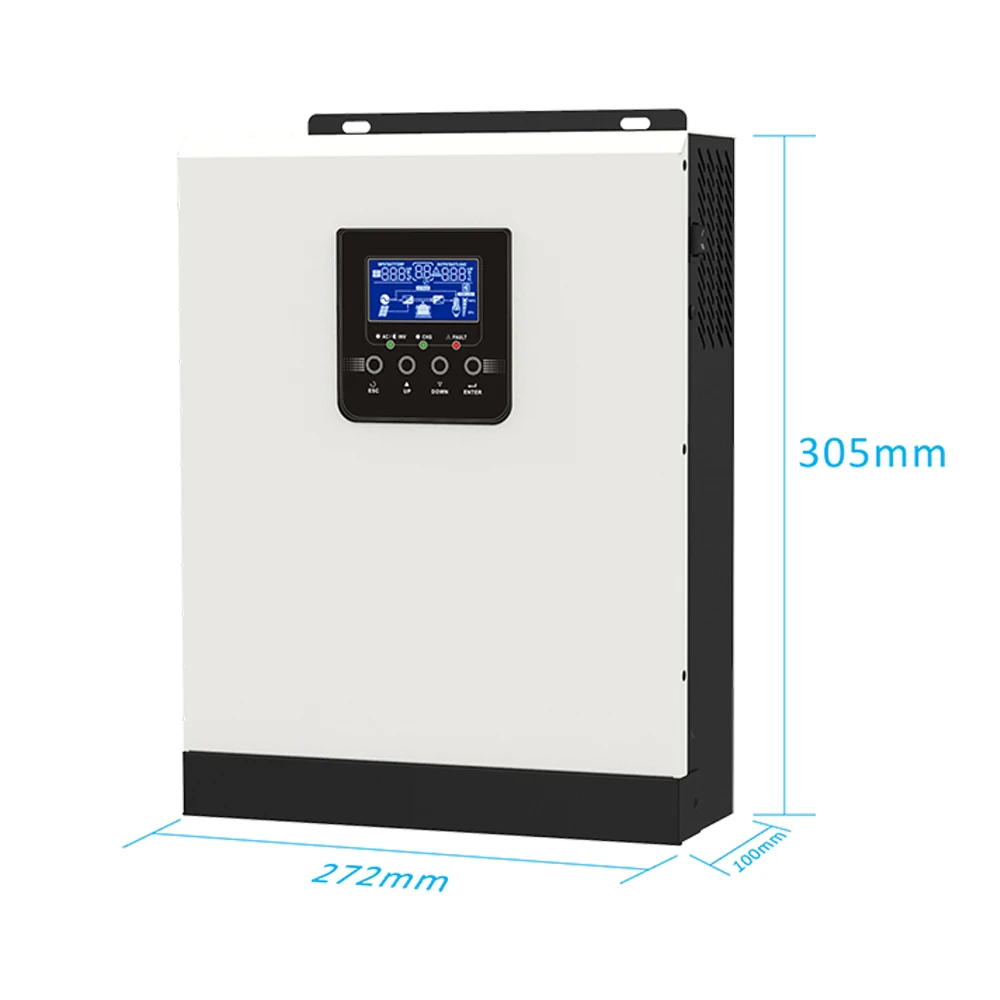

| Dimension, D*W*H (mm) | 305*272*100mm | |
| Net weight (kg) | 5.2kg | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5%-95% relative humidity (non-condensing) | |
| Operating temperature | 0℃-55℃ | |
| Storage temperature | -15℃-60℃ | |
