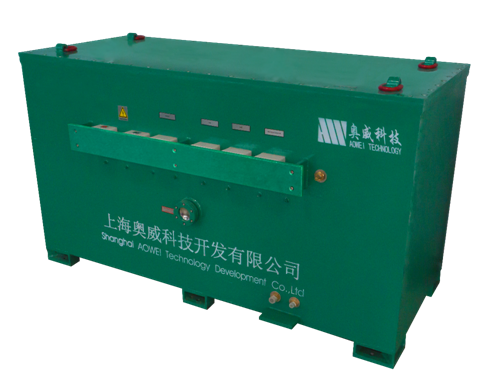

| Part Number | S585V36-K7 |
|---|---|
| Nominal Capacitance(F) | 1111(According to corporate standard)889（According to QC/T 741-2014） |
| Operating Voltage Window(V) | 400～585374.4～590.4（According to GB/T 31467.1） |
| Surge Voltage(V) | 605 |
| Stored Energy(kWh) | 32±5%（400～585V）35±5%（According toGB/T 31467.1） |
| Standard Charge Current(A) | 400 |
| Standard Discharge Current(A) | ≤400 |
| Maximum Charge/Discharge Current(<20s)(A) | 800 |
| Time for Charging(min) | 6～8 |
| Operating Temperature(oC) | -25～+55 |
| Storage Temperature(oC) | -30～+65 |
| Protection Level | IP67 |
| Electric Property | Overvoltage, overcurrent, overheat, overload, short circuit, DC leakage protection, etc |
| Capacitor Management System | Automatic balance, voltage monitor, temperature monitor, DC leakage monitor, etc |
| Cooling Mode | Air cooling |
| Communication Interface | CAN |
| Size(mm) | 1370×1000×895 |
| Weight(kg) | 1000 |
