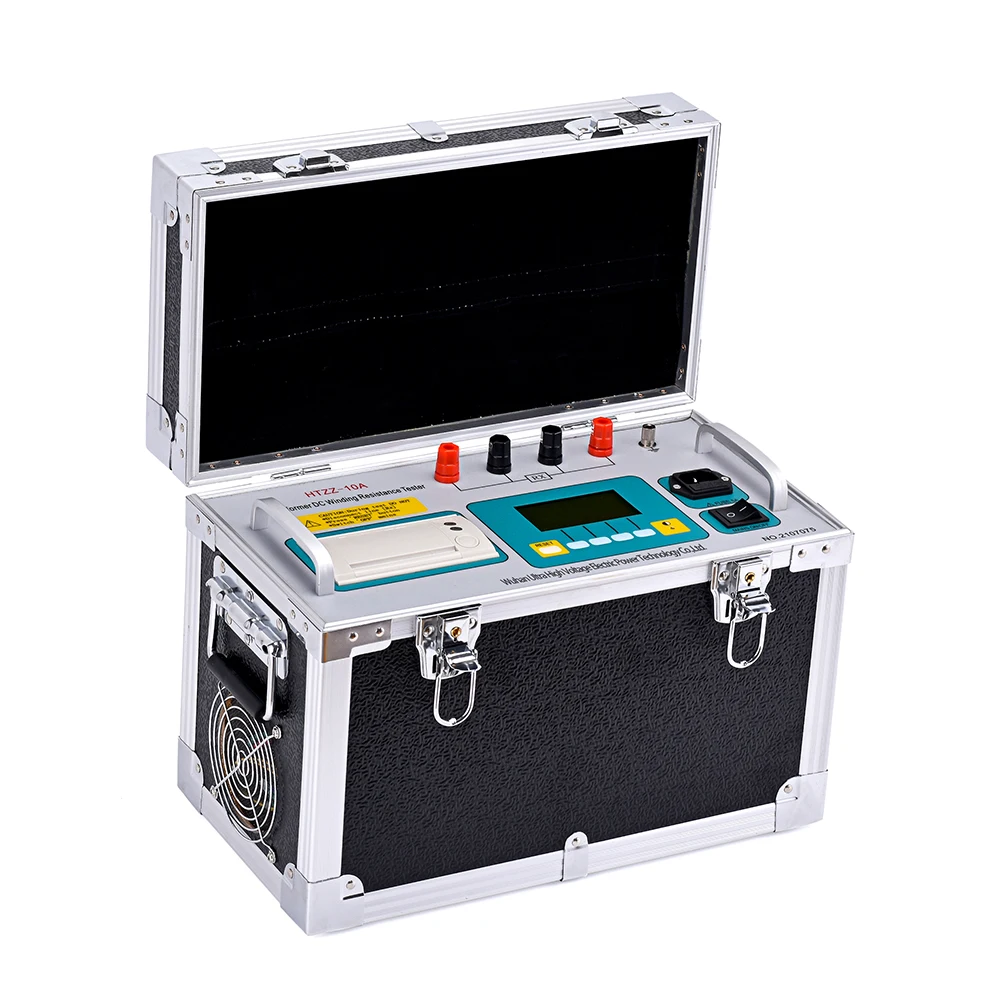

UHV-10A Transformer DC Winding Resistance Tester

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Summary

No.1600380015294

$1550.00

INQUIRY

Description Download

Key attributes

customized support

OEM, ODM, OBM, Software reengineering

place of origin

Hubei, China

power

Electronic

warranty

1 years

brand name

UHV

model number

HTZZ-10A

Product name

Transformer DC Winding Resistance Tester

Test Current

1mA,10mA,1A,5A,10A

Test Range

1mΩ-20KΩ

Maximum Resolution

0.1μΩ

Measurement Accuracy

±0.2%(full range±2 digitals)

Power supply

AC 220V±22V,50Hz±2 Hz

Data Storage

255 group

Display

LCD,Resistance display is 41/2 bits

Dimension

500*290*370 mm3, 12kg/17kg

Certification

ISO9001, ISO14001, ISO45001

Packaging and delivery

Selling Units

Single item

Single package size

50X29X37 cm

Single gross weight

17.000 KG

HTZZ-10A Transformer DC Winding Resistance Tester

Product Description

HT-1200 China Factory Six Phase Secondary Injection Relay Test Set relay tester

When the transformer is cross-connected, overhauled or some of its switches are changed, direct current resistance testing of the transformer winding is a must. In general, to measure the transformer winding or large power output inductor equipment, the traditional electrical bridge method and pressure drop method require much time and energy. Thus, to shorten the measurement time and reducing the workload of testers, our company developed rapid direct current resistance tester. This transformer winding DC resistance tester is designed with new power supply technology and stable performance, fast measurement, compact, easy to use, high accuracy, good data reproducibility. It is an ideal piece of equipment for measuring transformer windings and large power output inductor equipment.

Features

1.DC resistance test adopts new power supply technology, measurement is rapid, volume is small and convenient to use
2. Bulk storage can storage 255 group data
3.The typical 4-line measurement method is adopted to improve the measurement accuracy (especially small resistance)

4.Built-in panel miniature printer can print measurement results in Chinese
5. Storage results can be read and printed

Product Paramenters

Item	Parameters	Note
Test current	1mA，10mA，1A，5A，10A
Measurement range	1mA： 10Ω~20KΩ
		10mA： 1Ω~2KΩ
		1A： 10mΩ~20Ω
		5A： 1mΩ~4Ω
		10A： 1mΩ~2Ω
Measurement accuracy	±0.2%(full range± Two digital)
Display	LCD	Resistance is 4 1/2 bits
Maximum resolution	0.1μΩ
power supply	AC220V±22V，50Hz±2Hz	insurance tube：5A
Maximum power	300W	When test current is 10A
Data Storage	255 group
Built-in printer	Yes
Work environment	Temperature：0℃～40℃；Relative humidity ：≤80%RH
Dimension	500x290x370(mm)	standard wooden box with bubble board
Weight	NW: 12kg	GW:17kg
Standard	DL/T 845.3-2004

Company Profile

Wuhan Ultra High Voltage Electric Power Technology CO.,Ltd. (Branches of Wuhan Huatian Electric Power Automation Co.,Ltd.) Established in 2021. we are located in Wuhan East Lake High-Tech Development
Zone, which is also named Wuhan Optical Valley with convenient transportation access.
Wuhan Ultra High Voltage Electric Power is a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems.Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester and SF6 Test Equipment etc.
They are widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project. We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always right be here take the customer as first priority and provide you the best solution. Looking forward to building a thrust-worthy and long-term relationship with you.

Hot Products

Packing & Delivery

FAQ

1. Is your company a sales company or a manufacturer?

Wuhan Ultra High Voltage Electric Power Automation CO., LTD. is an industrial and trade enterprise, with its own factory,
self-produced and self-sold. We were founded in 2004 and have Seventeen years of production experience. Our company has reliable production lines, test rooms, QC rooms and R&D centers.

2. When can i get the price ?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or send us your email so that we can provide you the details at our first time.

3.What is your terms of delivery ?

We accept EXW, FOB, CFR, CIF ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will be the Shipping cost and time?

This will depend on the size and quality of the goods you purchased and the method of shipping(by sea/ by air/ by Epress) and your designated port or air port. We will be grateful of you can spare us some times to evaluate the cost based on the information provided.

5. Could you please tell me the Warranty Period of your product ?

Our warranty period is one year free and lifelong maintance, and if the product is damaged (if not man-made damage),
in the first year, we will send free parts for replacement or free repairment if you willing to send back the equipment (customer will take the shipment cost).

6.What kind of Certificate can you provide ?

We can provide the CE mark, ISO 9001 quality certificate, the third party calibration certificate(CNAS), factory test report etc.

7.Do you have Technique support to all customers from different countries ?

To be frankly, our technical support is always available and quick response in 12 hours. We are manufacturer of so much on site testing experience and understand how to deal with your problems.
