Summary
No.1600773228026
More
$10000.00
Specifications
Use:
Auto Testing Machine
Universal Testing Machine
  • UHV-220/30CFK Constant Current DC Load Bank Battery Charge Discharge Tester
  • UHV-220/30CFK Constant Current DC Load Bank Battery Charge Discharge Tester
  • UHV-220/30CFK Constant Current DC Load Bank Battery Charge Discharge Tester
  • UHV-220/30CFK Constant Current DC Load Bank Battery Charge Discharge Tester
  • UHV-220/30CFK Constant Current DC Load Bank Battery Charge Discharge Tester
  • UHV-220/30CFK Constant Current DC Load Bank Battery Charge Discharge Tester

Key attributes

customized support
OBM, ODM, OEM, Software reengineering
place of origin
Hubei, China
power
Electronic
warranty
1 years
brand name
UHV
model number
HTCFDK
Heat dissipation
forced air cooling
Temperature
working range: -5 ~ 50℃ storage temperature: -40 ~ 70℃
Humidity
relative to humidity0 ~ 90% (40±2℃)
Altitude
rated altitude: 4000 m
Noise
60dB
Voltage
220V AC (- 20% ~ +30%)
Security
meet EN610950
AC input
1 ~ 1.5mm2cable
DC output
25 mm2Cable quick connect plug (red positive black negative)

Packaging and delivery

Selling Units
Single item

Product Description
After many years of development, with its proprietary technology, the development of a successful series of intelligent degree and high precision battery discharge tester. This tester can realize constant discharge of discharge current at set value by continuously regulating discharge current under off-line state of battery as discharge load. When discharging, the instrument will automatically stop discharging when the battery terminal voltage or monomer voltage falls to the set lower limit, or the set discharge time or the set discharge capacity, and record all valuable and continuous real-time process data. This tester system the voltage monitoring information of single battery is simple, safe and accurate with wireless relay access. The instrument has a very friendly man-machine interface, not only can be done under the menu prompt a variety of settings and data query, data and discharge process, are stored in the device's memory, through data interface can be archived to the U disk, and through the upper machine of special software to analyze data and generate need curve and report. This instrument has perfect protection function, not only sound and light alarm, but also clear interface tips.

Product Feature
1,10 ~ 600V wide voltage design, single machine can meet a variety of voltage grade battery pack charge and discharge test,voltage continuously adjustable 2,Charging, discharging, monomer detection, online monitoring and activation five integrated, complete functions, one machine multi-purpose 3,With the wireless monitoring function of monomer voltage, each wireless monitoring module can monitor 12 monomers at the same time 4,With Chinese background analysis software, with remote control discharge function 5,The host is equipped with USB interface and 2G super capacity internal data storage space 6,Double cpus work together to ensure the safety, reliability and accuracy of the test 7,The discharge can be suspended and the parameters can be modified without the termination of the discharge test

Working mode
can be used alone, can be used simultaneously, can be remote control and status monitoring
Charging voltage
10-300V
10-600V
Charging current
0-40A
0-60A
0-30A
0-60A
Discharge voltage
10-300V
10-600V
Discharge current
19-180V:150A
180-300V:80A
10-300V:100A
300-600V:50A
Accuracy of current
1%
Voltage accuracy
0.5%
Monomer voltage accuracy
0.2%
Monomer voltage
0.500V-16.00V(resolution 1mv)
Charge discharge time
0 -99 hours and 59 minutes
Power supply
AC:220V/380V
Cooling way
forced air cooling
Handling way
industrial universal wheel
Heat dissipation
forced air cooling
Temperature
working range: -5 - 50℃ storage temperature: -40- 70℃
Humidity
relative to humidity0 - 90% (40±2℃)
Altitude
rated altitude: 4000 m
Noise
less than 60dB
Voltage
single-phase three-wire system: 220V AC (- 20% - +30%), frequency :45-65Hz
Withstand voltage test
input - housing: 2200V DC 1min
input-output: 2200V DC 1min
output - housing: 700V DC 1min
Security
meet EN610950
AC input
Gb socket, suitable for 1 - 1.5mm2cable
DC output
instrument 25 mm2Cable quick connect plug (red positive black negative)

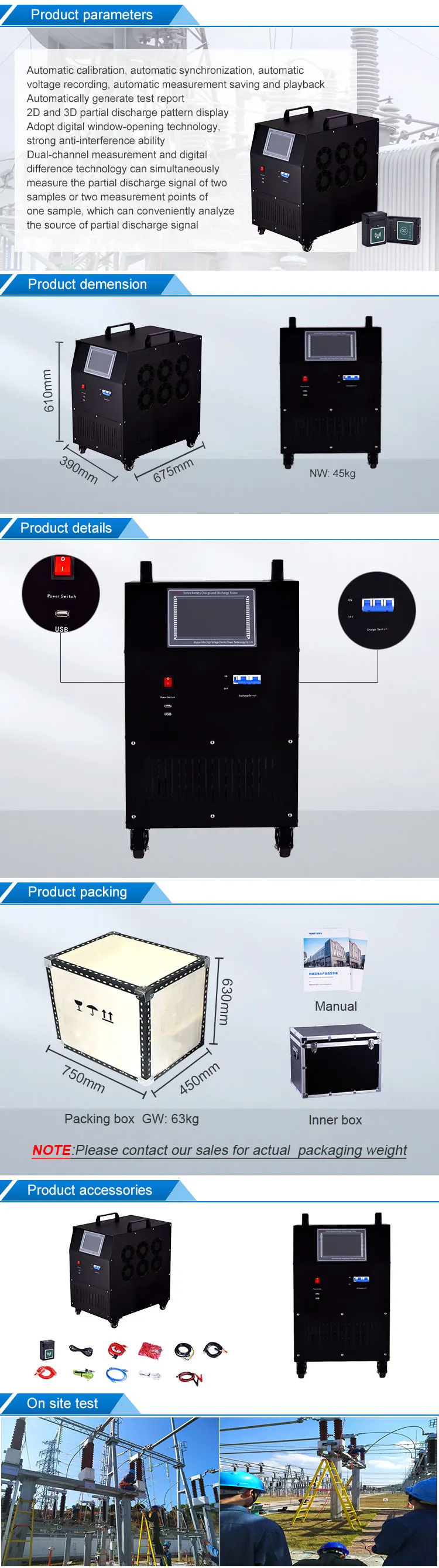

Details Images

Company Profile
Company Profile
Wuhan UHV Electric Power Technology CO., LTD Which is the branchs of Wuhan Huatian Electric Power Automation Co.,Ltd. Established in 2021. we are located in Wuhan East Lake High-Tech Development Zone, which is also named Wuhan Optical Valley with convenient transportation access. Ultra High Voltage Electric Power Technology is a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems.Including AC Series Resonant Test SystemAC/DC/VLF Hipot Test SetTransformer TesterSecondary Injection Relay Tester, Cable/Line TesterInsulation Oil TesterCircuit Breaker/Switch Tester and SF6 Test Equipment etc. They are widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project. We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.   Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always right be here take the customer as first priority and provide you the best solution. Looking forward to building a thrust-worthy and long-term relationship with you.
FAQ
1. Is your company a sales company or a manufacturer? Wuhan UHV Power Technology Co.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers. 2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is. After the goods have been ordered, it takes about 7 working days for production if there are no accidents. 3. Is the quality guaranteed? In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes. 4. What are the after-sales terms? We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner. 5. What are the cooperative countries or regions? Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
