UHV-270kVA/270kv Frequency Conversion/Power Frequency Resonant Cable Tester Resonant Test System

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Summary

No.1600379154246

$11000.00

Specifications

Use:

With compensation Capacitor

Without compensation Capacitor

INQUIRY

Description Download

Key attributes

customized support

OEM, ODM, OBM, Software reengineering

place of origin

Hubei, China

power

Electronic

warranty

1 years

brand name

UHV

model number

HTXZ

Product name

Resonant cable tester

Application

Cable, Hydraulic Generator, Main Transformer, Bus,

Working Frequency

30-300Hz

Device Output Waveform

Sine Wave

Waveform Distortion Rate

Output Voltage Waveform Distortion Rate ≤1%

Working Time

Continuous 60min Is Allowed Under Rated Load; Over

Temperature Rise

<65K After Continuous Operation Under Rated Load

The Quality Factor

Q>30(F=45Hz)

Protection Function

Over Current, Over Voltage and Flashover Protectio

Comply Standard

GB 50150-2016,Dl/T 849.6-2016, Dl/T 474.4-2018

Packaging and delivery

Packaging Details

Resonant cable tester: Inside packing: bubble board Outside packing: standard wooden box Customer OEM packing also available

Port of dispatch

Shanghai/Wuhan

Selling Units

Single item

Packaging examples

Supply capacity

Supply Ability

50 sets per Month Resonant cable tester

Htxz-270kVA/270kv Frequency Conversion/Power Frequency Resonant Cable Tester Resonant Test System

Product Description

HT-1200 China Factory Six Phase Secondary Injection Relay Test Set relay tester

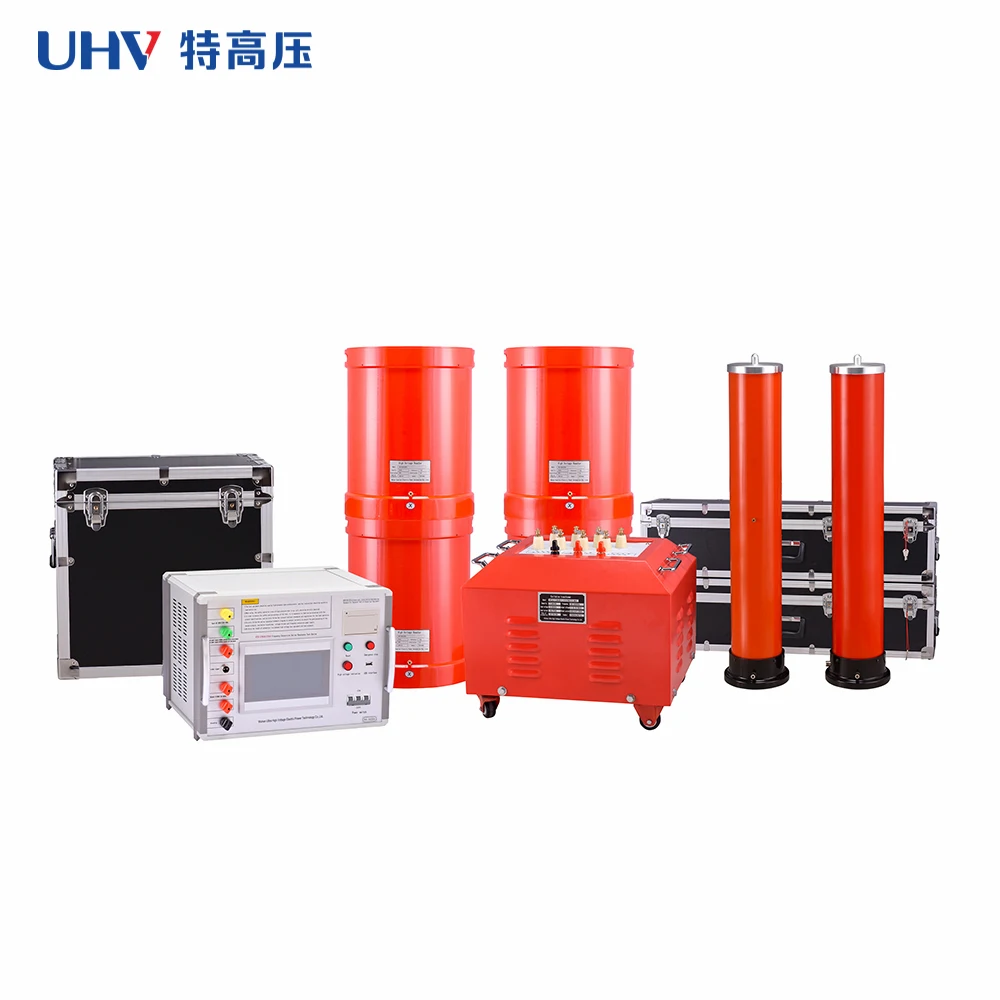

HTXZ makes the reactor and tested capacitor in resonant by adjusting the frequency of the power source, to get high voltage and heavy current from measured equipment. Now it is a new method and trend for high voltage test and widely used. HTXZ uses special SPWM digital wave-generate chip, resolution is 16 bits, the frequency adjustment fineness could be 0.1Hz if the frequency was 20~300Hz; adopts sine asynchronous fixed wave carrier modulation, to ensure the waveform output is good in the whole frequency range; adopts advanced IPM module, ensure the stability and safety of the device under minimum weight. Small in volume, light in weight.
This system need one person to carry the device less than 30KG, two people less than 60KG. Suitable to carry on site.

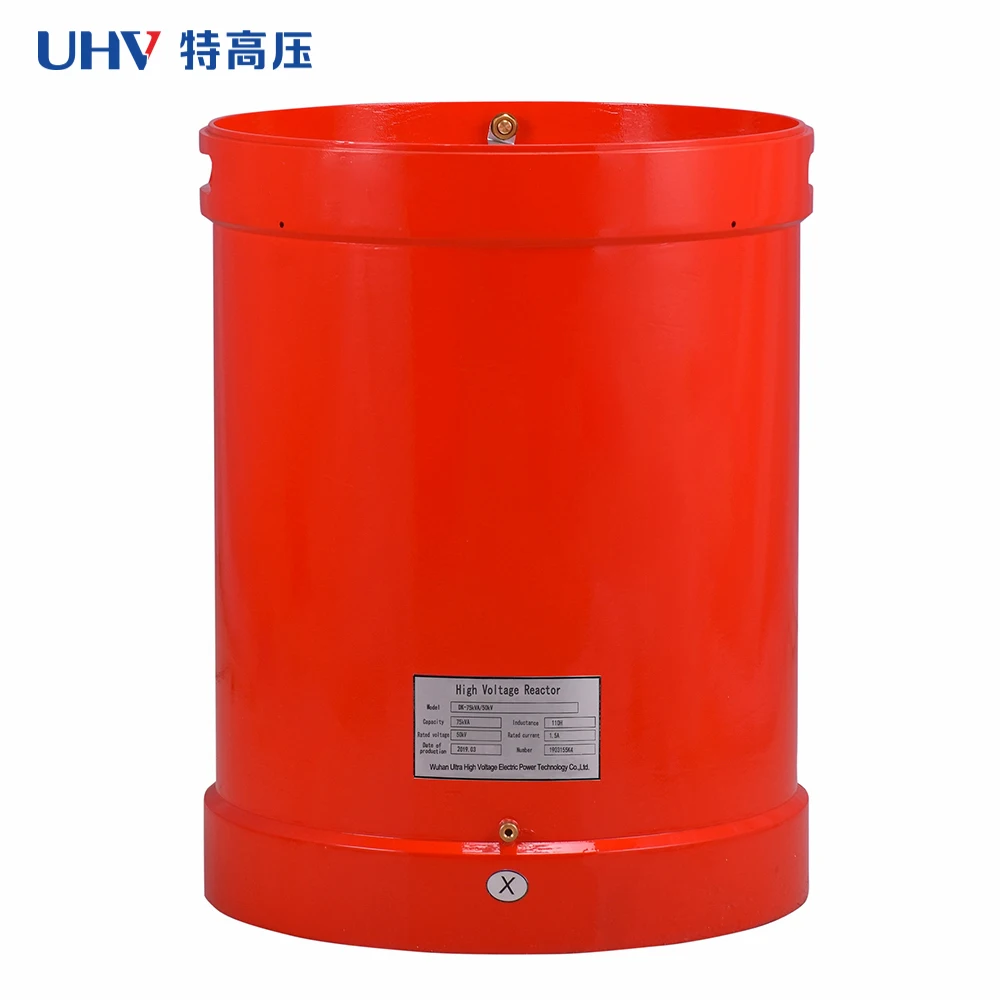

Power supply, Single phase: 220V or 380V, convenient to get power on site. reactor uses epoxy cast, beautiful and reliable, suit for all kinds of cables.110kV and above voltage level cable withstand voltage test use oil-immersed reactors, when the weight of single machine is more than 100kg, optional dedicated small electric cranes

Product Paramenters

Technique parameters

Rated output voltage			≤0~220kV(AC effective value)
Output frequency			30~300Hz
Resonate voltage waveform			Sine wave, distortion ≤1.0%
Full load working time			Continuous working time: 60min
Frequency adjustment			≥20 under maximum load
Instability			0.1Hz
Frequency range			≤0.01%
Power supply			Single phase: 220V or three phase :380V±10%, frequency:50Hz±5%

Configuration table of cable (≤ 35kV) voltage withstand device:

Model	Control cabinet	Reactor(dry type)	Excitation transformer (dry type)	Divider	Application
HTXZ-44/22	2.5kW	1A/22kV:2 sets	2.5kVA/1kV	25kV	10kV cable ≤1km
HTXZ-88/22	4kW	2A/22kV:2 sets	4kVA/1kV	25kV	10kV cable ≤2km
HTXZ-132/22	6kW	2A/22kV:3 sets	6kVA/1/3kV	60kV	10kV cable ≤3km 35kV cable ≤1km
HTXZ-176/22	7.5kW	2A/22kV:4 sets	7.5kVA/1/3kV	60kV	10kV cable ≤4km 35kV cable ≤1km
HTXZ-264/22	10kW	2A/22kV:6 sets	10kVA/1/3kV	60kV	10kV cable ≤6km 35kV cable ≤2km
HTXZ-330/22	15kW	2.5A/22kV:6 sets	15kVA/1/3kV	100kV	10kV cable≤8km 35kV cable≤2km
HTXZ-640/32	25kW	2.5A/32kV:8 sets	25kVA/1/3/5kV	200kV	10kVcable ≤10km 35kV cable ≤4km 110kVcable ≤1km

Configuration table of cable (≥110kV)voltage withstand device :

Model	Control cabinet	Reactor (oil immersed)	Excitation transformer (oil immersed)	Divider	Application
HTXZ-1300/130	50kW	5A/130kV:2 sets	50kVA/3/5kV	150kV	35kVcable≤2km 110kVcable≤2km
HTXZ-2600/130	100kW	5A/130kV:4 sets	100kVA/3/5/10kV	220kV	35kVcable≤3km 110kVcable≤3km 220kVcable≤1.5km
HTXZ-3200/220	160kW	4A/220kV:4 sets	160kVA/5/10kV	160kV	110kVcable≤5km 220kVcable≤3km
HTXZ 6400/220	320kW	8A/220kV:4 sets	320kVA/5/10kV	320kV	110kVcable≤10km 220kVcable≤5km 500kVcable≤1km

Company Profile

Wuhan Ultra High Voltage Electric Power Technology CO.,Ltd. (Branches of Wuhan Huatian Electric Power Automation Co.,Ltd.) Established in 2021. we are located in Wuhan East Lake High-Tech Development
Zone, which is also named Wuhan Optical Valley with convenient transportation access.
Wuhan Ultra High Voltage Electric Power is a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems.Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester and SF6 Test Equipment etc.
They are widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project. We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always right be here take the customer as first priority and provide you the best solution. Looking forward to building a thrust-worthy and long-term relationship with you.

Hot Products

Packing & Delivery

FAQ

1. Is your company a sales company or a manufacturer?

Wuhan Ultra High Voltage Electric Power Automation CO., LTD. is an industrial and trade enterprise, with its own factory,
self-produced and self-sold. We were founded in 2004 and have Seventeen years of production experience. Our company has reliable production lines, test rooms, QC rooms and R&D centers.

2. When can i get the price ?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or send us your email so that we can provide you the details at our first time.

3.What is your terms of delivery ?

We accept EXW, FOB, CFR, CIF ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will be the Shipping cost and time?

This will depend on the size and quality of the goods you purchased and the method of shipping(by sea/ by air/ by Epress) and your designated port or air port. We will be grateful of you can spare us some times to evaluate the cost based on the information provided.

5. Could you please tell me the Warranty Period of your product ?

Our warranty period is one year free and lifelong maintance, and if the product is damaged (if not man-made damage),
in the first year, we will send free parts for replacement or free repairment if you willing to send back the equipment (customer will take the shipment cost).

6.What kind of Certificate can you provide ?

We can provide the CE mark, ISO 9001 quality certificate, the third party calibration certificate(CNAS), factory test report etc.

7.Do you have Technique support to all customers from different countries ?

To be frankly, our technical support is always available and quick response in 12 hours. We are manufacturer of so much on site testing experience and understand how to deal with your problems.
