UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester

Wuhan UHV Power Technology Co., Ltd. Hubei,China
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
Summary
No.1600386650795
More
$140000.00
INQUIRY
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
  • UHV-315 IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
Description Download

Key attributes

customized support
OEM, ODM, OBM, Software reengineering
place of origin
Hubei, China
power
Electronic
warranty
1 years
brand name
UHV
model number
HTBZ-H
Product name
Transformer Test Bench
Voltage measuring range
0.1~600V, error: ±(0.2% reading +0.1% range)
Current measuring range
0.1~200A , error: ±(0.2% reading +0.1% range)
Power
U*I , error: ±(0.2% reading +0.1% range)
Power factor
0.1~0.9999, 3 digital
Power supply
AC220V±10%, 50Hz±2%
Working environment
Operating temperature range: 0~40℃, Relative humidity: 30%~90%
Dimension
2500*1060*1500(mm), 100kg~1000kg (Customized)
Standard
GB 1094.1-2013,GB 1094.2-2013,GB 1094.3-2017
Certification
ISO9001, ISO14001, ISO45001

Packaging and delivery

Packaging Details
Transformer Test Bench: Inside packing: bubble board Outside packing: standard wooden box Customer OEM packing also available
Port of dispatch
Shanghai/Wuhan
Selling Units
Single item
Single package size
250X106X150 cm
Single gross weight
1000.000 KG
Packaging examples

Supply capacity

Supply Ability
100 sets per Month Transformer Test Bench
HTBZ-H IEC Standard Automatic Transformer Test Bench Transformer Testing System Load Loss No Load Current High Voltage Tester
Product Description

HT-1200 China Factory Six Phase Secondary Injection Relay Test Set relay tester

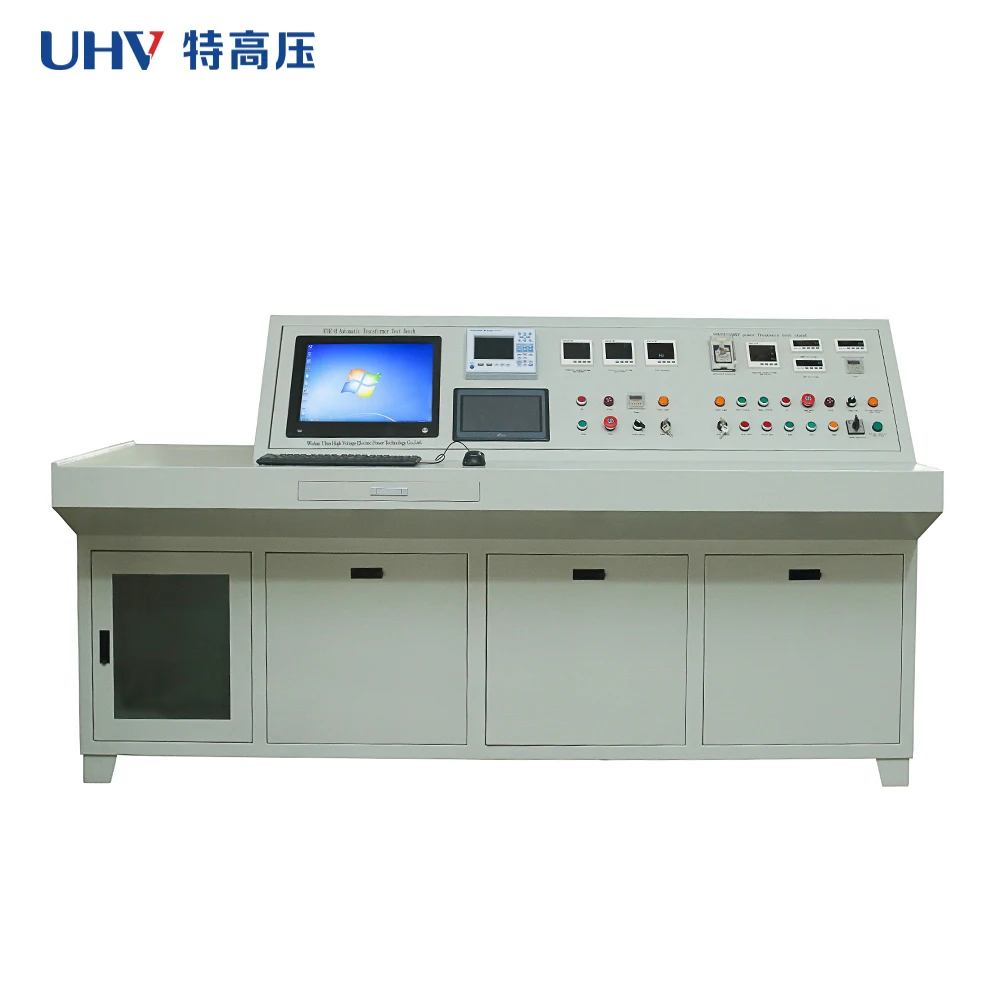

Transformer test bench is mainly for power transformers, distribution transformers no-load, load characteristics test, induced voltage and frequency voltage withstand test. The device measurement part by the high-end single-chip control, digital display, no load, short circuit test data simultaneously sampled by the micro-controller to avoid the errors of traditional test methods in voltage, current meter , power meter readings were caused by manual calculation.

Features

1. UHV Transformer Test System will perform tests in accordance with IEC 60076 and IEEE C57 serial latest edition standards.

2. Applied for different voltage degree transformers, reactors and HV switchgears.

3. Fully PLC controlling and measurement, integrated primary wire connection circuit displaying, measuring, control tracing,analysis processing, report storing, printing and protecting into the testing system.

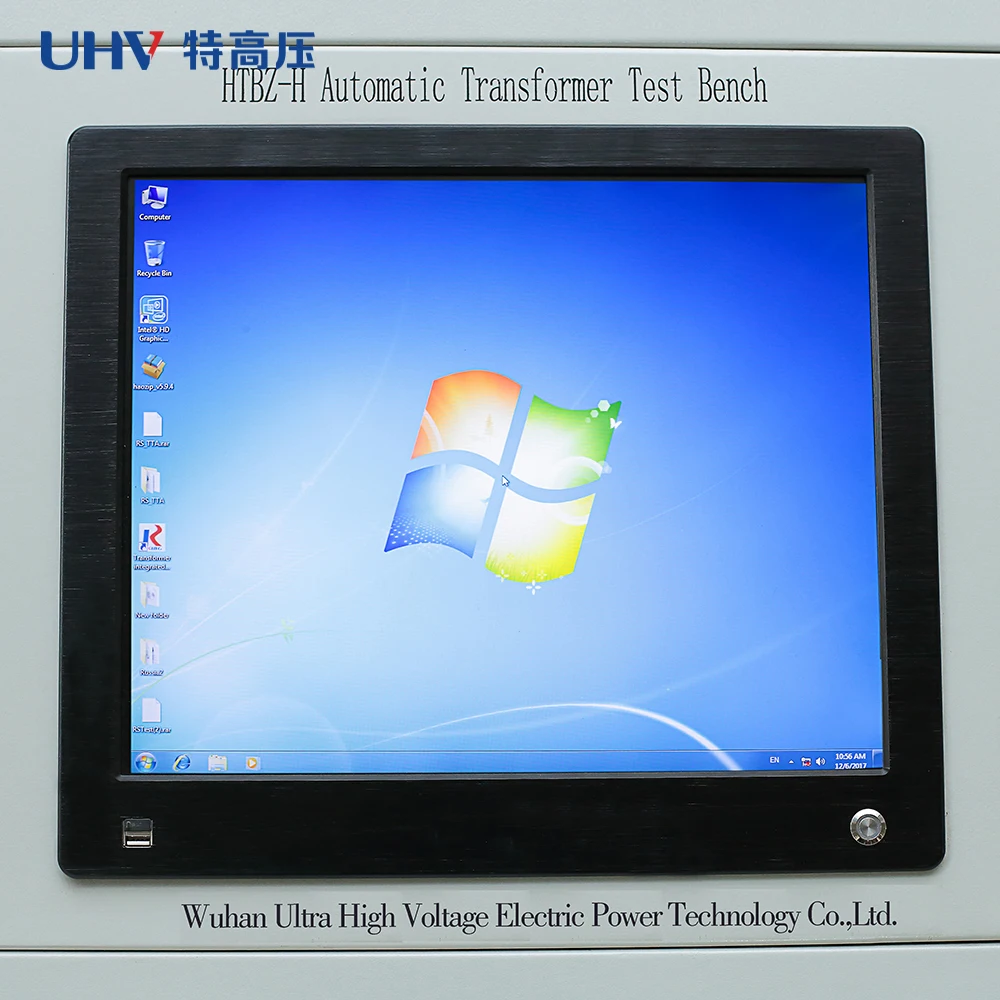

4. All the test data calculation was operated by IPC, the test results and measuring data are displayed in screen directly which highly improved the precision and efficiency.
5. The test system could be customized to bench type, microcomputer type or any at user's option to be suitable for your test site.

Test items

1. Transformer oil testing (including acidity, dew point, flash point, breakdown, capacitance &tan delta, dissolved gas analysis)
2. Transformer insulation resistance testing
3. Transformer winding resistance testing
4.Transformer turns ratio testing
5. Transformer load/no-load current & loss testing
6. Transformer capacitance & tan delta testing
7. Transformer short circuit impedance & load loss testing
8. Transformer power frequency withstand voltage testing
9. Transformer inductive withstand voltage testing (including 110kV transformer partial discharge testing)
10.Impulse voltage testing (including full wave, chopping wave testing)
11.Temperature rising testing
12. Zero-sequence impedance testing
Product Paramenters
Item
Measuring range
Error
Voltage
0.1～600V
±(0.2% reading +0.1% range)
Current
0.1～200A
±(0.2% reading +0.1% range)
Power
U*I
±(0.2% reading +0.1% range)
Power factor
0.1~0.9999
3 Digital
Power supply
AC220±10% or AC380±10%
50Hz±2%
Working environment
temperature range 0～40℃
relative humidity 30%～90%
Dimension
2500╳1060╳1500(mm)
100kg~1000kg (customized)
Company Profile
Wuhan Ultra High Voltage Electric Power Technology CO.,Ltd. (Branches of Wuhan Huatian Electric Power Automation Co.,Ltd.) Established in 2021. we are located in Wuhan East Lake High-Tech Development
Zone, which is also named Wuhan Optical Valley with convenient transportation access.
Wuhan Ultra High Voltage Electric Power is a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems.Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester and SF6 Test Equipment etc.
They are widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project. We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always right be here take the customer as first priority and provide you the best solution. Looking forward to building a thrust-worthy and long-term relationship with you.
Hot Products
Packing & Delivery
FAQ

1. Is your company a sales company or a manufacturer?

Wuhan Ultra High Voltage Electric Power Automation CO., LTD. is an industrial and trade enterprise, with its own factory,
self-produced and self-sold. We were founded in 2004 and have Seventeen years of production experience. Our company has reliable production lines, test rooms, QC rooms and R&D centers.

2. When can i get the price ?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or send us your email so that we can provide you the details at our first time.

3.What is your terms of delivery ?

We accept EXW, FOB, CFR, CIF ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will be the Shipping cost and time?

This will depend on the size and quality of the goods you purchased and the method of shipping(by sea/ by air/ by Epress) and your designated port or air port. We will be grateful of you can spare us some times to evaluate the cost based on the information provided.

5. Could you please tell me the Warranty Period of your product ?

Our warranty period is one year free and lifelong maintance, and if the product is damaged (if not man-made damage),
in the first year, we will send free parts for replacement or free repairment if you willing to send back the equipment (customer will take the shipment cost).

6.What kind of Certificate can you provide ?

We can provide the CE mark, ISO 9001 quality certificate, the third party calibration certificate(CNAS), factory test report etc.

7.Do you have Technique support to all customers from different countries ?

To be frankly, our technical support is always available and quick response in 12 hours. We are manufacturer of so much on site testing experience and understand how to deal with your problems.
