Key attributes

customized support
OEM, ODM, OBM, Software reengineering
place of origin
Hubei, China
power
Electronic
warranty
1 years
brand name
UHV
model number
HT-TC
Product name
Cable Fault Locating System
The longest testing distance
32KM ((100KM for the open-wire line))
Testing Dead Zone
1~3m
Accuracy
±1%
Sampling rate
25MHz
Power Supply
AC or DC power supply inside machine; AC 220V±10%
Display
320*240 LCD backlight screen
Display resolution
V/50 m, V is the propagation speed m/μs
Pulse width and amplitude
0.2us 100~120V, 2us 150~160V
Comply Standard
DL/T 849.1-2004, DL/T 849.2-2004, DL/T 849.3-2004

Packaging and delivery

Selling Units
Single item
Single package size
51X45X30 cm
Single gross weight
12.000 KG

Features

*Fully Featured
It can test faults safely, rapidly and accurately ; This Tester uses low-voltage pulse method and high-voltage pulse flash-over method to detect a variety of cable faults, especially for flash-over of cable, it can be used directly without burning through cables. If equipped acoustic tester, the exact location of the fault can be accurately measured;
*High Precision
The instrument uses a high speed data sampling method ,The sampling rate of A/D can be 100MHz, which made the read resolution of this machine is 1 meter, and the blind spot detection scope is 1m;
*High Intelligence
Test results are automatically displayed on the large LCD display with waveform and data; which made the fault spot easy to be detected. And it owns English menu with operation functions, so you don't need the training of the operating personnel;
Product Paramenters
Rough Measurement Error
Less than 10%
Fixed-Point Error
<±10cm
Electromagnetic Channel Gain
>110dB (300,000 times)
Electromagnetic Channel Receiver Sensitivity
<5μV
Sound Channel Audio Amplifier Gain
<120dB (1 million times when the signal-to-noise ratio is 4:1)
50Hz Power Frequency Rejection
>40dB (100 times)
Power Consumption
<120mA (0.7W)
Buried Depth Detection
≦3m

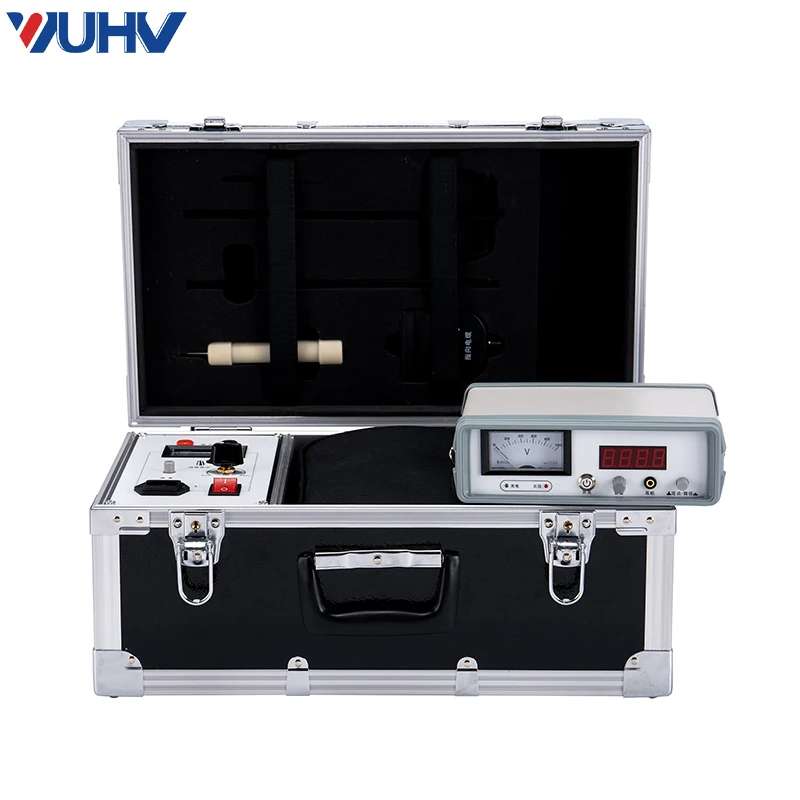

Cable Trace Detector
Working mode
Output - fixed frequency intermittent square wave signal
Output power
P max≥100W
Output impedance
1Ω-
Output signal frequency
16kHz
Output signal amplitude
15V-340V
Transmitter power supply
AC220V±10℅
1. This main host can test various types of power cables (voltage 1KV ~ 35KV) and telephone cable, FM communication cables, coaxial cables, and the short circuit on the metal overhead cables, grounding, high resistance leakage, high impedance fault flash-over ,cables disconnection, and poor contact fault; and it can also test the length of the cable and the waveform transmission velocity.
Farthest test distance
15Km
Detection blind area
1m
Data-reading resolution
1m
Power dissipation
5VA
Conditions of Use
Ambient temperature 0 ℃ ~ + 40 ℃
(Limit temperature -10 ℃ ~ + 50 ℃)
Relative humidity
40 ℃ (20 ~ 90)% RH
Atmospheric pressure
(86 ~ 106) Kpa
Volume
275 × 220 × 160mm3
Weight
1.8kg

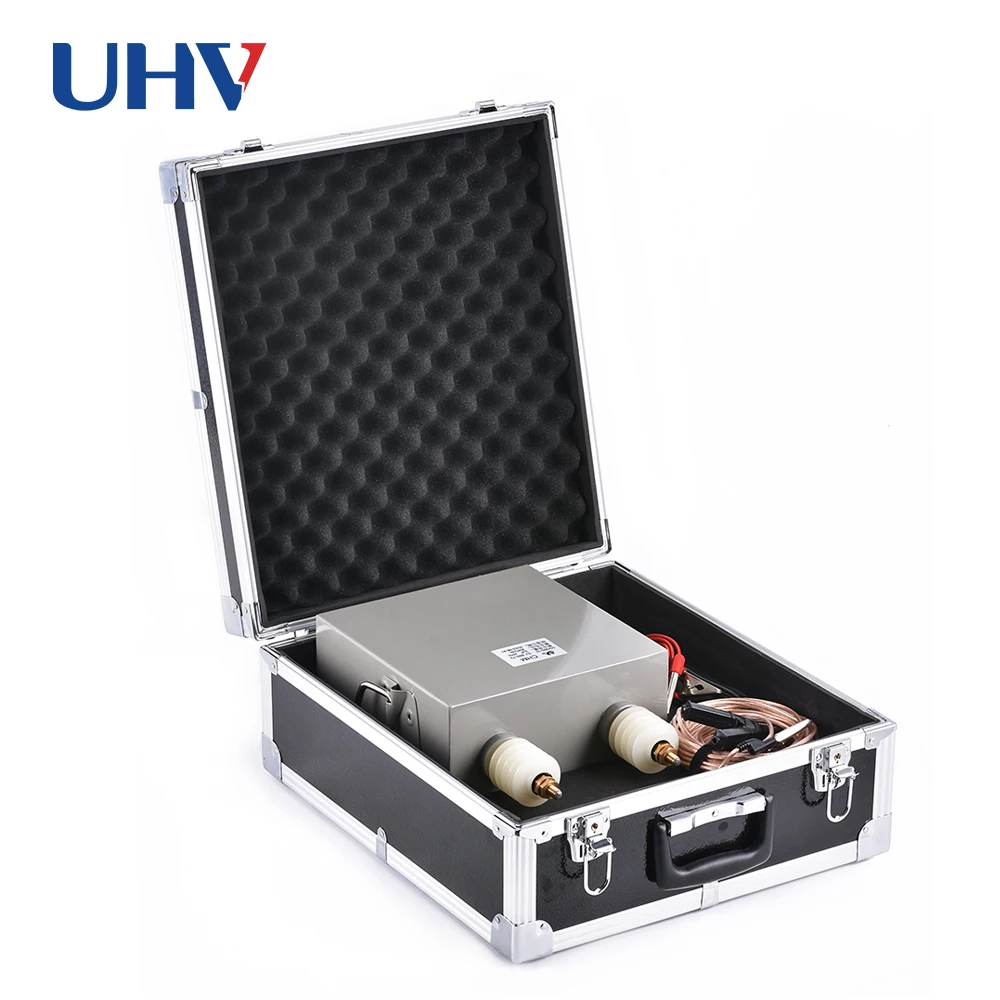

Pulse Capacitor
Characteristics:
1. The metal casing is fully sealed and small in size and light in weight.
2. Suitable for inrush current generators, laser equipment, lightning rod test equipment and other lines.
Detailed Specification
GB/T4704-92
Ambient Temperature
-40 ° C ~ 55 ° C
Rated Voltage
1KV ~ 15KV
Nominal Capacitance
0.1μF ~ 8μF
Capacitance Tolerance
±5%; ±10%
Loss Tangent
≤0.01
Insulation Resistance
≥2000S
Withstand Voltage
1.1UR ~ 1.5UR

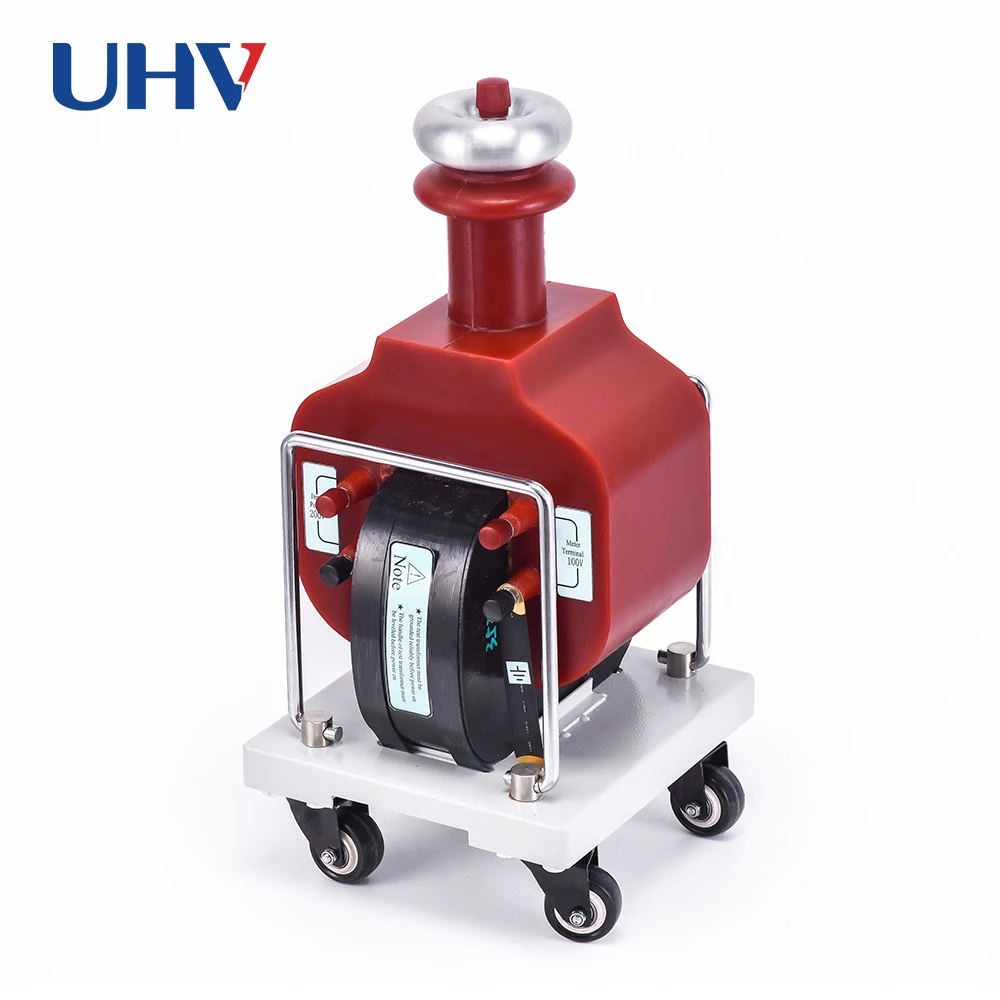

YDJ-3kVA/50kV Dry Type AC Test Transformer
Characteristics:
1、High voltage test transformer has excellent material selection, reliable quality, good stability
2、Large voltage margin, Corona ring small, Bureau of dropping
3、New insulation materials are used, small in size, Light weight
Capacity (kVA)
3kVA
High Voltage (kV)
50kV
High Current (mA)
60mA

Low Voltage Input
Voltage 200V
Current 15A
Turn Ratio
500
Temperature Rise ℃(30minutes)
10℃
Company Profile
Wuhan UHV Electric Power Technology CO.,Ltd.
Wuhan UHV Electric Power Technology CO.,Ltd. Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.
