Amount of influence | Benchmark conditions | The working conditions | |
The environment temperature | 23℃±1℃ | -10℃～40℃ | |
Wet environment crossing | 40%～60% | ＜80% | |
Voltage frequency under test | 50Hz±1Hz | 10Hz～1000Hz | |
Receiver operating voltage | 7.4V±0.5V | 7.4V±1V | |
Transmitter operating voltage | 11.1V±0.5V | 11.1V±1.5V | |
External electric field and magnetic field | Should be avoided | ||
Position of cable under test | The cable under test is located at the approximate geometric center of the flexible coil | ||

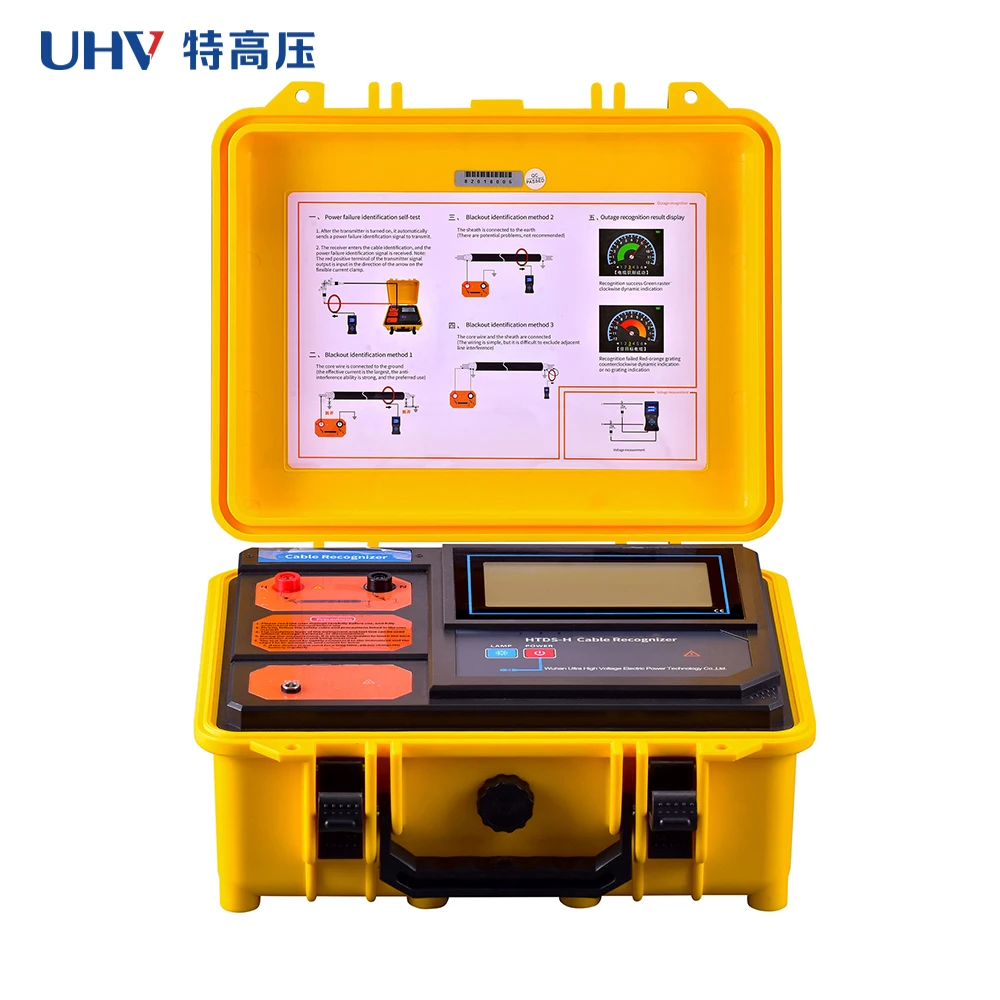

Can work | Generating pulse coded current signal;Display remaining battery voltage |
Electrical source | 11.1v large-capacity rechargeable lithium battery, which works for about 8 hours on full charge |
Pulse voltage | 500V |
Pulse current | Maximum 30A (depending on the circuit resistance) |
Pulse frequency | 1 times per second |
The pulse width | 2ms |
Working temperature | -10℃～40℃ |
Storage conditions | -20℃~50℃，≤95％RH, No condensation |

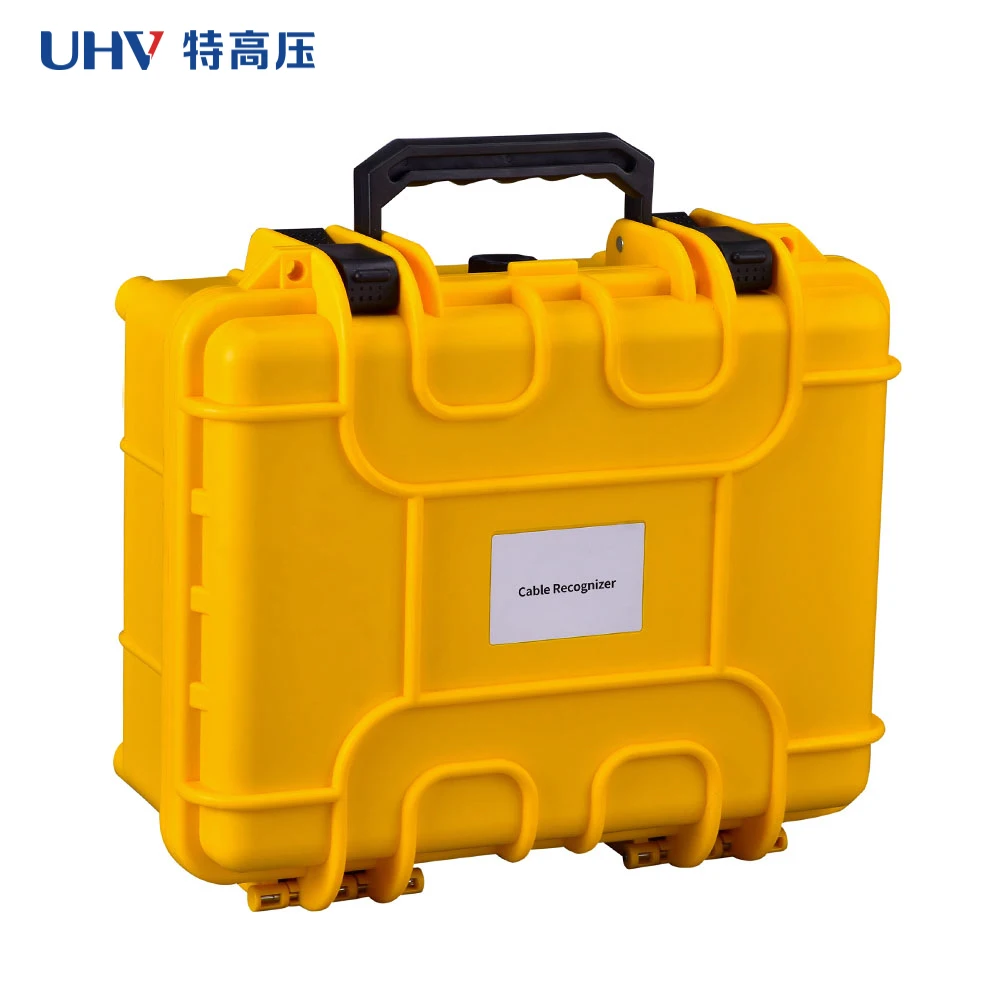

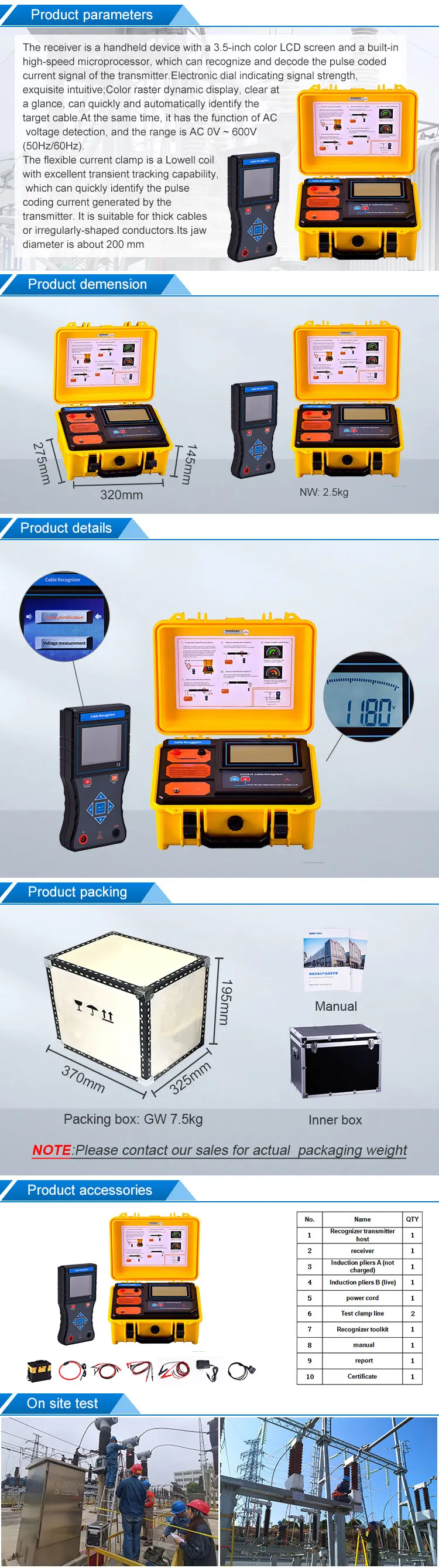

size | 320mm×275mm×145mm |
LCDsize | 128mm×75mm |
LCDAccording to the domain | 124mm×67mm |
Transmitter mass | 2.5kg |
The total quality | 3.3 kg（Contains the receiver） |

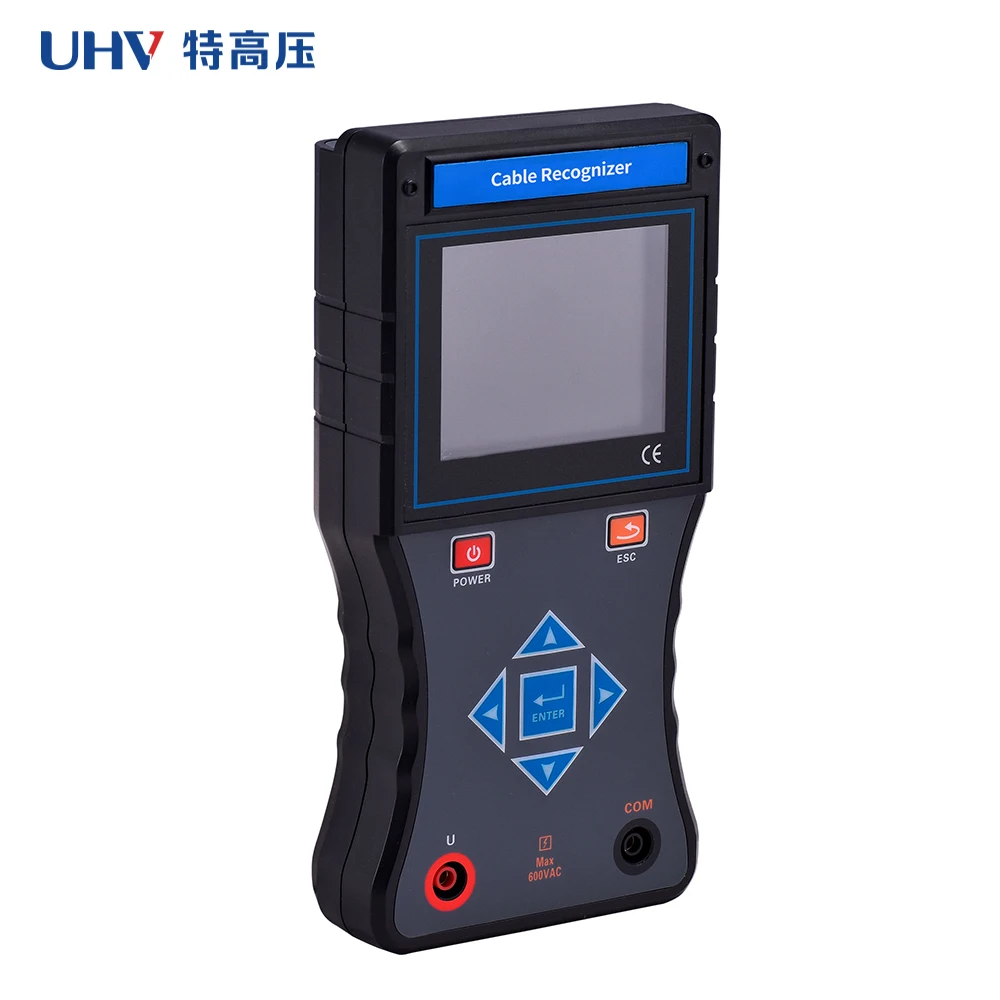

function | Identify and decode pulse current signals;Ac voltage measurement |
The power supply | 7.4v large capacity rechargeable lithium battery, USB charging interface, full charge continuously working for about 8 hours |
Rated current | about 180mA max |
Display mode | 3.5 "true color LCD display, color electronic dial indicator |
Cable identification successful | Green grating clockwise dynamic indicator |
Non-target cable | Red grating counterclockwise dynamic indication |
Red grating counterclockwise dynamic indicationReceiver size | 207mm×101mm×45mm |
Flexible coil | It is about 630mm in length and 6mm or 12.5mm in diameter |
Coil diameter | φ200mm |
Detection range | Coil loop resistance can be detected to 0 Ω ~ 2 k Ω pulse signal;When detecting circuit resistance for the 2 k Ω, need to ensure the transmitter battery for more than 10v |

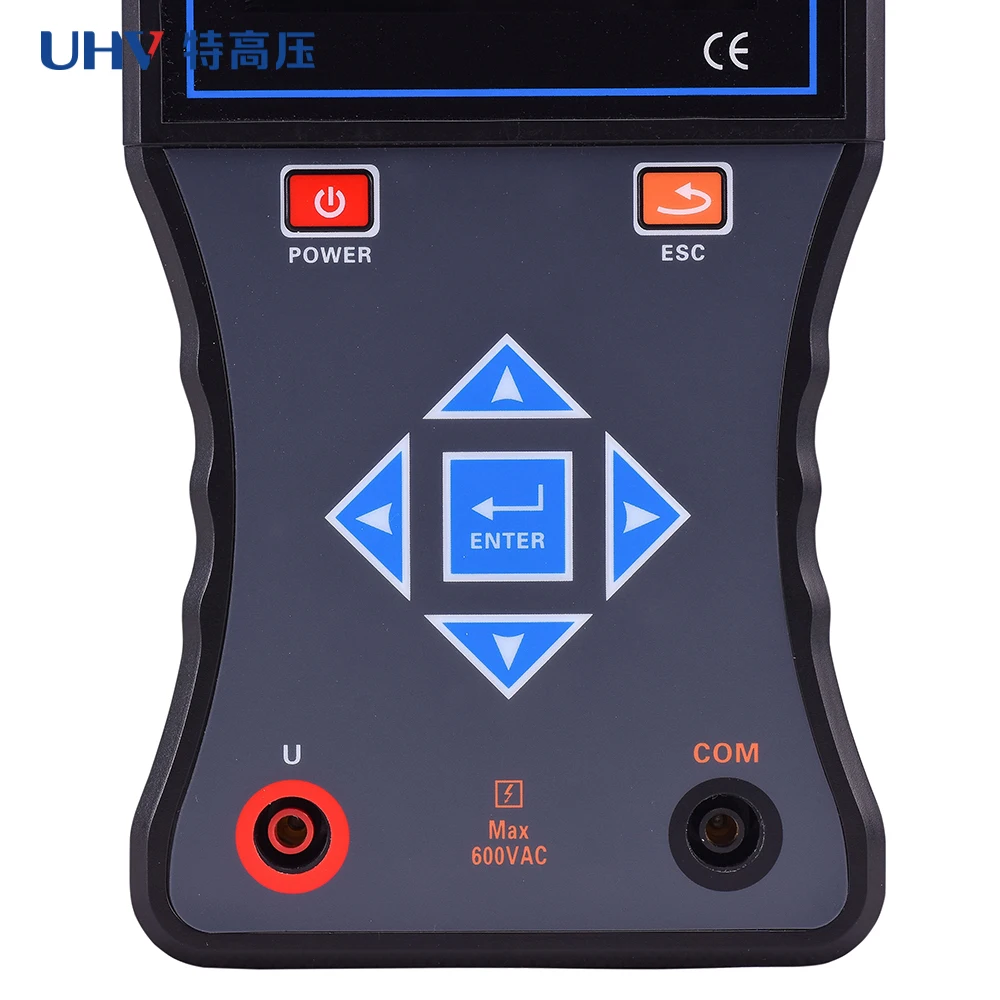

Voltage range | AC 0.01V～600V(50Hz/60Hz) |
Voltage accuracy | ±1%±1dgt |
Identification signal | Color grating dynamic display of signal strength |
Detection rate | About 1 time/second |
The battery voltage | When the battery voltage is lower than 6.5V, the battery voltage depression symbol is displayed to remind the battery to charge |
Operating temperature and humidity | -10℃～40℃；80%RhThe following |
Storage temperature and humidity | -10℃~50℃，≤95％RH, No condensation |
Receiver weight | 370g(with battery) |
Current clamp weight | 172g |
