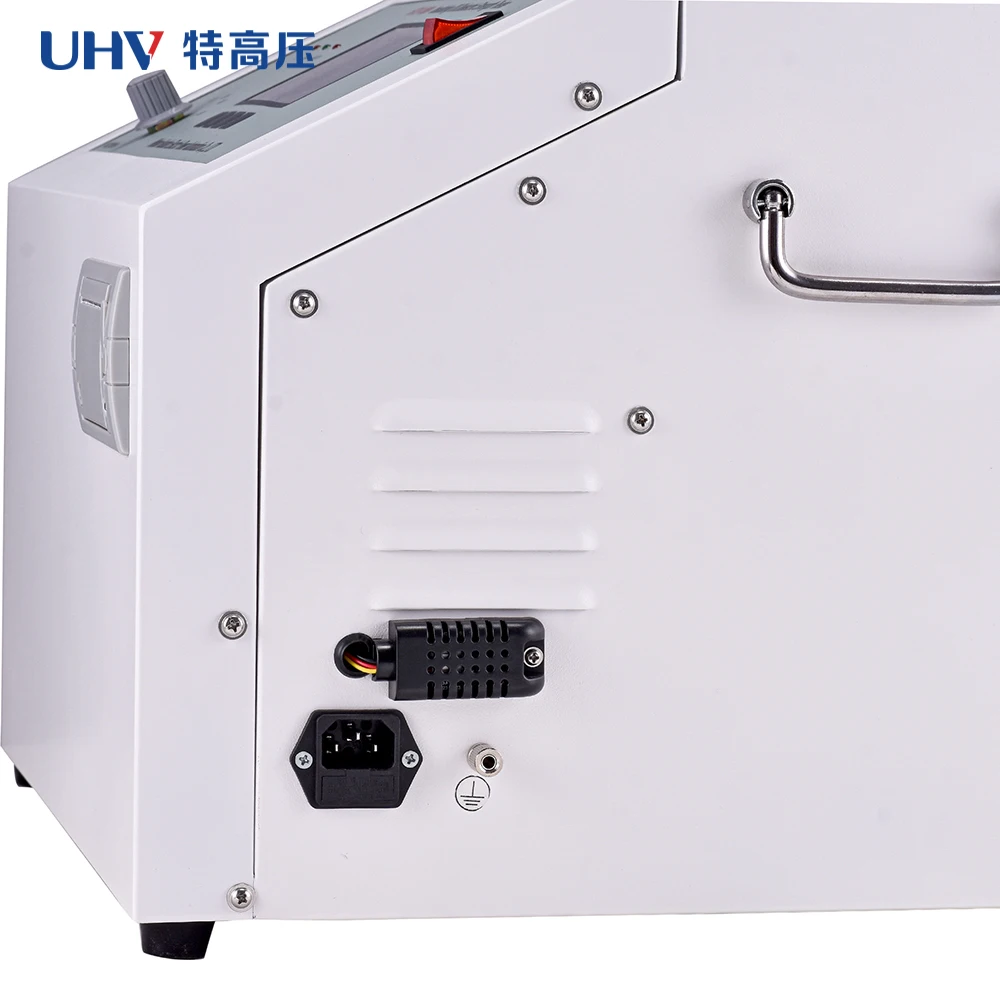

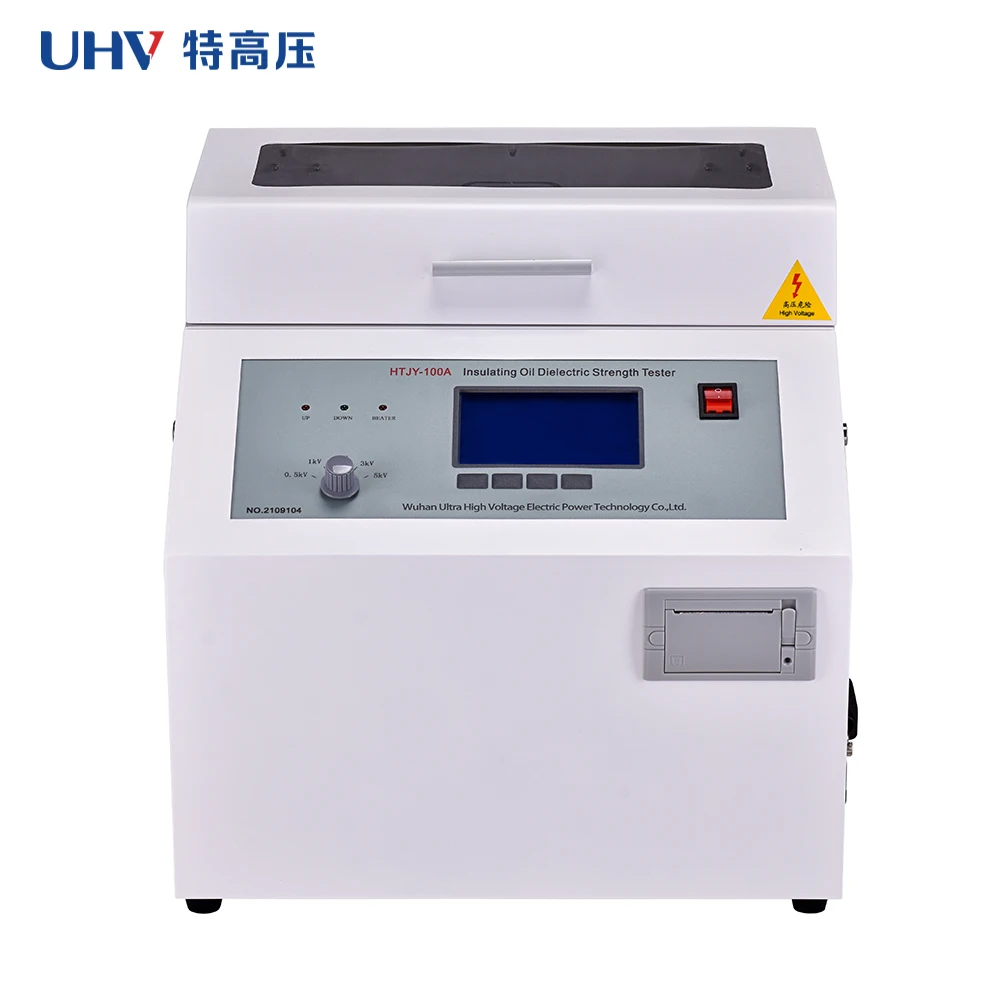

UHV-680A AC 80kV/100kV Automatic Insulating Oil Dielectric Strength Bdv Test Kit

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Summary

No.1600537169780

$5200.00

Specifications

Use:

HTJY-80A (80kV)

HTJY-80A (100kV)

HTJY-80S(80kV)

HTJY-80S(100kV)

INQUIRY

Description Download

Key attributes

customized support

OEM, ODM, OBM, Software reengineering

place of origin

Hubei, China

power

Electronic

warranty

1 Year

brand name

UHV

model number

HTJY-80A

Product name

transformer oil testing kit

Capacity

1.5kVA

Voltage rising speed

2.0kV/s, 2.5 kV/s, 3.0kV/s, 3.5kV/s, 4 gears optional

Output voltage

0 ~ 80 KV

Power distortion rate

<1%

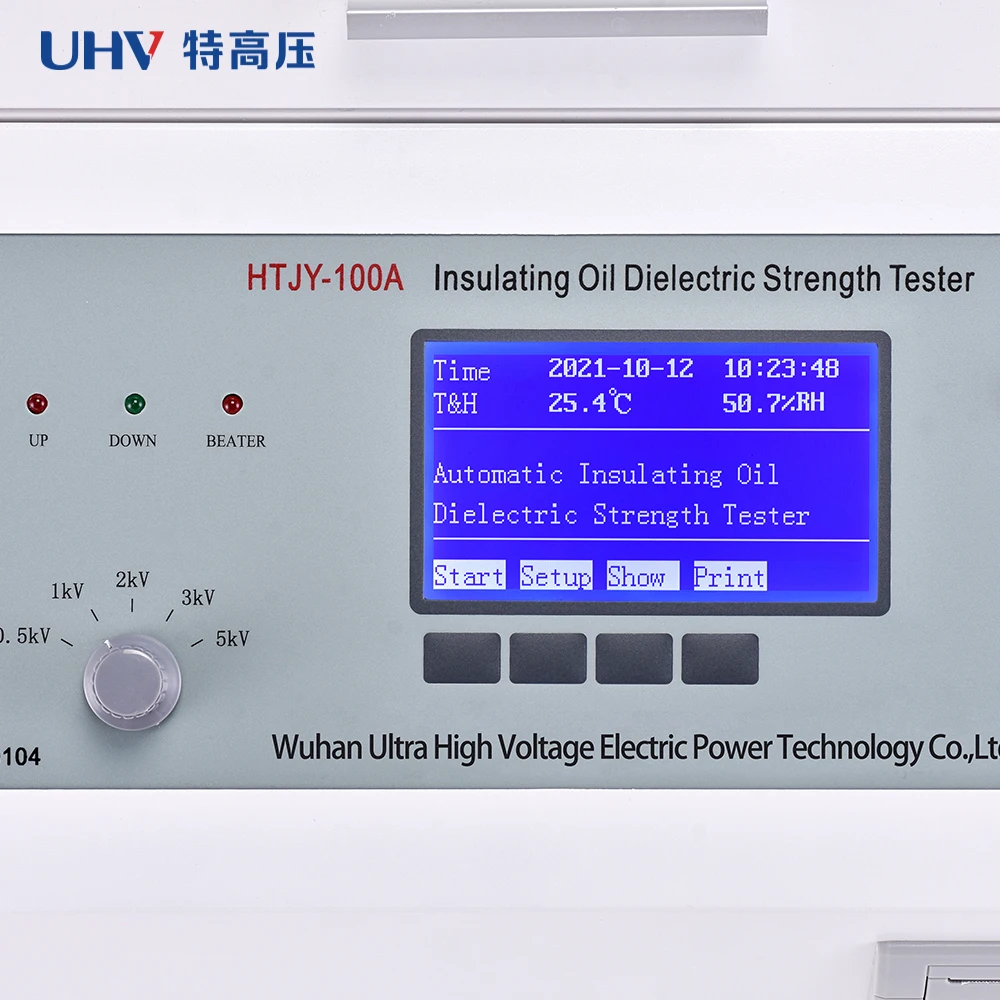

Display

LCD Screen

Electrode gap

2.5mm

Power supply

AC 220V± 10% 50Hz

Dimension

409mm * 393mm *388mm, NW: 29kg

Certificate

ISO9001, ISO14001, ISO45001

Packaging and delivery

Packaging Details

transformer oil testing kit: Inside packing: bubble board Outside packing: standard wooden box Customer OEM packing also available

Port of dispatch

Wuhan/Shanghai/Shenzhen/Guangzhou/Ningbo

Selling Units

Single item

Single package size

76X66X64 cm

Single gross weight

59.000 KG

Packaging examples

Supply capacity

Supply Ability

500 sets per Month transformer oil testing kit

HTJY-80A AC 80kV/100kV Automatic Insulating Oil Dielectric Strength Bdv Test Kit

Product Description

HT-1200 China Factory Six Phase Secondary Injection Relay Test Set relay tester

The dielectric strength test of insulating oil is a must-test routine test item, In order to meet the needs of the
rapid development of the power industry, our company has taken the lead in developing a fully automatic oil dielectric strength test system. This series of products is designed and manufactured according to the latest national standard GB/T507-2002, power industry standard DL429.9-91 and the latest power industry standard DL/T846.7-2004. It adopts microcomputer control, all mechanical and electrical integration is automated, and the test accuracy is high. Greatly improved the work efficiency, but also greatly reduce the labor intensity of the staff. Used by many users across the country, it is unanimously considered that this series of products is currently an ideal insulating oil pressure test equipment in China.

Product Paramenters

Features

1.The instrument adopts the large capacity single-chip microcomputer control,works stably and reliably.
2 Instrument can eliminate the phenomenon of crash with wide range of watchdog circuit.
3. A variety of operation to choose, Instrument program with IEC156, ASTM D877 and ASTM D1816 three methods of national standard and custom operations for different users’ multiple choice
4. Instrument test cell is made of a special glass casting form once to eliminate the phenomenon of oil leaking and other
interference
5. instrument can take articularly high voltage terminal sampling design for test values to analogue-digital converter, to avoid the error caused in the analog circuit, to make more accurate measurement results.
6. Instrument internal functions of overflowing, overvoltage, short circuit be protected,and are good for antijamming capability and electromagnetic compatibility
7. Instruments are portable structure , easy to move, used inside and outside rooms.

Parameters

Capacity			1.5kVA
Voltage rising speed			2.0kV/s，2.5 kV/s，3.0kV/s，3.5kV/s, four gears adjustable
Output voltage			0~80kV
Power distortion rate			<1%
Electrode gap			2.5mm
Dimension			409mm × 393mm × 388mm, 29kg
Ambient temperature			0℃～40℃
Relative humidity			＜85%
Power supply			AC 220V ± 10% , 50Hz ± 5Hz

Company Profile

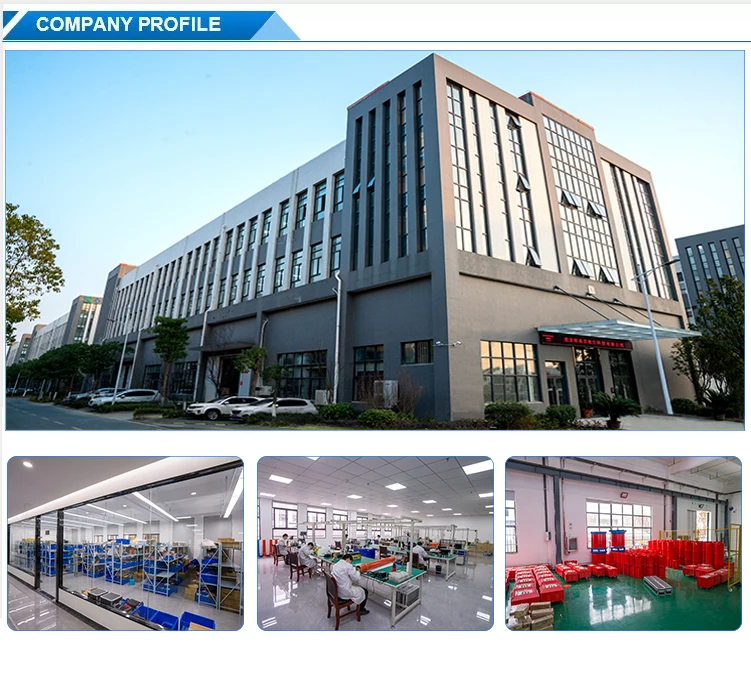

Wuhan Ultra High Voltage Electric Power Technology CO.,Ltd. (Branches of Wuhan Huatian Electric Power Automation Co.,Ltd.) Established in 2021. we are located in Wuhan East Lake High-Tech Development
Zone, which is also named Wuhan Optical Valley with convenient transportation access.
Wuhan Ultra High Voltage Electric Power is a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems.Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester and SF6 Test Equipment etc.
They are widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project. We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always right be here take the customer as first priority and provide you the best solution. Looking forward to building a thrust-worthy and long-term relationship with you.

slogan: Smart Electric Testing Equipment Manufacturer, making your testing work more easy !

Hot Products

Packing & Delivery

FAQ

1. Is your company a sales company or a manufacturer?

Wuhan UHV Power Technology CO., LTD. is an industrial and trade enterprise, with its own factory,
self-produced and self-sold. We were founded in 2004 and have Seventeen years of production experience. Our company has reliable production lines, test rooms, QC rooms and R&D centers.

2. When can i get the price ?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or send us your email so that we can provide you the details at our first time.

3.What is your terms of delivery ?

We accept EXW, FOB, CFR, CIF ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will be the Shipping cost and time?

This will depend on the size and quality of the goods you purchased and the method of shipping(by sea/ by air/ by Epress) and your designated port or air port. We will be grateful of you can spare us some times to evaluate the cost based on the information provided.

5. Could you please tell me the Warranty Period of your product ?

Our warranty period is one year free and lifelong maintance, and if the product is damaged (if not man-made damage),
in the first year, we will send free parts for replacement or free repairment if you willing to send back the equipment (customer will take the shipment cost).

6.What kind of Certificate can you provide ?

We can provide the CE mark, ISO 9001 quality certificate, the third party calibration certificate(CNAS), factory test report etc.

7.Do you have Technique support to all customers from different countries ?

To be frankly, our technical support is always available and quick response in 12 hours. We are manufacturer of so much on site testing experience and understand how to deal with your problems.
