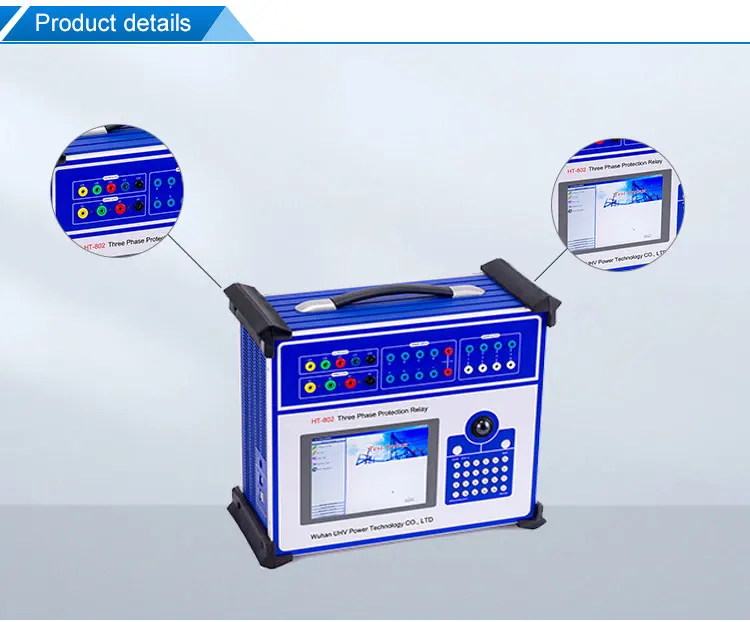

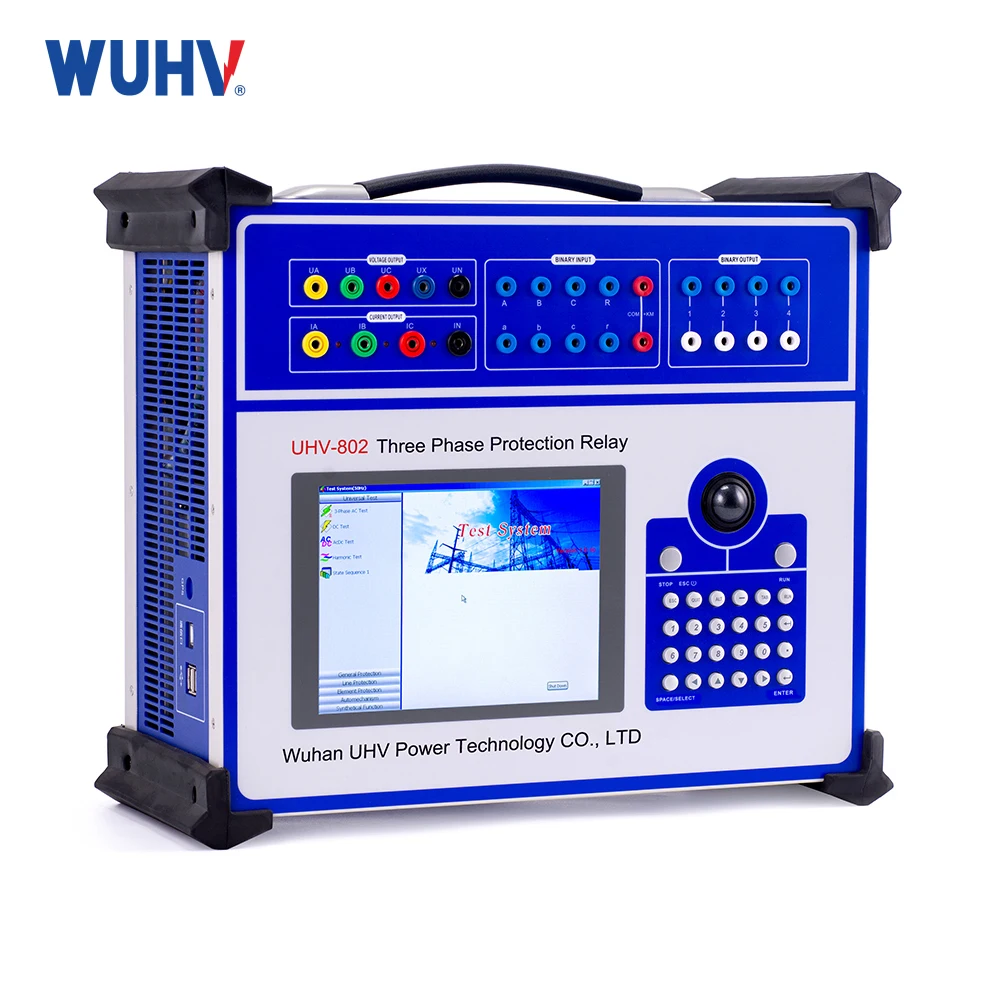

UHV-802 Three Phase Secondary Injection Relay Protection Tester

UHV-802 Three Phase Secondary Injection Relay Protection Tester

  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
Summary
No.1600379484305
More
$4700.00
Specifications
Use:
0.5 accurracy
0.2 accurracy
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester
  • UHV-802 Three Phase Secondary Injection Relay Protection Tester

Key attributes

customized support
OEM, ODM, OBM, Software reengineering
place of origin
Hubei, China
power
Electronic
warranty
1 years
brand name
UHV
model number
HT-802
Product name
Secondary Injection tester
AC Phase current output ( RMS )
0~40A/phase accuracy: 0.5%
DC Current output
0~±30A/phase; accuracy: 0.5%
AC Phase Voltage output:
0~125V/phase accuracy: 0.5%
DC Phase Voltage output
0~±150V accuracy: 0.5%
Time measurement range
1ms~9999s
Power factor
300VA/phase
Time range
1ms~9999s
Certification
ISO9001, ISO14001, ISO45001
Dimension
20kg, 455*530*200mm3

Packaging and delivery

Selling Units
Single item
Single package size
59X38X63 cm
Single gross weight
42.000 KG

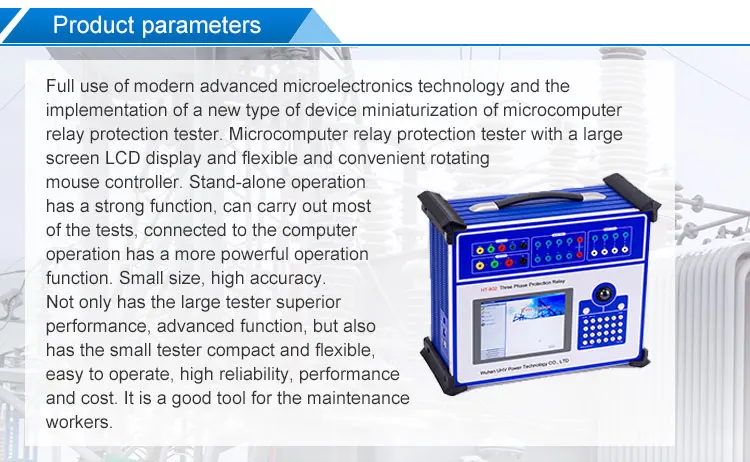

Product Paramenters
AC Current Output
Phase current output (effective value)
0~40A
Output Precision
0.2 degree
3 phase parallel current output (effective value)
0~120A
A Long-time Phase current
450VA
Maximum output power of 3 parallel current
900VA
Maximum Permitted work time of 3 parallel current
10s
Frequency range ( fundamental)
0~1000Hz
Harmonic time
0~20
DC Current Output
Output current
0~±10A / phase, 0~±30A / 3 parallel
Output Precision
0.5 degree
AC Voltage Output
Phase voltage output (effective value)
0~120V
Output Precision
0.2 degree
Line voltage output (effective value)
0~240V
Phase voltage / Line phase output power
80VA / 100VA
Frequency range (fundamental)
0~1000Hz
Harmonic time
0~20
DC Voltage Output
Phase voltage output range
0~±160V
Output Precision
0.5 degree
Line voltage output range
0~±320V
Phase voltage / Line phase output power
70VA / 140VA
10 Path Digital Input and 8 Path Digital Output
Time measuring range
0.1ms ~ 9999s
accuracy of measurement
<0.1ms
Volume & weight
400×360×160mm3 ,15kg
Company Profile
Wuhan UHV Electric Power Technology CO.,Ltd.
Wuhan UHV Electric Power Technology CO.,Ltd. Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
More Products

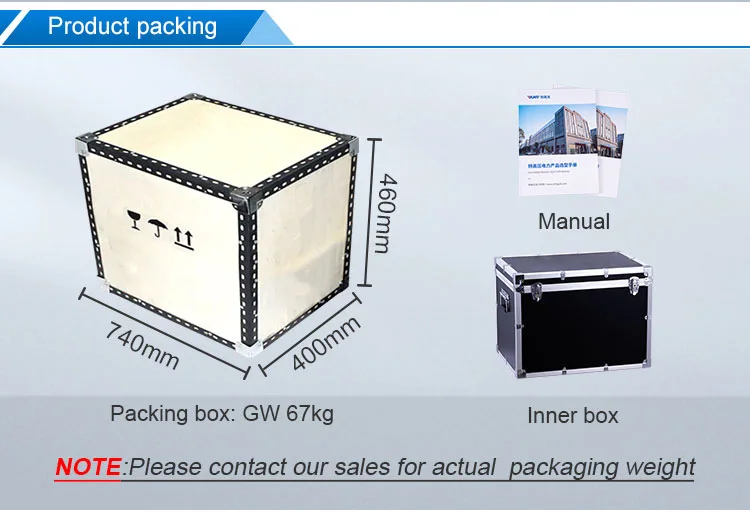

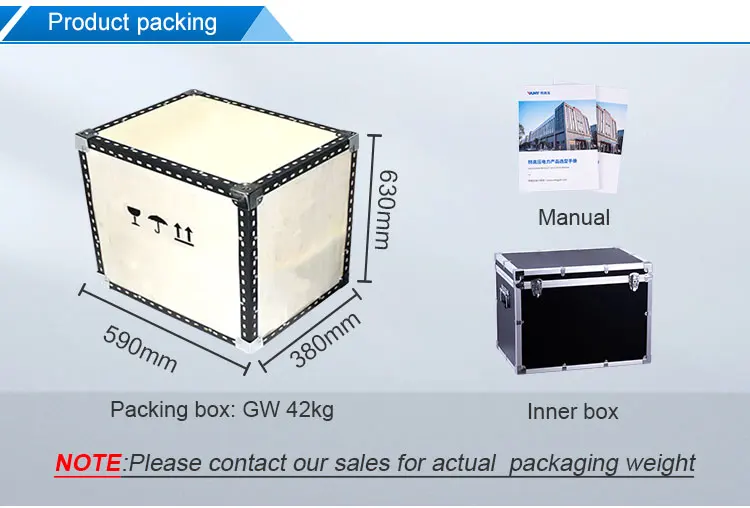

Packing & Delivery
FAQ
1. Is your company a sales company or a manufacturer?Wuhan UHV Electric Power Technology CO.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.3. Is the quality guaranteed?In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.4. What are the after-sales terms?We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.5. What are the cooperative countries or regions?Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
