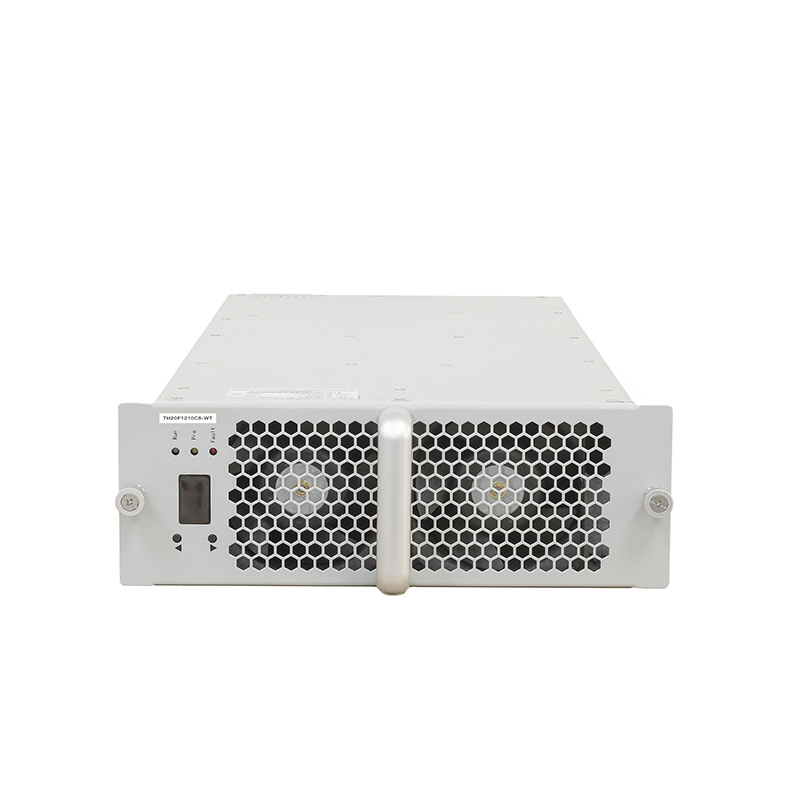

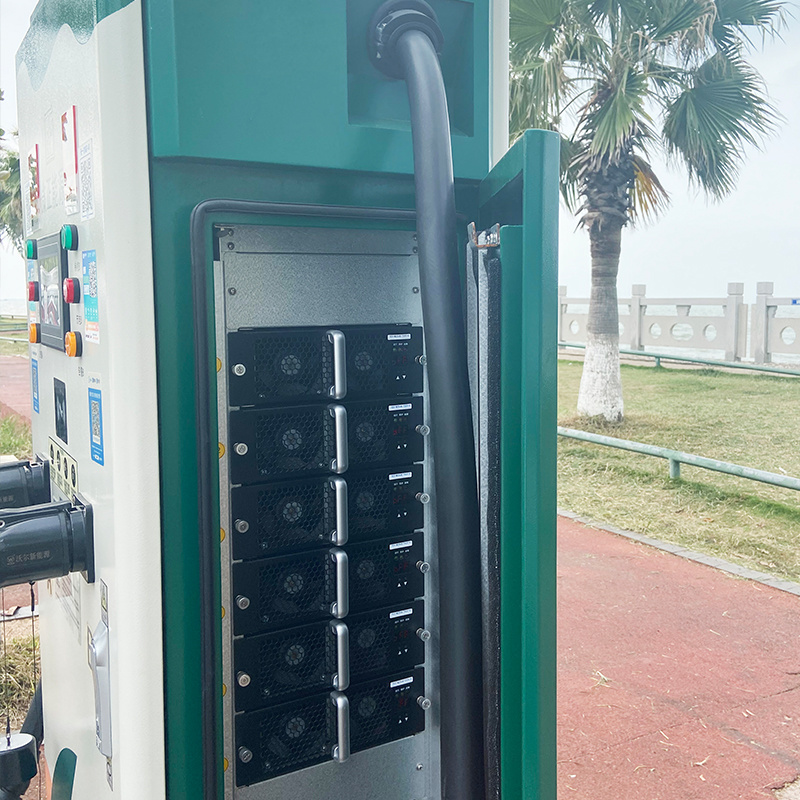

TH20F1210C8-WT charging module is a high efficiency, high power density, ultra-wide input range, high current, low voltage AC/DC module developed for electric vehicle charging. This product supports 260Vac~520Vac (line voltage) three-phase four-wire system (three-phase +PE) input, rated output power 20kW, constant power range 100~120Vdc. The module adopts intelligent air cooling heat dissipation. The charging module communicates with the main monitor through the CAN bus to realize the parameter setting of the charging module and control the working state of the charging module.
Constant power range: 100-120VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion:≤5%
Ultra-wide operating temperature: -40℃-75℃
High conversion efficiency: peak efficiency ≥95%
| Model No. | TH20F1210C8-WT | |
| Ac input | Input voltage | Rated voltage 380VAC, 3W+PE, operating voltage range 274~487VAC |
| Input frequency | 50±5Hz | |
| Input power factor | ≥0.99 | |
| Input overvoltage protection | 490±10VAC | |
| Input undervoltage protection | 270±10VAC | |
| Dc output | Output rated power | 20kW |
| Output voltage range | 20~120VDC | |
| Output current range | 0.5~200A | |
| Output Constant Power Range | 100-120VDC | |
| Peak efficiency | ≥95% | |
| Soft startup time | 3~8S | |
| Short circuit protection | Self-rollback protection | |
| Voltage Regulation Accuracy | ≤±0.5 | |
| THD | ≤5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing Imbalance | ≤±5% | |
| Working environment | Working temperature | -40℃~+75℃ |
| Relative humidity | ≤95% no condensation | |
| Altitude | ≤2000m, derating above 2000m | |
| Product characteristics | Cooling Method | Fan cooling |
| Standby power consumption | ＜10W | |
| Communication protocol | CAN | |
| Address setting | Digital screen display, button operation | |
| Dimension | 460mm x 218mm x 84mm (D x W x H) | |
| Weight? | ≤13kg | |
| MTBF | 500000hour | |
