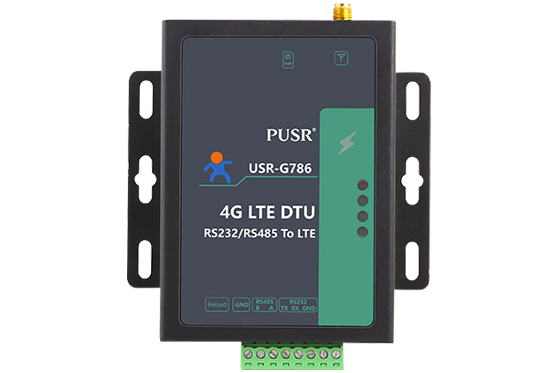

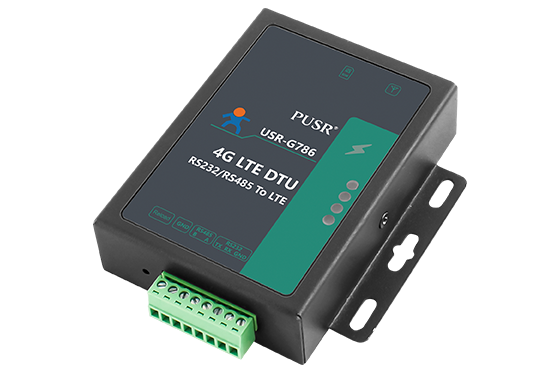

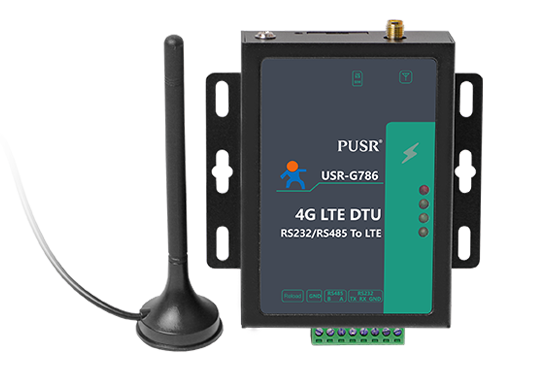

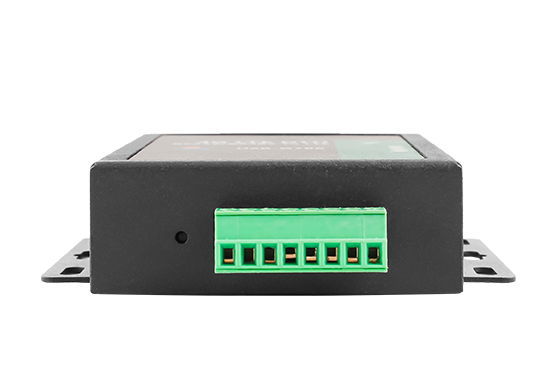

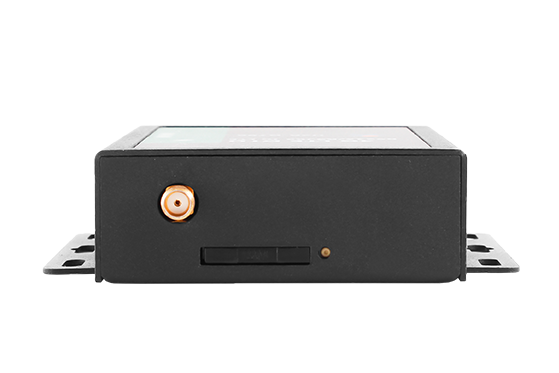

High reliability, High speed, Low latency Terminal block, RS232/485 Industrial Design, metal housing, IP30 protection
Provide data two-way transparent transmission between field serial devices and the central control server Support 2 Socket connections, support TCP Client and UDP Support custom heartbeat package and registration package Private protocols can be customized
HTTPD Client submit serial data to the designated server by HTTP (GET/POST) method
Modbus RTU/Modbus TCP protocol conversion for industrial SCADA systems and field devices.
The registration packet is sent to the server to identify the device. The heartbeat packet is used to judge the active state of the device when sent to the server, and actively collect data when sent to the serial terminal. The contents of registration package and heartbeat package, heartbeat interval can be modified by AT command.
Support AT command setup by serial port,network , SMS and provide configuration tool for PC(windows).
With the remote management platform, it can realize the automatic firmware upgrade The difference algorithm upgrade package is small, saving upgrade traffic and time
G786 supports customized development based on many different protocols such as Modbus required by users.
The electromagnetic interference generated by the air compressor during operation often affects the normal operation of other equipment. USR-G786 adopts high-reliability RS485 electrical isolation to shield electromagnetic interference while transmitting data.
When the charging pile is working, the data can quickly upload to the cloud server through the USR-G786, which is convenient for the platform operators to manage piles
USR-G786 can quickly upload the data collected by various sensors in an agricultural greenhouse to a remote server through LTE or GPRS network. This is convenient for the control center to monitor the environmental dynamics of greenhouse in real-time and makes timely responses.
