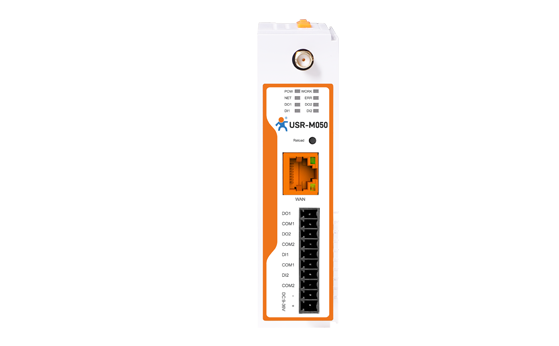

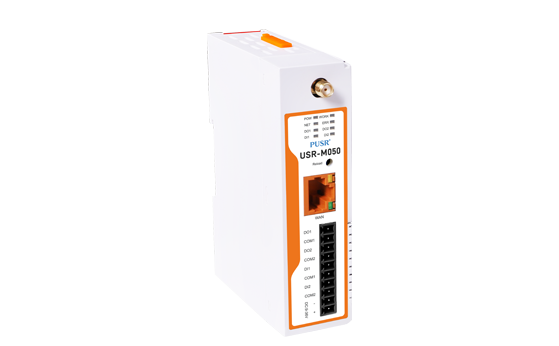

USR-M050 Specifications | ||
Classify | Parameter | Describe |
Power | voltage | DC:9~36V |
Io | DI | The second channel supports the acquisition of switch quantity, with 9-36V as high and 0-2V as low. The filtering time can be adjusted |
DO | 2*DO, load 3A-250VAC/28VDC | |
Physical Specifications | Size | 80 x 30 x110 (mm) |
Weight | <200g | |
interface | Terminal, hole diameter 1.5mm (diameter) | |
way to install | Rings or rails | |

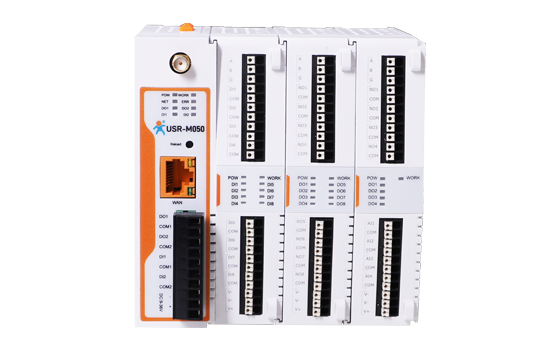

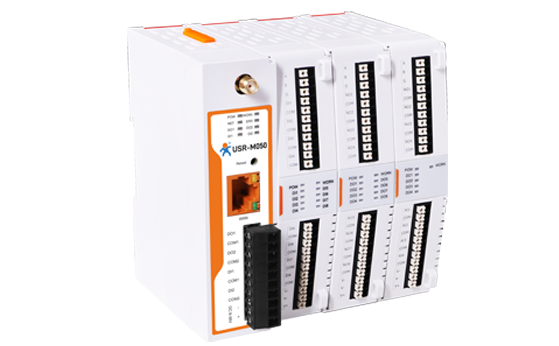

Expand the way | Slide rail, built-in connector | |
Hardware Protection | static electricity | IEC61000-4-2，Level2，class B |
surge | IEC61000-4-5，Level2，class B | |
pulse group | IEC61000-4-4，Level2，class B | |
Indicator Light | Supply | POW, it lights up when powered on and turns off when powered off |
Work | WORK, the equipment works normally, 1s flash once | |
Network | NET,No network shutdown；WiFi: 2.4G Flash twice, and then flash again after 2S；WiFi: 5G flashes twice, then flashes again after a 2S interval； | |
DO | 2*DO | |
DI | 2*DI | |
Ethernet | Standard | 1* WAN , 10M/100M，RJ45， MDI/MDIX |
Default | Static IP：192.168.0.7 | |
DNS server | The default primary server is 223.5.5.5, and the default standby DNS server is 8.8.8.8 | |
Operational Environment | Working temperature | -25°C ~ 70°C |
Storage temperature | -40°C ~ 85°C | |
Working humidity | 5% ~ 95% ，No condensation | |
Other Features | Antenna | SMA-F external screw inner hole |
Networking protocol | ICMP,IPv4,IP,ARP,TCP,UDP,DHCP,DNS,HTTP,MQTT, | |
Parameter configuration | Built-in Web | |
Communication link | 3 routes, 1*TCP +1*MQTT +1*PUSR Cloud, SSL encryption supported | |
Protocol conversion | Modbus RTU/TCP，Json | |
Time calibration | Supports NTP, browser time synchronization and manual setting, and supports time zone setting | |
