Processor CPU | Rockchip RK3568 ARM quad-core 64-bit processor,clocked up to 2.0GHz |
Graphics processor GPU | ARM G52 2EE GPU Supports OpenGLES1.1/2.0/3.2, OpenCL2.0, Vulkan1.1, embedded high-performance 2D acceleration hardware |
Neural Network Processing NPU | Built-in neural network process or NPU, 1.0TOPS@INT8 functionality; Support Caffe/Mxnet/TensorFlow/TFLite/ONNX/Darknet ect. |
Operating system | Linux Ubuntu 20.04 |
MemoryDDR | DDR4 4GB |
Storage | eMMC32GB |

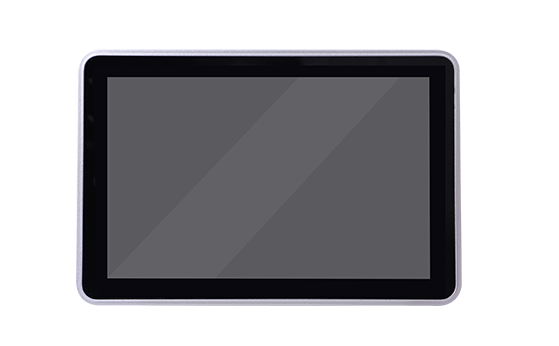

Touch screen | 10.1 inch/800*1280 resolution/capacitive |
Network | Support 2*Ethernet 10/100 Mbps, support Ethernet |
Support 2.4GHz Wi-Fi 802.11b/g/n | |
Support 4G functionality (default factory 4G, WiFi version not supported) | |
GPS | Built-in GPS/BD module, sensitivity:-162dBm; Receiving frequency:1575.42MHz Satellite channel:20 channel Positioning accuracy:<10m (Only GL version support ) |
SIM | Nano SIM card holder for cellular networking |
Display interface | 1* HDMI OUT2.0；Support 4K60fps output |
Audio | 1* Headset output |
RTC | Built-in real-time clock power supply battery, support timing switch machine |
USB | 1* USB3.0 HOST 1 *USB3.0 OTG (compatible upgrade, default HOST function) |
Key | 1* Upgrade key |
Serial port | 2*RS232 ,2*RS485 |
Mains input | DC12V/5.5mm Core 2.1 mm DC Head 2A- 5A (Surge voltage＜18V required, striated Wave voltage＜100mV), support power-on self-start or power-on press the power button to start |
Operating temperature | 0 -50°C |
Storage temperature | -20 - 80 °C |
Operating humidity | 10%-80% |
Size | 160mm*85mm*28mm |
Multimedia | Support 4K 60fps H.265/H.264 video decoding Support 1080P 100fps H.265/H.264 video encoding Support 8M ISP, support HDR |
Language support | English by default, downloadable in other languages |
Input method | Standard Android keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) |
