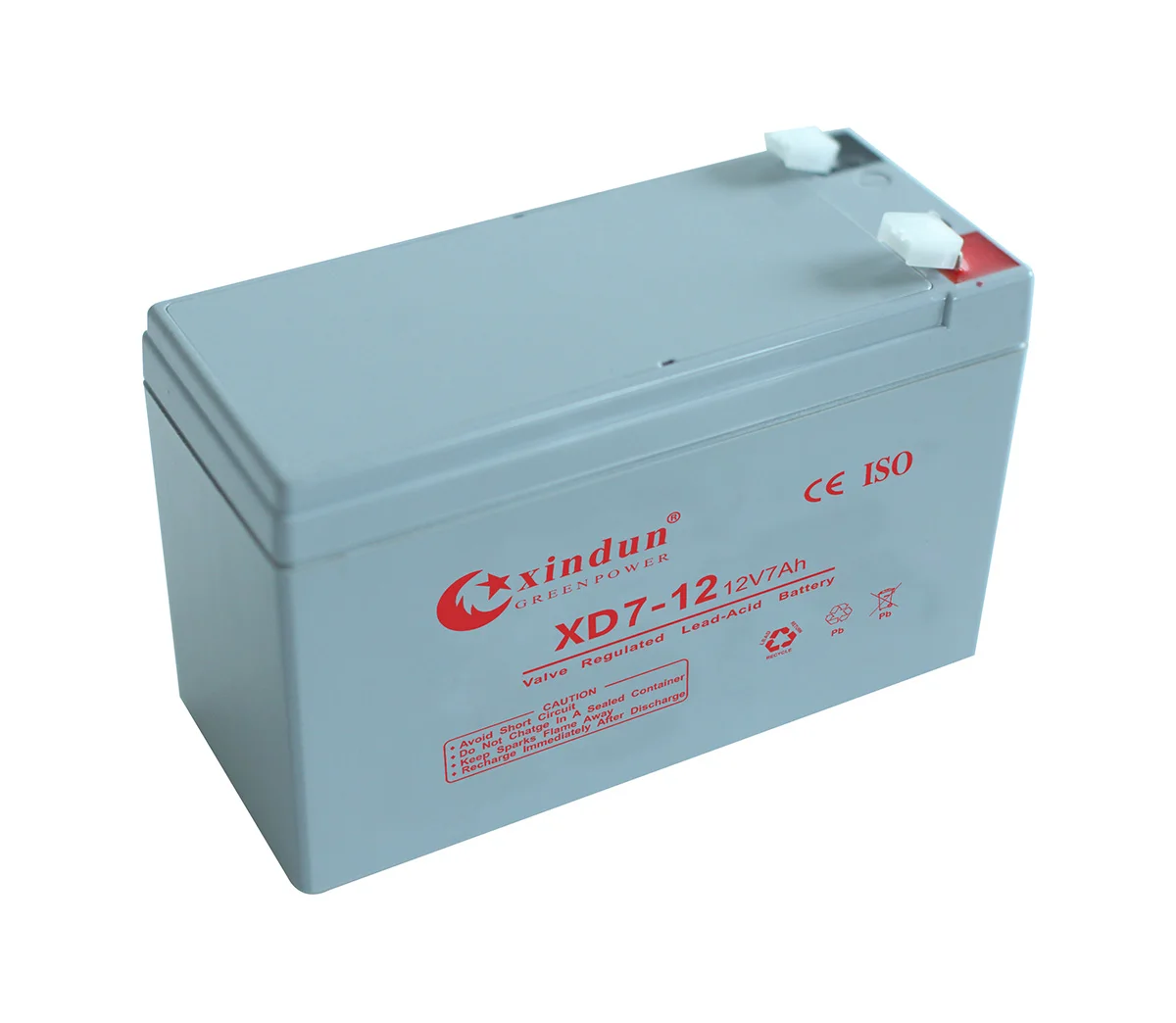

| Specification | |||||||||||||||
| Nominal Voltage | 12V | ||||||||||||||
| Nominal Capacity (10HR) | 7.0AH | ||||||||||||||
| Battery size | Length | 151±1mm (5.95 inches) | |||||||||||||
| Width | 65±1mm (2.56 inches) | ||||||||||||||
| Height | 94.5±1mm (3.72 inches) | ||||||||||||||
| Total Height (including terminal) | 100±1mm (3.94 inches) | ||||||||||||||
| Weight | 2.1 kg (4.85 lbs) | ||||||||||||||
| Terminal type | T1 / T2 | ||||||||||||||
| Housing material | ABS | ||||||||||||||
| Rated Capacity | 7.00 AH/0.350A (20hr ,1.80V/Cell,25℃/77℉) | ||||||||||||||
| 6.51 AH/0.651A (10hr,1.80V/Cell,25℃/77℉) | |||||||||||||||
| 5.95 AH/1.19A (5hr,1.75V/Cell,25℃/77℉) | |||||||||||||||
| 5.37 AH/1.79A (3hr,1.75V/Cell,25℃/77℉) | |||||||||||||||
| 4.40 AH/4.40A (1hr,1.60V/Cell,25℃/77℉) | |||||||||||||||
| Maximum Discharge Current | 105A (5s) | ||||||||||||||
| Battery Internal Resistance | 23mΩ | ||||||||||||||
| Operating Temperature Range | Discharging | -15 ~ 50℃ (5 ~ 122℉) | |||||||||||||
| Charging | 0 ~ 40℃ (32 ~ 104℉) | ||||||||||||||
| Storage | -15 ~ 40℃ (5 ~ 104℉) | ||||||||||||||
| Rated Operating Temperature | 25±3℃ (77±5℉ ) | ||||||||||||||
| Recycle | At a temperature of 25 °C and a voltage of 14.4 V to 15.0 V, the initial charge current is less than 2.1 A. The correction factor is -30mV/°C | ||||||||||||||
| Floating Charge | At a temperature of 25℃ and a voltage of 13.5 V to 13.8 V, the initial charging current is not limited. The correction factor is -20mV/°C | ||||||||||||||
| Capacity affected by temperature | 40℃(104 ℉) | 103% | |||||||||||||
| 25℃( 77 ℉ ) | 100% | ||||||||||||||
| 0℃( 32 ℉ ) | 86% | ||||||||||||||
| Self-discharge | At a temperature of 25℃, the battery can store up to 6 months and then need to be recharged once. If the battery is stored at a higher temperature, the storage interval will be shortened | ||||||||||||||
| Constant current discharge meter at 25 °C (77 °F)( Amperes) | |||||||||||||||
| Voltage Time | 5 minutes | 10 minutes | 15 minutes | 20 minutes | 30 minutes | 45 minutes | 1 hour | 2 hours | 3 hours | 4 hours | 5 hours | 6 hours | 8 hours | 10 hours | 20 hours |
| 1.85V/Cell | 13.3 | 10.2 | 8.48 | 7.33 | 5.67 | 4.18 | 3.52 | 2.08 | 1.63 | 1.32 | 1.08 | 0.94 | 0.756 | 0.631 | 0.347 |
| 1.80V/Cell | 17.9 | 13.1 | 10.2 | 8.67 | 6.69 | 4.86 | 3.94 | 2.27 | 1.75 | 1.41 | 1.16 | 1.01 | 0.802 | 0.651 | 0.35 |
| 1.75V/Cell | 20.2 | 14.4 | 11.2 | 9.32 | 6.94 | 5.04 | 4.13 | 2.36 | 1.79 | 1.45 | 1.19 | 1.03 | 0.816 | 0.669 | 0.354 |
| 1.70V/Cell | 22.2 | 15.7 | 11.9 | 9.8 | 7.23 | 5.24 | 4.26 | 2.42 | 1.83 | 1.48 | 1.22 | 1.05 | 0.827 | 0.682 | 0.36 |
| 1.65V/Cell | 24.5 | 16.9 | 12.7 | 10.4 | 7.63 | 5.37 | 4.35 | 2.45 | 1.91 | 1.54 | 1.25 | 1.08 | 0.84 | 0.696 | 0.365 |
| 1.60V/Cell | 27.0 | 18.4 | 13.6 | 11.1 | 8.05 | 5.6 | 4.4 | 2.56 | 1.97 | 1.58 | 1.3 | 1.1 | 0.848 | 0.704 | 0.367 |
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
| Guangdong Xindun Power Technology Co.,Ltd | |
Factory Location | Foshan,Guangdong,China |
| Industry Experience | 13-year manufacturer, 16-year trading, 8-year alibaba gold supplier |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 6000 Square Meters, 60+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO9001:2015, CE, IEC, etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverter, solar controller and solar energy system solution.
Q2: Are you inverter pure sine wave output?
A: Yes, all of our inverter are pure sine wave output.
Q3: What kind of output you can do?
A: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
Q5: How long is your factory?
It's over 10 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.
Q6: What' s the difference between low frequency and high frequency inverter?
A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
Q9: What to do if the product is broken?
A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
