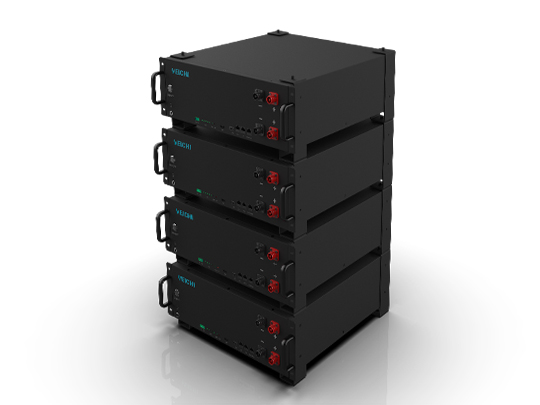

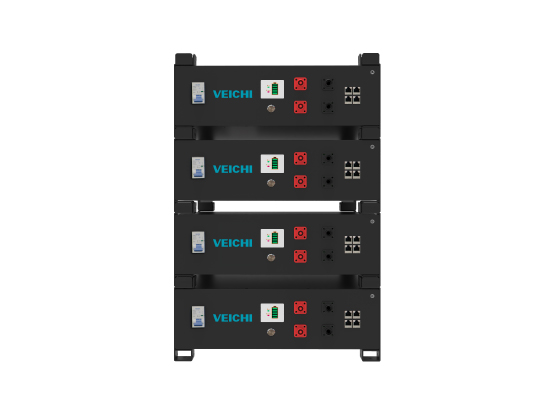

The 51.2V 100Ah single module low voltage rack mounted lithium ion battery is a state-of-the-art energy storage solution designed to meet the diverse energy needs of both residential and commercial settings.
Rack mount.
SOC, Battery Status.
Max.15pcs in Parallel to extend capacity.
Quick plug in +/- and parallel connection.
Lithium Iron Phosphate (LFP) Cell.
6. CertificatesCB , UN38.3, MSDS, CE EMC UL1973,UL9540A.
The 51.2V 100Ah rack mounted lithium-ion battery is versatile and suitable for a wide range of applications, including:
| Nominal Voltage | 51.2V |
|---|---|
| Rated Capacity | 100Ah |
| Energy | 5120Wh |
| Battery Impedance | ≤50mΩ |
| Charging Cut-off Voltage | 56.16V |
| Discharge Cut-off Voltage | 45.6 V |
| Recommend Charge Current | 0.5C 50A |
| Max Charge Current | 0°C ~ 15°C: 20A; 15°C ~ 45°C: 50A |
| Max Continue Discharge Current | 100A, -20°C~60°C ; 65±20%RH |
| Operating Temperature Range | –20~60℃ |
| Storage Environment (50% state of charge) | 20°C ~ 45°C in three months; 25±3°C over three months; Humidity:65±20%RH |
| Environment | Indoor |
| Installation | Rack Mount |
| Cell Technology | Lithium-iron phosphate (LiFePO4) |
| Life Cycle | 6000 times @80%DOD |
| Cooling | Natural cooling |
| Protection Rating | IP20 |
| Certificates | CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC,CE-GPSD,UN38.3, MSDS |
| Dimension | 550*440*130mm(3U) |
|---|---|
| Battery Net Weight (Approx.) | 47.2kg |
