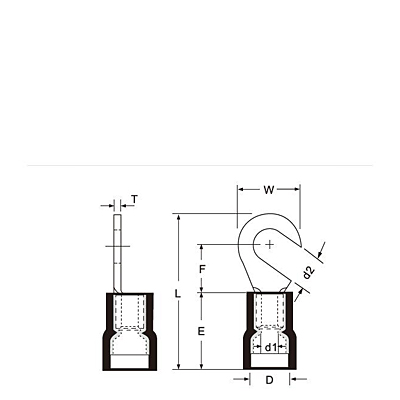

| WIRE RANGEStrong> | ITEM NO.Strong> | d2Strong> | DIMENSION mm(inch)Strong> | COLORStrong> | Q'TY BOXStrong> | |||||||
| mm2 (A.W.G)Strong> | mm(inch)Strong> | USA Strong> | WStrong> | FStrong> | LStrong> | EStrong> | DStrong> | d1Strong> | TStrong> | |||
| 0.5-1.5 (22-16) | HVD1-3.7Strong> | 3.7(.146) | #6 | 8.0(.315) | 7.0(.276) | 21.3(.839) | 10.5(.413) | 4.2(.165) | 1.7(.067) | 0.75(0.30) | Red | 1000 |
| HVD1-4Strong> | 4.3(.169) | #8 | 1000 | |||||||||
| HVD1-5Strong> | 5.3(.209) | #10 | 1000 | |||||||||
| HVD1-6Strong> | 6.4(.252) | 1/4' | 11.6(.457) | 11.0(.433) | 27.3(1.075) | 1000 | ||||||
| 1.5-2.5 (16-14) | HVD2-3.7Strong> | 3.7(.146) | #6 | 8.5(.335) | 7.4(.291) | 22.3(.878) | 10.5(.413) | 5.0(.197) | 2.3(.091) | 0.8(0.31) | Blue | 1000 |
| HVD2-4Strong> | 4.3(.169) | #8 | 1000 | |||||||||
| HVD2-5Strong> | 5.3(.209) | #10 | 9.5(.374) | 7.3(.287) | 1000 | |||||||
| HVD2-6Strong> | 6.4(.252) | 1/4' | 12.0(.472) | 11.0(.433) | 27.3(1.075) | 1000 | ||||||
| 4-6 (12-10) | HVD5-.37Strong> | 3.7(.146) | #6 | 7.2(.283) | 6.1(.240) | 23.2(.913) | 13.5(.531) | 6.8(.277) | 3.4(.134) | 1.0(.039) | Yellow | 500 |
| HVD5-4Strong> | 4.3(.169) | #8 | 9.5(.374) | 9.5(.374) | 27.3(1.075) | 500 | ||||||
| HVD5-5Strong> | 5.3(.209) | #10 | 500 | |||||||||
| HVD5-6Strong> | 6.4(.252) | 1/4' | 12.0(.472) | 10.3(.406) | 30.0(1.181) | 500 | ||||||
| HVD5-8Strong> | 8.4(.331) | 5/16' | 15.0(.591) | 13.5(.531) | 34.5(1.358) | 500 | ||||||
