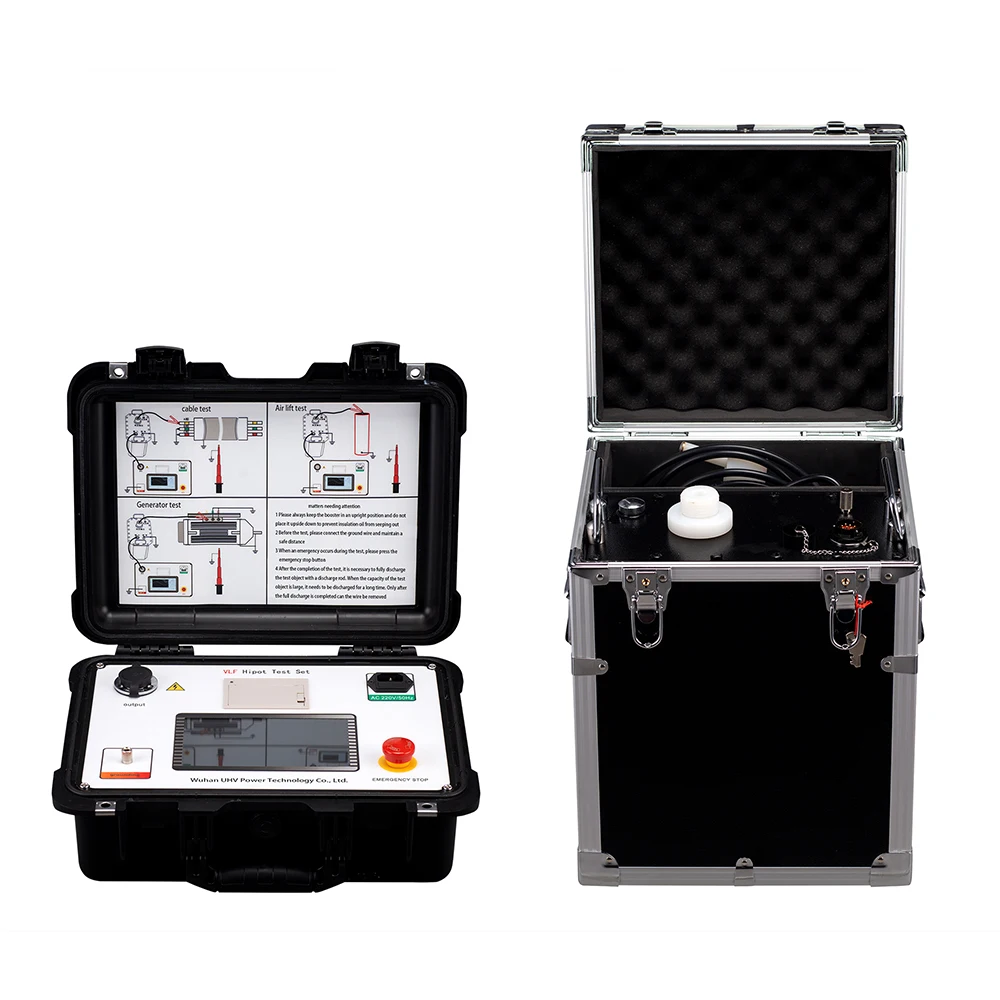

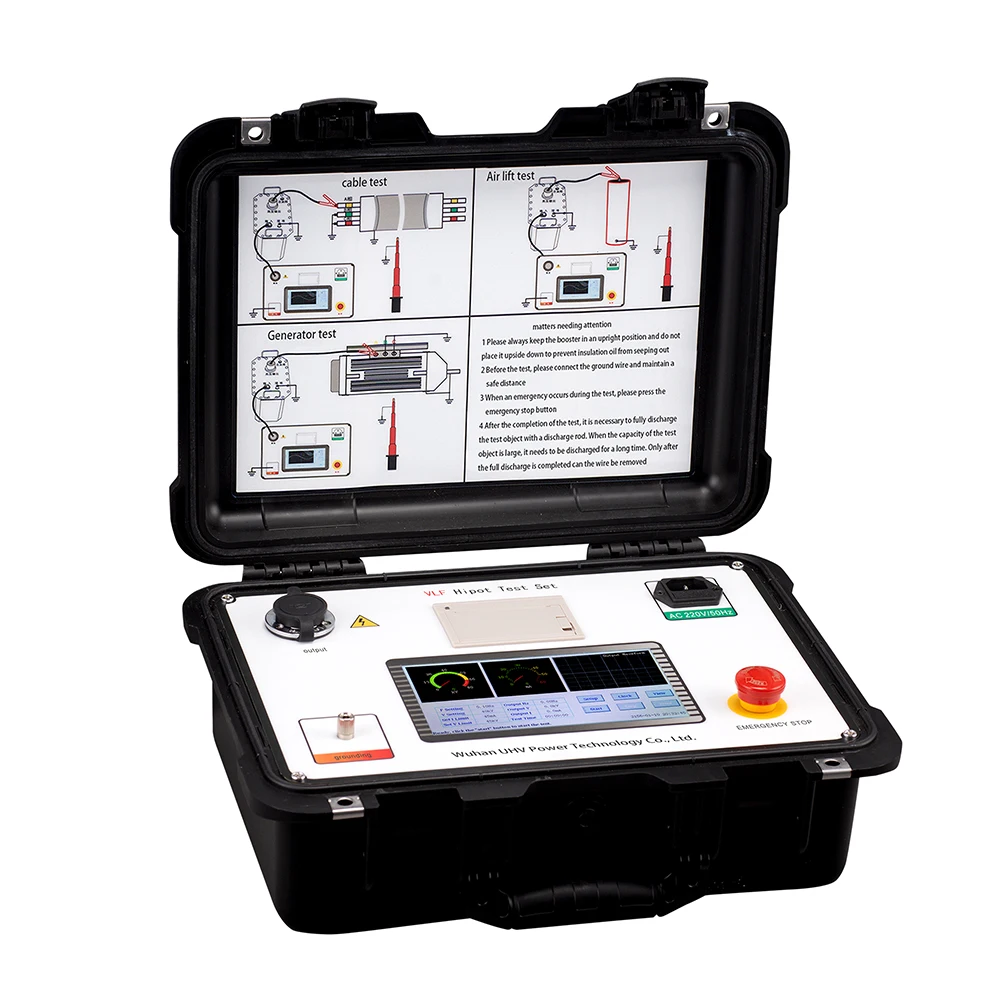

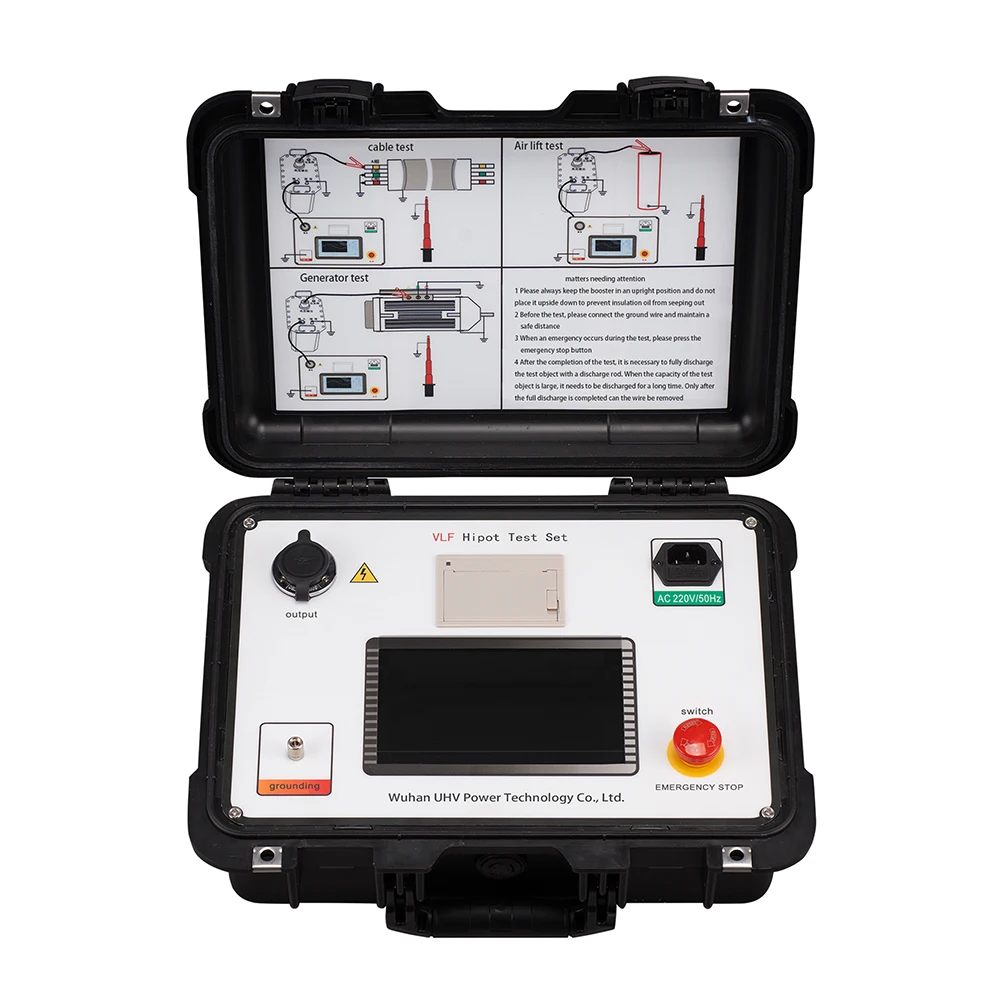

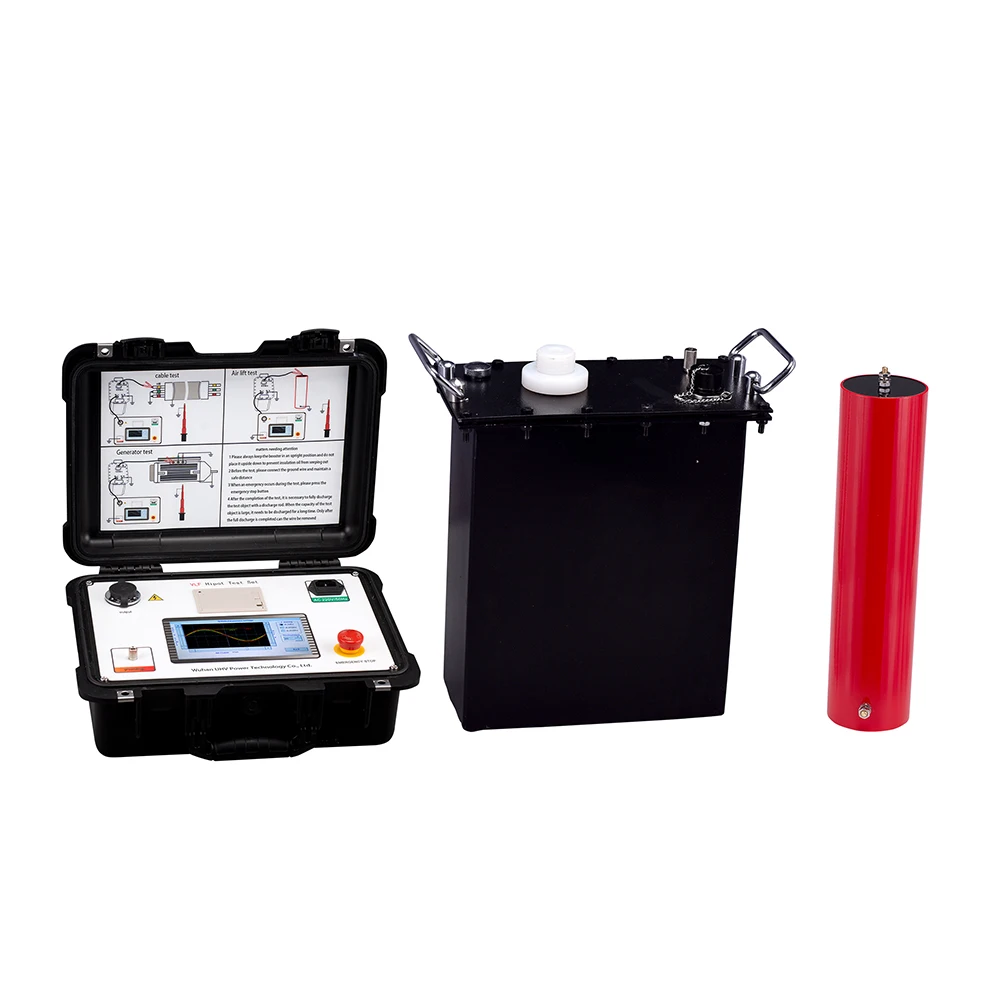

VLF 0.1 Hz 30KV 50KV 60KV 80kv 90KV Ultra Low Frequency AC Withstand High Voltage Tester VLF Hipot Tester

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Summary

No.1600471911622

$8888.00

Specifications

Use:

Other

Auto Testing Machine

Universal Testing Machine

INQUIRY

Description Download

Key attributes

customized support

OEM, ODM, OBM, Software reengineering

place of origin

Hubei, China

power

Electronic

warranty

1 years

brand name

UHV

model number

HTDP-H

Product name

VLF Hipot Test Set

Rated Voltage

30kV 40kV ,50kV,60kV 80kV,90kV

Output frequency

0.1Hz,0.05Hz,0.02Hz

Accuracy

Voltage positive, negative peak error

≤3%

Voltage waveform distortion

≤5%

Humidity

≤85%RH

Input

220V±5%,50±5Hz

Temperature

-10℃~+40℃

Packing

Wooden carton

Packaging and delivery

Packaging Details

Outside packing: standard wooden box

Port of dispatch

Shanghai/Wuhan

Selling Units

Single item

Single package size

46X53X75 cm

Single gross weight

73.000 KG

Packaging examples

Supply capacity

Supply Ability

80 sets per Month

Product Paramenters

Working power	220V±5%，50±5Hz
Output voltage	60kV
Output frequency	0.1Hz、0.05Hz、0.02Hz
Load capacity	0.1Hz-1.1uF、0.05Hz-2.2uF、0.02Hz-5.5uF
Measurement accuracy	3%
Voltage positive, negative peak error	≤3％
Voltage waveform distortion	≤5％
Working temperature	-10℃～+40℃
humidity	≤85％RH

Features:

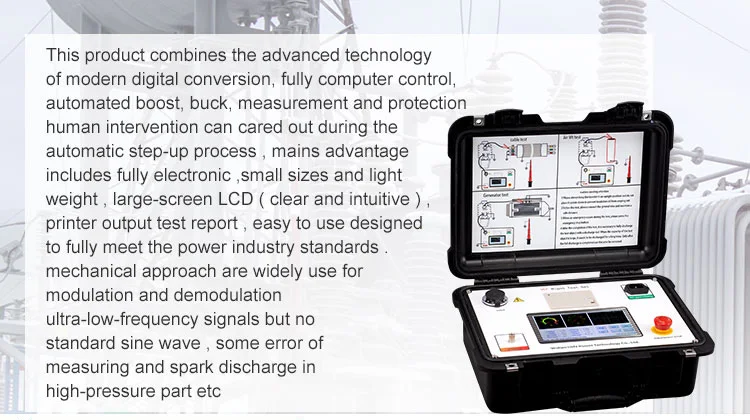

1. Advanced technology: using digital frequency conversion technology, microcoAmputer control, fully automated test processes such as boosting, bucking, measurement, and protection.

2. Convenient operation: simple wiring, fool-like operation.

3. Comprehensive protection: multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapid action (action time ≤ 10ms), and the instrument is safe and reliable.

4. Safe and reliable: low-voltage connection between the controller and the high-voltage generator, photoelectric control, safe and reliable use.

5. The high and low voltage closed-loop negative feedback control circuit is adopted, and the output has no capacity rise effect.

6. Complete configuration: capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing.

7. Large test range: 0.1Hz, 0.05Hz and 0.02Hz multi-frequency selection, large test range.

8. Small size and light weight: it is very beneficial to outdoor work.

9. Chinese and English switching function.

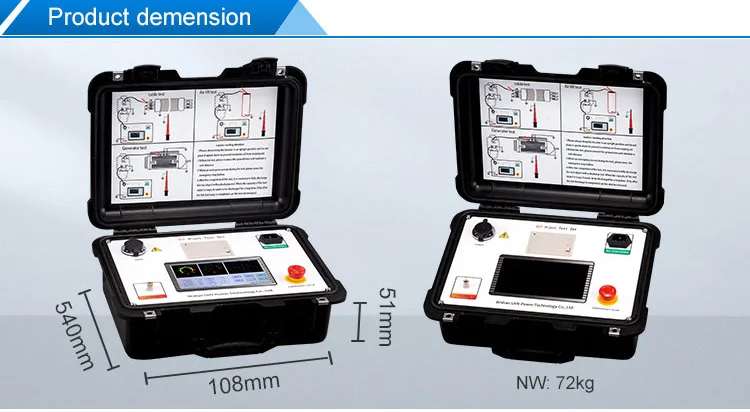

Model	Rated Voltage	Load Capacity	Power Supply Fuse	Product Structure and Weight
30/1.1	30kV （peak value）	0.1Hz,≤1.1µF	10A	controller：13㎏ Booster：20㎏
					0.05Hz,≤2.2µF
					0.02Hz,≤5.5µF
40/1.1	40kV （peak value）	0.1Hz,≤0.8µF	10A	controller：13㎏ Booster：20㎏
					0.05Hz,≤1.6µF
					0.02Hz,≤4.0µF
50/1.1	50kV （peak value）	0.1Hz,≤0.7µF	15A	controller：13㎏ Booster：40㎏
					0.05Hz,≤1.4µF
					0.02Hz,≤3.5µF
60/0.6	60kV （peak value	0.1Hz,≤0.6µF	15A	controller：13㎏ Booster：50㎏
					0.05Hz,≤1.2µF
					0.02Hz,≤3.0µF
80/1.1	80kV （peak value）	0.1Hz,≤0.5µF	15A	controller：13㎏ Booster：50㎏
					0.05Hz,≤1µF
					0.02Hz,≤2.5µF
90/1.1	90kV （peak value）	0.1Hz,≤0.4µF	15A	controller：13㎏ Booster：55㎏
					0.05Hz,≤0.8µF
					0.02Hz,≤2.0µF

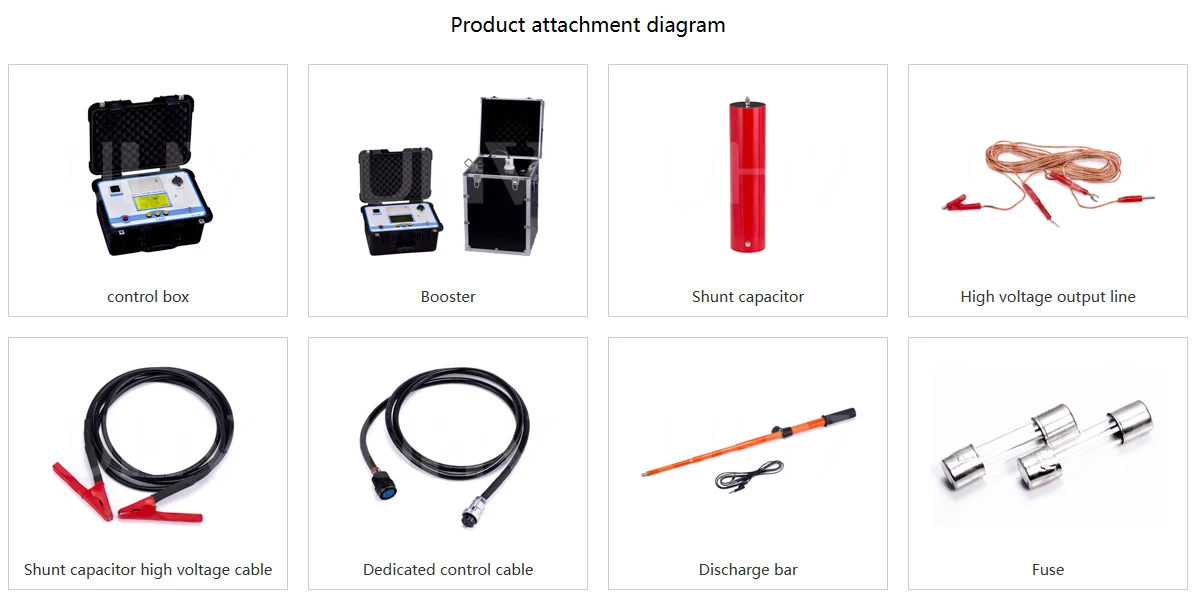

Product Attachment

Company Profile

Wuhan UHV Electric Power Technology CO.,Ltd.

Wuhan UHV Electric Power Technology CO.,Ltd. Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.

We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.

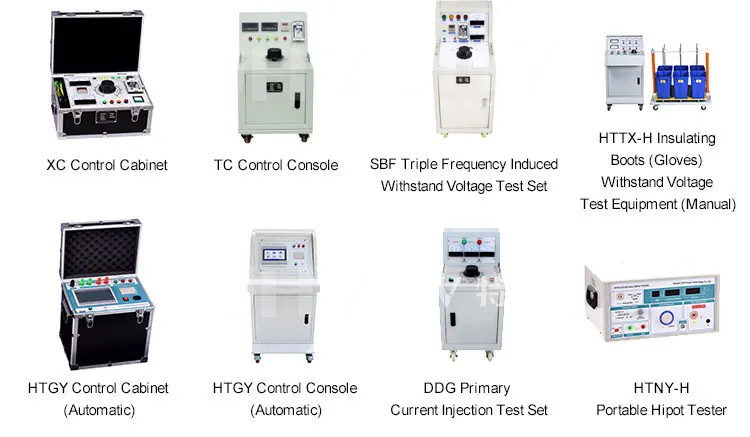

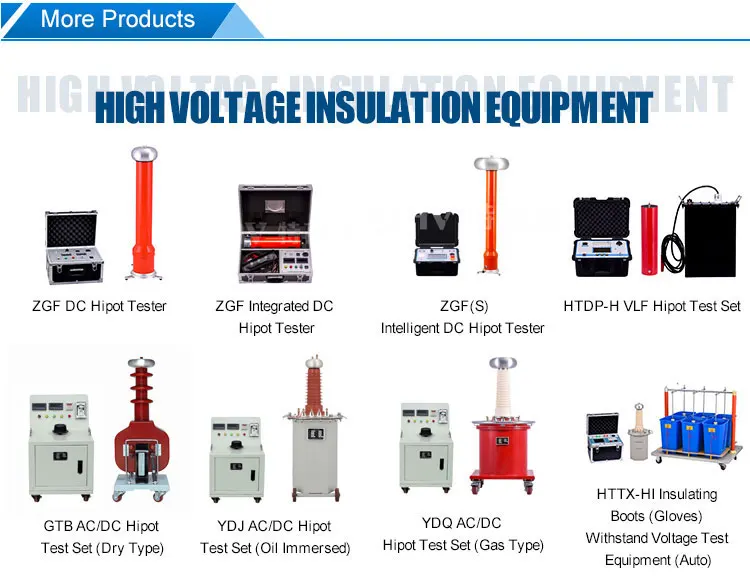

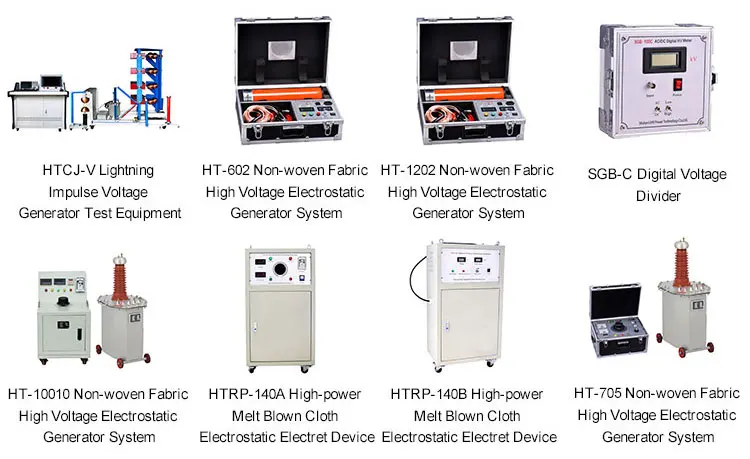

More Products

Packing & Delivery

FAQ

1. Is your company a sales company or a manufacturer?Wuhan UHV Electric Power Technology CO.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.3. Is the quality guaranteed?In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.4. What are the after-sales terms?We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.5. What are the cooperative countries or regions?Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
