Model | XPB-48100 | XPB-48150 | XPB-48200 | ||
Standard Voltage | 48VDc | ||||
Voltage | 37.5-54.75VDc | ||||
Norminal Capacity | 100Ah | 150Ah | 200Ah | ||
Rated Capacity | 4.8kWh | 7.2kWh | 9.6kWh | ||

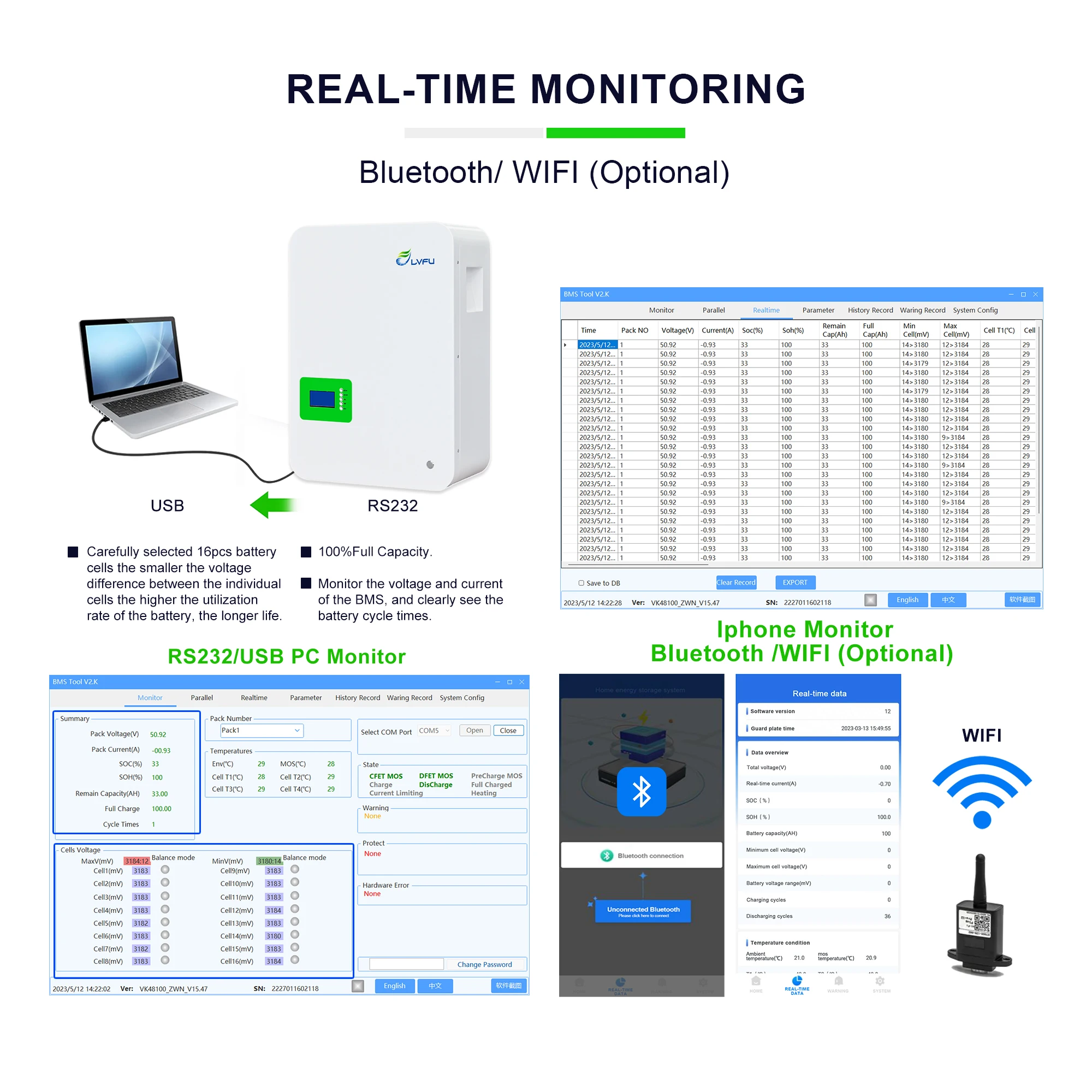

Commumication Protocol | CAN / RS485 / WIFI / 4G / Blue Tooth | ||||
Efficiency (at 0.5C) | 98% | ||||
Cell Self-Discharge | <5%/Month | ||||
Maximum Allowed Modules in Parallet | 15 (72kWh) | 15 (108kWh) | 15 (144kWh) | ||
Depth of Discharge | Up to 100% | ||||
Useful Life | 8-10 Years | ||||
Cycle Life | 6000 (@ 80% DoD) | ||||
Protection | Over temperature, overcurrent, short circuit, over-charging, over-discharging, Low voltage | ||||
Recommended Charge Current | 25A | 50A | 50A | ||
Maximum Charge Current | 50A | 100A | 100A | ||
Recommended Charge Voltage | 54V | 54V | 54V | ||
Maximum Charge Voltage | 54.75V | 54.75V | 54.75V | ||
Recommended Discharge Current | 25A | 50A | 50A | ||
Maximum Discharge Current | 50A | 100A | 100A | ||
Recommended Low Voltage Disconnect | 41.25V | ||||
Battery Low Voltage Protection | 39.75V | ||||
Battery Recovery Voltage | 45V | ||||
Dimenstions: | 510*440*220mm | 690*530*215mm | 690*530*215mm | ||
Weight | 50kgs | 70kgs | 90kgs | ||

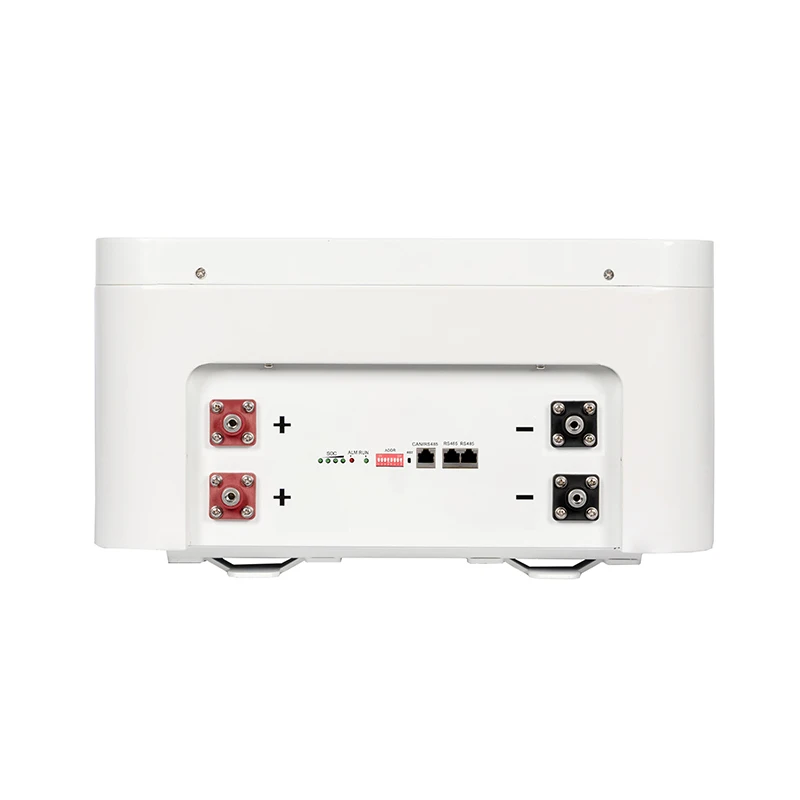

Terminal Type | M6 | ||||
Case Material | Industrial Grade Iron | ||||
Enclosure Protection | IP20 | ||||

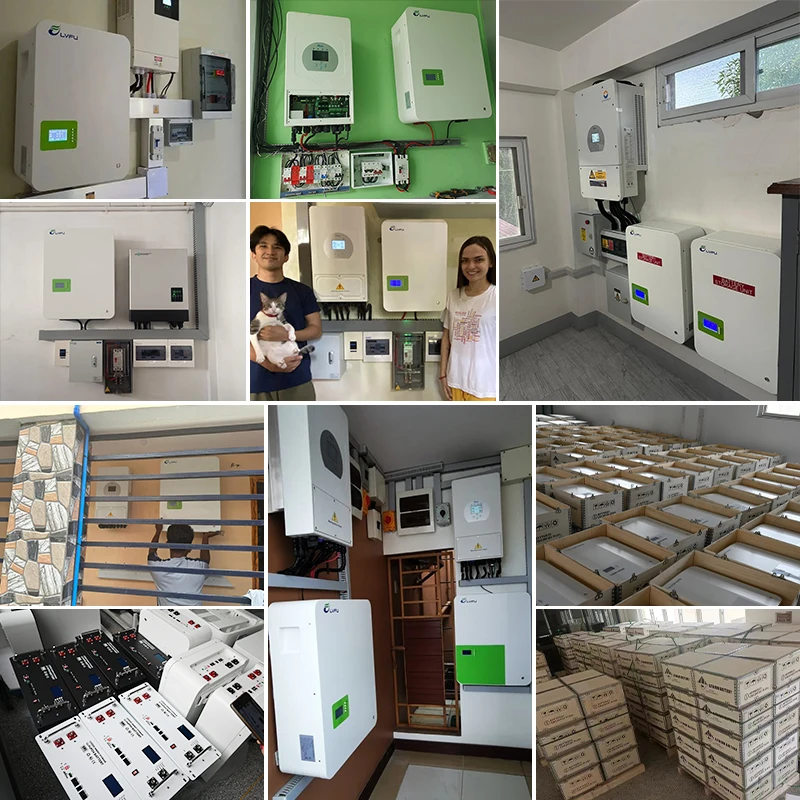

Installation | Cabinet or Wall installation | ||||
Cell Type Chemistry | LiFeP04 | ||||
Certifications | CE,FCC, CCC | ||||
Shipping Classification | UN 38.3. UN 3480, Class 9 | ||||
Discharge Temperature | -20~65℃ | -20~65℃ | -20~65℃ | ||
Charge Temperature | 0~55℃ | 0~55℃ | 0~55℃ | ||
Storage Temperature | -20~45℃ | -20~45℃ | -20~45℃ | ||
